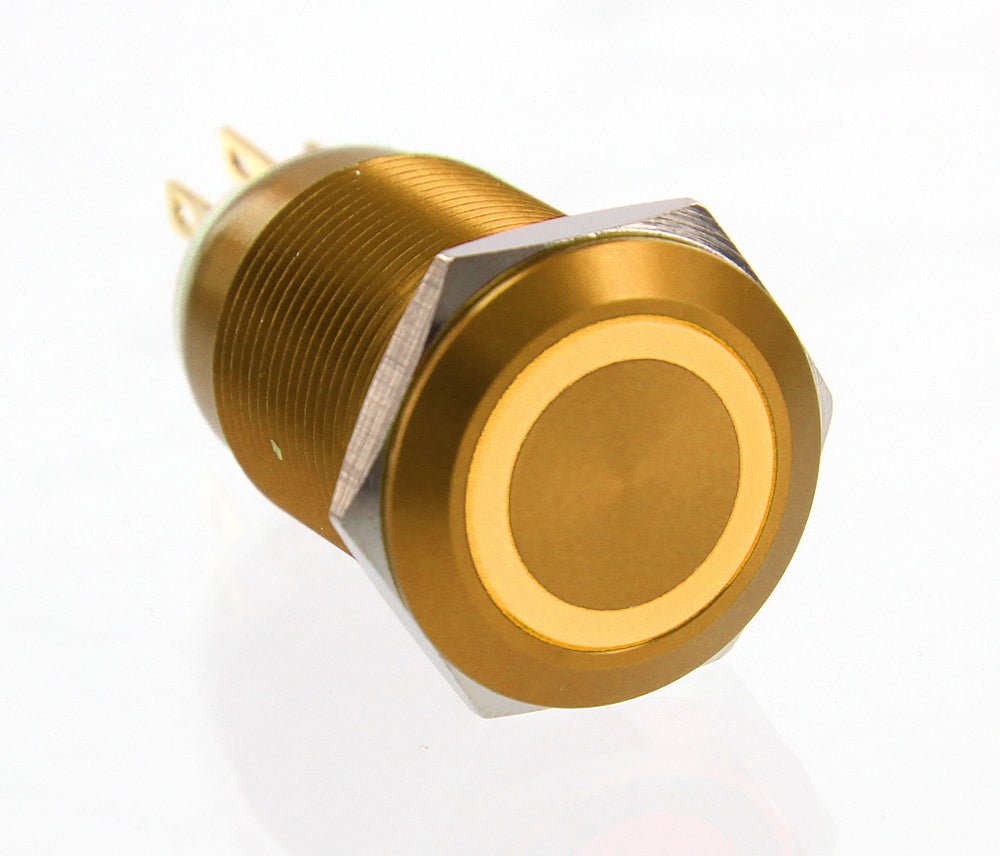

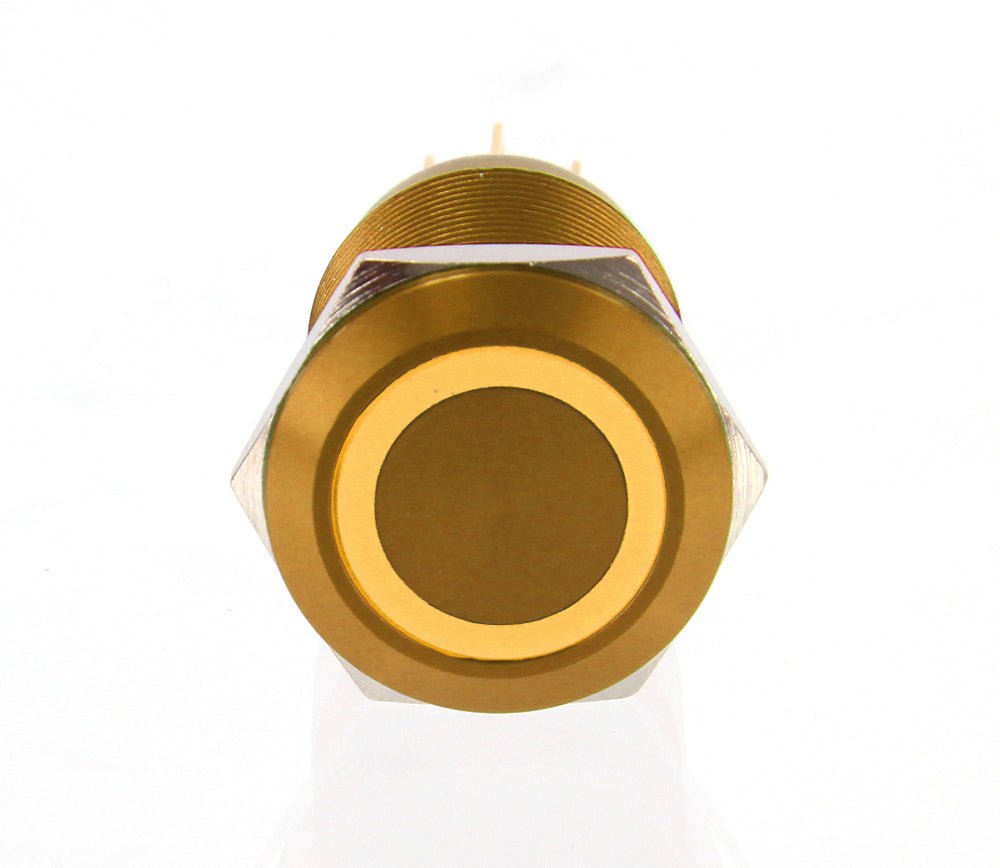

ModMyToys Anodized Illuminated Switch - 22mm Latching - Gold/Amber

All NEW ModMyToys anodized aluminum vandal switches!

These new momentary and on/off switches are ideal switches for modding enthusiasts. When turned on, the ring around the push button illuminates in the specified color. In the case of momentary switches the illumination can always be on. Easy to install and will fit on a regular 5.25 drive cover or wherever you chose to mount it.

Manufactured from Aluminum and then anodized, this extensive range of vandal resistant security switches are designed for use in potentially hostile environments, such as access control applications or, in the case of pc modders, powering up your case to on or for use as a reset button.

• Install diameter: 19mm


• Switch rating: 3A/250VAC


• Shape: Flat head


• Function: Latching


• Led type: Ring illuminated


• Colors: Red, Blue, Yellow, Green, White, Orange)


• Voltage: 12V (Other voltage can be make to order: 1.8V to 250V)

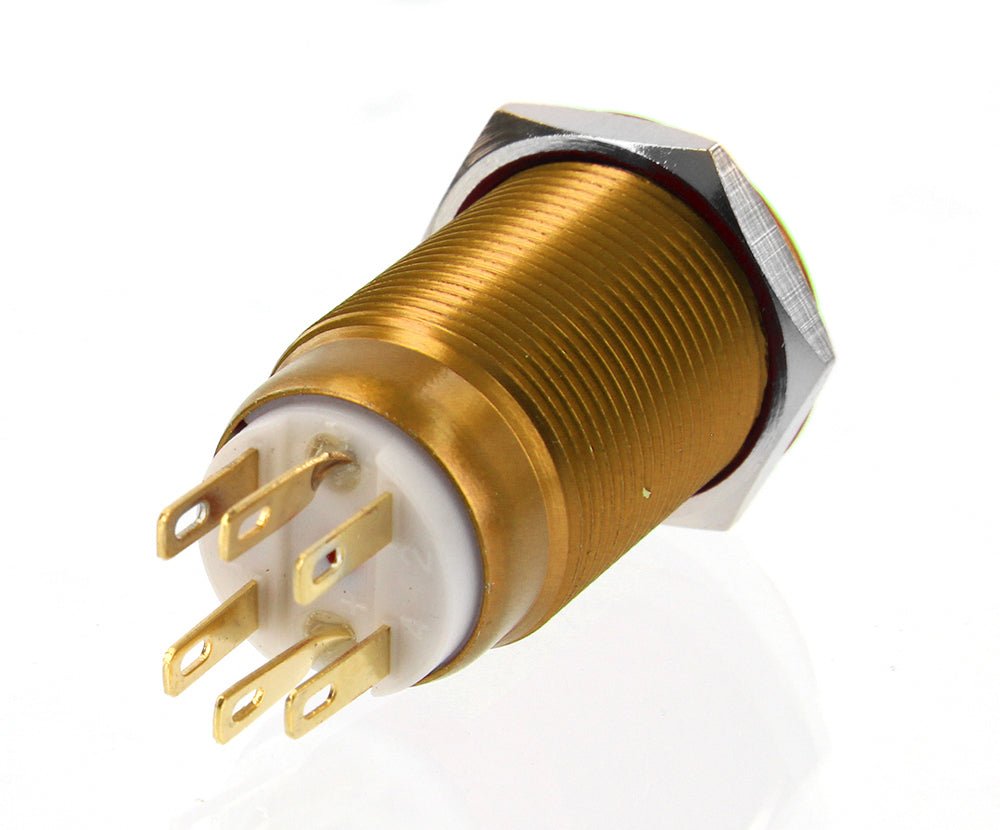

• Terminal: 6 Pin terminal


• Crust material: stainless steel


• IP rating: IP65/IP67 can make to order


• Temperature: - 40 to 75 Degree

• Max. Voltage: 250V


• Max. Current: 3A


• Protection Level: IP65


• Material: Gold anodized aluminum



• Install diameter: 19mm


• Shape: Flat head


• Approval: Rohs material


• Function: Latching (Push on, Push off)



• Contact configuration: SPDT (1NO1NC)


• Color: Amber Ring illuminated LED


• Voltage: 12V (Other voltage 2.8V to 250v)


• Terminal: 6 Pins Terminal
