Model
Brand |
MSI |
|---|
Model |

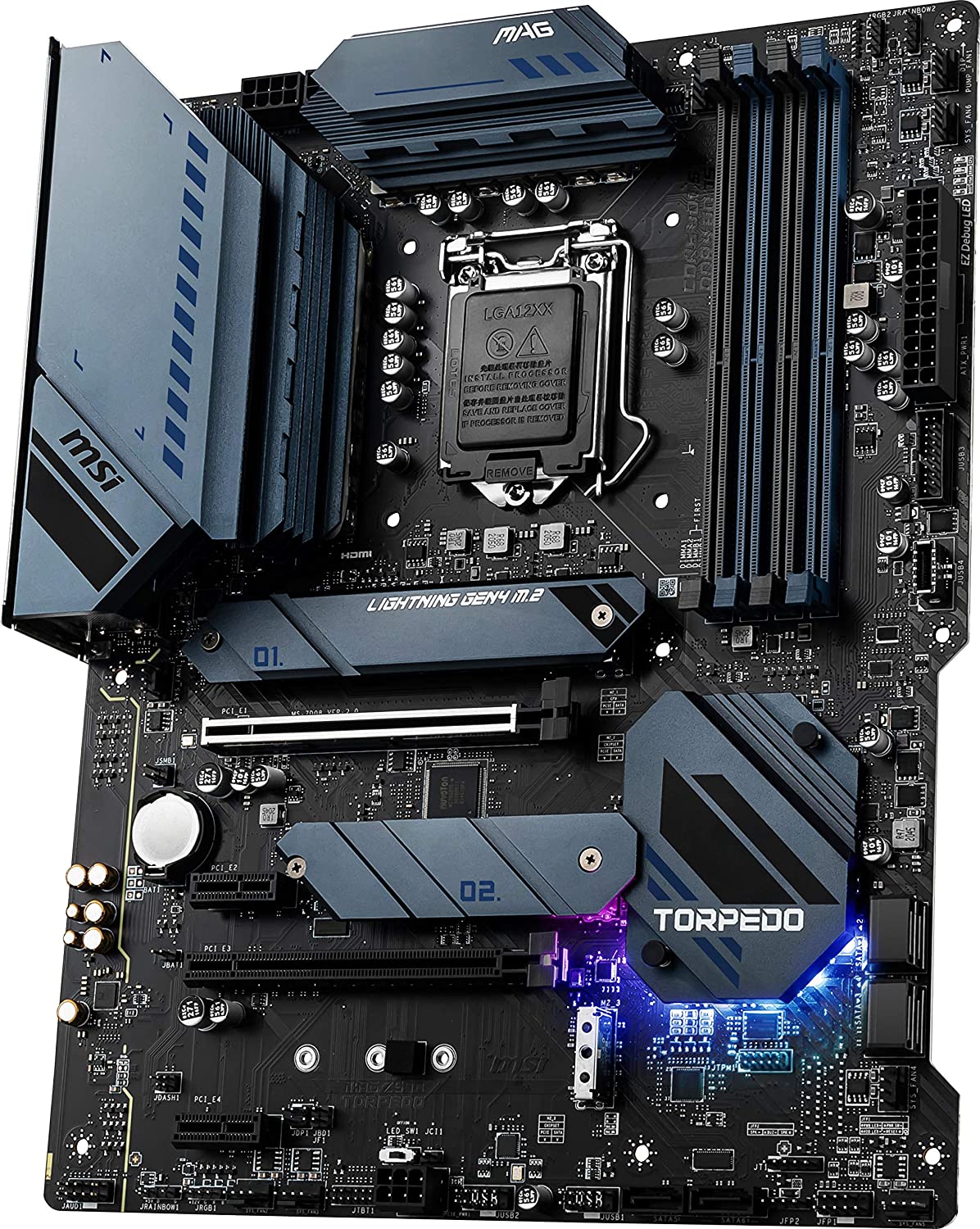

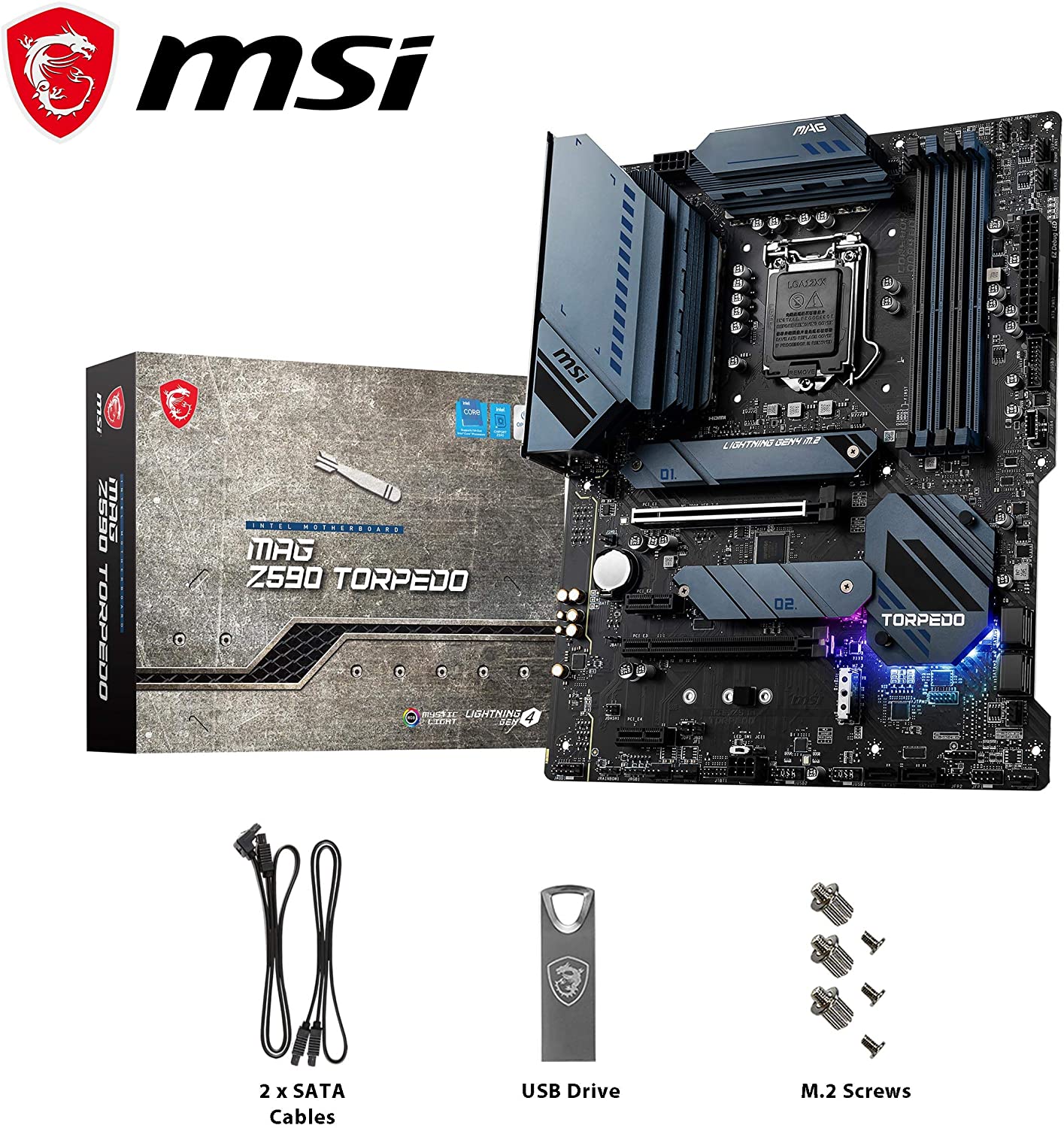

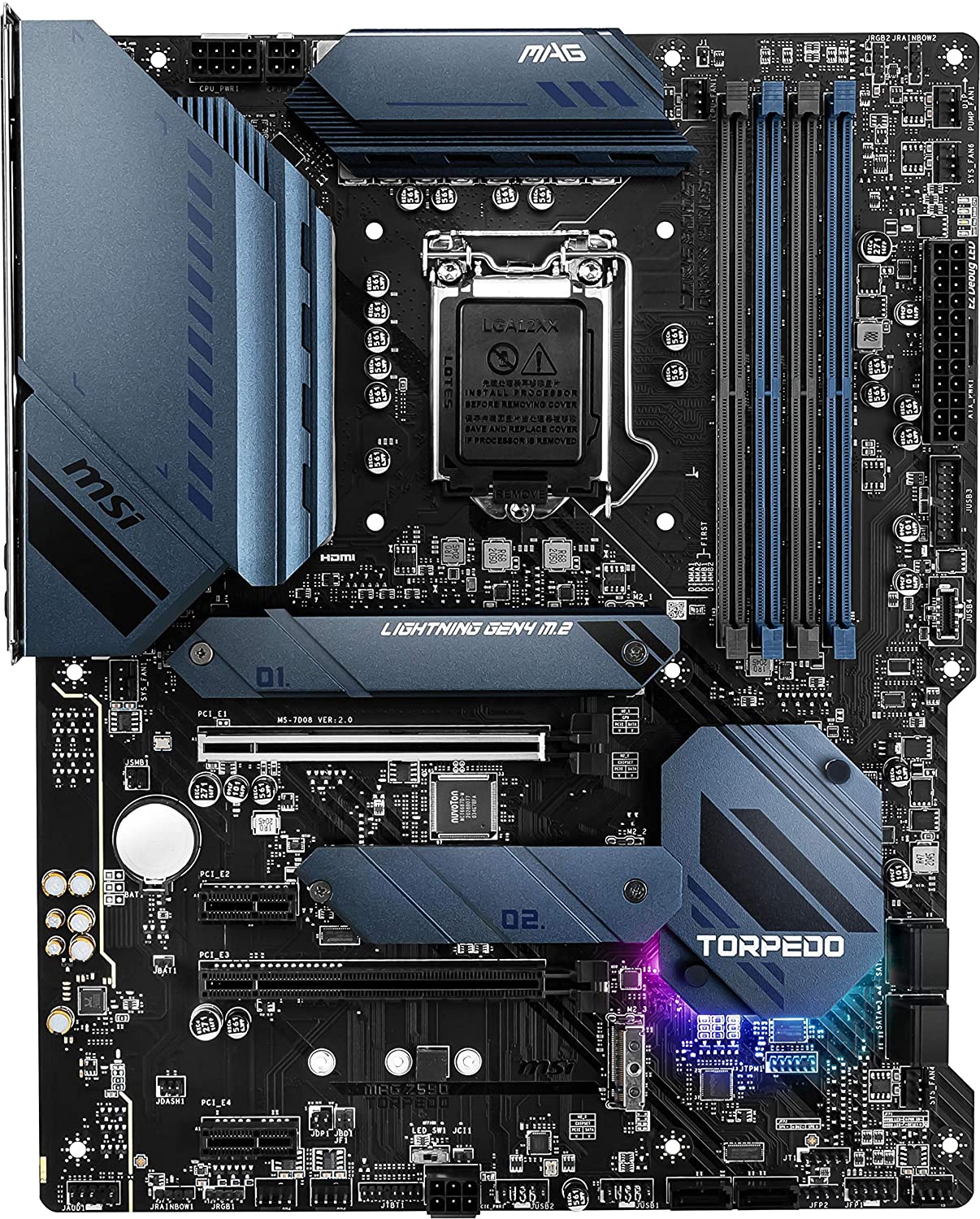

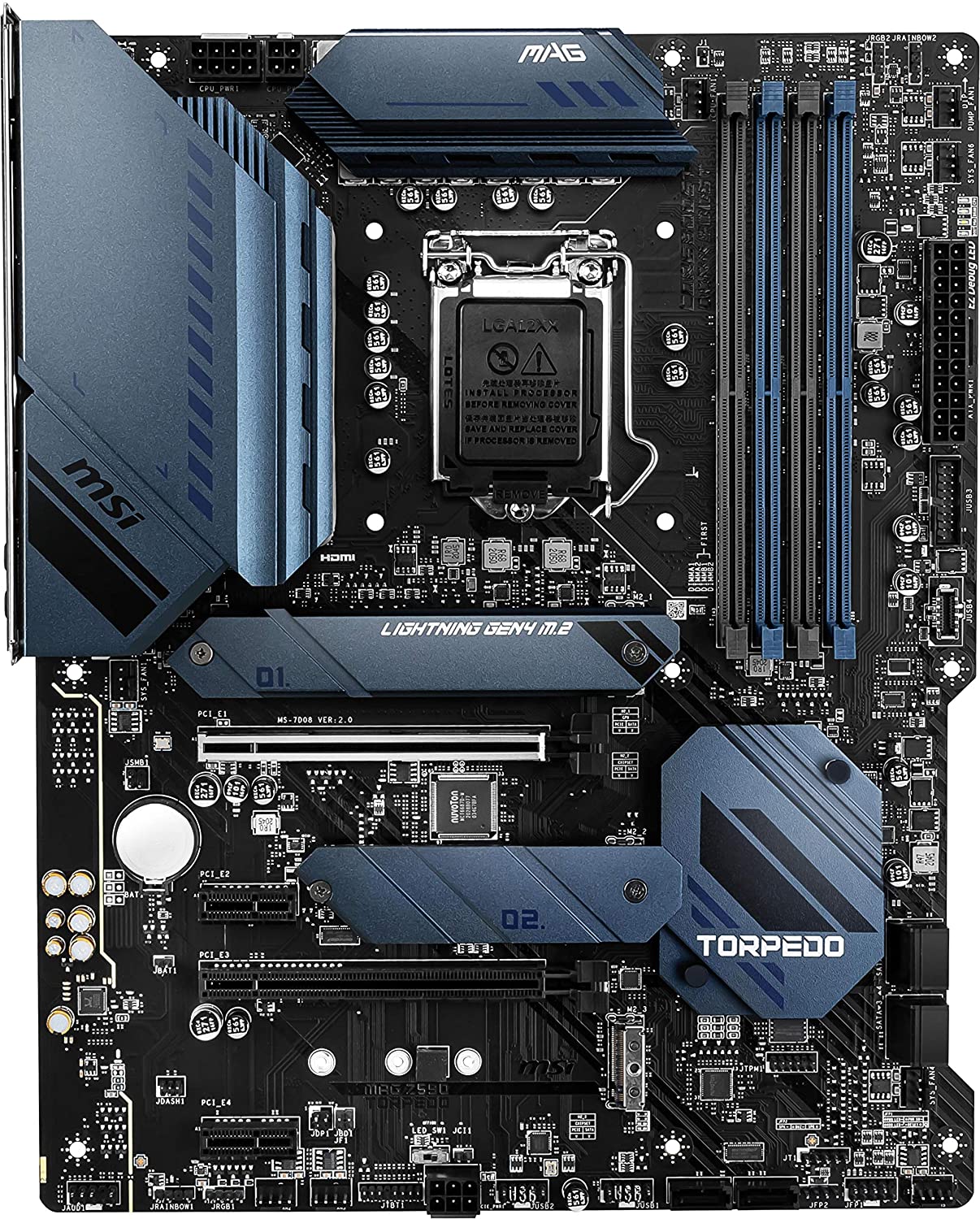

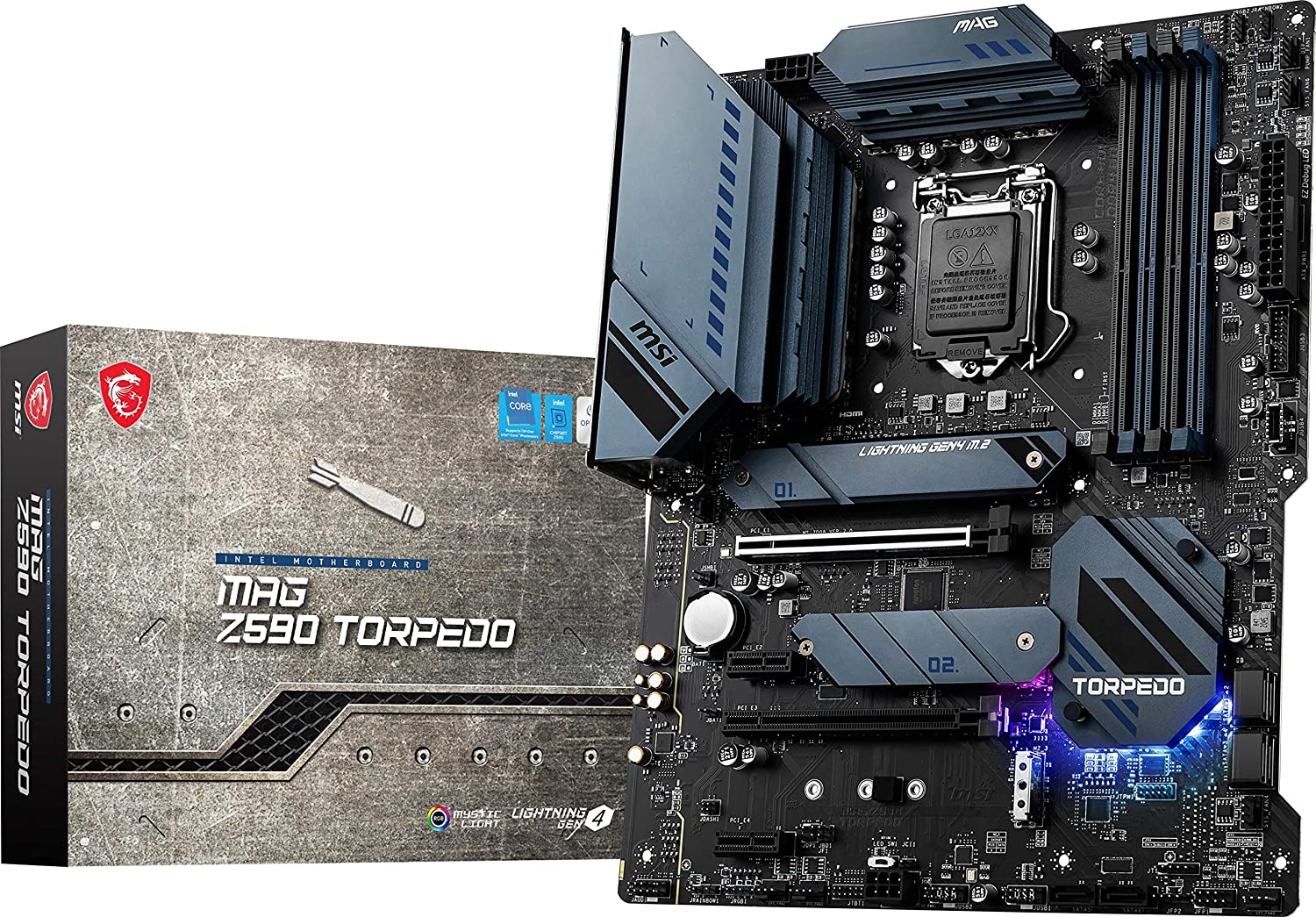

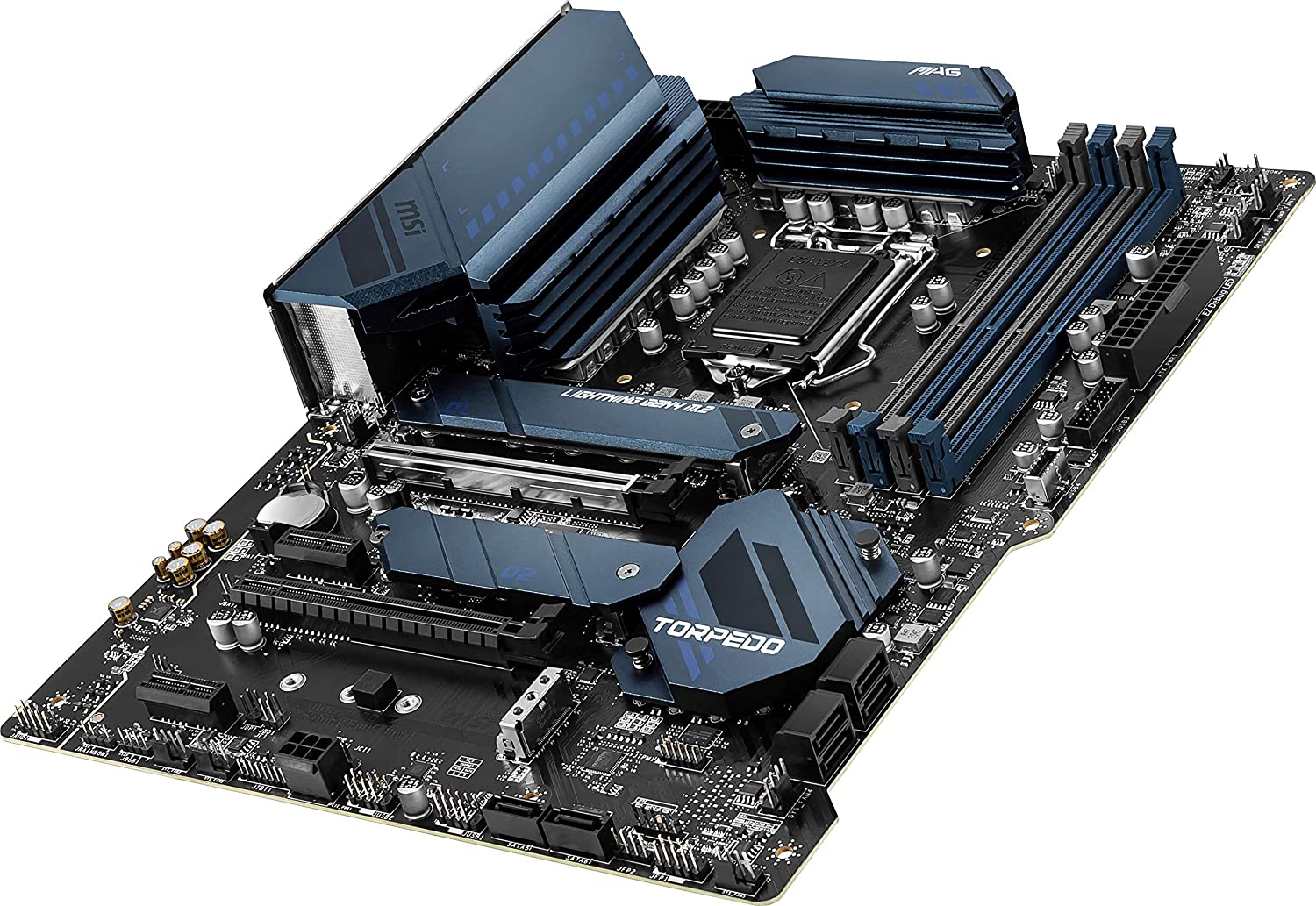

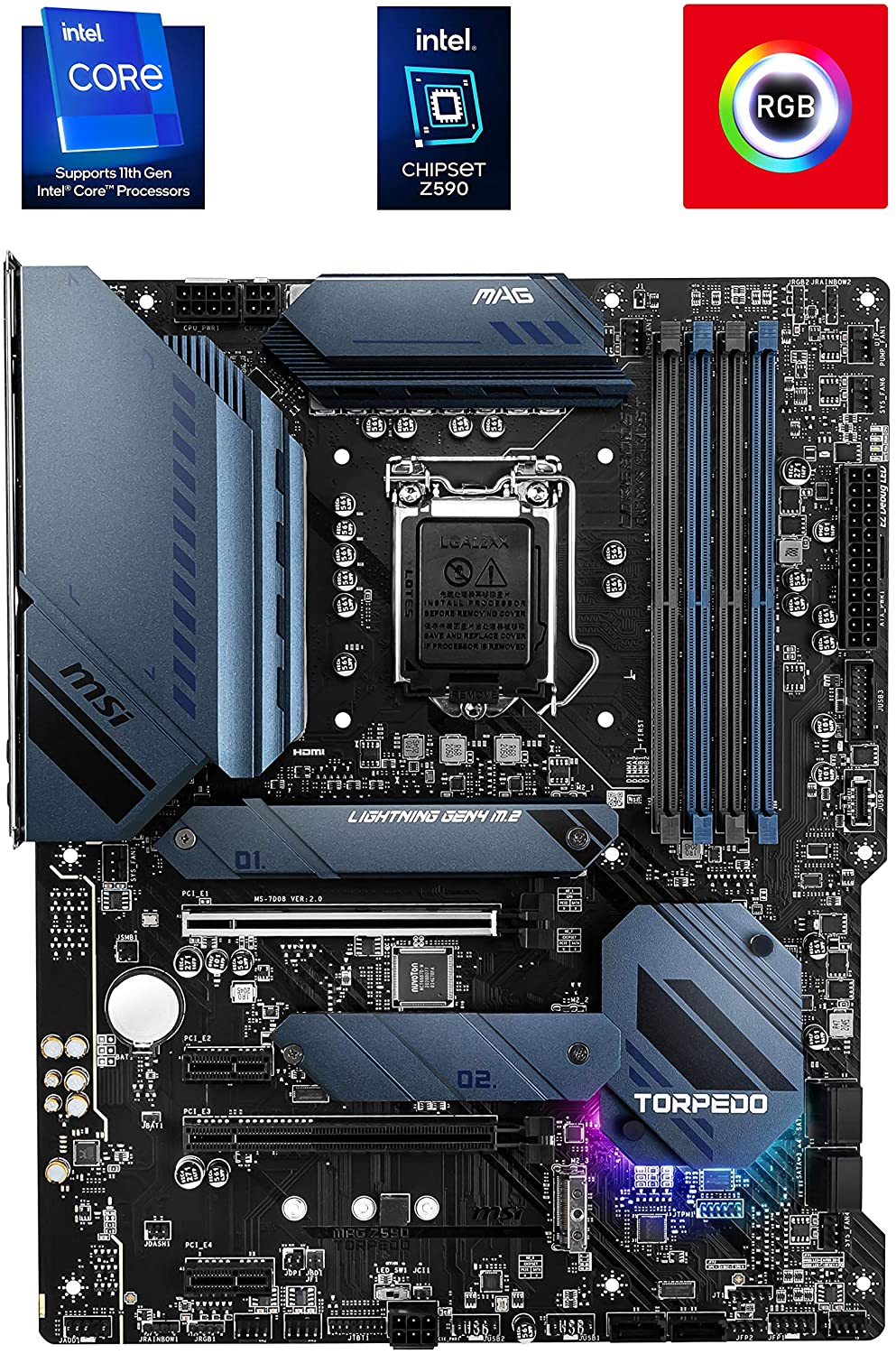

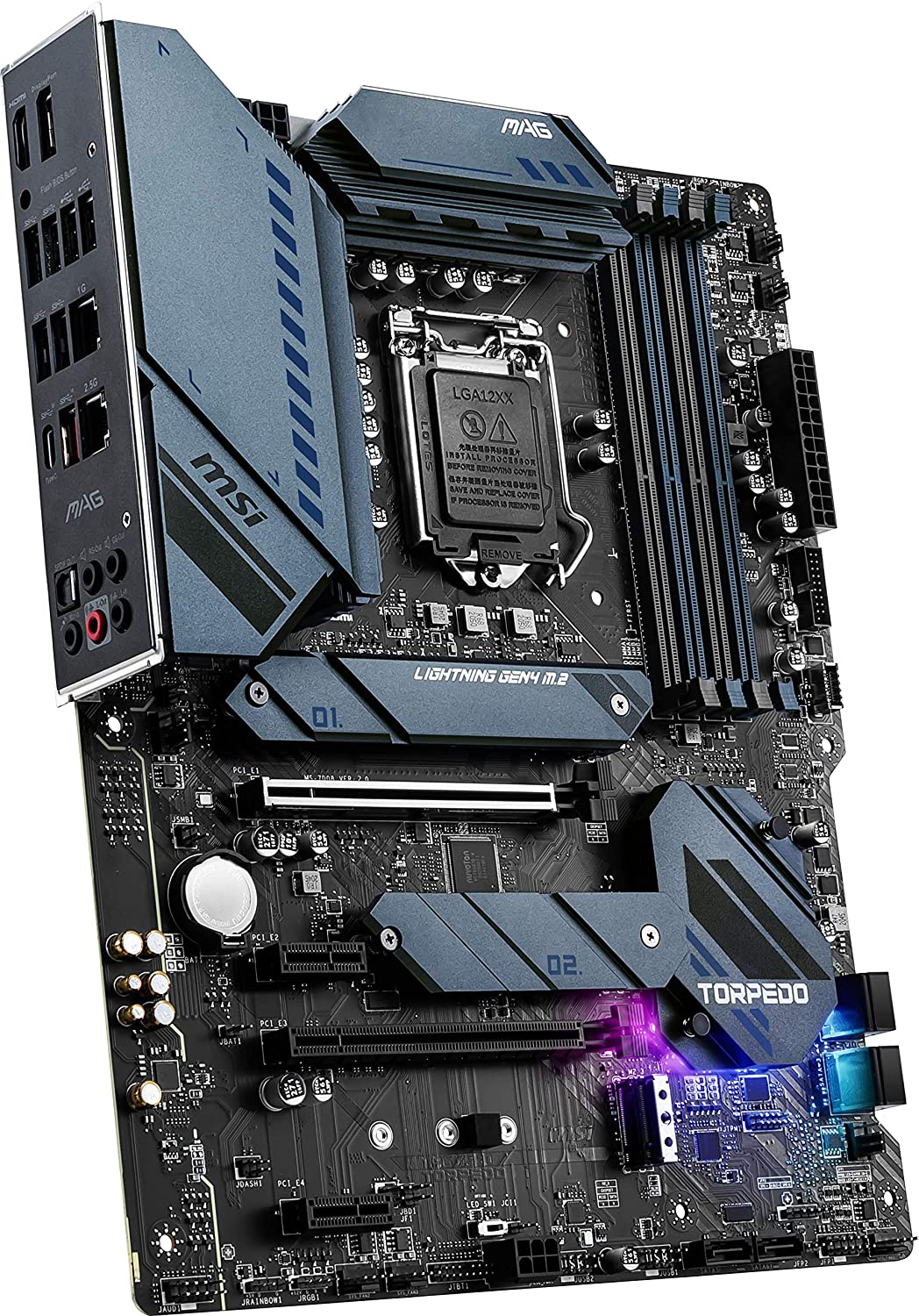

MAG Z590 TORPEDO |
|---|
Supported CPU
CPU Socket Type |
LGA 1200 |
|---|
CPU Type |
Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium Gold / Celeron processors |
|---|
Chipsets
Chipset |
Intel Z590 |
|---|
Onboard Video
Onboard Video Chipset |
Supported only by CPU with integrated graphic |
|---|
Memory
Number of Memory Slots |
4Ã?288pin |
|---|
Memory Standard |
DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333
1DPC 2R Max speed up to 4700+
2DPC 1R Max speed up to 4400+
2DPC 2R Max speed up to 4000+ |
|---|
Maximum Memory Supported |
128GB |
|---|
Channel Supported |
Dual Channel |
|---|
Expansion Slots

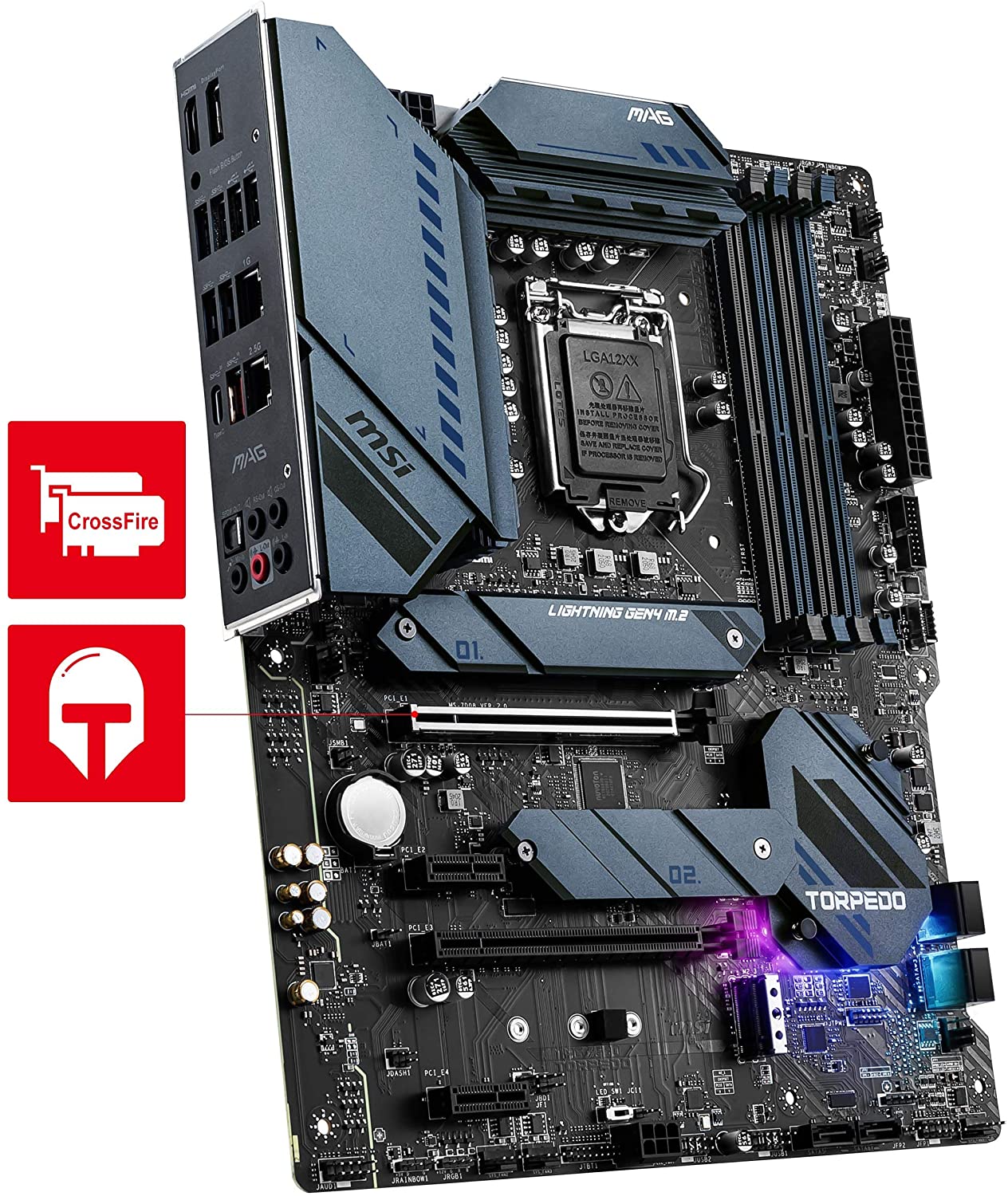

PCI Express 4.0 x16 |
1 x PCI Express 4.0 x16
* Actual support may vary by CPU. |
|---|
PCI Express 3.0 x16 |
1 x PCI Express 3.0 x16 |
|---|
PCI Express x1 |
2 x PCIe 3.0 x1 |
|---|
Storage Devices
SATA 6Gb/s |
6 x SATA 6Gb/s |
|---|

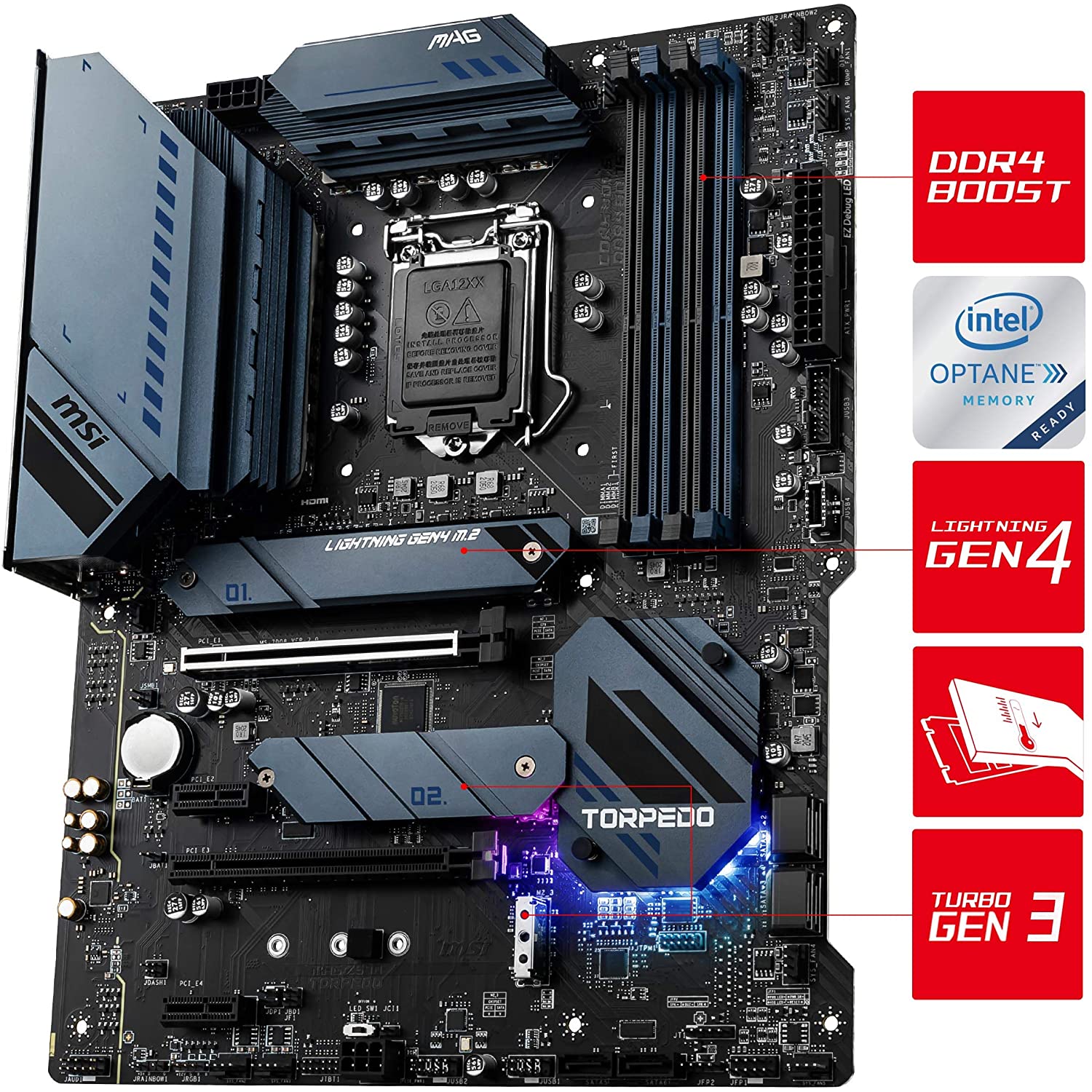

M.2 |
3 x M.2 slots (Key M)
M2_1 slot (From CPU):
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/2260/2280/22110 storage devices
M2_2* & M2_3** slot (From Z590 chipset):
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/2260/2280 storage devices
* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
** SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. |
|---|
Intel Optane Ready |
Intel Optane Memory Ready*
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
|---|
SATA RAID |
0/1/5/10 |
|---|
Onboard Audio
Audio Chipset |
Realtek ALC4080 |
|---|
Audio Channels |
7.1 Channels |
|---|
Onboard LAN
LAN Chipset |
Intel I225-V |
|---|
Second LAN Chipset |
Intel I219V |
|---|
Max LAN Speed |
10/100/1000/2500Mbps + 10/100/1000Mbps |
|---|
Rear Panel Ports

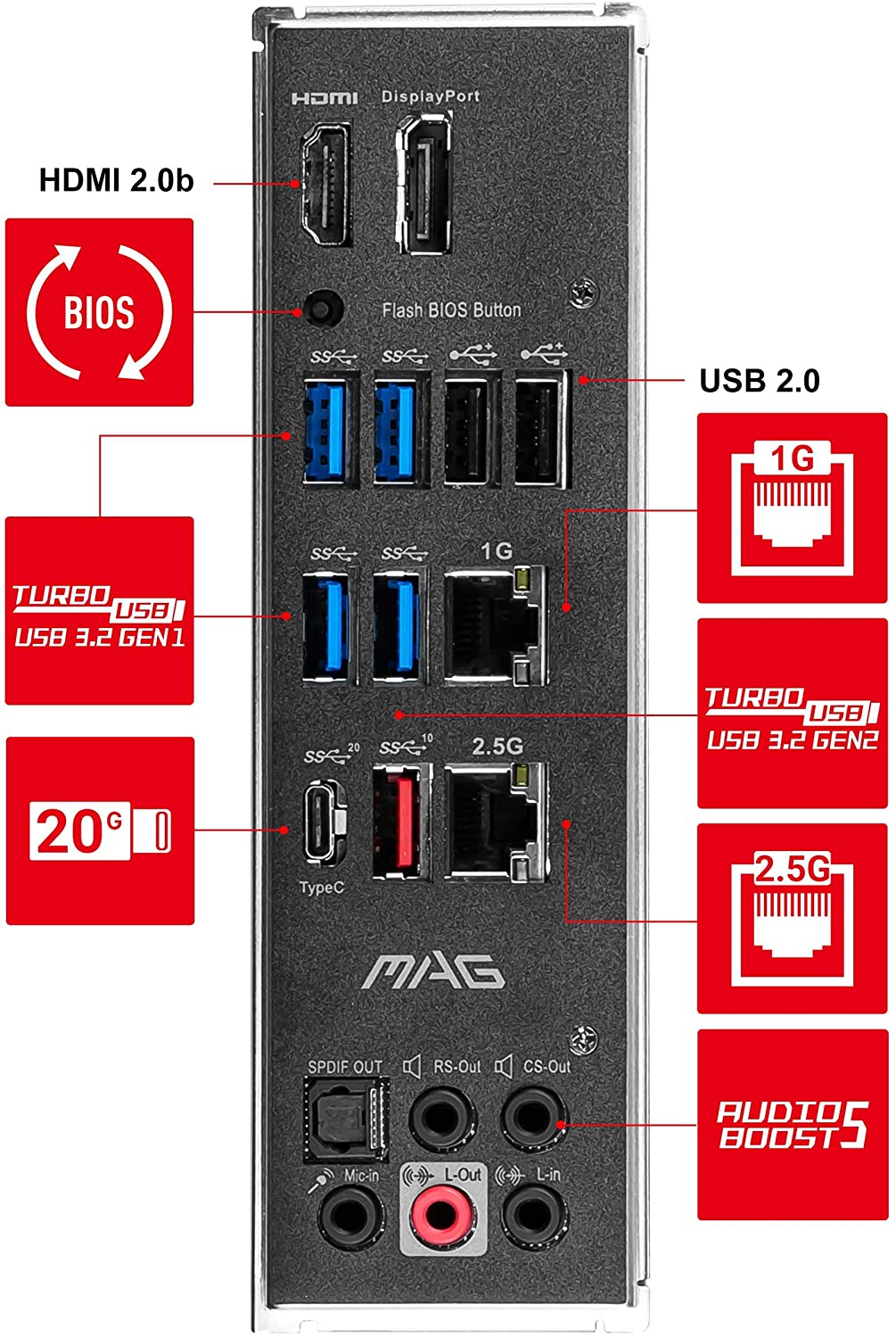

Back I/O Ports |
1 x DisplayPort
1 x HDMI
1 x Optical S/PDIF Out
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2x2 Type-C
2 x LAN (RJ45)
2 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
5 x Audio Jacks
Flash BIOS Button |
|---|
Internal I/O Connectors
Onboard USB |
1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) |
|---|
Other Connectors |
1 x 6-pin PCIE power connector
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x TBT connector (supports RTD3)
1 x Tuning Controller connector |
|---|
Physical Spec
Form Factor |
ATX |
|---|
Dimensions (W x L) |
12.0 x 9.6 |
|---|
Power Pin |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector |
|---|
