Newton CAC, Intel NUC 11Gen Atlas Canyon fanless caseA-NUC83-M1B

Newton CAC, Intel NUC 11Gen Atlas Canyon fanless case

Name: Newton CAC, Intel NUC 11Gen Atlas Canyon fanless case
Brand: Akasa
Price: 75.8 USD
Availability: OutOfStock

A-NUC83-M1B

Newton CAC

Ultra-compact silent evolution for IntelÂ® NUC 11 Essential Series (Atlas Canyon)

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$75.80 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

Newton CAC

Ultra-compact silent evolution for Intel ® NUC 11 Essential Series (Atlas Canyon)

Ultra-compact sub-one liter fanless case for Intel ® NUC 11 Essential series (Atlas Canyon) with Pentium ® Silver or Celeron ® processors.

Features

â?¢ Aluminium fanless CPU cooling design
â?¢ Compatible with: NUC11AT(K)/(B)

Small but Powerful

Designed for IntelÂ® NUC 11 Atlas Canyon with PentiumÂ® Silver or CeleronÂ® processors. The Atlas Canyon features rich connectivity options HDMI and DP++ video ports, six USB ports and more. Perfect as a Mini-PC for everyday solution for kiosks, collaboration, streaming, and digital signage.

Extremely Compact and Robust

At less than one liter in volume, the Newton CAC is very compact in form factor with no vent holes. With space for one M.2 SSD.

Superb Cooling Performance

Completely silent mini PC case utilise all aluminium fanless CPU cooling designÂ which acts as aÂ heatsink toÂ dissipateÂ the heat to the surrounding.

Array of Applications

Perfect chassis as a small form factor, powerful system for kiosks, collaboration, streaming, and digital signage.

Cool Storage, Cool Performance

Internal M.2 SSD thermal solution provides an effective medium for the transfer of heat from the SSD to the aluminium cover panel to be dissipated, ensuring optimal SSD performance is kept.

Perfect for your Build

Optional hi-quality external antenna (A-ATN01-BK) and corresonding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-fi connector. Perfect additions for your fanless Mini-PC build should a wireless connection be required.

Specifications

Â

Material	Aluminium
Motherboard Types	UCFF 4 X 4
Motherboard Support	MiniPC/Kit models: NUC11ATKC2Â /Â NUC11ATKPE NUC11ATKC4Â /Â NUC11ATKC2 Board model: NUC11ATBC4
Dimensions	178.6 x 117 x 44.5mm (W x D x H)
Drive Bays	M.2 SSD x 1

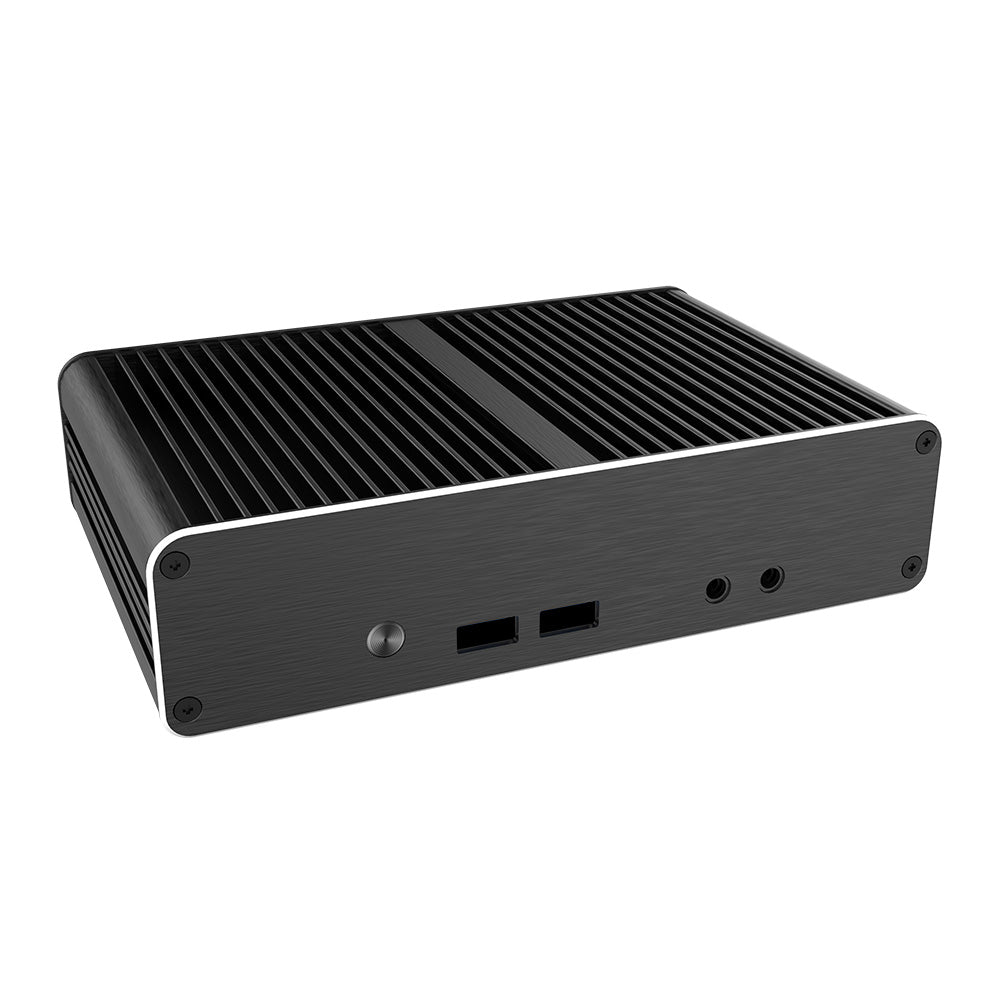

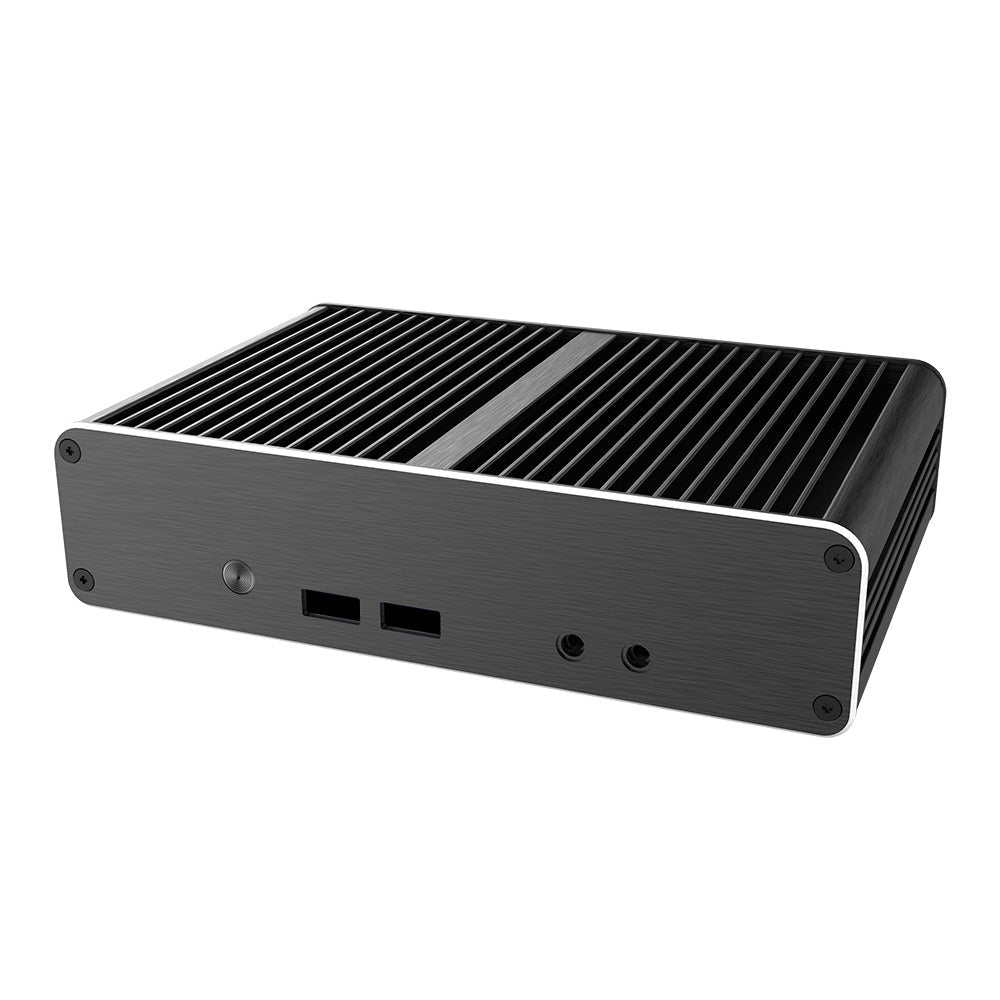

Front I/O Opening	Power button, USB Type-A port x2, 3.5mm audio & microphone jacks

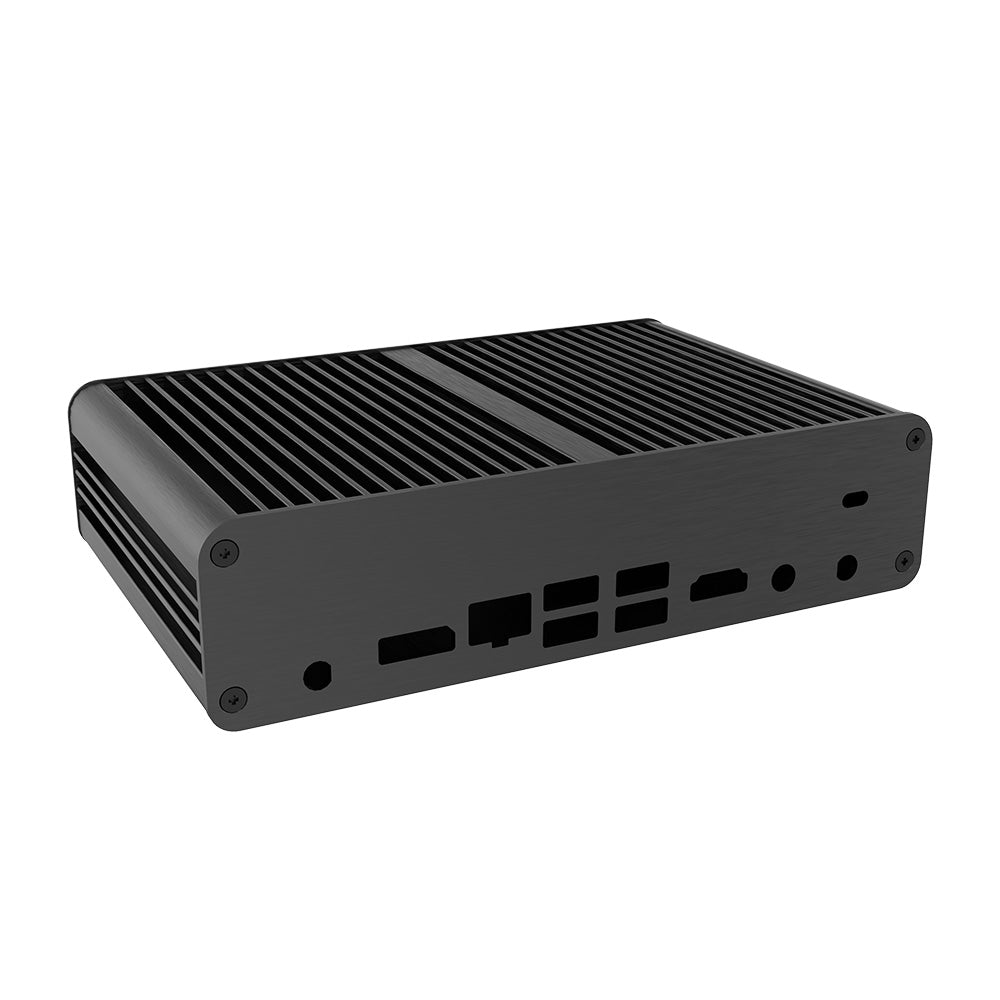

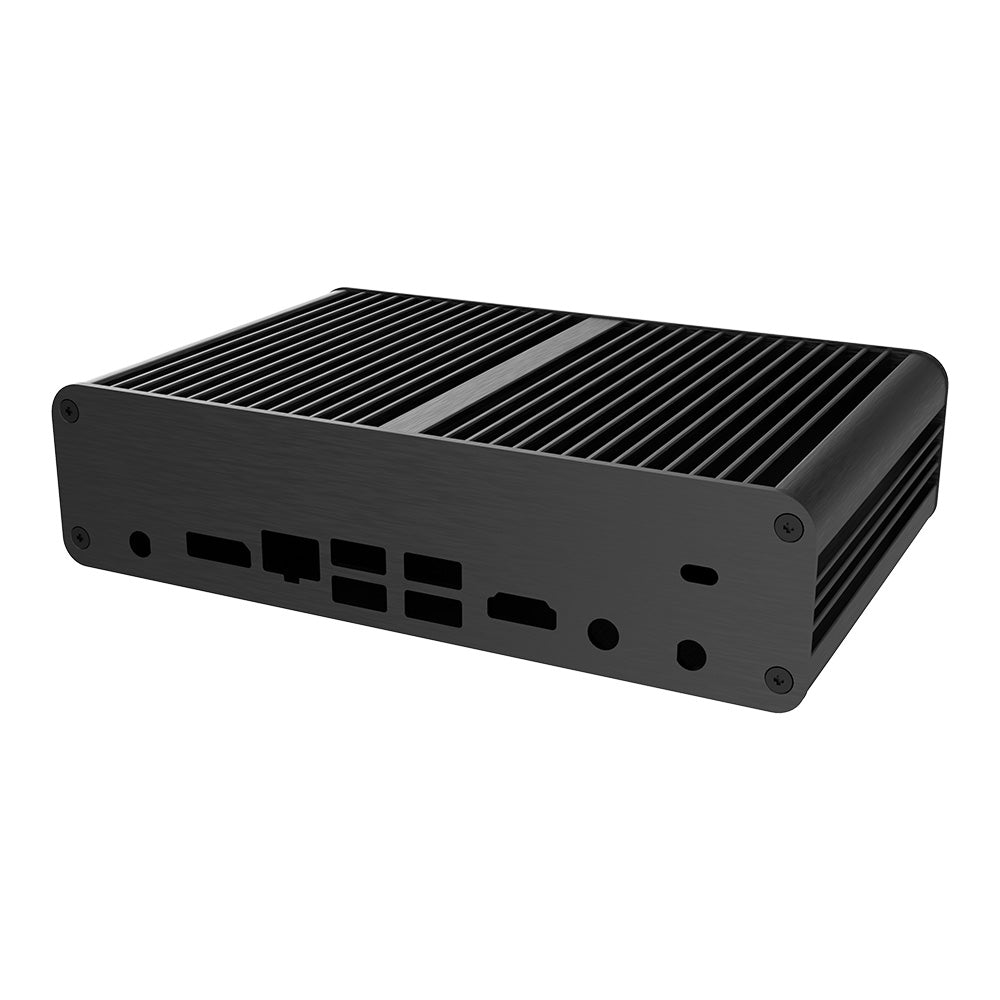

Rear I/O Opening	DC-In port, HDMI port, DisplayPort, USB Type-A port x4, LAN port x1
Antenna Fitting Holes	2
Security	Kensington lock
Optional Power Adapter	65W, 19V (AK-PD065-01M)
Product Code	A-NUC83-M1B
