Newton WS, fanless case for Intel® 12th Generation NUC (Wall Street Canyon)

#5 Best Seller
in All Products/Chassis/NUC Chassis
Akasa

A-NUC92-M1B

Newton WS


Silent Evolution for Intel® NUC 12 Pro (Wall Street Canyon)

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$186.95 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Newton WS

Silent Evolution for Intel ® NUC 12 Pro (Wall Street Canyon)

Fanless case for Intel ® NUC 12 Pro (Wall Street Canyon). Full interface and VESA mounting support. Accommodates 2.5 SATA HDD/SSD.
Features

Newton WS

Fanless case

for Intel® NUC 12 Pro
(Wall Street Canyon)

support 2.5 SATA HDD / SSD

â?¢ Aluminium fanless CPU cooling design
â?¢ Stylish front panel diamond effect
� Designed for Core� i3 and Core� i7/i5 with vPro® Technology




Perfect Features for
Commercial Applications


Designed for Wall Street Canyon models with quad 4K display outputs, making it ideal for digital signage applications or where multiple displays are required.



Supports Intel's commercial board with vPro® Technology support for array of applications including robotic assembly lines

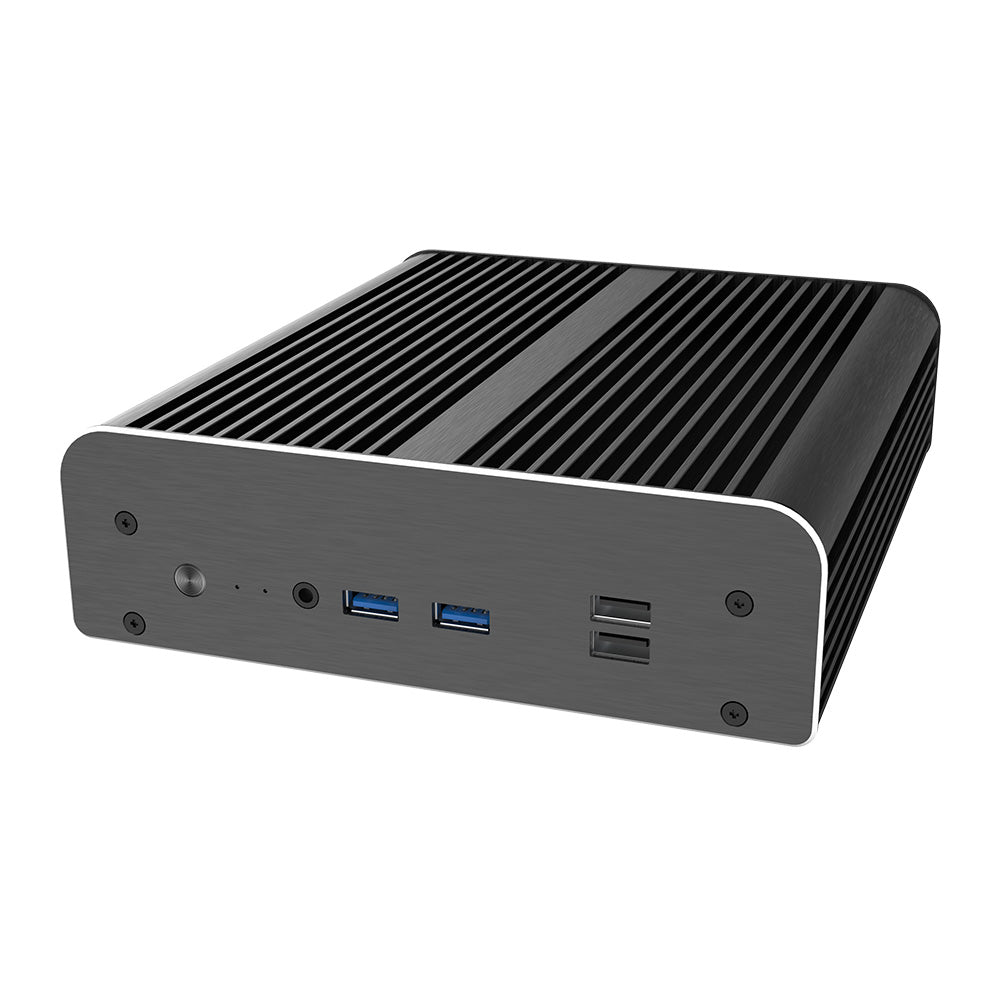

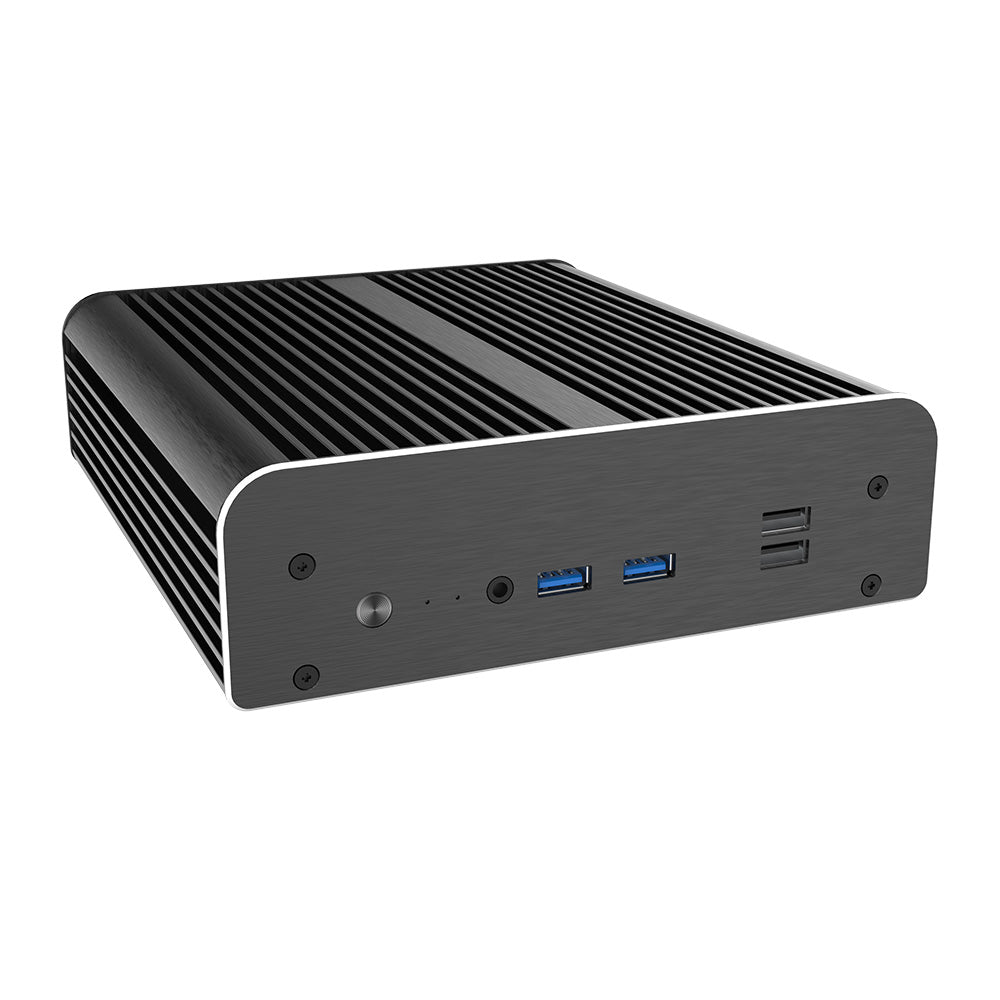

Front Panel Connectivity


Audio and an array of USB connectivity provide rich connectivity in additional to the standard rear interfaces from the Wall Street Canyon board.




Supports up to Four 4K Displays


The Newton WS case provides connector openings for connectivity for up to four 4K displays. Perfect for an array of business applications such a security and digital signage.




Perfect for your Build



Optional hi-quality external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-fi connector. Perfect additions for your fanless Intel NUC build should a wireless connection be required.


The Intel Wall Street Canyon is available as a Mini-PC, Kit or Board models. For Board only models, there are optional compatible external power adapters available: 120W, 19V (AK-PD120-04M) for the Core i7 and i5 models, and 90W, 19V (AK-PD090-01M) for the Core i3 model.













Specifications























































Material Aluminium
Motherboards Types UCFF 4 X 4
Motherboard Support Intel® NUC 12 Pro (Wall Street Canyon) Mini Board/Kit:
NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7
NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5
NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3
Dimensions 176.6 x 200 x 53.6mm (W x D x H)
Drive Bays 2.5 SSD/HDD (up to 9.5mm high)
Front I/O Power button, power and HDD led, USB 3.2 port x2, USB 2.0 port x2, audio jack
Rear I/O DC-In port, HDMI port x2, USB Type-A x2, USB Type-C x2, LAN port x1, Serial port x1
Antenna Fitting Holes 2
Security Kensington lock
VESA Mounting Support
Optional Power Adapter AK-PD120-04M
Product Code A-NUC92-M1B
