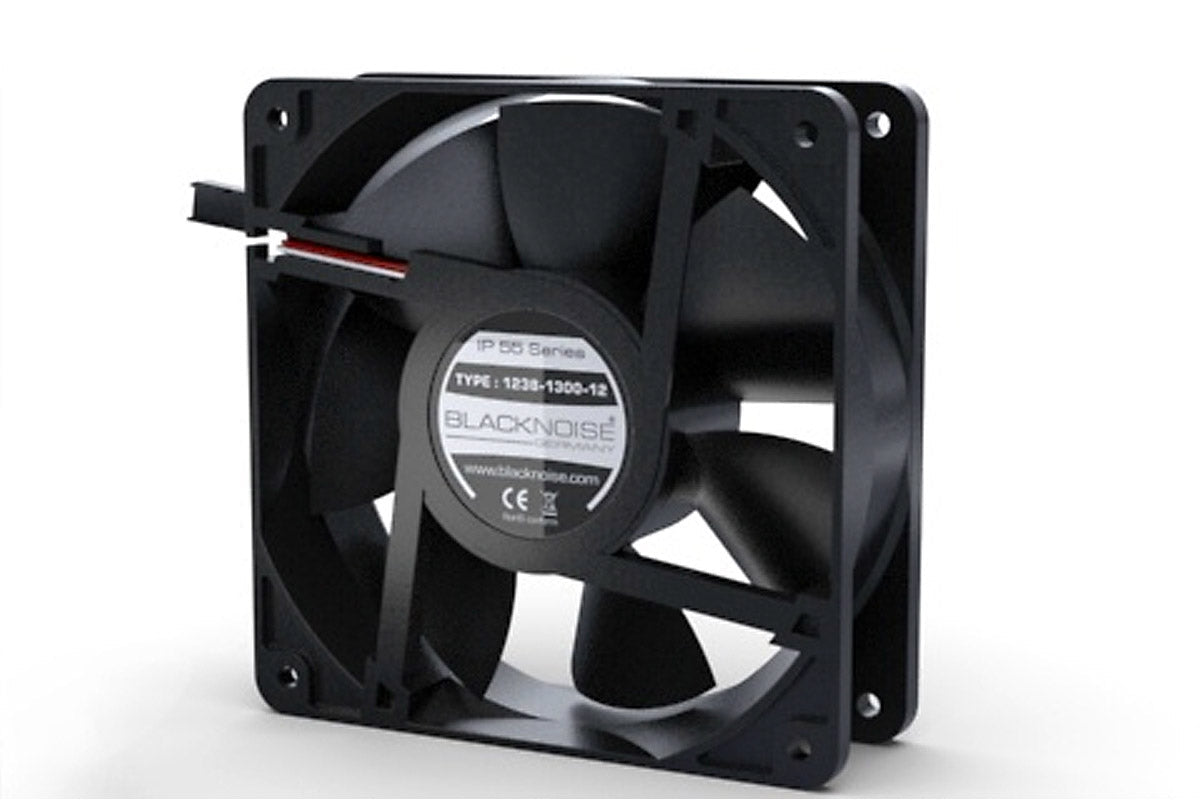

Noiseblocker Industrie NB-IP55 Serie 1600rpm ( 120x120x38mm )

The high-quality NB-IP55 Series features a high scalable and reliable DC drive, Japanese encapsulated double ball bearings and a solid, fibreglass frame. Flexibility and areas of use are greatly increased due the to cable management system. All models are protection class IP 55. Developed in Germany.

Characteristics: protection class IP 55, high-quality EC-motor electronics EKA P2/3, cable management with extensible 500 mm cable, 3Pin Molex with speed signal line, auto restart function, integrated overload and faulty polarization protection. Japanese precision double ball bearing or magnetically stabilised friction bearing according to model. Impeller and casing made of reinforced fibreglass PBT UL94V0 30% GF.

Air flow:	97,9 m³/h
Air flow range:	50 - 99 m³/h
Dimensions:	120 x 120 x 38mm
Frame Color:	black
LED:	Not available
Manufacturer:	Noiseblocker
Power connector:	3Pin Molex
Power input:	10,0 W
Pressure:	1,00 mm H2O
RPM signal transmission:	Yes
Rated speed:	1600 U/min
Rated speed range:	1500 - 1950 U/min
Rotor color:	black
Size:	120mm
Start voltage:	7,0 V
Voltage rated:	12V DC
Volume:	31,1 dB(A)
Volume range:	30 - 49,9 dB(A)
