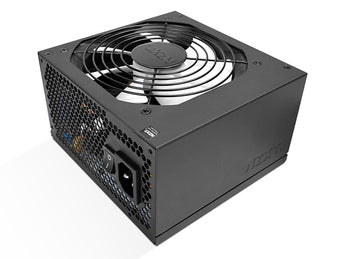

NZXT HALE82 Series 750W 80+ Bronze Non-Modular Power Supply

HALE82-N-750-M-D

NZXT expands the HALE82 series with a brand new non modular power supply for PC enthusiast and gamers.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$104.95 $62.97 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

NZXT expands the HALE82 series with a brand new non modular power supply for PC enthusiast and gamers. This power supply is the first among others to pioneer 2013 ErP Lot 6 Energy Star standard which will reduce vampire power by 50%, decreasing your energy consumption. In addition, HALE82 N is 80Plus Bronze certified and provides the best cost to performance ratio. Designed with high attention to detail, HALE82 N ?s internal board possess a stylish white and black interior design exclusive to NZXT. This does not only look great but also improves performance. A strong single +12V rail design to power up high-end graphic cards without brown-out. The intelligent fan speed control is ideal for users that operate in silent or performance modes. Available in 3 different wattages: 550 to 750watts to meet any mid to high PC configurations.

Features

Features:



  • 80+ Bronze Certification - The HALE82 series from NZXT operates with high efficiency: at 20%, 50%, and 100% loads, efficiencies are 82%, 85%, and 82% respectively.

  • 100% Japanese Capacitors - High quality components promote longer lifespan and better reliability.

  • 120mm Two-Ball Bearing Fan - For smooth, silent rotation and optimal air intake.

  • Strong Single +12V Rail - A single +12V rail provides stability and ease of use with the ability to deliver clean currents under a heavy load.

  • Modular Design - Includes a selection of flat cables that allow the user to pick and choose which cables they want to use, maximizing cable management and airflow inside chassis.

  • Large Tower Support - Extended 8pin connector for bottom mounted cases or large cases.

  • Dual 8pin connector - For high end motherbaords dedicated to overclocking.

  • Keeping it Safe - The HALE80 series offers over voltage, current, power, temperature, under voltage, and short circuit protection.

Specifications

Specifications:








































HALE82-750-M
AC Input 100V~ 240V 10A 50HZ/60HZ
DC Output +3.3V +5V +12V -12V +5Vsb
Max. Current 25A 25A 62A 0.5A 3.0A
Max Combined Wattage 150W 744W 6W 15W
750W













































































ATX / BTX motherboard power connector (20+4Pin) Amount of connectors Cable length
1 550mm
EPS +12V Power Connector (4+4 Pin) Amount of connectors Cable length
2 550mm
Peripheral connector (4 Pin) Amount of connectors Cable length
6 550mm
Serial-ATA power connector Amount of connectors Cable length
8 550mm
Floppy disc connector (4 Pin) Amount of connectors Cable length
- -
PCI-Express 6pin power connector Amount of connectors Cable length
2 550mm
PCI-Express 6+2 pin power connector Amount of connectors Cable length
2 550mm
