SIGNATURE^V3PRO AMD

THE ULTIMATE AM5 CPU BLOCK

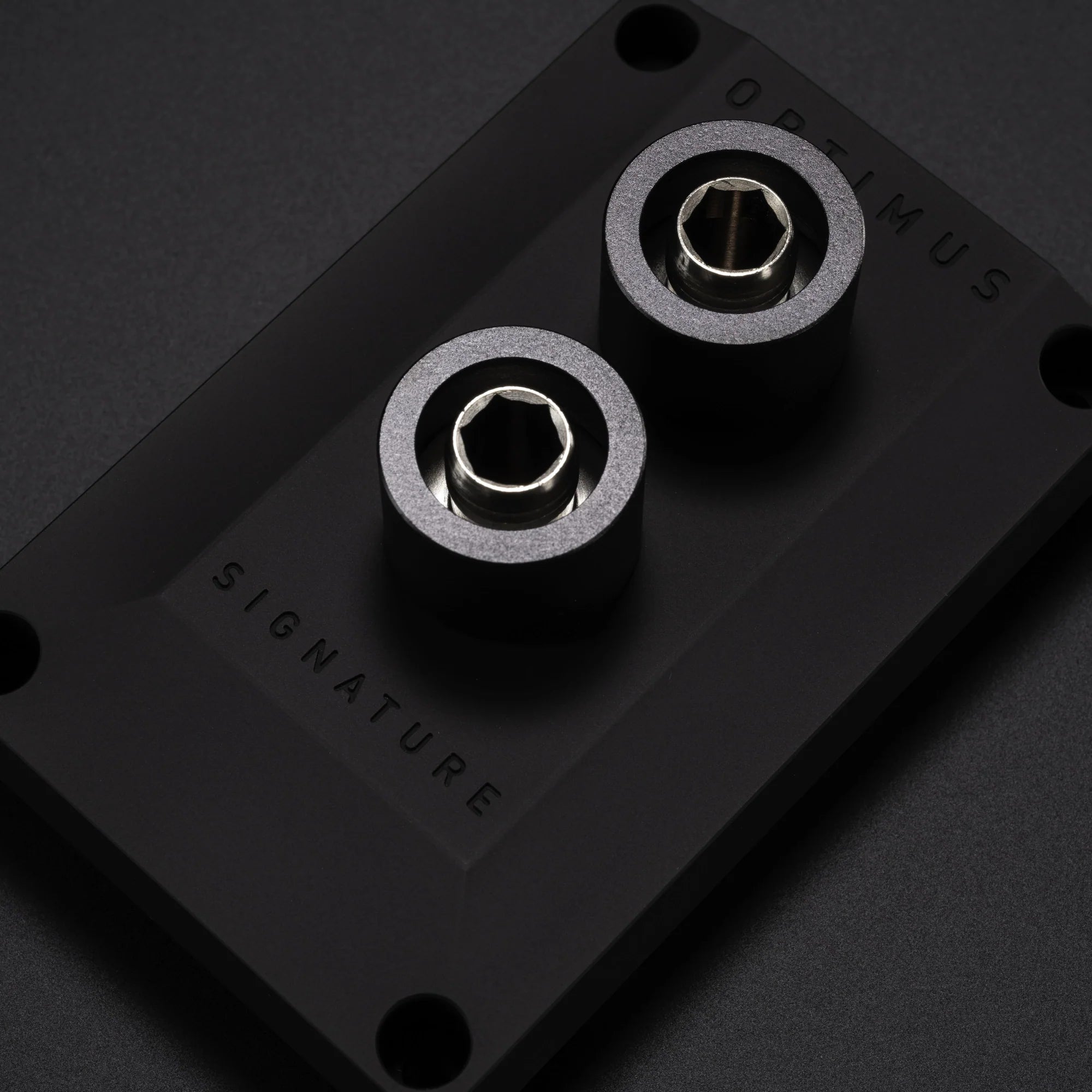

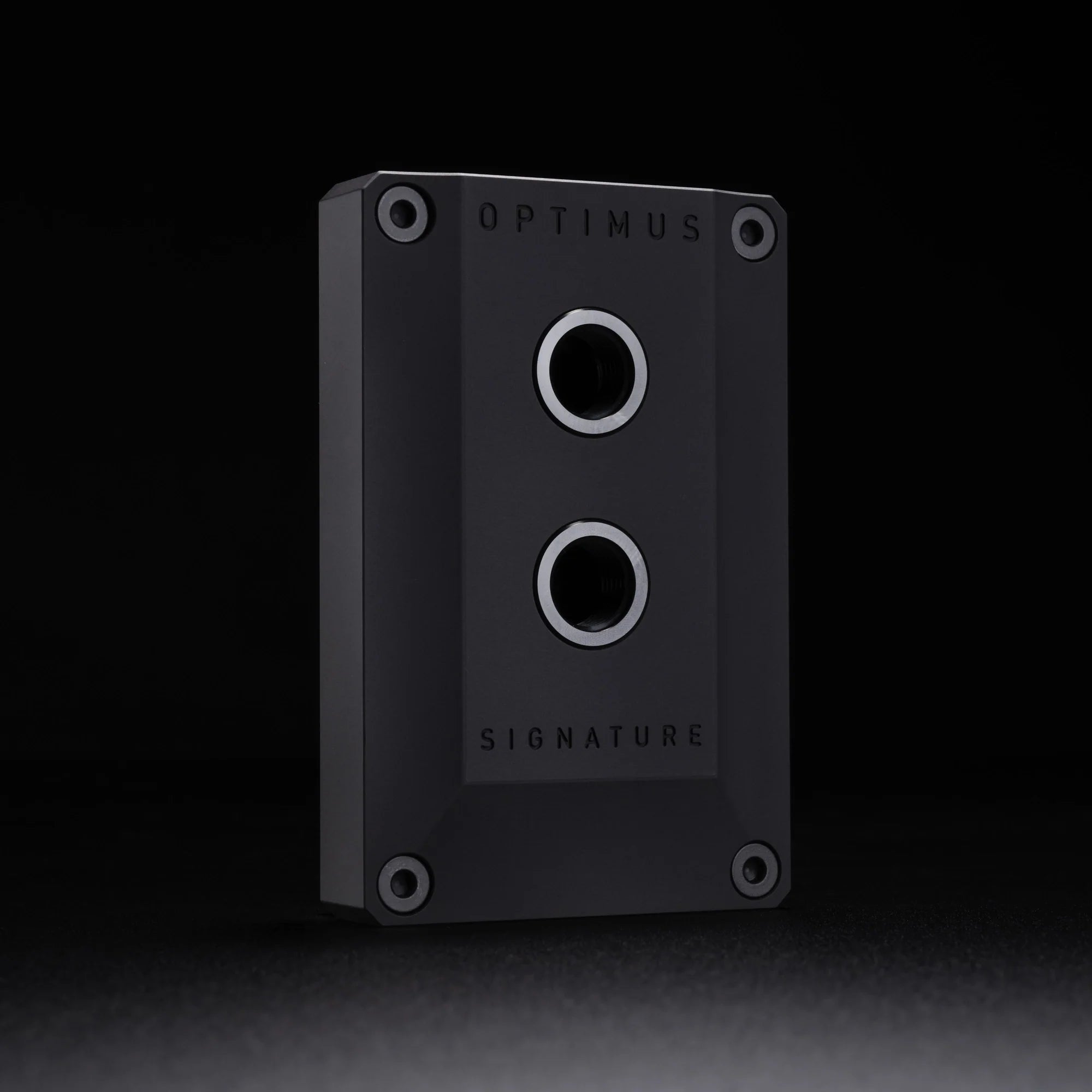

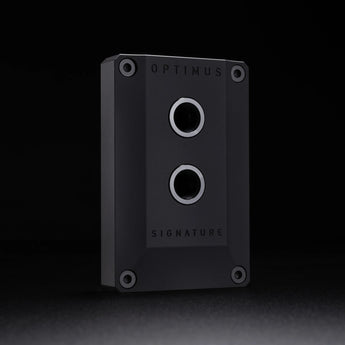

The Optimus Signature V3 Pro block offers the same great thermal and flow performance as our REV2 model, but with a more cost efficient design. The Cerakoted brass top is replaced with an anodized aluminum cover, that offers the same rigidity while not making contact with the flow path. An acetal top slots into the aluminum cover and offers a surface that is highly resistant to corrosion. There is also no concern of thread cracking over prolonged use with acetal. The Signature V3 Pro AMD block has the same cold plate and insert design as the REV2, so no performance is lost.

WHY SO GOOD?

BENCHMARKING EXPLAINED

BARE DIE OPTIMIZED

The Signature Pro Block is ready for bare die or standard installations out of the box. Included 4mm spacers compensate for the removal of the CPU IHS.

We went through numerous block designs, including extremely custom bare-die specific models, to arrive at a block that has top performance for both lidded and delidded applications.

Note: Die frame from a 3rd party is required for bare die installation.

IMPORTANT: Bare die and delidding CPUs void CPU warranties and are only for expert PC builders who want to push the extremes of what a CPU can achieve. We recommend using the Optimus V3 Pro on a standard IHS (no delidding).

Revolutionary Jet Structure

Near perfect flow and performance

The new two piece jet structure (blue) replaces typical jet plates and inserts, allowing for maximum flow with highest possible velocity onto the fins. The unique flow path transitions from a circle to a slot with zero bends or edges that create liquid vortexes that slow the velocity of the coolant. Because of its unique, non-traditional shape, the insert is impossible to be machined out of a single piece of material, requiring a two piece design machined with extreme precision so the two pieces mate together perfectly. When machined out of Delrin polymer, the insert strength, surface finish, and precision surpasses anything that could be done with injection molding or 3D printing.

NEXT-LEVEL CONSTRUCTION

Signature GEN³

MICROFIN COLD PLATE

THE BEST IS NOW BETTER

Optimus's legendary fin design features the finest fins in the world, now improved with a 25% larger cold plate designed for Optimus Signature Pro blocks (Gen3 vs Gen2 cold plate shown).

While making an Optimus cold plate takes considerably longer than a traditional cold plate, the performance results are worth it.

SURFACE AREA MATTERS

While large fin cooling designs were acceptable for lower wattage products, these days they are easily overwhelmed by modern higher power components. This is especially critical with new, smaller dies with far greater wattages. The smaller and more powerful it becomes, the more difficult it is to cool.

THE FINEST FINS EVER CREATED

Over three years of development went into creating our truly next-level patent-pending fin technology. Using a fully CNC machining process, Optimus is able to achieve 0.1016mm (0.004”) fins with 0.2032mm (0.008”) micro channels. This isn't just superior craftsmanship, it's generations beyond other fin designs.

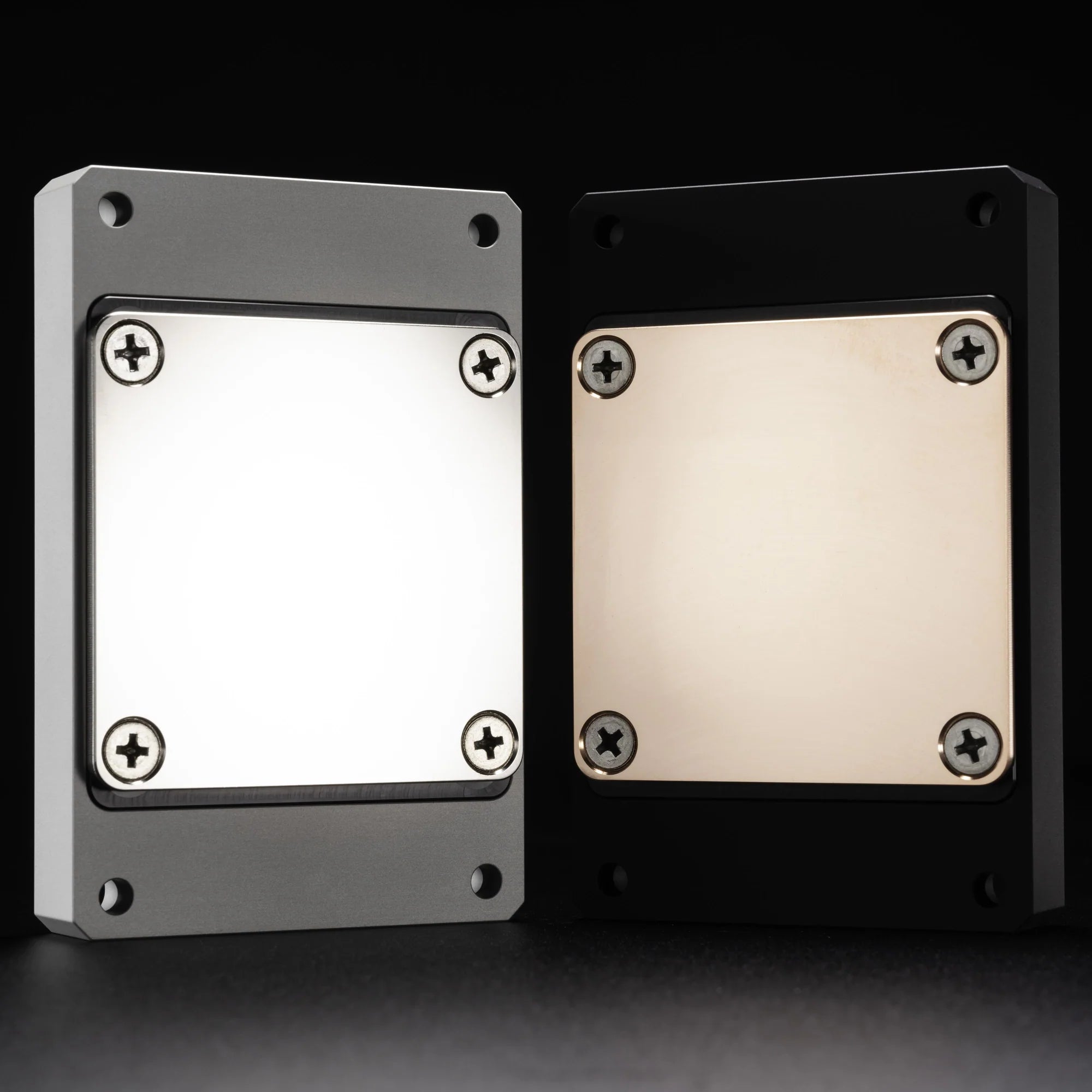

WORLD'S SMOOTHEST COLDPLATE

Optimus sets another record for the smoothest cold plate on the market. Optimus machines blocks less than 1 micro-inch (µin) in flatness. This is 0.000025mm of roughness (measuring the peaks and valleys of the surface).Other companies are over 400% rougher than Optimus coldplates.

The only way to truly guarantee 0.000025mm level of accuracy is to CNC the cold plate perfectly with diamond bits. Optimus created proprietary diamond tooling that allows the cold plates to come off the CNC with a perfect mirror finish.

Additionally, because we control the fins and cold plate to such a precise level, we can make the distance between CPU IHS and the fins extremely small. Thin cold plates are able to transfer heat from the CPU faster than thicker cold plates.
