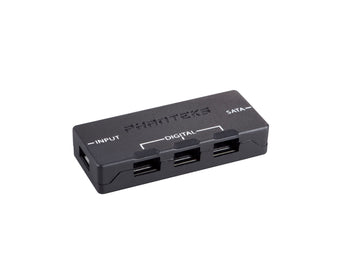

Phanteks Digital Controller Hub

PH-CTHUB-DRGB

Go beyond RGB with Digital-RGB from Phanteks. With Digital-RGB each LED is controlled individually (addressable), featuring more patterns and color modes. Phanteks introduces an easier and more convenient way to upgrade your lighting solution with our new Digital RGB LED Controller Hub. The Controller Hub can be used manually with the preprogrammed color modes and pattern using the 3 button remote or sync directly to a compatible DRGB motherboard using the included M/B DRGB adapter.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$24.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Go beyond RGB with Digital-RGB from Phanteks. With Digital-RGB each LED is controlled individually (addressable), featuring more patterns and color modes. Phanteks introduces an easier and more convenient way to upgrade your lighting solution with our new Digital RGB LED Controller Hub. The Controller Hub can be used manually with the preprogrammed color modes and pattern using the 3 button remote or sync directly to a compatible DRGB motherboard using the included M/B DRGB adapter.

Features

MANUAL CONTROL
Customize your lighting with Phantek?s D-RGB controller Preprogrammed with the best selection of color modes and patterns Easy control with a simple 3-button remote Works right away, without the installation of additional third party software.


MOTHERBOARD CONTROL (through software)
Sync your Digital RGB controller to your (addressable) motherboard with the included D-RGB Motherboard adapter. Expand the motherboard supported power output from 3 to 9 Phanteks Digital RGB products.

Specifications



























































Model NO : PH-CTHUB_DRGB
UPC Code : 886523001195

Specifications




Mounting


Magnets


Connector


Input: 3 pin female
M/B Adapter: Digital RGB adapter 3pin (+5V,Data,N/A,GND)


Input Voltage


+5V


Current


Output Current: 7A (35W)


Single Channel MAX power


4A (20W)


Compatibility


Phanteks 3 pin connector / M/B 3 pin DRGB Header (+5V,DATA,N/A,GND)


LED Spec


Digital RGB


LED count


30 LED / 400mm


MTBF


20,000 hr


Scope of Delivery


1x Digital RGB Control Hub
1x Digital RGB 3-Button Remote
1x Controller Cable (1000mm)
1x SATA Power Cable (200mm)
3x Digital RGB Output Cable (70mm)
1x Digital RGB M/B adapter (600mm)
1x 3M Velcro Sticker (for Remote)
