Phanteks NV7 Case/Distro Combo-White

#5 Best Seller
in Water Distribution Products

PPCS-NV7-DISTRO-CASE

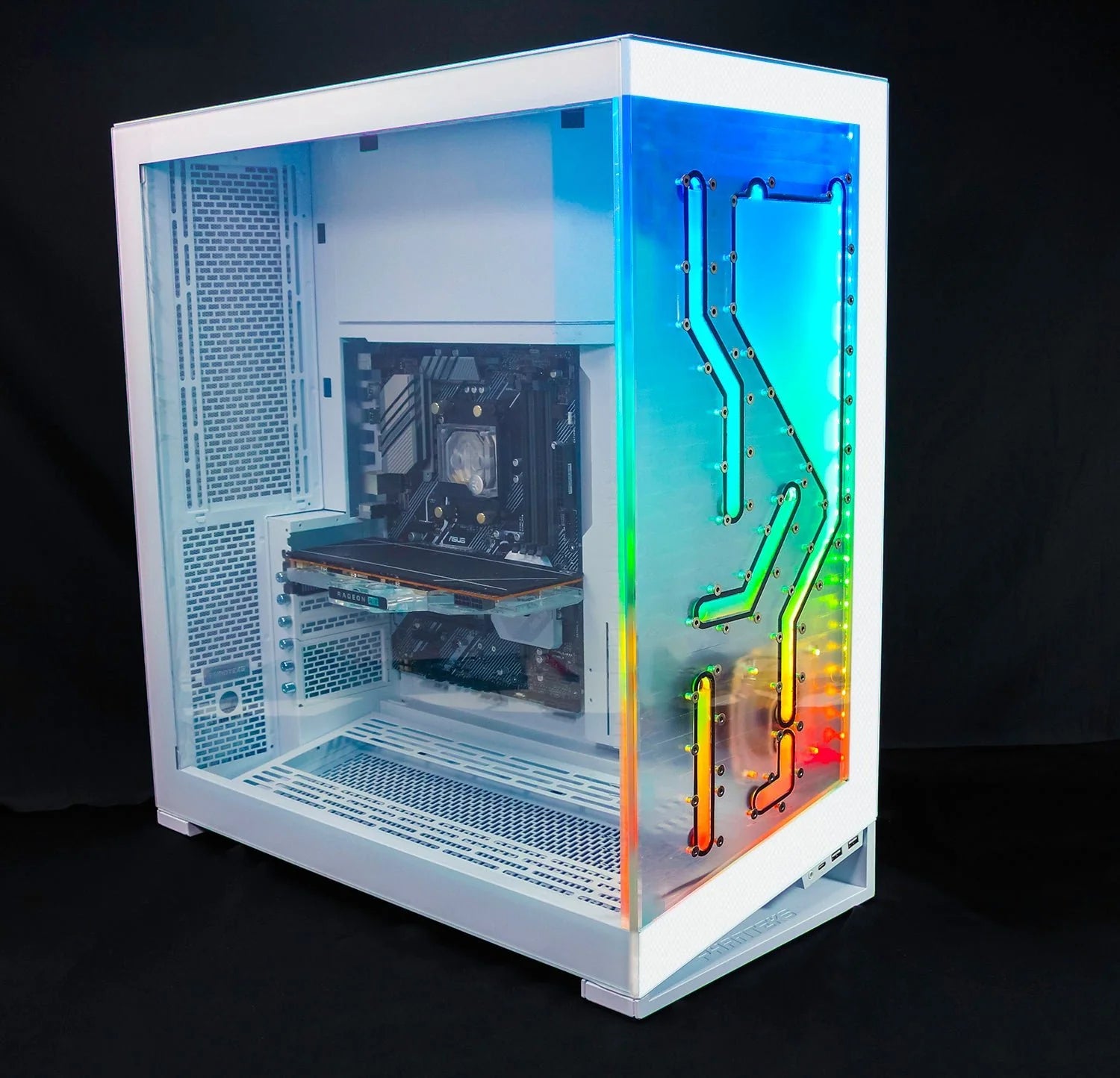

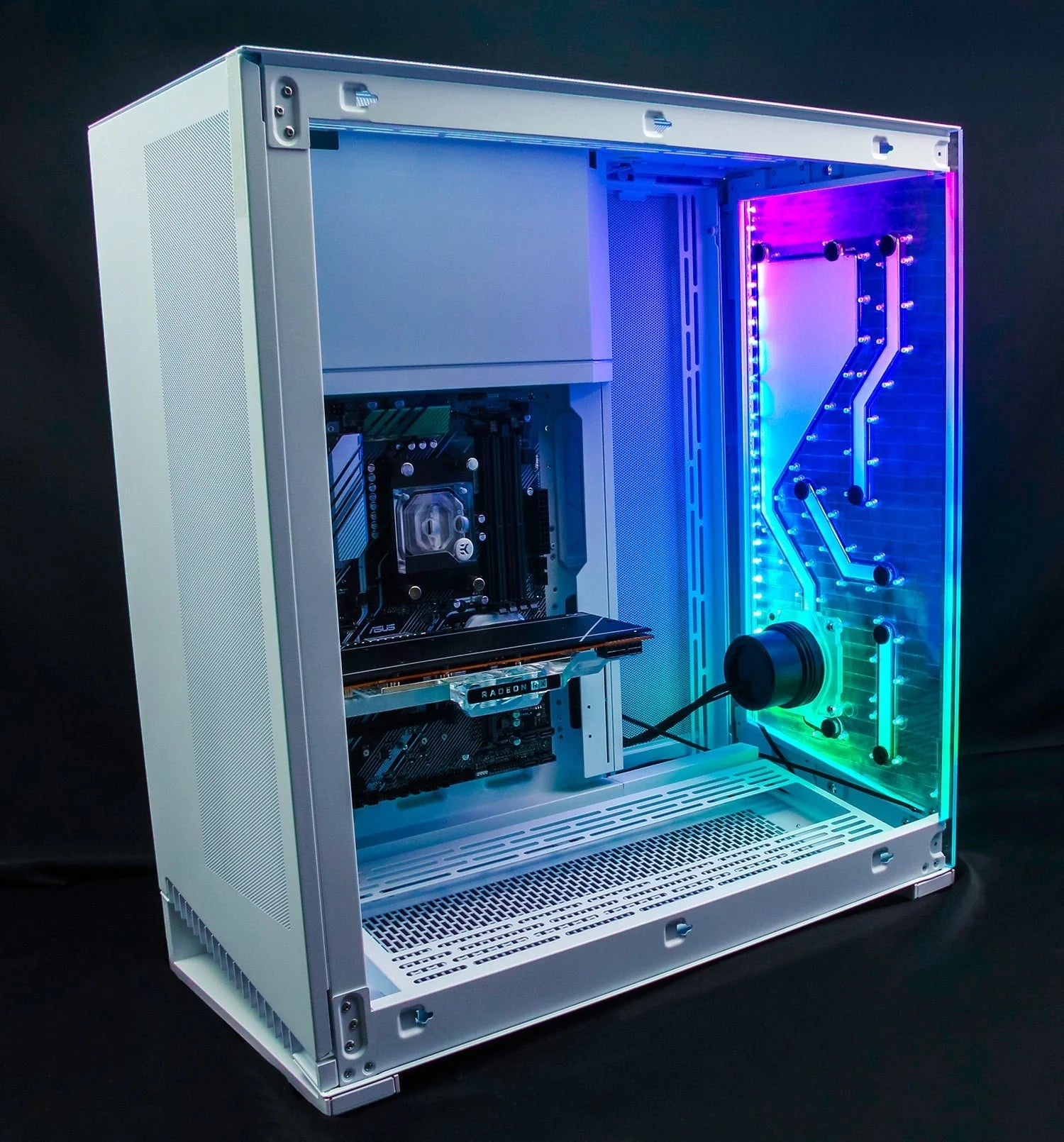

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.



This chassis comes with our Channelz Distro 115 pre installed. With this deal, we are offering 25% off on the chassis. Giving you a savings of $50.



**MOTHERBOARD,CPU,GPU NOT INCLUDED. JUST CASE AND DISTRO**



Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$429.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.

With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system

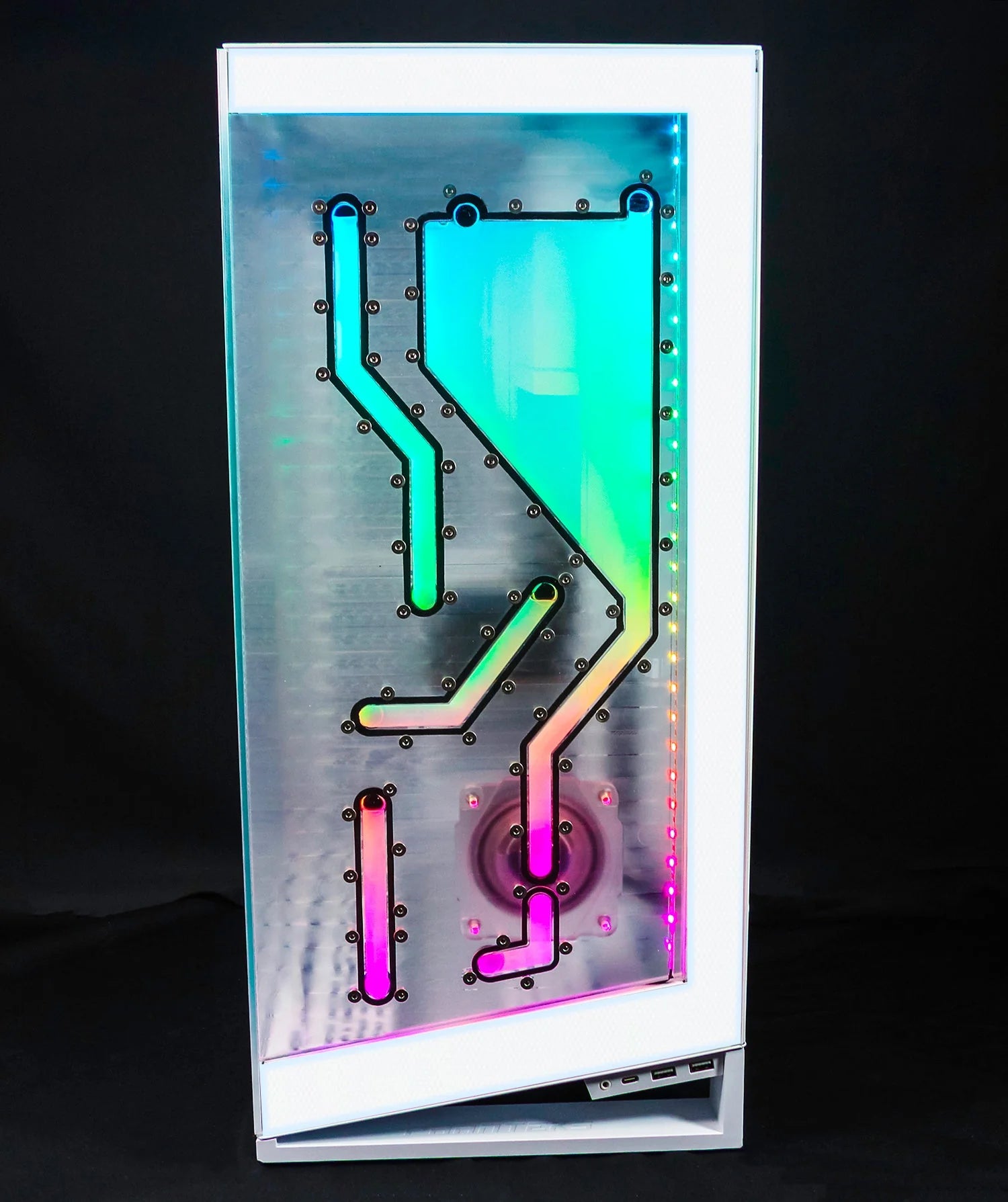

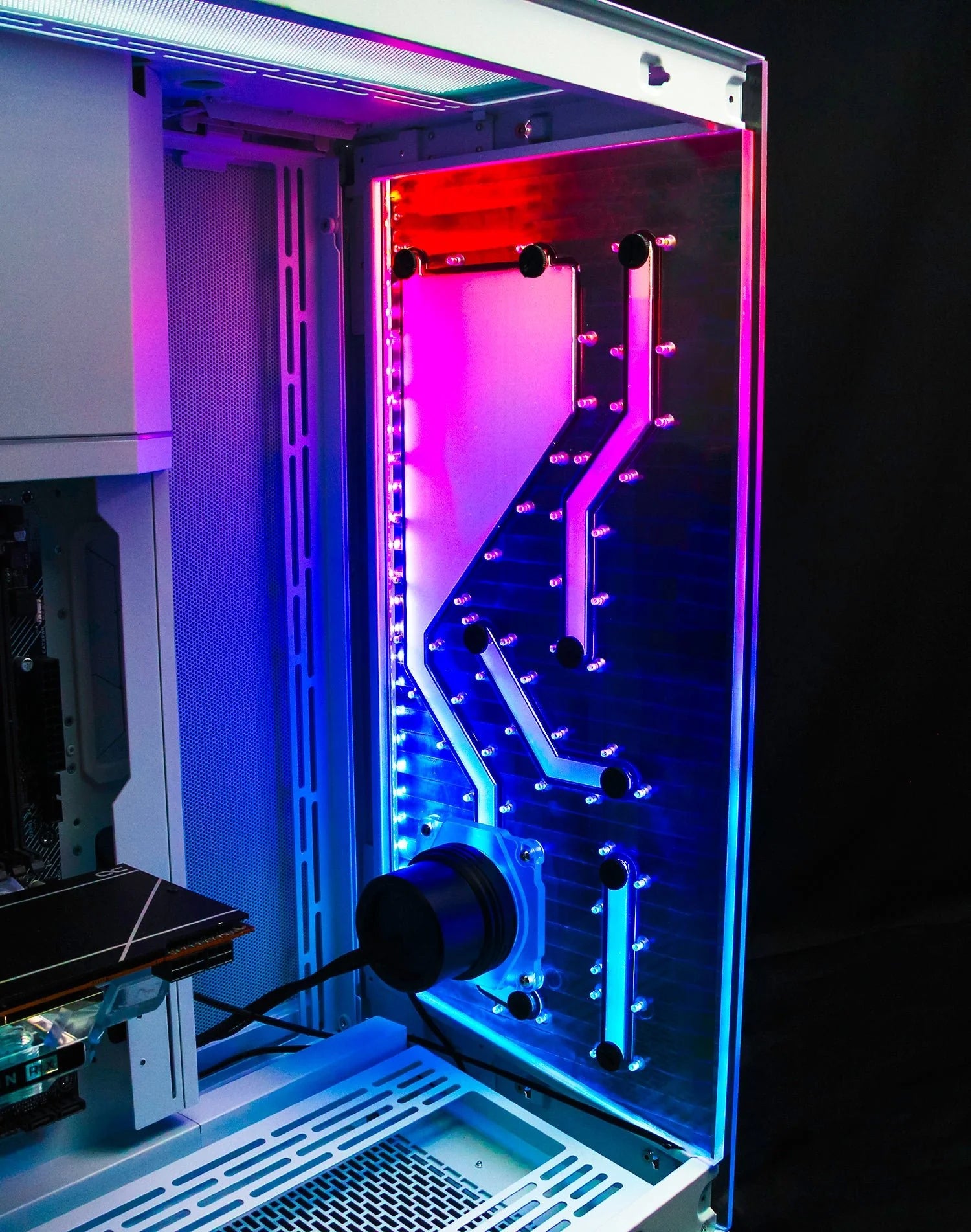

This distroplate pump res combo is specifically designed to fit into the Phanteks NV7 case. Featuring 9 Ports total, designed to be used with 2 radiator and has integrated D-RGB for stunning lighting effects. This distro plate is also compatible with standard D5 pumps.

This chassis comes with our Channelz Distro 115 pre installed. With this deal, we are offering 25% off on the chassis. Giving you a savings of $50.

**MOTHERBOARD,CPU,GPU NOT INCLUDED. JUST CASE AND DISTRO**

Features

  • eATX, Full Tower

  • Liquid Cooling Ready

  • Steel Frame, Tempered Glass Side Panels

  • 2 x Internal 3.5" Drive Bays; 4 x Internal 2.5" Drive Bays; 8 x Slots

Specifications

Case Specifications

Dimension

253 x 532 x 586 mm / 10.0 x 20.9 x 23.1 in (WxDxH)

Form Factor

Full Tower

Material(s)

Steel Chassis, Tempered Glass Window

Mainboard Support

ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide with LED Cover)

Rear Connect Motherboard

No

Front I/O

2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel

Connectors

Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E





Expansion & Drive Bays

Expansion Slots

8

Vertical GPU Support

Yes, with optional bracket PH-PGPUKT5.0

Internal 3.5”

2x (1x if all SSD positions are used)

Internal 2.5”

6x (4x if both HDD positions are used)

D-RGB Controller Output

7A per Channel, 4A per port



Cooling

120mm (Fan)

140mm (Fan)

Top

3x

-

Side

4x

-

Rear

2x

-

Bottom

3x

3x







Liquid Cooling

120mm (Radiator)

140mm (Radiator)

Top

Up to 360

-

Side

Up to 360

-

Rear

Up to 240

-

Bottom

Up to 360

Up to 280



Clearance

Graphic Card Length

450mm | 17.71in

CPU Cooler Height

185mm | 7.28in

PSU Length

255mm | 10.03in

Top Radiator

132 x 440mm | 5.19 x 17.32in

Side Radiator

132 x 440 x 65mm | 5.19 x 17.32 x 2.55in

Rear Radiator

132 x 320mm | 5.19 x 12.59in
