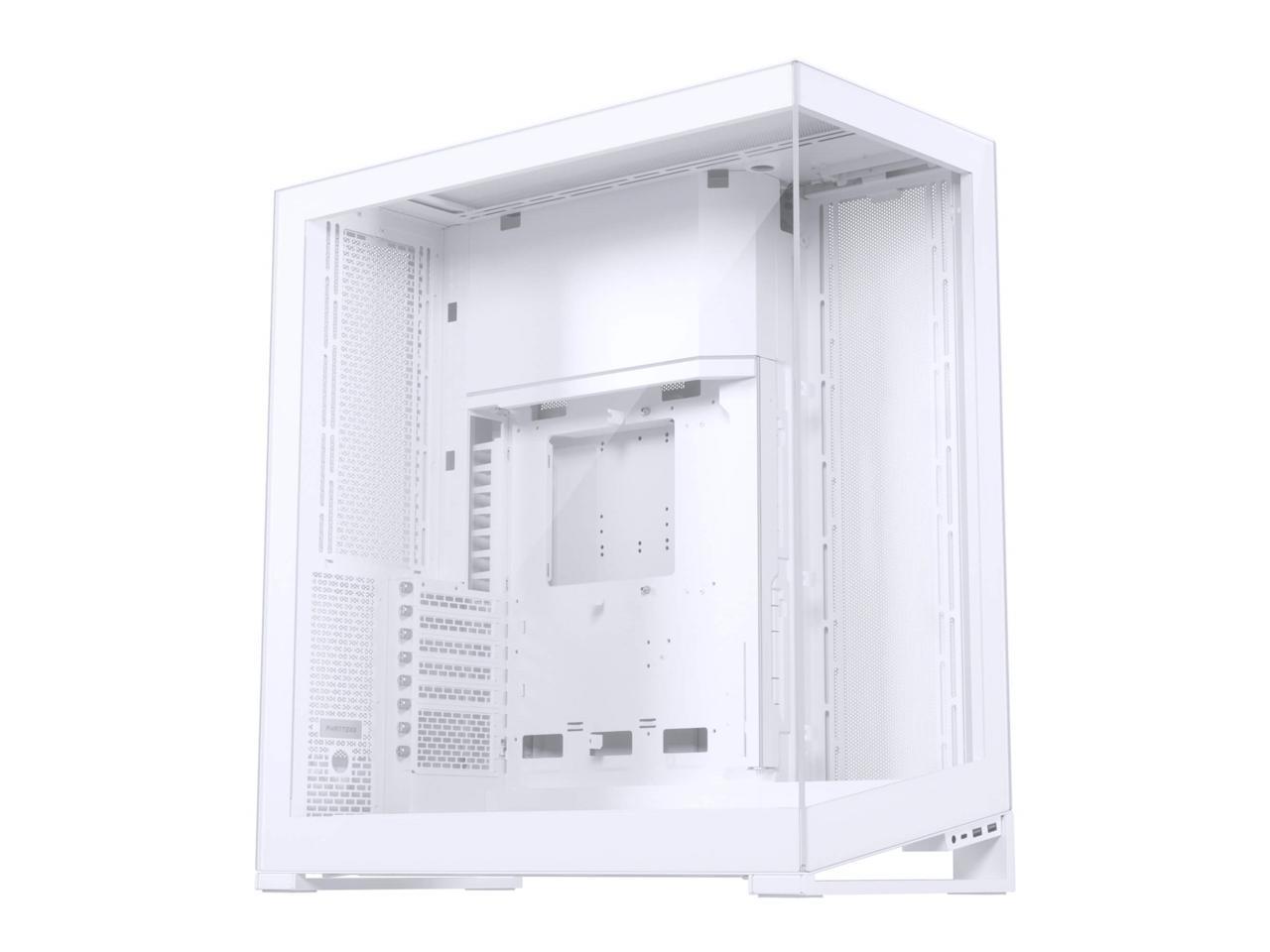

Phanteks NV9 Case-White with pre-installed Distro

PPCS-NV9-DISTRO-CASE

The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for eleven 140mm fans and triple 420+280 radiators simultaneously.



This case comes with our Channelz Distro 114 pre installed. With this deal, we are offering 25% off on the chassis. Giving you a savings of $62.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$466.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for Eleven 140mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the motherboard at its center. Combined with a strong and defining outer frame it captures and accentuates the hardware components.

With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.

This chassis comes with our Channelz Distro 114 pre installed. With this deal, we are offering 25% off on the chassis. Giving you a savings of $62.

Features

Near-seamless glass panels for a perfect view of all your system components. Unique layout with the motherboard at the center and fans all around it.
Ultra-fine Performance mesh on exterior panels. Immense bottom airflow intake with 65mm clearance. Direct and dedicated GPU cooling from the bottom. Extensive cooling support for triple 420+280 radiators simultaneously for high end cooling performance.
Versatile GPU support bracket securely holds GPU to motherboard and prevents sag. Removable side and bottom fan bracket for easy installation. Bottom bracket can be reversed for angled or horizontal position.
Integrated D-RGB lighting around motherboard. Dual channel output to allow for dual color effects. 4 output and dual SATA power to expand. Refined D-RGB lighting effects that works without software. Compatible with third party software with included cable.

Specifications











































































































































































Case Specifications  



  



  



Dimension  



 575 x 280 x 615 mm / 22.63 x 11.02 x 24.21 in (DxWxH) 



Form Factor  



Full Tower  



Material(s)  



Steel Chassis, Tempered Glass  



Motherboard Support  



ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 280mm wide)



Front I/O  



2x USB 3.0, USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel 



Connectors 



Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E, Power LED 



Window  



Yes, Front and Side Tempered Glass  



  



Expansion & Drive Bays  



  



Expansion slots  



8  



Vertical GPU support 



Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01



Internal 3.5”  



Max 3* (3x included) (*Max 24mm HDD height when SSDs installed)



Internal 2.5"  



Max 6 (6x included) (*2x if 3x HDD positions are used)



D-RGB Controller output 



7A per Channel, 4A per port (Total 14 Watt)



  



Cooling  



120mm fan  



140mm fan  



  



Side 



4x



3x



Top  



3x  



3x



Rear  



2x  



2x



Bottom 



3x 



3x



  



Liquid Cooling  



120mm radiator  



140mm radiator  



  



Side 



Up to 480



Up to 420



Top 



Up to 360 



Up to 420



Rear 



Up to 240  



Up to 280



Bottom 



Up to 360 



Up to 420



  



Clearance  



  



  



Graphic card length 



490mm 



Graphic card width



205mm



CPU cooler height 



205mm 



PSU length 



210mm 



Side 360 Radiator 



525 x 154 mm 



Top 360 Radiator 



515 x 154 mm 



Rear 240 Radiator 



325 x 154 mm 































































































Scope of delivery







NV9 Chassis 







    Dual D-RGB Controller 



1x 



    Top LED Cover 



1x 



    Side LED Cover 



1x 



    Front IO-Module 



1x 



    Storage/Cable bracket 



1x 



    Storage Bracket 



1x 



   Accessory Box 







    GPU Support Bracket 



1x 



    Airflow Covers 



2x 



    Microfiber Cloth 



1x 



    Zip ties 



6x 



    Screw Assortment Box 



1x 



    MB/SSD Screw 



34x 



    Thumb Screw 



4x 



    HDD Screw 



9x 



    Standoff Removal Tool 



1x  



    MB stand-off 



1x 



    PSU Screw 



4x 



    Extra R-Side Panel Screw 



1x 
