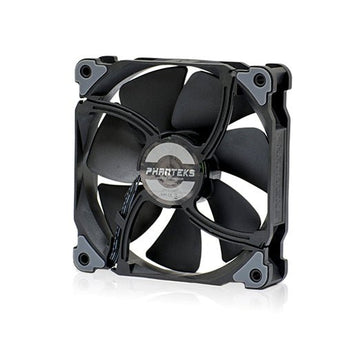

Phanteks PH-F120MP Radiator Fan - Black Frame/Black Blades

The PH-F120MP, 120mm high static pressure premium fan from Phanteks is designed with the Maelström concept technology. The fans have PWM built-in, creating less cables which allows users to make speed adjustments from 500-1800RPM.

The PH-F120MP, a high static pressure fan, can have the ability to overcome the airflow restriction caused by high fin density. PH-F120MP produces high static air pressure allowing for a direct and focused airflow making them ideal for the densely packed fins of a radiator.
The PH-F120MP has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability. To create better structural strength, Phanteks redesigned the back frame of the PH-F120MP. Phanteks fans now comes with pre-installed rubber pads to help reduce vibration occurrences.
With the noise reduction challenges in mind, we modified the component for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise and frame rib for lower wind and vibration noise.

	BLACK
Model NO :	PH-F120MP_BK	PH-F120MP_BBK
UPC Code :	886523000662	886523000846
Fan Dimensions	120 x 120 x 25mm
Speed (RPM)	500-1800 ± 250 rpm
Max Airflow	53.3 CFM
Acoustical Noise	25 dB (A)
Static Pressure	1.72 mm H2O
Input Current	0.2 A
Rate Voltage	DC 12V
Input Power	2.4 W
MTBF	>150,000 h
Speed Sensor	4 pins
Cable Length	500mm

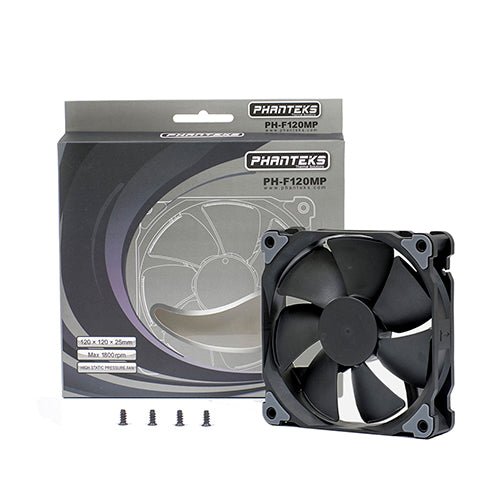

Scope of Delivery	1x PH-F120MP High Static Pressure Premium Fan 4x Fan Screws
Warranty	5 Years
