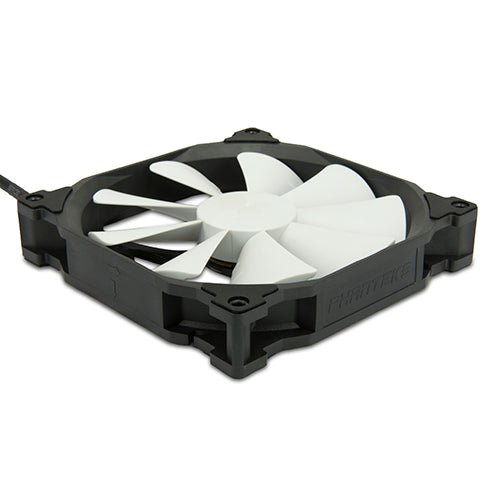

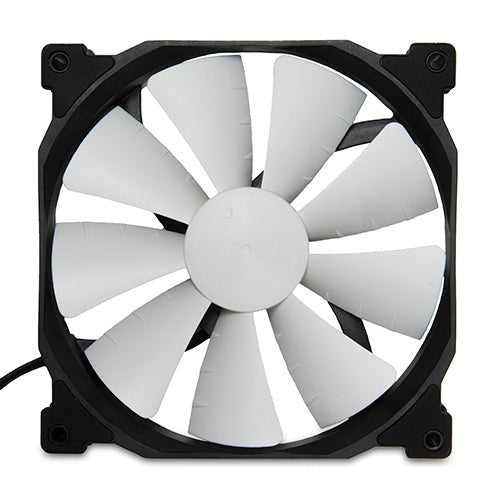

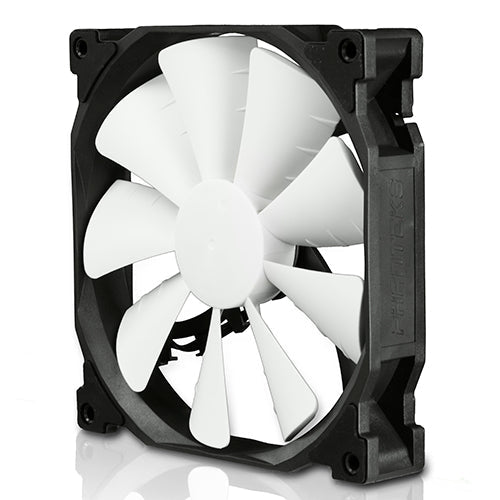

Phanteks PH-F140XP Case Fan - Black Frame/ White Blades

The PH-F140XP, 140mm Premium fans with PWM functions from Phanteks is designed using the unique Maelström concept technology. PH-F140XP with PWM functions allows for speed adjustments, higher for performance and lower for silent operation.

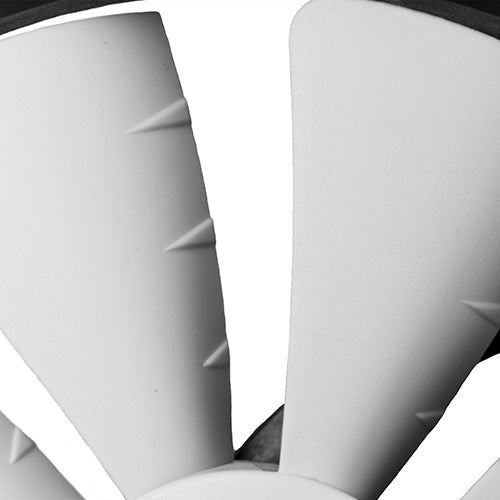

The new redeveloped blades in PH-F140XP are angled lower to achieve higher air pressure. PH-F140XP features new 140mm mounting holes for case/radiator fan replacement and includes a 400mm extension cable for improved cable management.

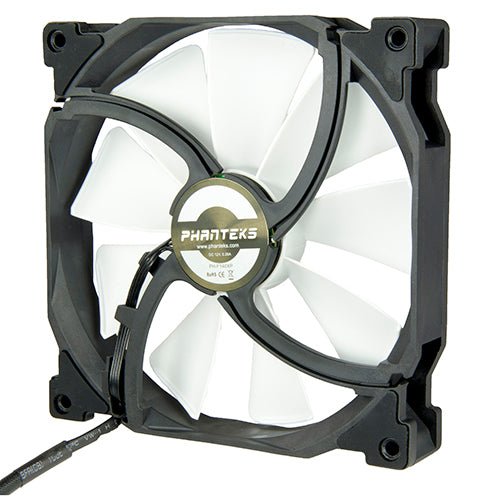

The PH-F140XP has a larger base with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability. To create better structural strength and reduce the vibration occurrence, Phanteks redesigned the back frame of the PH-F140XP.
With the noise reduction challenges in mind, we modified the component for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise and frame rib for lower wind and vibration noise.

	BLACK
Model NO :	PH-F140XP_BK
UPC Code :	886523000402
Fan Dimensions	140 x 140 x 25mm
Speed (RPM)	600-1200 ± 250 rpm
Max Airflow	40.9 - 85.19 CFM
Acoustical Noise	15.22 - 19 dB (A)
Static Pressure	0.39-1.52mm H2O
Speed (RPM) with QSA	300-900 ± 250 rpm
Max Airflow with QSA	49.14 CFM
Acoustical Noise with QSA	17 dB (A)
Static Pressure with QSA	0.77mm H2O
Input Current	0.14 A
Rate Voltage	DC 12V
Input Power	1.8 W
MTBF	>150,000 h
Speed Sensor	4 pins
Cable Length	500mm

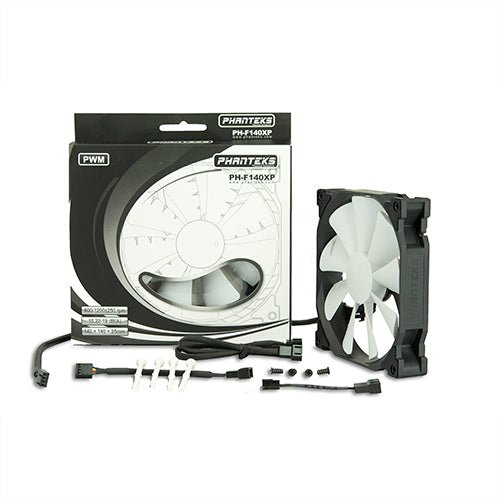

Scope of Delivery	1x 140mm PWM Premium Fan 1x QSA (Quiet Speed Adapter) 1x 4 to 3 pin adapter 1x 400mm Extension Cable 4x Anti-Vibration Compensators 4x Fan Screws
Warranty	5 Years
