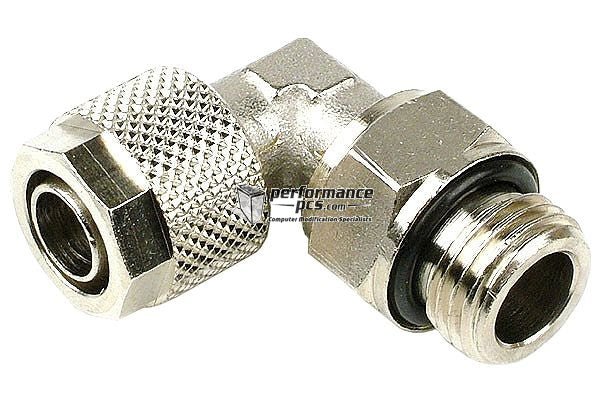

Phobya 10/8mm (8x1mm) Compression Fitting G1/4 90° Revolvable Type 2

High quality screw-on fitting with cylindrical threads (1/4 Inch). The hose is fixated and selaed tightly by the union nut, yet it can easily be released with one hand. The fitting can be rotated freely (360 °). Ideal for Chipset- or graphics card cooling as well as self-constructions where elbow fittings have advantages. This system ensures maximum safety and ease of installation. This screw-on fitting is compatible with hoses with an outer diameter of 10mm and 8mm inner diameter as well as G1/4 threads.

Technical details:
Material: brass
Threads: 1/4
hose connector outer diameter: 10mm, inner diameter: 8mm

Extent of delivery:
1x 10/8mm (8x1mm) screw-on fittingG1/4 90° revolvable type 2

Please note:
These fittings are operationally analogue to the other screw-on fittings and are only different by the design of the connector and union nut. This type of fittings was widely distributed until 2006 and was then replaced by the new version. Customers still using the old design are hereby given the option to keep the same design throughout the system when upgrading.
As these old fittings are more expensive to aquire and produce, we recommend the use of the currently common fittings for new customers.

Also available as type 2: (among others)

• 62085 10/8mm screw on fitting G1/4 90° revolvable


• 62084 10/8mm screw-on fitting G1/4


• 62086 10/8mm L hose connector
