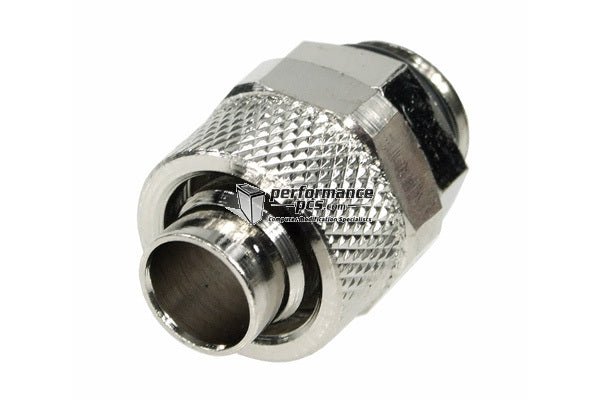

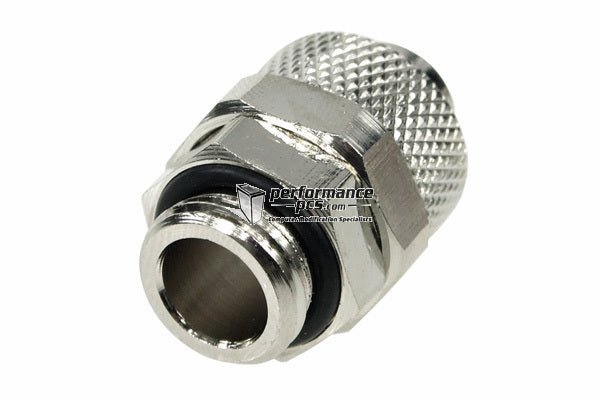

Phobya 13/10mm (10x1.5mm) Compression Fitting Outer Thread 1/4

High quality screw-on fitting with cylindrical threads (1/4). The hose is fixated and sealed tightly by the union nut, yet it can easily be removed with one hand. This system ensures maximum safety and ease of installation. With integrated 1/4 Perbunan(r) O-ring seal.

Technical data:

• Material: Nickel coated brass


• Extent of delivery: Screw-on fitting with O-ring seal


• Length: approx. 32 mm


• Key width: 18mm


• Key diagonal width: 19,5mm


• Thread: 5mm

Compatibility:
The 13/10mm fittings are compatible to 13/10mm and 12,7/9,5mm (3/8) hoses.
