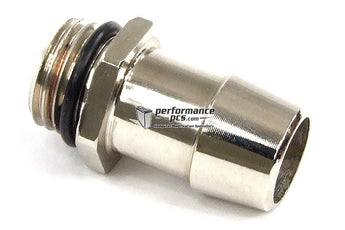

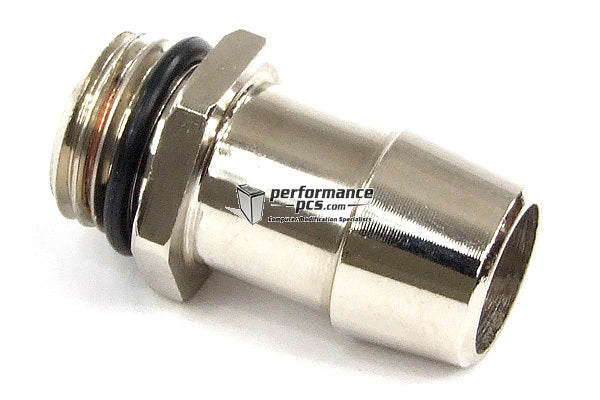

Phobya 13mm (1/2") Barbed Fitting G1/4 with O-Ring (High-Flow)
Thank you for your submission!
We will get back to you soon.
Estimate shipping
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
Product Details:
High-Flow barb fittings for hoses with an inner diameter of 11-13mm.
Technical data:- Thread: G1/4
- Overall length: 29mm
- Inner diameter of hose: 11 bis 13mm
- Inner diameter of fitting: 10mm
- Thread length: 8mm
The connectors for imperial hoses(7/16, 3/8, ½) are provided with measurements in mm in our shop. These can differ by +-1mm, which is no problem as hose clamps have to be used for installation. If the hose is to be mounted without a clamp, a larger fitting should be chosen. With some fittings that tend to be larger, it is possible though that a hose with an inner diameter of 13mm actually does seal without a hose clamp.
Overview:
10mm (3/8) hose clamp: up to 8mm none, from 10mm up required
10mm (7/16) hose clamp: up to 8mm none, from 10mm up required
12mm (1/2) hose clamp: up to 11mm none, from 12mm up required
13mm (1/2) hose clamp: up to 11mm none, from 13mm up required
