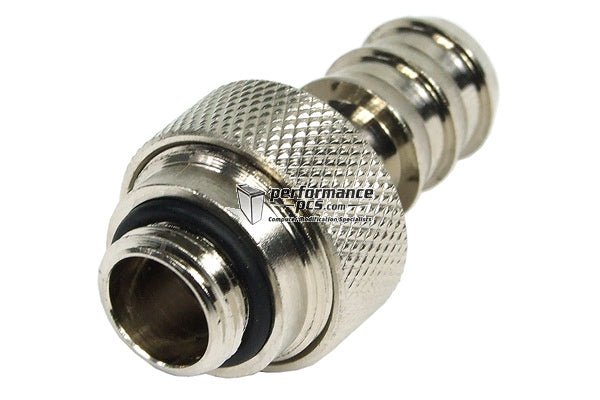

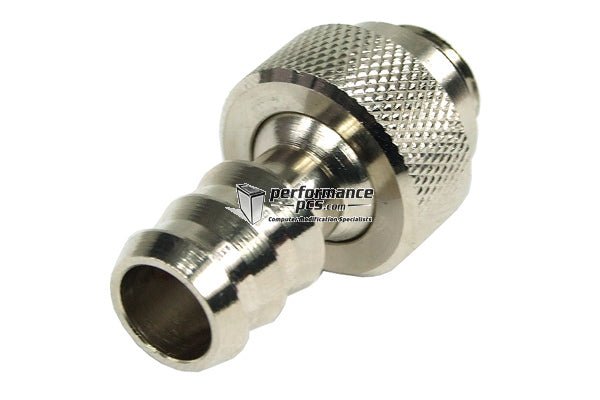

Phobya 13mm (1/2") Fitting G1/4 with O-Ring (High-Flow) - Ball Rotation - Silver Nickel

A well-known problem and here is the solution!

What is the best hose management to prevent kinking, how to avoid
angled connectors to allow maximum flow? Now a well-known technology has
been adopted to the watercooling sector by our designers to allow a
solution which before was only possible with multiple different
fittings.

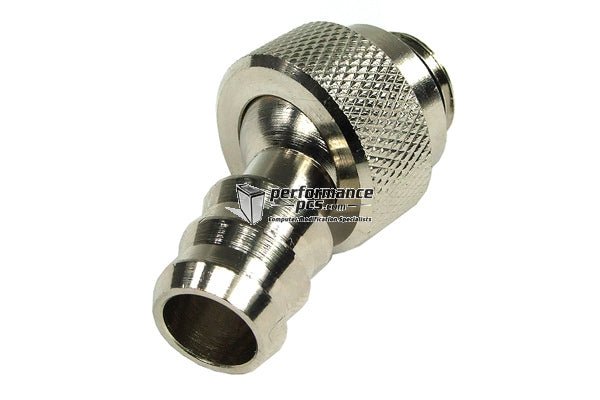

The ball core of the fitting allows free adjustment of the barb, up
to an angle of 30°. Even if using the full possibilities of this fitting
the flow rate is barely compromised. The knurling on this fitting
allows easy and quick tool-free installation.

This fitting gives many new possibilities unknown before!

Technical specifications:

Material: Silver nickel coated

Height (without thread): 38mm

Diameter bottom end: 20mm

Hose fitting length: 24mm

Fitting inner diameter: 11mm

Thread length: 5mm

Compatible with hoses with an inner diameter of 13mm

Extent of delivery:

1x 13mm (1/2) barbed fitting G1/4 with O-ring gasket (high-flow) - ball rotation - silver nickel

Note for watercooling beginners:

The connectors for hoses(7/16, 3/8,1/2) are provided with
measurements in mm in our shop. These can differ by +-1mm, which is no
problem as hose clamps have to be used for installation. If the hose is
to be mounted without a clamp, a larger fitting should be chosen. With
some fittings that tend to be larger, it is possible though that a hose
with an inner diameter of 13mm actually does seal without a hose clamp.

Overview:

10mm (3/8) hose clamp: up to 8mm none, from 10mm up required

10mm (7/16) hose clamp: up to 8mm none, from 10mm up required

12mm (1/2) hose clamp: up to 11mm none, from 12mm up required

13mm (1/2) hose clamp: up to 11mm none, from 13mm up required
