Phobya Nano-2G 12 PWM Silent 1500rpm Red LED Double Blade ( 120x120x25mm )

Phobya's latest marvel of technology is the PWM cooling fan!

A fan for both Silent lovers and friends of the performance-optimized system addresses is an absolute novelty in the cooler segment. But this split and still have more talent that fans of other pale with fear, Fear it!

The consortium of manufacturers' Phobya it has achieved through optimum alignment of the blades that increased air flow does not necessarily lead to higher noise levels. The rotor blades are curved in combination with the wedge-shaped alignment of the camp to show the context, the future starts here! The camp, which was equipped with the latest Nano Technology combines sash and frame to a minimum point, the drive through coils, ensures that this is almost noiseless, silent fans know what really appreciated. By increasing the speed, here was an air flow rate reached it's so rare!

At a speed of 1500rpm and the latest fan is audible. Therefore, this fan has been designed so that even he has to make do with less tension good. For a start voltage range from 7-12V, this fan will be quieter than a gnat, yet the system is still held by a strong air current is very cool!

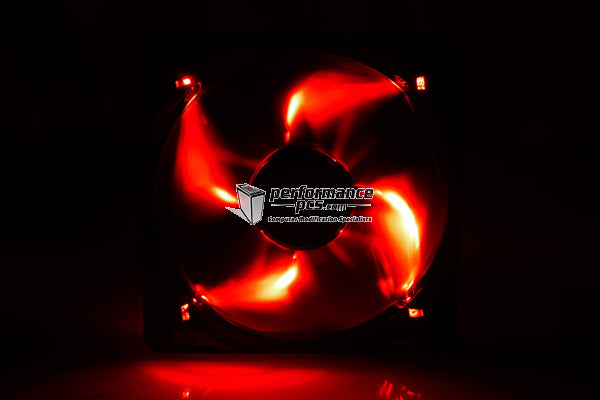

The look is another point which takes in addition to functionality, a high weighting. Red, and very New, combined with elegant black blades with a classic black frame, with fully polished look, creating an eye-catcher in the system where each user can say to himself: This fan is a good choice! In the PWM version, the Phobya fans are mounted in each corner small red LED's what the design even further Accompanied taste.

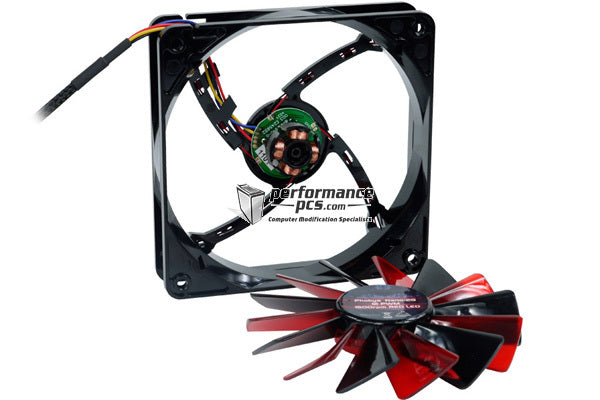

To clean the fan, the entire rotor can, by slightly, from the frame and engine are removed. To clean is carried out smoothly. Just hold it under running water and rinse the dust. After a short drying period, the cooler by gently squeezing in the original state are returned to the fan and you can start work again.

• Dimensions: 120 x 120 x 25mm


• Colors: black frame, red and very new black blades with red LED's


• Weight: 145g


• Rated Voltage: 12V


• Start Voltage: 7 Volts


• Power consumption: 0.45 A


• Rated speed: 600-1500rpm (+ / -10%)


• Airflow: max. 109.33m³/h / 64.16CFM


• Volume: 10-25 dB / A


• MTBF (25 ° C): 100000 hrs


• Connector: PWM / 4 pin fan connector


• Max Static Pressure: 1.6mm-H2O

Extent of delivery:

• 1x Phobya Nano 2G 12 PWM Silent 1500rpm Red LED Double Blade (120x120x25mm)


• 4x fan screws

Note: Please note the difference between a 4 pin power connector (Molex) and a 4 pin fan connector (PWM).
