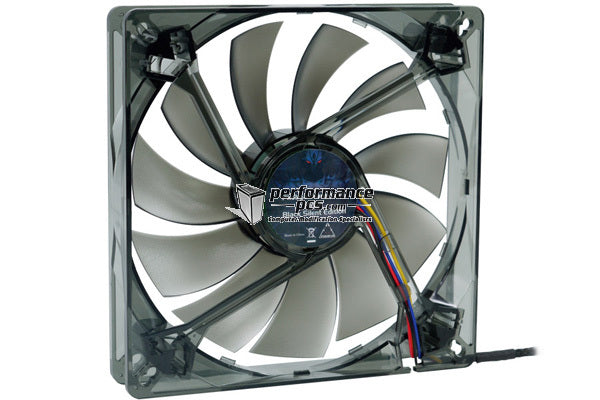

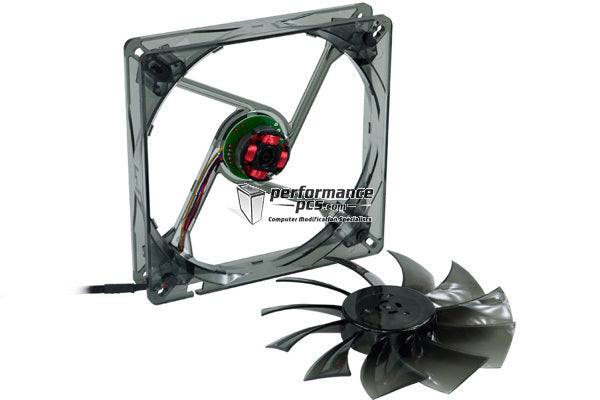

Phobya Nano-G 14 PWM Black Silent Edition ( 140x140x25mm )

Phobya Nano-G 14 PWM Black Silent Edition ( 140x140x25mm )

Air flow:	100 m³/h
Air flow range:	100 - 149 m³/h
Dimensions:	140 x 140 x 25mm
Fan bundle:	3x, 4x, 9x
Frame Color:	black
LED:	Not available
Lifespan (at 25°C):	100.000 h
Manufacturer:	Phobya
Power connector:	4Pin PWM
Power input:	1,8 W
Pressure:	1,85 mm H2O
RPM signal transmission:	Yes
Rated speed:	1100 U/min
Rated speed range:	1000 - 1450 U/min
Rotor color:	black
Size:	140mm
Start voltage:	7V DC
Voltage rated:	12V DC
Volume:	24 dB(A)
Volume range:	20 - 29,9 dB(A)

Technical specifications:

• Dimensions: 140x140x25mm


• Color: Transparent black frame and fan blades


• Weight: 150g


• Nominal voltage: 12V


• Starting voltage: 7V


• Current draw: 0,15A


• Nominal speed: 600-1100rpm (+/-10%)


• Airflow: max. 100m³/h / 58,86 CFM


• Noise emission: 10-24 dB(A)


• MTBF (25°C): 100.000hrs


• Connector: PWM / 4-Pin fan connector


• Max. static pressure: 1.85mm-H2O

Extent of delivery:

• 1x Phobya Nano-G 14 PWM Black Silent Edition ( 140x140x25mm )


• 4x Fan screws

Please note the difference between a 4-Pin power connector (Molex) and a 4-Pin fan connector (PWM).
