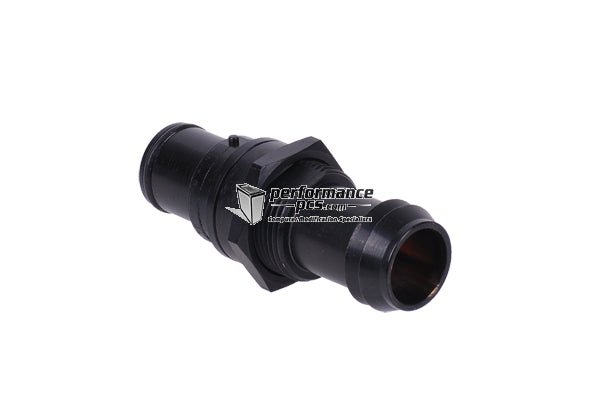

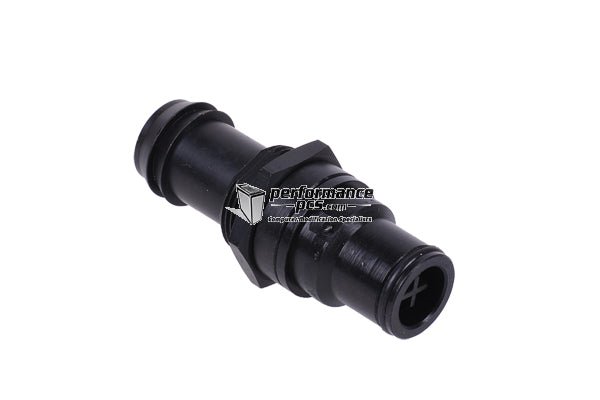

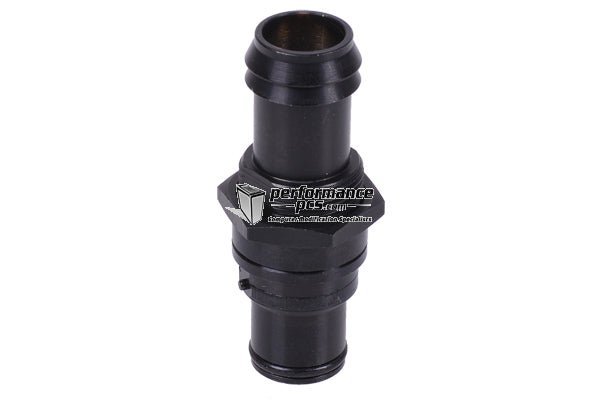

Phobya Quick Release Connector Kit 13mm Barbed Fitting (1/2") Plug w/ Bulkhead Thread - Matte Black

Product Details:

The Papa piece high-end quick!

The new generation has been specifically designed for high-flow systems. These couplings have Outstanding good quality and practicality, as one would expect from us . The daddy and mommy track are each provided with a countersunk pin , but they are created in such a way that at no separate misunderstood is possible and thus seals the system to 100%. When connecting a sealing ring hugs the inner wall of the Mama piece which provides for additional leaks. It does not change during the operation, the compound dissolves by means of a rotational movement, the two pieces are joined together which are also no longer be separated with extreme force.

The opposite side is equipped with a 13mm hose connection, which increases the range even further!

Technical details:

• Material: brass (matte black)
• Dimensions: 51.1 x 22.9mm
• Bulkhead hole size: 17mm
• Hose Connection: 13mm (1/2) (For hoses einem13mm inner diameter)

Scope of supply:
1x 13mm quick connect nozzle (1/2) including bulkhead connector - black matt

Important when assembling the couplings:
To plug in and clutch guarantee watertightness, this connection must be designed very carefully and tightly. This can lead to the fact that roughening with frequent plugging the sealing O-ring through to tearing. Therefore, when assembling and opening the connection is always the seal to be kept wet!
If the seal but tear, so this is not covered under warranty, but due to improper use. Replacement o-rings, they may find the item number 95002

Note: For operation of the plug the counterpart is needed.

Info: Non-leak (ie after separation 1-2 drops out).
