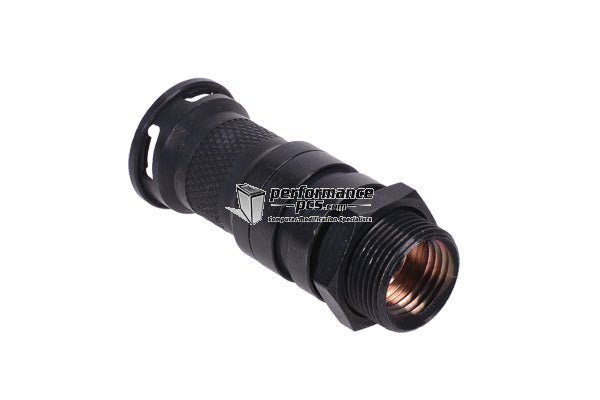

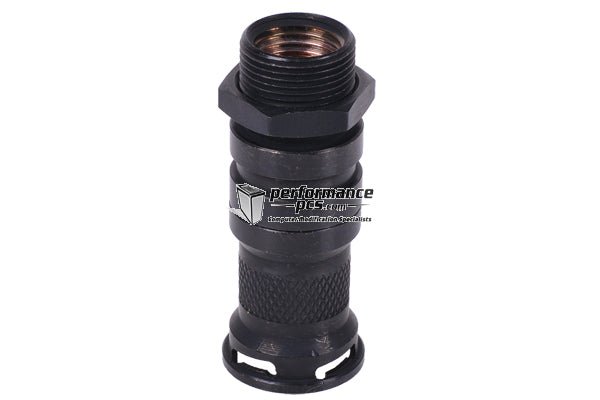

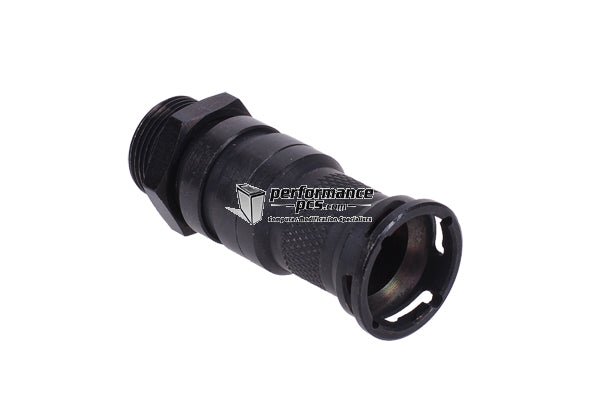

Phobya Quick Release Connector Kit G1/4 Inner Thread With Bulkhead Thread to Coupling - Matte Black

Product Details:

The Mama piece high-end quick!

The new generation has been specifically designed for high-flow systems. These couplings have excellent good quality and practicality, just as one is accustomed from us . The daddy and mommy track are each provided with a countersunk pin, but they are created so that when separation is not possible to tilt and thus seals the system to 100%. When connecting a sealing ring hugs the inner wall of the Mama piece which provides for additional leaks. It does not change during the operation, the compound dissolves by means of a rotational movement, the two pieces are joined together which are also no longer be separated with extreme force.

The opposite side is provided with a G1/4 thread, which increases the range of applications immeasurably!

Technical details:

• Material: brass (matte black)
• Dimensions: 51.4 x 21.8mm
• Hose Connection Size: Quick G1/4

• Bulkhead hole size: 16mm

Scope of supply:
1x quick connect G1/4 Female with Bulkhead on clutch - black matte

Important when assembling the couplings:
To plug in and clutch guarantee watertightness, this connection must be designed very carefully and tightly. This can lead to the fact that roughening with frequent plugging the sealing O-ring through to tearing. Therefore, when assembling and opening the connection is always the seal to be kept wet!
If the seal but tear, so this is not covered under warranty, but due to improper use. Replacement o-rings, they may find the item number 95002

Note: For operation of the plug the counterpart is needed.

Info: Non-leak (ie after separation 1-2 drops out).
