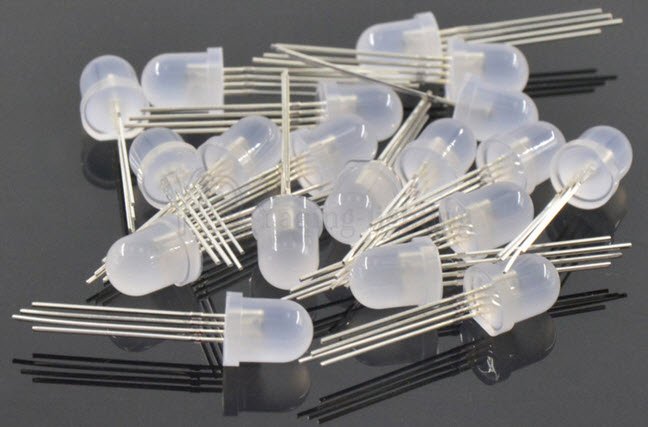

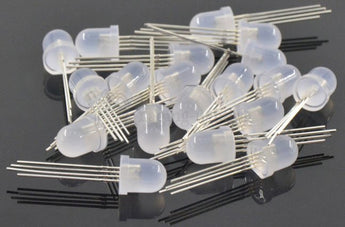

PPCS DC5V Diffused round hat RGB LED with WS2811 chipset inside,5mm F5 Neo pixel Arduino led chips RGB full color

PPCS-WS2811-LED5M

Superior quality LED's for the DIY modder. These are ultra bright,long lasting LED's that can be used for many modding projects and to customize your rig using the colors you like. Very easy to solder and install.


Price is for 1 LED

Found a better price? Let us know and we'll try and match it!
Estimate shipping
936 in stock, ready to ship
$0.49 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Superior quality LED's for the DIY modder. These are ultra bright,long lasting LED's that can be used for many modding projects and to customize your rig using the colors you like. Very easy to solder and install.

Price is for 1 LED

Features

Features:


1. Adpots high quality 5mm 0.24w round hat RGB LED as lighting source.


2. With good proection level.


3. each module as one pixel, takes 3 dmx  channels, white strobe color, can be controlled individually,


4. It is easy installation, open hole.


5;Non-waterproof type,IP33 rated, epoxy resin filled


6;using the strong cabe, with good cold resistance ability


7:works with dmx matrix controller ,or SPI pixel control ,on-line controller. etc





Applications:


1.lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.
2.They can be a good choice for advertising, Led screen, night clubs, coffee /wine bars, shopping malls,
3.various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.

Specifications





































































Color

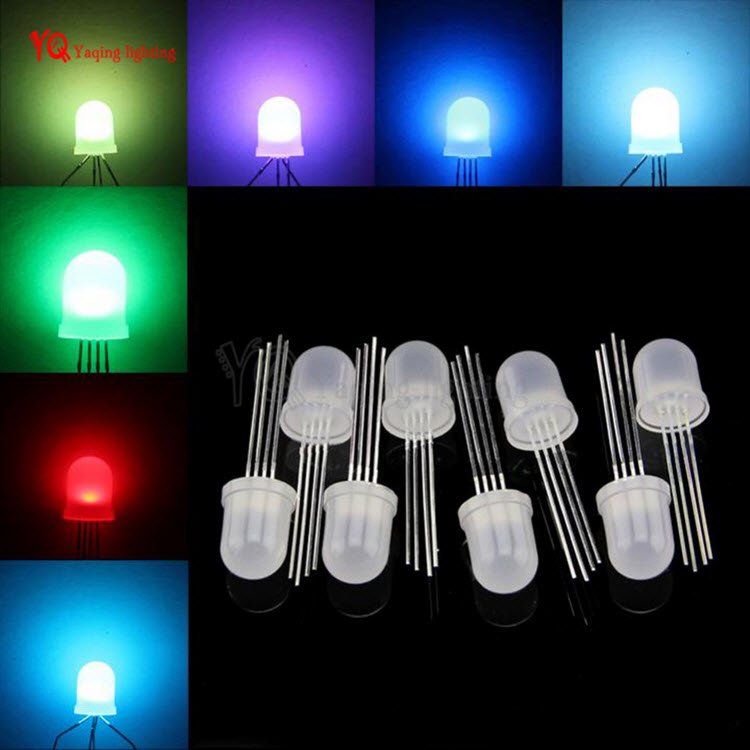

full RGB color,24bit,256 gray scale



LED Qty



1pcs WS2811-F5; 5mm round hat RGB LED with WS2811 chipset



Input Volt



DC5V



Max current



120MA



Max Power



0.24W



Driver method



Constant current circuit



Dimension



5mm diameter(open hole)



Viewing angle



100-120degree



Protection Level



IP33



Certification



CE CCC RoHS



Housing



transparent PVC



Fixed way



open hole



Lifespan



35000 hours



Operation temperature



-40-50



Store temperature



-50-60



diameter



5mm
