PPCS HEADPHONE & MICROPHONE 1/8 - PANEL F TO 2X5 F - 2.5ft.

PPCS-P100-030


This panel mount cable fits headphone and microphone ports to custom panel. Connects to Intel standard AC97 audio header/pinout. Plugging of headphone on custom panel disconnects the motherboard's speaker socket located at the back of computer system. For HD (high definition) audio header, normally it's backward compatible with AC97 audio, please check your mother-board manual to confirm.


Found a better price? Let us know and we'll try and match it!
Estimate shipping
8 in stock, ready to ship
$12.50
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

This panel mount cable fits headphone and microphone ports to custom panel. Connects to Intel standard AC97 audio header/pinout. Plugging of headphone on custom panel disconnects the motherboard's speaker socket located at the back of computer system. For HD (high definition) audio header, normally it's backward compatible with AC97 audio, please check your mother-board manual to confirm.

Specifications

PRODUCT NAME
Headphone & Mic 1/8 - panel F to 2x5 F


PRODUCT CODE
P110-012: 1 ft. cable length
P110-018: 1.5 ft. cable length
P110-030: 2.5 ft. cable length


CONNECTORS

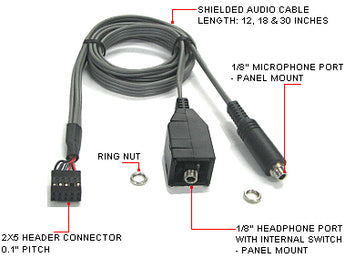

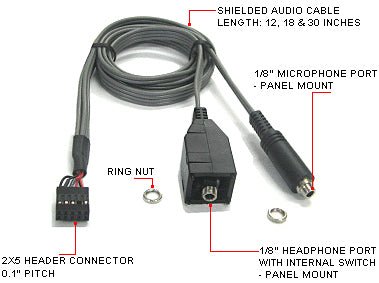

1/8 headphone port with internal switch - panel mount
1/8 microphone port - panel mount
2x5 header connector - 0.1 pitch


CABLE
Shielded audio cable (UL 2835)


OTHER MATERIALS INCLUDED
2 ring nuts



WIRE ASSIGNMENTS




wire


Black: Back Line-Out Left / BL-Out L
Brown: Back Line-Out Right / BL-Out R


Orange: Front Line-Out Left / L-Out L
Red: Front Line-Out Right / L-Out R


Black (with tube marking): Microphone / MIC
Red (with tube marking): Microphone Power / MICPWR / MICP / Bias / REF


Black: Ground / AU GND / GND


The ground wire is fatter and can be easily recognized. The microphone wires (red & black) are marked with black plastic tubes.



HEADER CONNECTION GUIDES




connection


For more details, please view product page of CPX110.
