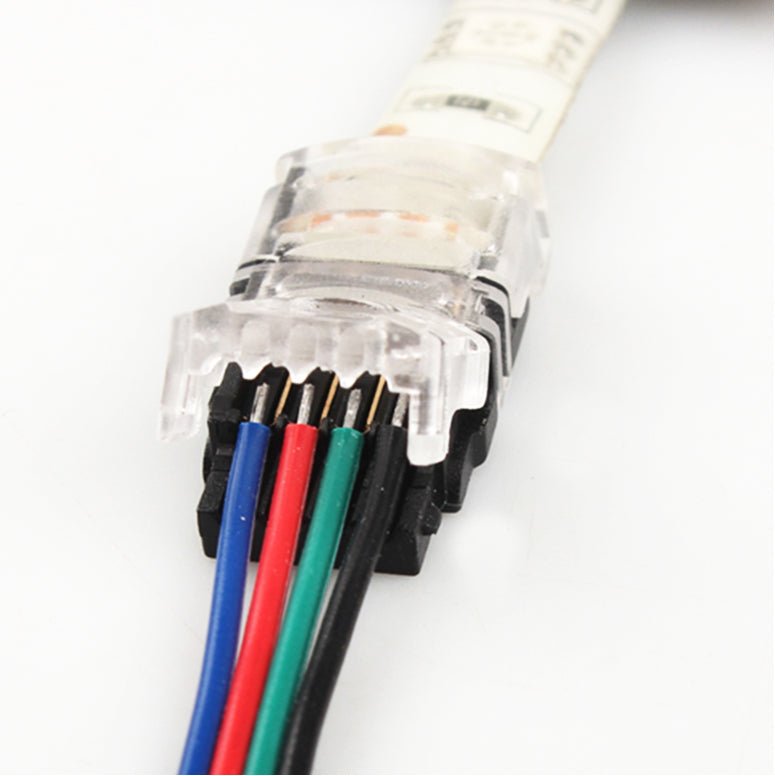

PPCS RGB LED Strip to Bare Wire Connector 4 Pin Connector - Waterproof IP65

These connectors are easy and great to use for any of your LED modding plans. They are also waterproof so exposure to any liquid will not harm the connection.

*Note: Your LED strip must be waterproof to be in contact with fluids. This connector only protects connection from fluids.*

• Connect strip to strip: Solderless, No need to peel off Silicon cover on strip lights.Quick and flexible work for LED Strip Light projects


• Firmly bite through the strip, don?t like traditional connector only conductive connection, it is a solid connection and much stronger

Model of  Applicable LED Strip Light	RGB		Working Voltage	DC3V-24V
Width of  Applicable LED Strip Light	10mm		Rated Current	5A
Waterproof Rating of  Applicable LED Strip Light	IP65/54 (One Side Glue Coating)		Pin Quantity	4
Color Type of  Applicable LED Strip Light	RGB Color		Housing Material	PC
Min.LED Strip Thickness	>0.2mm		Pin Material	Phosphor Copper (Cu)
Workable Wire Gauge	22~20 AWG		Way of Contact to Strip Light	Insulation-piercing contact
Workable Wire Cross Sectional	0.34~0.52 mm2
Workable Wire OD	Max 2.1 mm		Flame Retardant Level	UL94v-0
