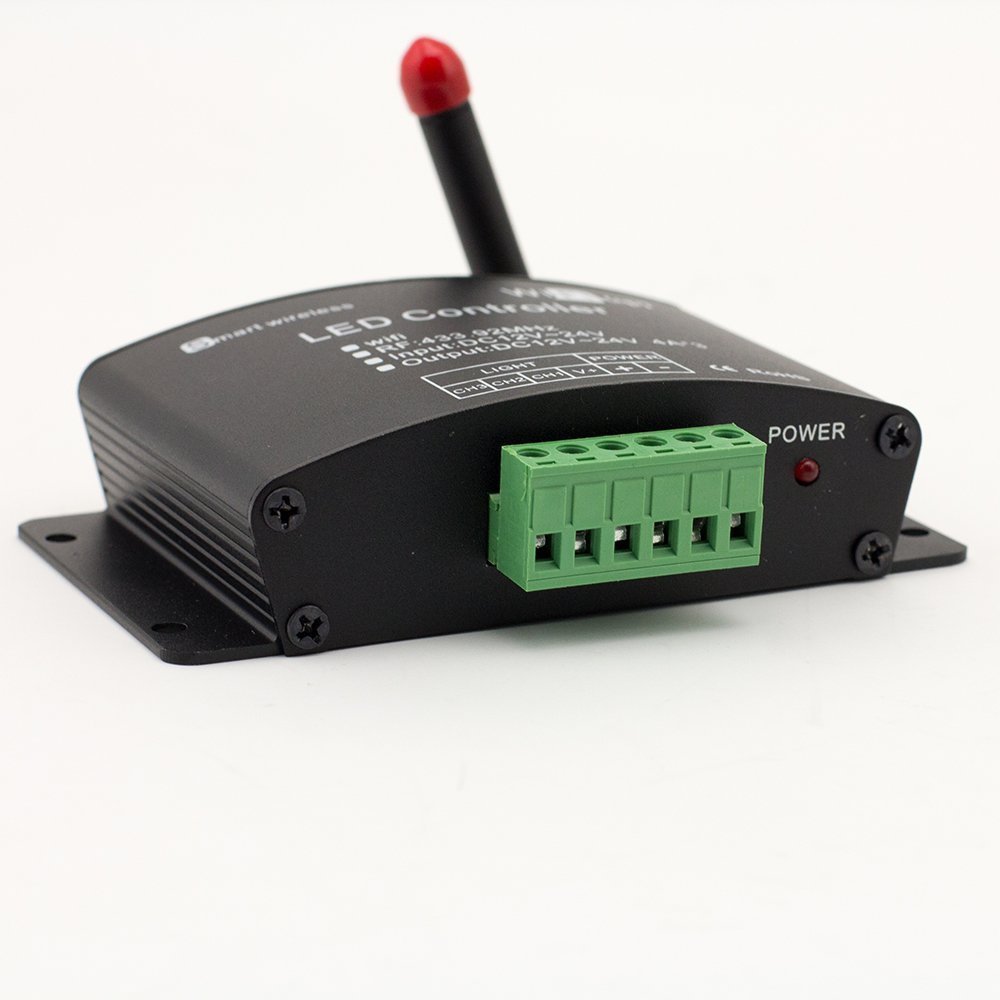

PPCS Smart WIFI RGB LED Controller - Wireless for iPhone ,Android or IOS 4A*3CH, DC12-24V
PPCS-WF-V01
Thank you for your submission!
We will get back to you soon.
Estimate shipping
$49.95 USD
/
Sold out
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details

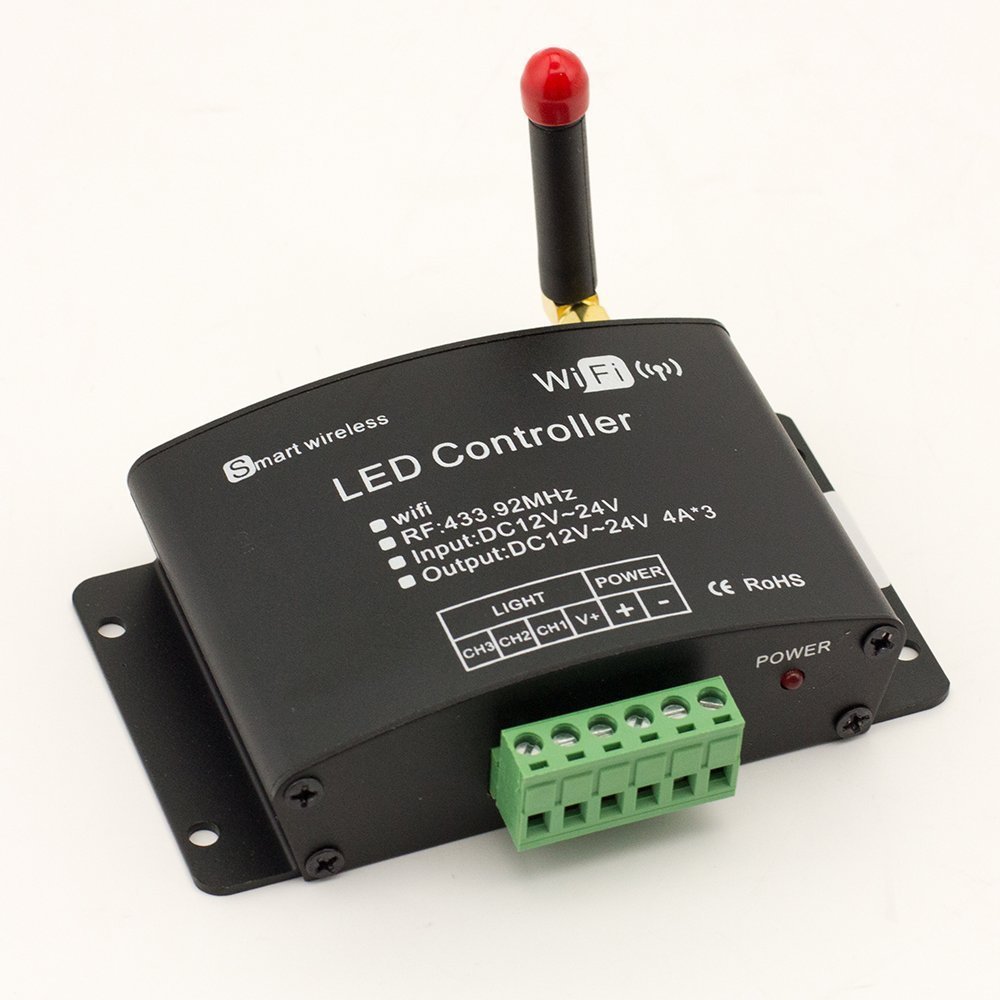

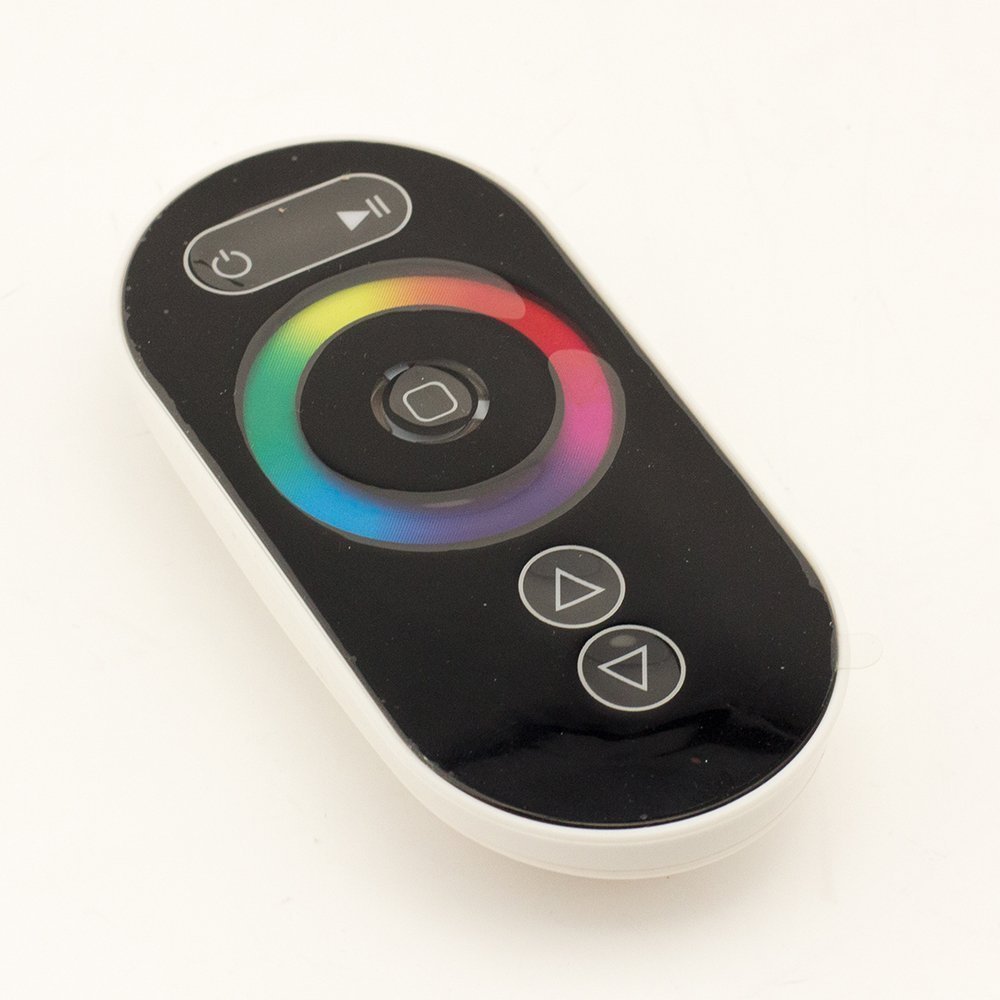

PPCS NEW WIFI-V01 controller appeared with the installation of controlling software on mobile devices with Android or IOS system, it can remote control LED lighting products through WiFi, which makes LED control more intelligent and humanization. One WIFI-V01 controller can be used as dimmer, CT controller, and RGB controller, only need to select the right control interface in the software. In addition, this model has DIY function. Users can get any effect they want based on our controlling software. If you don't have any mobile devices with the controlling software at hand, you could also use our RF remote control to control it. This model designed for constant voltage led products, such as led strip, led modules. For controlling more led products, amplifier is available.
Features

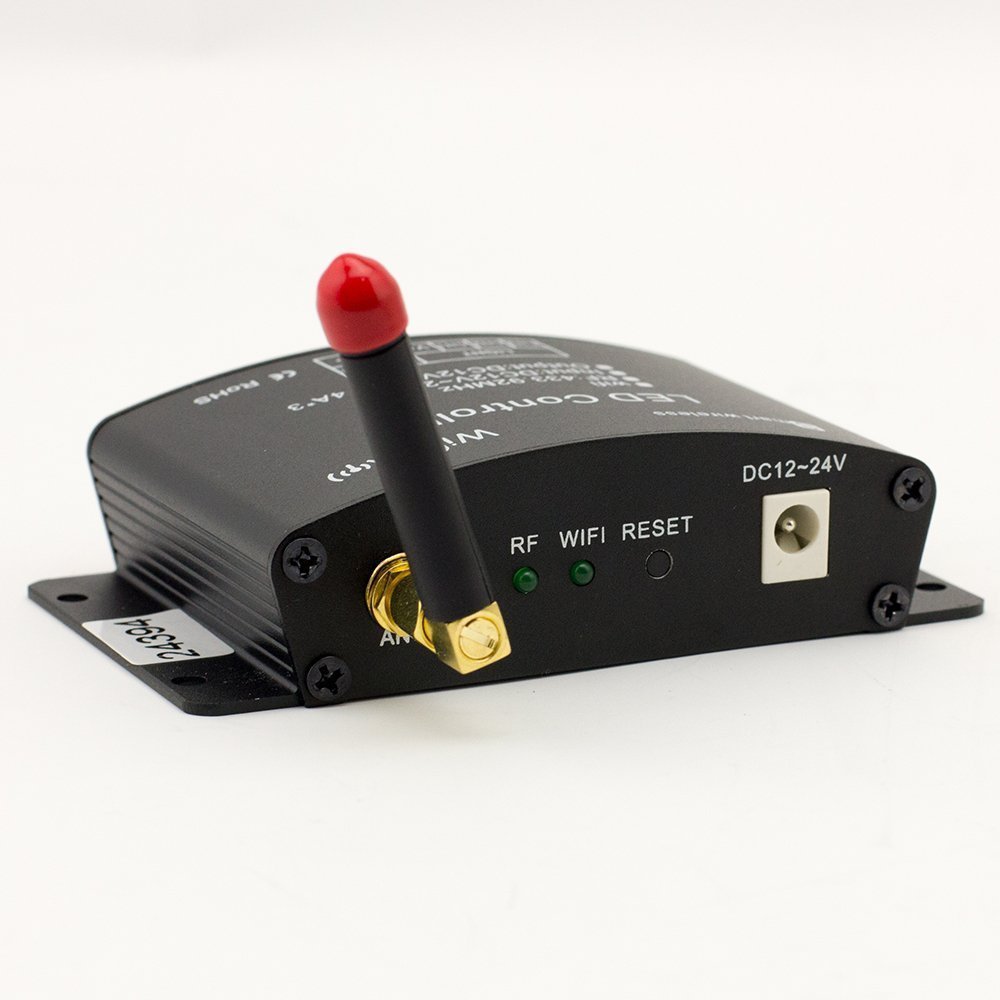

CH2~WW CH1~WC V+~COM CT control interface: No. Button Function 1 DIY mode saving key After DIY, click this key to save. Saving the DIY mode in anytime 2 ON/OFF Turn on/off WIFI-V01 3 Color value Display the R/G/B gray value, ?L?: the current brightness level. 4 Color board Select any static color mode from the board. 5 Brightness slip Slip to adjust the current light brightness, 100 levels in total. 6 System setting Click to system setting page, set the WIFI connection and select the application scene (Dimming, CT, RGB). 7 DIY memory function Go to DIY modes select page. Display all of the DIY modes. 8 Dynamic modes Go to select the dynamic modes. 9 Current application show Display the current application scene. Dynamic modes control interface: DIY modes manage interface: System Setting interface: Indicator light Function table Power Power indicator light, long-time bright shows power supply is working normally Wifi Long-time bright in normally connection, when receives wifi signal data flicker. RF Flickering when receives correct control signal from wifi device or RF remote control; and die out in free time. RESET key:Press and hold at least 5 seconds, WIFI previously set data will be cleared to return to the factory default CT connection: CT full touch remote control: Function of each button as below: Name of key Instruction Remarks ON Turn on the device in any time OFF Turn off the device in anytime Mode The mode will move to next, when touch the key each time 9 modes in total. Speed/Brightness + The Speed/Brightness will +1, when touch the key each time Speed for dynamic modes, Brightness for static modes. Speed/Brightness - The Speed/Brightness will -1, when touch the key each time Speed for dynamic modes, Brightness for static modes. Color Ring Touch any color temperature which is wanted. Modes as below: NO Patterns Remarks 1 Static warm white and cool white Brightness is adjustable, speed is unadjustable 2 Warm white and cool white flash Speed is adjustable, brightness is unadjustable 3 Warm white and cool white fade 4 Warm to cool flash 5 Warm to cool fade 6 Static warm white, cool white flash 7 Static warm white, cool white fade 8 Static coo white, warm white flash 9 Static coo white, warm white fade
Specifications
