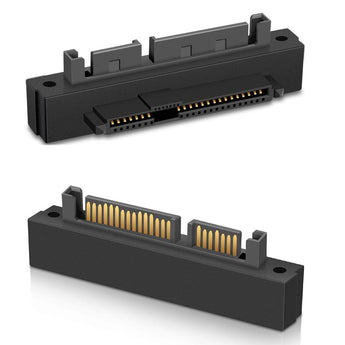

Professional SFF-8482 SAS to SATA 90 Degree Angle Adapter Converter Straight Head for SAS Motherboard

SFF-8482 computer cable / connectors SAS to SATA 22 pin Hard Disk Drive Raid Adapter with 15 Pin Power Port

SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port Note:
1. It can connect the SATA hard disk to SATA motherboard.
2. It can connect the SAS hard disk to SAS motherboard.
3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work.)
4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work.)
5.This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller)
7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector.
Connector Details: 1 x 7 Pin Serial ATA Male.
Connector Details: 1 x 15Pin Male.
Connector Details: 1 x 22 Pin SAS.

NOTE:The SAS hard disk mast have SATA logo!!!!

• Your computer motherboard must be a server motherboard, It must support SAS, if not, please do not buy it. You can see the second picture.


• Your SAS hard disk drive must support the SATA interface, you can see the third picture.


• It can be used for SAS hard drives to SAS motherboards, but it is not possible to use home motherboards for SAS hard drives,It has no chip conversion function.


• It is only used to convert your SAS hard drive interface to a SATA interface and then to connect your SAS computer motherboard,SAS drives are backward compatible, Usually SAS supports SAS and SATA interfaces.


• Attention , when you buy it, your computer motherboard must support SAS motherboards, which are server motherboards.
