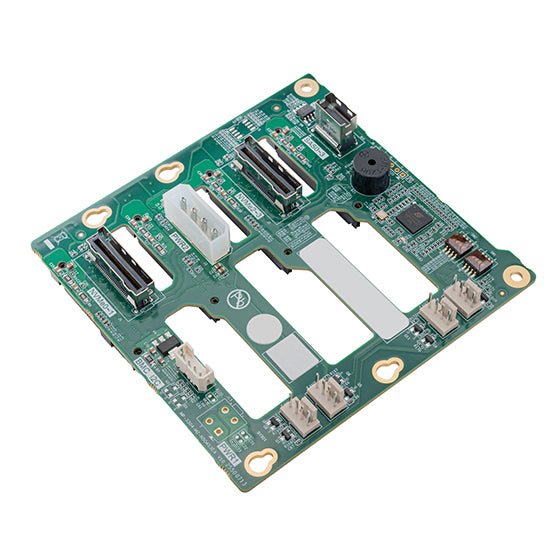

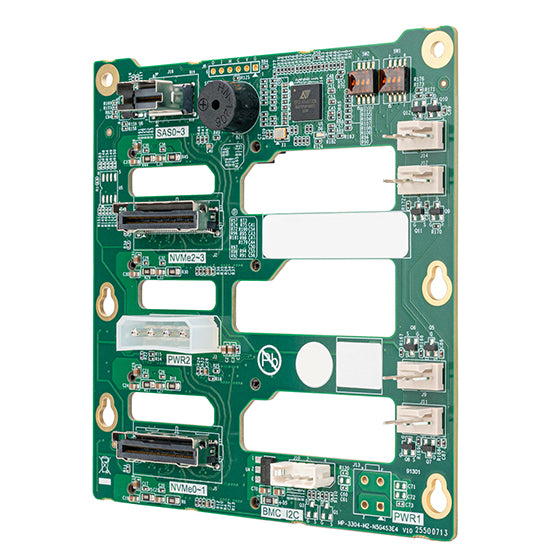

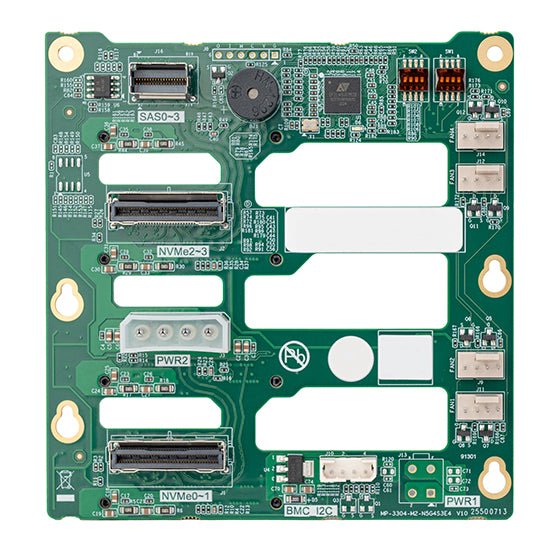

RAC380-BP-304H

SilverStone Technology logo

RAC380-BP-304H

PCIe Gen4 U.2 NVMe Storage Expansion
Dual MCIO 8i (SFF-TA-1016) interfaces support up to four PCIe Gen4 NVMe U.2 (SFF-8639) SSDs with transfer speeds of up to 32Gbps per channel and 64Gbps in total.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$189.99 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

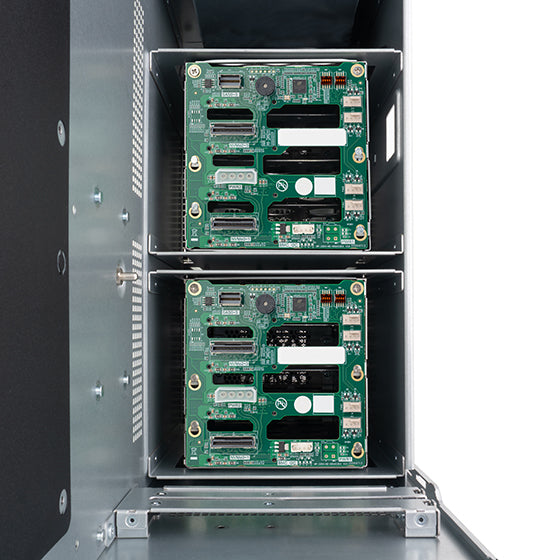

Designed for SilverStone WS380-E
Purpose-built for the SilverStone WS380-E workstation chassis, delivering optimal compatibility and flexible storage expansion.
PCIe Gen4 U.2 NVMe Storage Expansion
PCIe Gen4 U.2 NVMe Storage Expansion

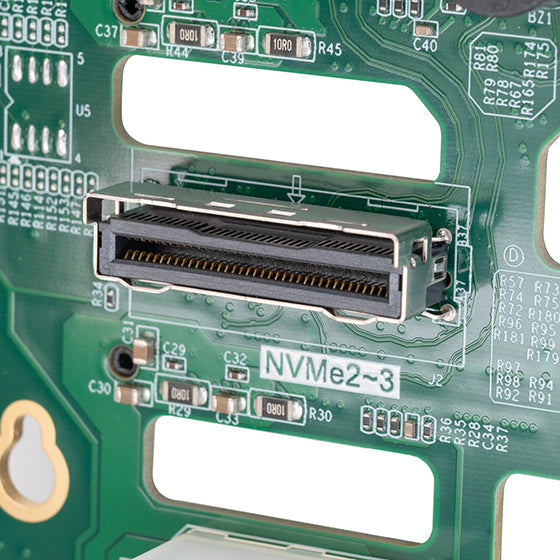

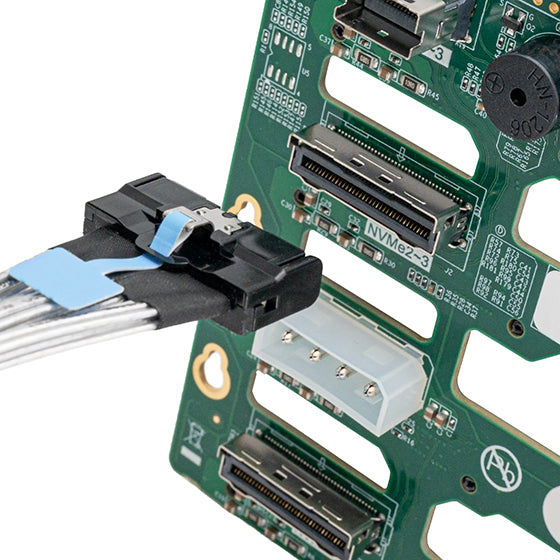

Dual MCIO 8i (SFF-TA-1016) interfaces support up to four PCIe Gen4 NVMe U.2 (SFF-8639) SSDs with transfer speeds of up to 32Gbps per channel and 64Gbps in total.
Supports SAS / SATA Storage Devices
Supports SAS / SATA Storage Devices

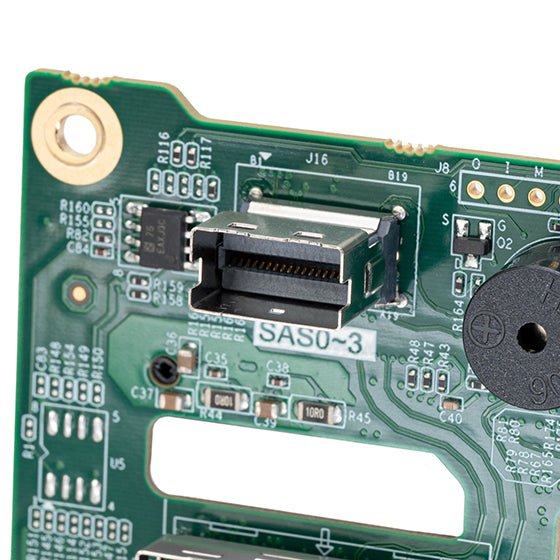

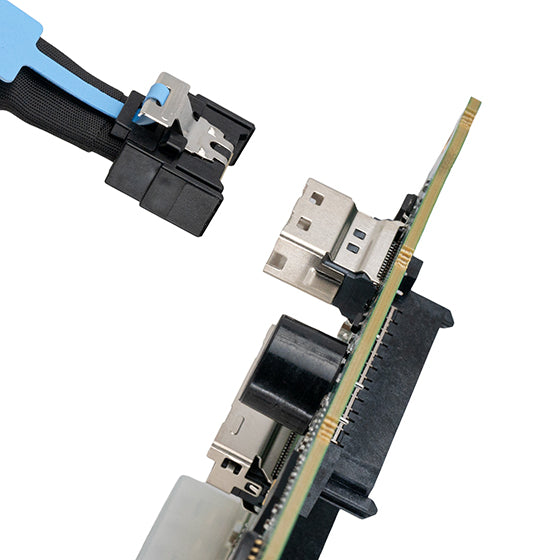

The SlimSAS 4i (SFF-8654) interface supports up to four SAS or SATA SSDs/HDDs with transfer speeds of up to 12Gbps per channel and SGPIO functionality.
Features

* The motherboard or add-in card must support PCIe bifurcation to split PCIe x16/x8 slots into 4×4 or 4×2.

  • Designed for the SilverStone WS380-E workstation chassis

  • Dual MCIO 8i (SFF-TA-1016) interfaces support up to four PCIe Gen4 NVMe U.2 (SFF-8639) SSDs with transfer speeds of up to 32Gbps per channel and 64Gbps in total

  • SlimSAS 4i (SFF-8654) interface supports up to four SAS/SATA drives with transfer speeds of up to 12Gbps per channel and SGPIO functionality

  • Supports PCIe NVMe U.2 or SAS/SATA SSD/HDD (non tri-mode) for flexible storage configurations
Specifications

Product Specifications
Model No.
SST-RAC380-BP-304H
HDD backplane
power connector

  • 4-Pin peripheral x 1

interface

  • 2 port MCIO 8i (SFF-TA-1016) connector
    1 port SlimSAS 4i (SFF-8654) connector

Transfer rate

  • NVMe mode :
    up to 32Gbps each channel (dependent on drive speed)
    SAS/SATA mode :
    up to 12Gbps each channel (dependent on drive speed)

Drive Support

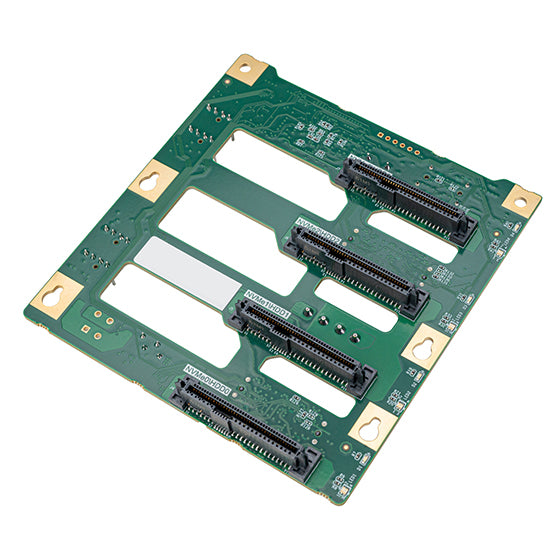

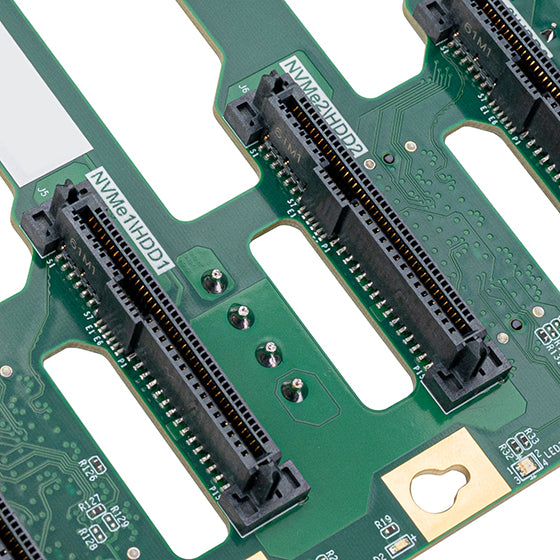

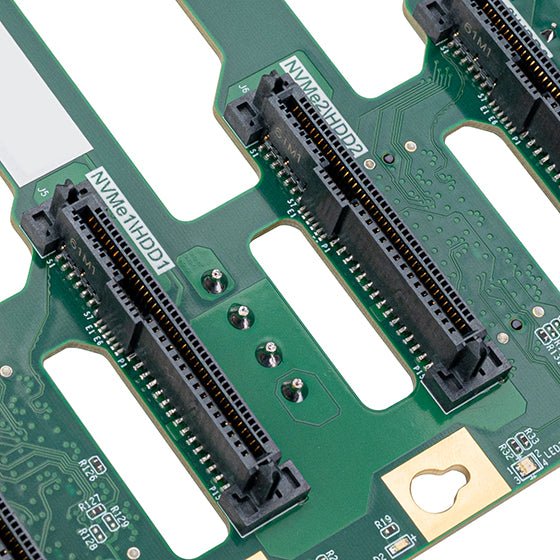

2.5"/3.5" PCIe NVMe U.2 (SFF-8639) SSD x 4
OR
2.5"/3.5" SAS/SATA SSD/HDD x 4


LED Indicators

HDD Access LED x 4: Blinking green
HDD Status LED x 4: Blinking blue/Red


Support list
WS380-E
Dimension
106mm (W) x 110mm (H) x 25mm (D)
Net Weight
57g
Extra
* Please ensure that the HBA/RAID card and cable used are compliant with the SFF-9402 pinout specification.
