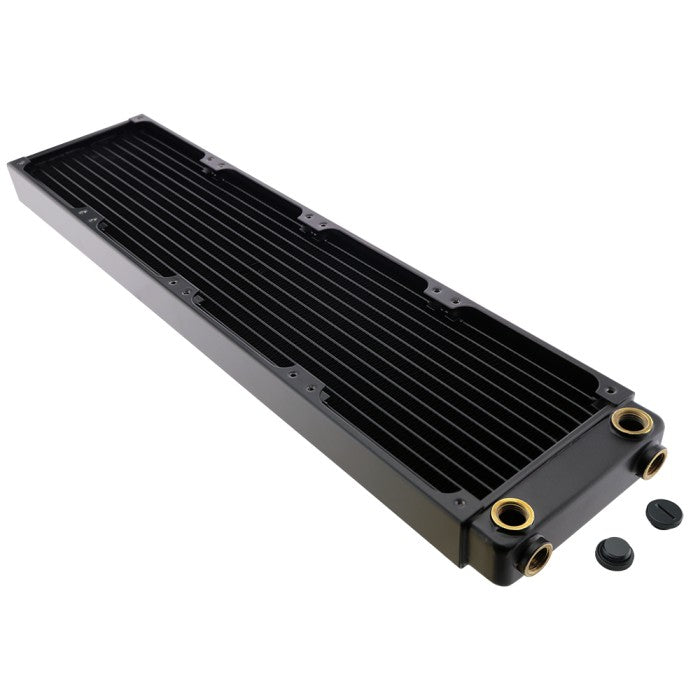

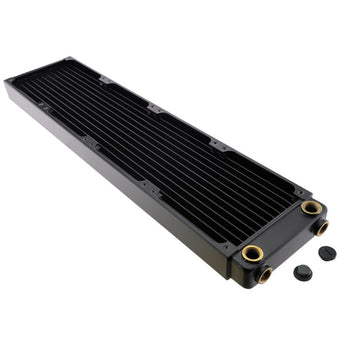

Koolance Radiator, 4x120mm Fans, 34mm Thick, 17-FPI Copper

Koolance HX-480YC is a medium thickness (34mm, 1.3in) copper core radiator with a fin density of 17 FPI (fins per inch) and dual pass coolant design. Redundant G 1/4 BSPP parallel fitting ports allow for alternate tubing orientations, splitting, or convenient temperature sensor locations. 32mm (1.26) and 8mm (0.3) long screws are included, along with two G 1/4 plugs. See Koolance radiator screw packs for additional fan mounting options.

General
Weight	2.20 lb (1.00 kg)
Fitting Thread	G 1/4 BSPP
Max Pressure Tolerance @ 25°C	2kgf/cm2 (28.5psi)
Max Temperature Tolerance	150°C (302°F)
Wetted Materials	Brass/Copper
Radiators
Fan Capacity	4 x 120mm
Fins Per Inch (FPI)	17

Dimensions
Diagrams / Models	(See Files Tab for Diagrams and 3D Models)
