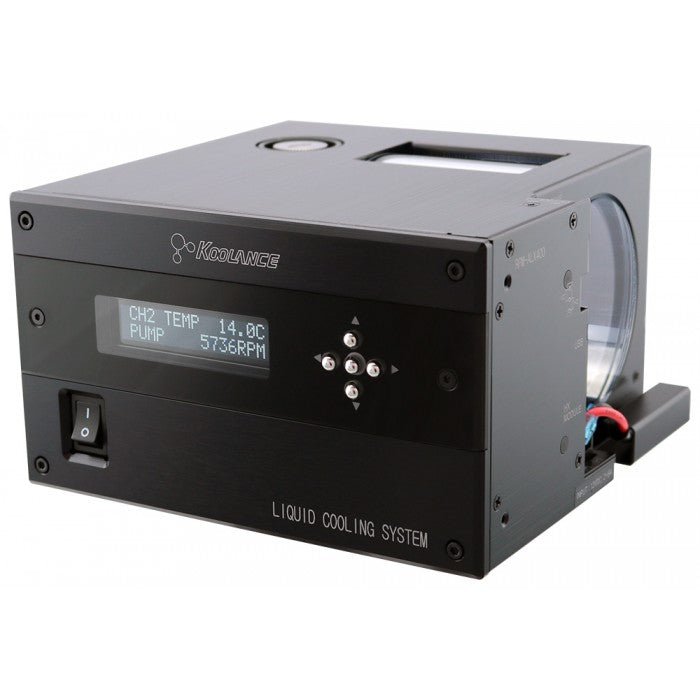

RPM-ALX400 Reservoir and Pump Module for ALX Series

RPM-ALX400 is a front reservoir, pump, and control unit for Koolance's ALX modular cooling systems. Included hardware allows it to be physically combined with an HXM heat exchanger module (sold separately).

This unit has a USB port for viewing and logging of temperature and sensor data via the Koolance System Monitor application.

NOTE: Requires 12VDC input power. Koolance offers a separate power supply for AC wall outlet sources.

• Temperature in °C/°F with set-point based on: liquid (-30 to 90°C), or one of two optional K-type thermocouples (-20 to 120°C)


• Pump: 10 manual levels, up to 8.2LPM (2.2GPM)


• Select only values you want displayed on the front 2-line OLED display (fixed or rotating)


• **Show coolant flow rate in LPM/GPM


• Show pump impeller speed in RPM


• **Show radiator fan speed in RPM


• Enable audio alarm based on: temperature, **flow rate, and/or reservoir coolant level


• Enable relay trigger (NO or NC) based on: temperature, **flow rate, and/or reservoir coolant level


• Power input: 12VDC, 25W (plus any connected HXM modules)


• Reservoir capacity: 400ml (13.5 fl oz)


• G 1/4 BSPP threads on back for fittings

**When attached to an HXM heat exchanger module

General
Max Pressure @ 25°C	2kgf/cm2 (28.5psi)
Max Temperature	60°C (140°F)
Reservoirs
Capacity
Display Type	OLED
Pump	PMP-400 @ 12V
Temperature Sensors	Liquid & Two K-Type Thermocouples (optional)
Pumps
Max Flow Rate	8.2LPM (2.2GPM)
Voltage	12 VDC
