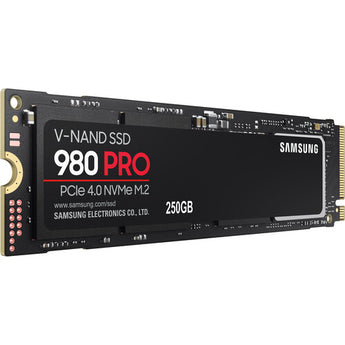

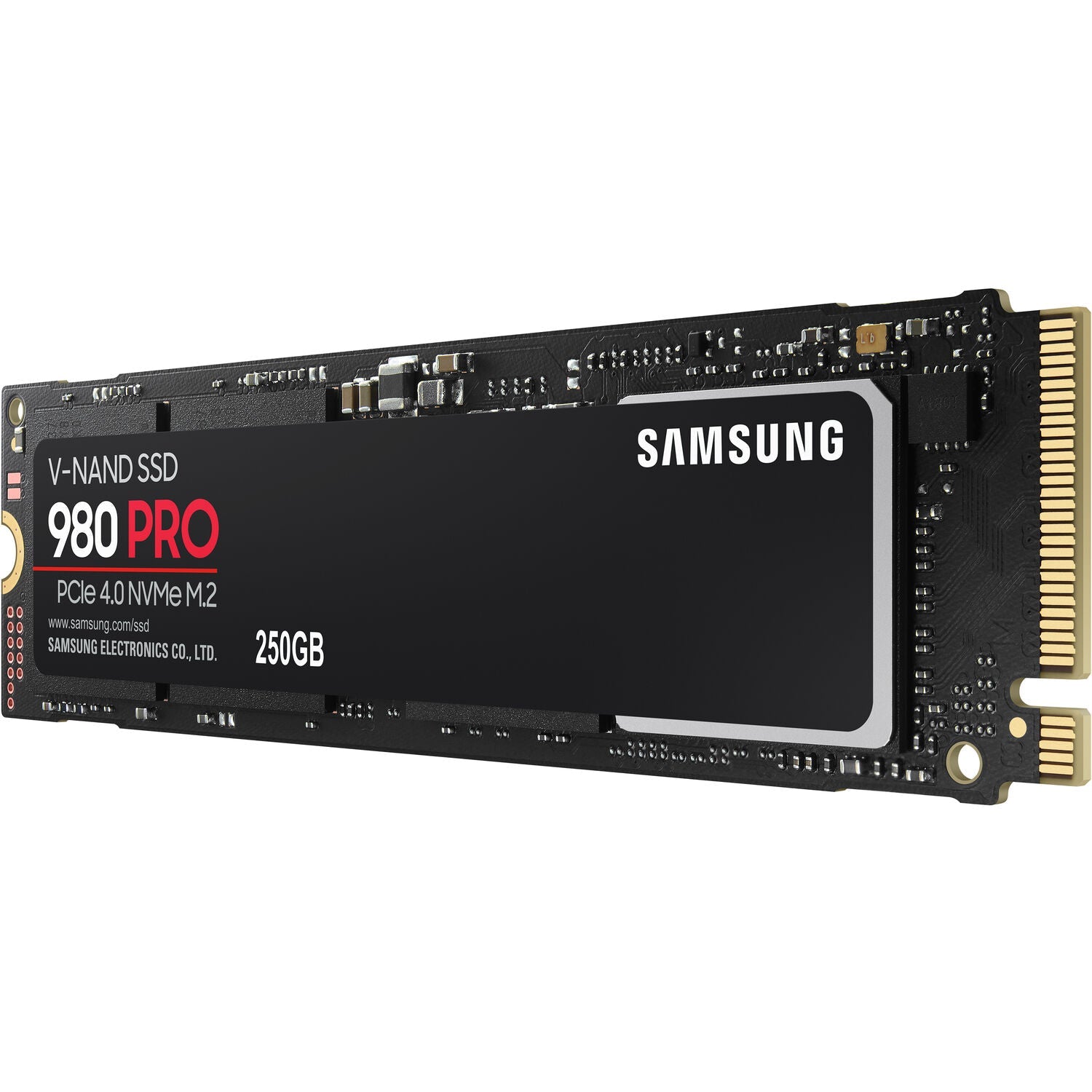

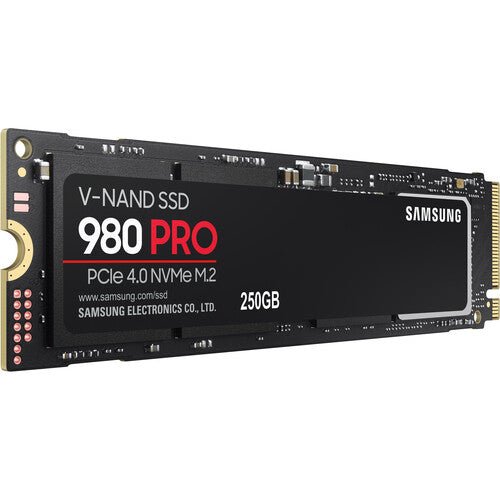

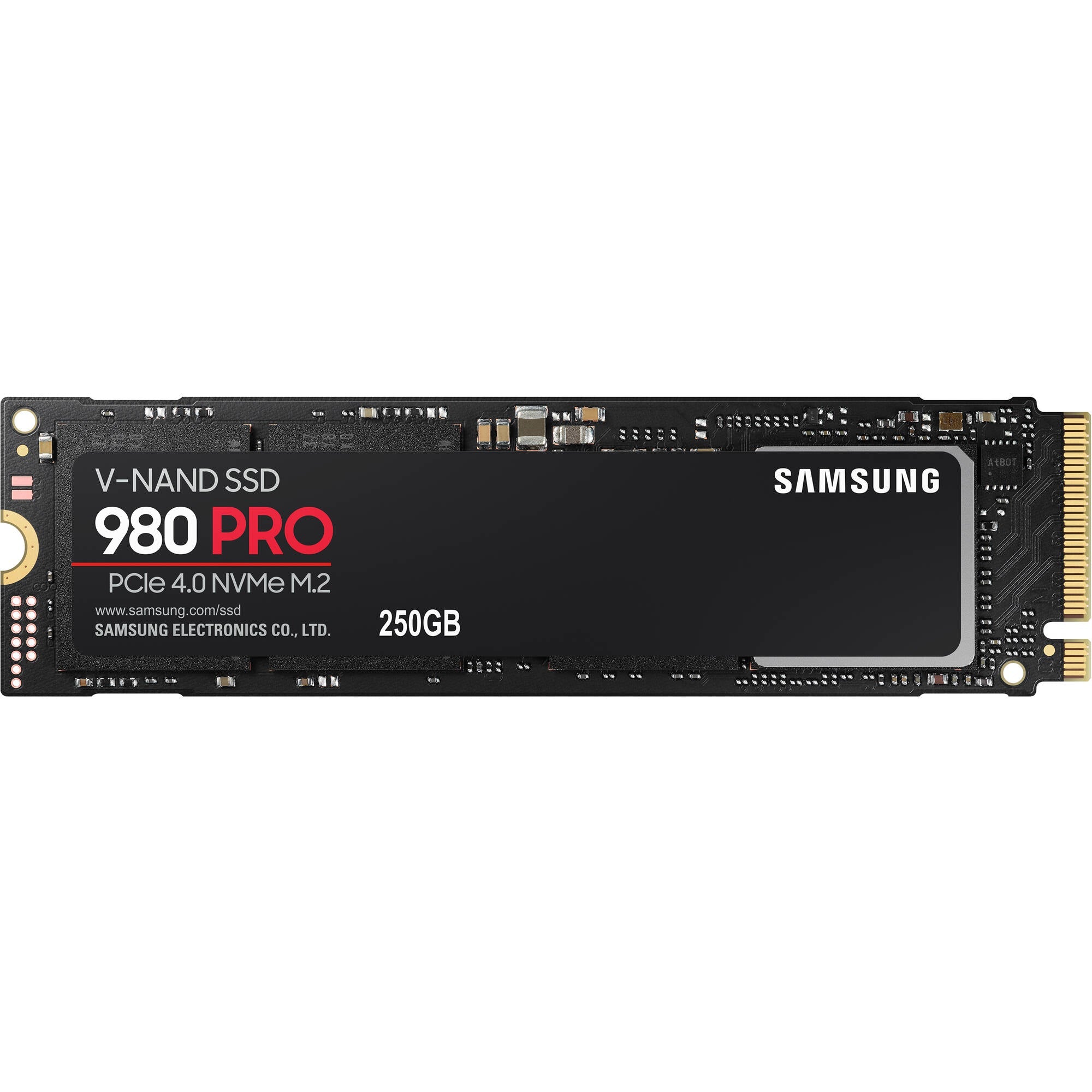

Samsung 250GB 980 PRO PCIe 4.0 x4 M.2 Internal SSD

Built using their V-NAND 3-bit MLC flash technology and Elpis controller, the 250GB 980 PRO PCIe 4.0 x4 M.2 Internal SSD from Samsung offers an M.2 2280 form factor and a PCIe 4.0 x4 / NVMe 1.3 interface to deliver sequential read speeds of up to 6400 MB/s and sequential write speeds of up to 2700 MB/s. Users will also have access to encryption via TCG/Opal 2.0 and MS eDrive, while a TBW (Total Bytes Written) rating of 150TB helps ensure a long operational life.

General Features

• Sequential reads of up to 6400 MB/s and sequential writes of up to 2700 MB/s with a PCIe 4.0 interface which is 2x faster than PCIe 3.0 and 12x faster than Samsung SATA SSDs.


• Intelligent TurboWrite 2.0 maximizes PCIe 4.0 write performance with enlarged TurboWrite regions


• The Samsung 980 PRO provides an endurance rating of up to 150TB


• A nickel-coated controller and a heat spreader label help the 980 PRO effectively dissipate the heat


• Samsung Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal level


• Power efficiency (performance/watt) is improved by up to 65% vs. the 970 EVO Plus


• The 980 PRO comes in a compact M.2 2280 form factor and is backward compatible with PCIe 3.0
