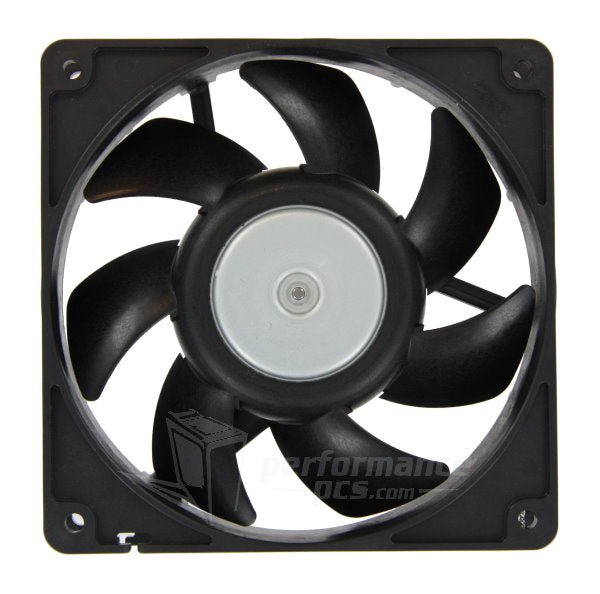

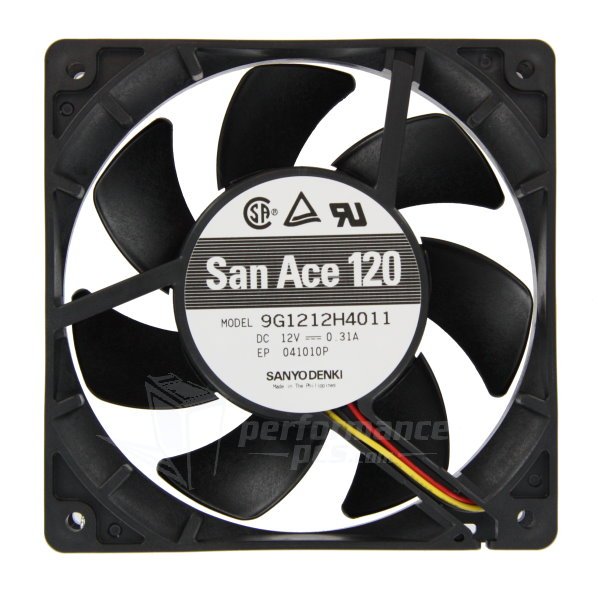

San Ace 9G1212H4011 Ultimate 120x25mm High Speed Case Fan- Sleeved
9G1212H4011
Thank you for your submission!
We will get back to you soon.
Estimate shipping
21 in stock, ready to ship
$21.99
/
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
The San Ace 9G1212H4011 is one of the most sought after 120mm fans in the modding community. These are hard to get but they are one of the best fans in the world for both air and water cooling!
Square type : 120mm Thick : 25mm G Type, ribless model, comes with 3-pin connector.
Specifications
Material
Frame: Plastics (Flammability: UL94V-0)
Impeller: Plastics (Flammability: UL94V-1)
Life Expectancy
40,000h (L10: Survival rate: 90% at 60º C, rated voltage, and continuously run in a free air state)
Motor Protection System
Current blocking function and Reverse polarity protection
Dielectric Strength
------------------------------------
Insulation Resistance
50/60 Hz, 500VAC, 1 minute (between lead conductor and frame)
--------------------------------------------------------------------------------------------------------------
10MO or more at 500VDC megger (between lead conductor and frame)
Sound Pressure Level (SPL)
Expressed as the value at 1m from air inlet side
Storage Temperature
--------------------------------------
Operating Temperature
-30ºC to +70ºC
--------------------------------------------------------------------------------------------------------------
-10ºC to +70ºC(Non-condensing)
Lead Wire
+: red
-: black or blue
Sensor: yellow
Model No.
Rated Voltage
(V)
Operating voltage range
(V)
Rated current
(A)
Rated input
(W)
Rated rotaing speed
(min-1)
Air flow
(m3/min)
Static pressure
(Pa)
Noise
(dB[A])
Mass
(g)
9G1212H4011
12
6 to 13.8
0.31
3.72
2,850
2.50
(88CFM)
64
(0.257inchH2O)
40
240
Dimensions (unit:mm)
Reference dimensional diagram for installation holes (unit:mm)
Typical air flow and static pressure characteristics
