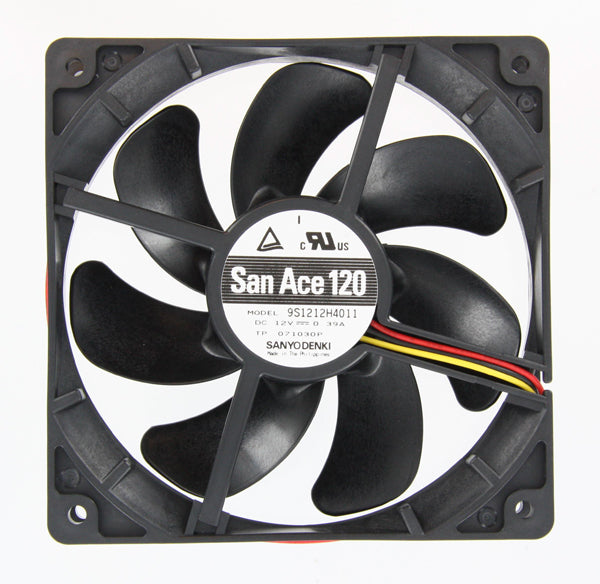

San Ace 9S1212H4011 Ultimate 120x25mm High Speed Case Fan- Sleeved
9S1212H4011
Thank you for your submission!
We will get back to you soon.
Estimate shipping
41 in stock, ready to ship
$22.99 USD
/
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
The San Ace 9S1212M4011 is one of the most sought after 120mm fans in the modding community. These are hard to get but they are one of the best fans in the world for both air and water cooling!
Square type : 120mm Thick : 25mm G Type, ribless model, comes with 3-pin connector.
Specifications
Material
Frame,impeller :plastics
Life expectancy
40,000hours
ï¼? L10:Survival rate:90% at 60â?? ,
rated voltage, and continuously run in a free air stateï¼?
Motor Protection System
Current blocking function (with reverse polarity protection)
Dielectric Strength
------------------------------------
Insulation Resistance
50/60 Hz, 500VAC, 1 minute (between lead conductor and frame)
--------------------------------------------------------------------------------------------------------------
10MO or more at 500VDC megger (between lead conductor and frame)
Sound Pressure Level (SPL)
Measured at 1m from the air inlet
Storage Temperature
--------------------------------------
Operating Temprature
-30ºC to +70ºC
--------------------------------------------------------------------------------------------------------------
-10ºC to +60ºC
9S1212H4011
-30ºC to +70ºC
9S1212F4011ï¼?9S1212M4011ï¼?9S1212L4011
(Non-condensing)
Lead Wire
(+)red, (-)black
Sensor: yellow
Specifications:
Model No.
Rated Voltage
(V)
Operating voltage range
(V)
Rated current
(A)
Rated input
(W)
Rated rotaing speed
(min-1)
Air flow
(m3/min)
Static pressure
(Pa)
Noise
(dB[A])
Mass
(g)
9S1212H4011
12
5.0 to 13.2
0.39
4.68
2,700
2.45
(86.5CFM)
45.2
(0.18inchH2O)
36
140
