Scthye Slip Stream 120 PWM Adjustable

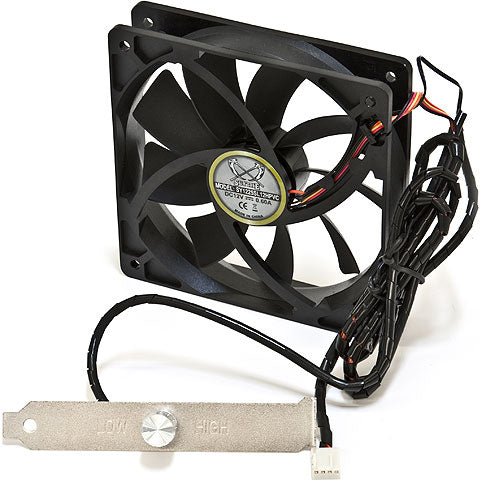

The Slip Stream Adjustable PWM fan is the third new version of the PWM Slip Stream series. As needed, users can adjust the PWM bandwidth manually to control the fan speed by sliding the switch on a PCI bracket, so the fan is optimized for quiet operation or highest performance. PWM function is still maintained as the general feature. Speed of this fan variation is continuously adjustable between 470 (± 30%) to 1,340 rpm (± 10%) and 740 (± 25%) to 1,900 rpm (± 10%).

PWM Adjustable
Equipped with Scythe original Slip Stream PWM 120 mm PWM Adjustable fan, it allows a user to choose the fully automatic PWM feature fan speed control or alternatively adjust the PWM band range to fulfill demands from silent to high performance users!

Performance
By reducing the dimension of the center hub and enlarging the blade surface area, high airflow is generated at low RPM.

4-Pin Peripheral Adapter Provided
To be versatile, this case fan comes with the 4-pin peripheral adapter.

Model Name:
Slip Stream 120 PWM Adjustable

Model No.:
SY1225SL12HPVC

Fan Dimensions:
120 x 120 x 25 mm

Fan Speed:
Max. Band 740 (±25%) - 1,900 rpm (±10%)
Min. Band 470 (±30%) - 1,340 rpm (±10%)

Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA

Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m³/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m³/h

Weight:
117 g

Connector:
3-Pin (4-Pin Molex Adapter include)

Bearing Type:
Sleeve Bearing

MTBF:
30,000 Hours
