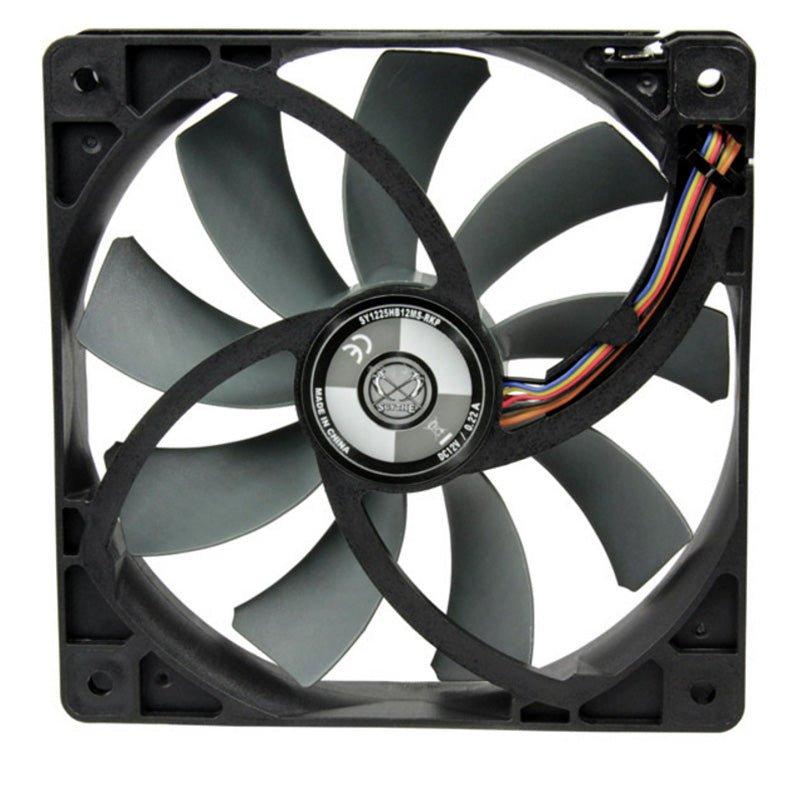

Scythe GlideStream 120 PWM SC Fan

Scythe

SY1225HB12MS-RKP-D

The GlideStream 120 PWM PC fan combines all the positive features of the GlideStream fan series with additional technical detail - a three step slide switch for limiting the maximum speed (800/1150/1500 rpm). This allows an easy adjustment of the fan to different application areas starting from ultra silent to maximum cooling performance for overclockers. The PWM connector predestined this fan as replacement for coolers as well as case fan. The well-known concept of small hub and large blades increased the air flow of the fan compared to fans with conventional hubs.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
17 in stock, ready to ship
$12.95 $3.89 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The GlideStream 120 PWM PC fan combines all the positive features of the GlideStream fan series with additional technical detail - a three step slide switch for limiting the maximum speed (800/1150/1500 rpm). This allows an easy adjustment of the fan to different application areas starting from ultra silent to maximum cooling performance for overclockers. The PWM connector predestined this fan as replacement for coolers as well as case fan. The well-known concept of small hub and large blades increased the air flow of the fan compared to fans with conventional hubs.
Features

Speed limitation by three step slide switch


The Glide Stream 120 PWM fan SC has a small three step slide switch. This allows limiting the maximum speed of the fan and provides the opportunity to customize air flow and the noise to your own needs. It makes possible to choose between extremely silent operation mode or maximum cooling power.



Optimized Air Flow


Due to the design concept small hub and large blades increases the flow cross section for fans with conventional fan hub. In combination with the specially adapted shape and fan blades angle increase the air flow massively. In order to keep air resistance to a minimum, the fan blades have been fitted with unique grooves.



PWM connector


Through the PWM connector of the fan is a direct connection to the motherboard possible for using the integrated fan controller. The included 3 to 4-pin Molex adapter allows the connecting with the PSU of the PC. By screws and vibration dampeners this fan is perfectly suited as case fan too.
Specifications





  • » Model Name

    GlideStream 120 PWM SC Fan









  • » Model Number

    SY1225HB12MS-RKP









  • » Dimensions

    120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 inch









  • » Fan Speed (3 Settings)

    L: 300 (±300) ~ 800 (±10%) rpm / M: 300 (±300) ~ 1150 (±10%) rpm / H: 300 (±300) ~ 1500 (±10%) rpm









  • » Noise Level

    L: 4.0 ~ 12.5 dBA / M: 4.0 ~ 24.5 dBA / H: 4.0 ~ 29.5 dBA









  • » Air Flow

    L: 21.96 ~ 73.89 m³/h or 12.93 ~ 43.50 CFM / M: 21.96 ~ 112.6 m³/h or 12.93 ~ 66.50 CFM / H: 21.96 ~ 143.78 m³/h - 12.93 ~ 84.64 CFM









  • » Static Pressure

    L: 0.07 ~ 0.50 mmH²O / M: 0.07 ~ 1.15 mmH²O / H: 0.07 ~ 1.79 mmH²O









  • » Voltage

    12 V









  • » Amperage

    L: 0.06 A / M: 0.12 A / H: 0.22 A









  • » Power Input

    L: 0.72 W / M: 1.44 W / H: 2.64W









  • » Weight

    126 g / 4.44 oz









  • » Connector

    4-pin (PWM)









  • » Included Accessory

    3 to 4-pin Molex-Adaptor, screws x 4, insulating rubber x 4









  • » Bearing Type

    Sleeve Bearing









  • » MTTF

    30,000 hours under normal conditions
