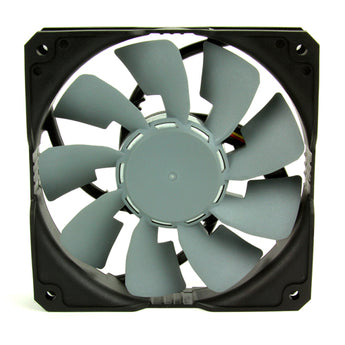

Scythe Grand Flex 120mm Fan 2000RPM - Sleeved

The Grand Flex is the latest, new creation in the Scythe line-up. Forget old, although proven engineering - every major component was re-developed at its' core. The Grand Flex is equipped with a closed-up liquid bearing (Sealed Precision FDB) where the rotor shaft rotates on an oil-film created by dynamic pressure. This technique greatly reduces running noise and friction, which again slows down wear and tear of the bearing. The newly designed fan blades focus the airstream to the desired cooling area to optimize cooling efficiency.

Model Name:
Grand Flex 120mm Fan

Model-No.:
SM1225GF12SL  (800 rpm)
SM1225GF12L    (1200 rpm)
SM1225GF12M   (1600 rpm)
SM1225GF12H   (2000 rpm)

Dimensions:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 in

Fan Speed:
800 rpm / 1.200 rpm / 1.600 rpm / 2.000 rpm

Noise Level:
18.0 dBA / 23.5 dBA / 28.5 dBA / 34.5 dBA

Air Flow:
30.5 CFM =   51.8 m³/h
45.8 CFM =   77.8 m³/h
61.1 CFM = 103.8 m³/h
76.6 CFM = 130.1 m³/h

Static Pressure:
0.53 mmH²O / 5.20 Pa
1.15 mmH²O / 11.28 Pa
2.00 mmH²O / 19.61 Pa
3.20 mmH²O / 31.38 Pa

Voltage:
12 V

Current:
0.10 A / 0.15 A / 0.20 A / 0.35 A

Power Input:
1.2 W / 1.8 W / 2.4 W / 4.2 W

Weight:
178 g / 6.27 oz

Connector:
3-pin

Accessory:
3 to 4-pin Molex-Adaptor, 4x screws, 4x insulating rubber

Bearing:
Sealed Precision Fluid Bearing

MTTF:
120.000 Hours (25°C)
