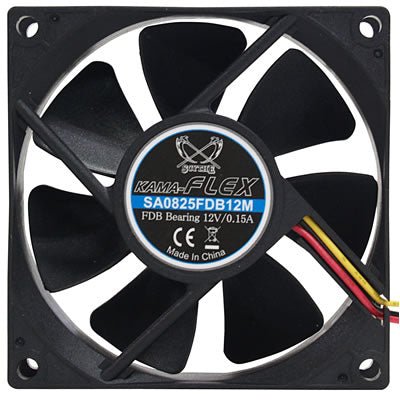

Scythe "KAMA FLEX" 80 mm Silent Case Fan - Medium Speed - Sleeved

SA0825FDB12M-D

Product Details:


We introduce the affordable version of fluid dynamic bearing case fan. The technology of fluid bearing for this model is to provide a dramatic reduction in fan noise and prolong the life of your fan. Fan RPM as well as the PCB of the fan has been tuned differently by Scythe for its own model purposes. Tuned by Scythe to Make it Affordable!  Equipped with “Fluid Dynamic Bearing” also known as C.O.S.C (Closed Oil Shaft Carrier), Long Life, Silent, and High Performance!



Fan cable is fully covered in nylon Techflex sleeving and Premium Heatshrink, colors of your choice.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
30 in stock, ready to ship
$9.95 $2.99 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Product Details:

We introduce the affordable version of fluid dynamic bearing case fan. The technology of fluid bearing for this model is to provide a dramatic reduction in fan noise and prolong the life of your fan. Fan RPM as well as the PCB of the fan has been tuned differently by Scythe for its own model purposes. Tuned by Scythe to Make it Affordable! Equipped with “Fluid Dynamic Bearing ” also known as C.O.S.C (Closed Oil Shaft Carrier), Long Life, Silent, and High Performance!

Fan cable is fully covered in nylon Techflex sleeving and Premium Heatshrink, colors of your choice.

Features


  • Equipped with FDB (Fluid Dynamic Bearing)
    This fan is equipped with FDB (Fluid Dynamic Bearing) also known as C.O.S.C (Closed Oil Shaft Carrier) to provide long-life and stable bearing operation.

  • Market Leading Low-Noise Level
    FDB technology drastically eliminates the friction between the bearing and the shaft which makes this fan nearly inaudible to human ears. Additional suction magnet optimizes the magnetic force balance within the rotor to achieve the absolute silence.

  • Outstanding Long Life of 120,000 Hours
    Patent Pending structure allows the fan to last up to 120,000 hours.

  • Tuned by Scythe
    Fan RPM as well as PCB are originally tuned by Scythe engineer to better meet the demand for the users in PC DIY (Do It Yourself) market.

Specifications



































Dimensions (mm)


Model #


Fan Speed


Fan
Noise


Air
Flow


A


80
x
80
x
25

SA0825FDB12SL
1,500 rpm


14.0dBA


19.0CFM


0.09

SA0825FDB12L
2,000 rpm


27.5dBA


27.0CFM


0.13

SA0825FDB12M
2,500 rpm


30.0dBA


34.0CFM


0.15



Rated Voltage: DC12V

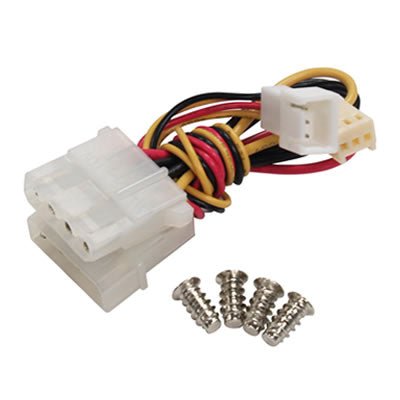

Connector: 3-pin (4-pin adaptor included)
Cable Length: 30cm
Bearing Type: FDB (Fluid Dynamic Bearing) also known as C.O.S.C (Closed Oil Shaft Carrier)

* On some packages, MTBF is shown as 80,000 hours & 60,000 hours (for 120mm/1900rpm Only) but the actual MTBF is 120,000 hours.
