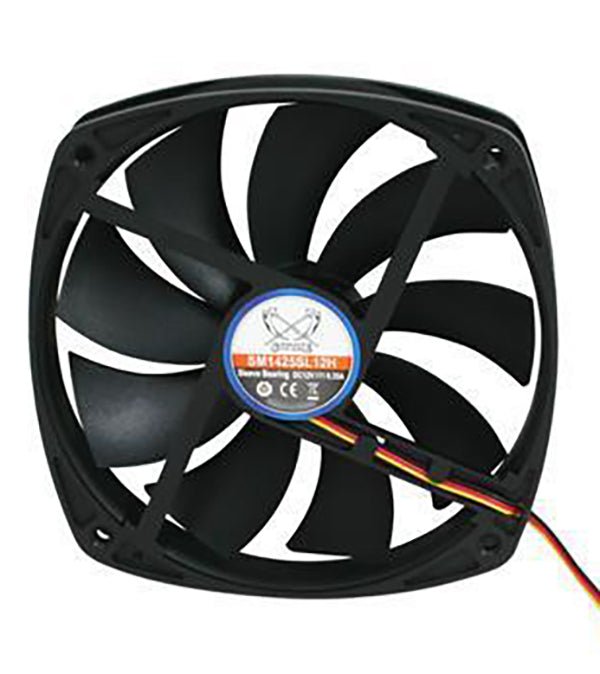

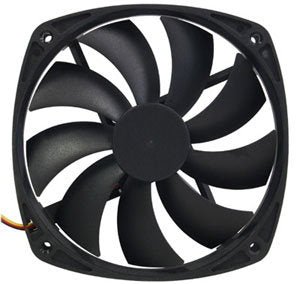

Scythe "KAZE MARU 2" 140mm Case Fan - High Speed

Slip Stream 140 series is the successor of the formally known as Kaze maru series. By applying the new slip stream 140mm fan, a wider area can be cooled compared to 120mm fans while maintaining low noise and high airflow.

• Slip Stream 140mm Fan The new SLIP STREAM 140mm fan cools wider area than 120mm fans while keeping noise at a low level and delivering higher airflow.


• Designed for 120mm Screw Holes The round-shaped style allows the Slip Stream 140 to achieve the overall compact design, which is ONLY compatible with 120mm fan slots. Note: When using this product as a case fan, minimum 140mm x 140mm of clearance is required for installing.


• 4-Pin Peripheral Adapter Provided This case fan comes with a 4-pin peripheral adapter for versatile use.

Model Name:	Kaze Maru-2 140mm Case Fan

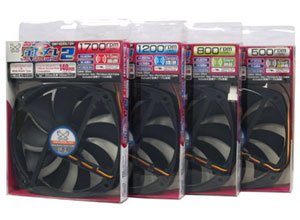

Model Number:	500rpm	SM1425SL12SL
	800rpm	SM1425SL12L
	1,200rpm	SM1425SL12M
	1,700rpm	SM1425SL12H
Manufacturer:	Scythe Co., Ltd.  Japan
Connector:	3-pin (3-pin to 4pin adaptor included)
Cable Length:	30cm / 11.81in
Bearing Type:	Sleeve Bearing
MTBF:	20,000 hours



Model #	Fan Speed	Fan Noise	Rated Current	Air Flow	Dimensions
SM1425SL12SL	500 rpm	9.60 dBA	0.08 A	27.20 CFM	140 x 140 x 25 mm 5.51 x 5.51 x 0.98 in
SM1425SL12L	800 rpm	14.30 dBA	0.10 A	43.50 CFM
SM1425SL12M	1,200 rpm	23.20 dBA	0.20 A	65.20 CFM
SM1425SL12H	1,700 rpm	36.40 dBA	0.35 A	92.40 CFM

Caution: When using this product as a case fan inside the PC, minimum 140mm x 140mm of clearance is required in order to install this case fan.
