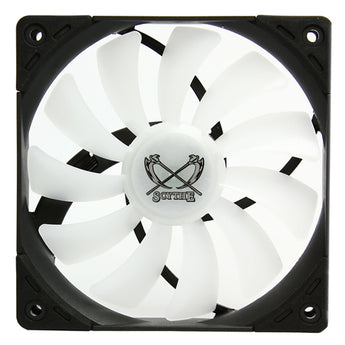

Scythe SU1225FD12MR-RHP Kaze Flex 120 x 27mm RGB LED Fan, Quiet CPU Cooler/Case Fan

RGB illumination
Eight RGB LEDs arranged in a ring around the fan motor generate a consistent and powerful illumination of the translucent fan blades. The LEDs are operated by a standard 4-Pin RGB cable that can be directly controlled by the common RGB system of various motherboard manufacturers. Compatible, amoung others, are systems like ASUS^TM Aurora Sync, ASRock^TM RGB LED, MSI^TM Mystic Light Sync and Gigabyte^TM RGB Fusion.



Sealed Precision FDB
In order to guarantee an exceptionally high level of stability and durability, the fans from the Kaze Flex Series are equipped with a self-contained fluid dynamic bearing (Sealed Precision FDB). The bearing and the spindle are made entirely of high quality compressed metal and lubricated by a special oil film resistant to temperatures of up to 250°C / 480°F. This drastically reduces friction, ensuring smooth operation and minimized wear, which results in an average life-span of 120 000 hours.



Integrated Anti-Vibration Sytem
The Kaze Flex fan series is equipped with vibration- and shock absorbing rubber pads which cover the tunnelless mounting holes. These decouplers effectively eliminate possible vibrations and allow low-noise operation.



Versatile Applications
The Kaze Flex RGB PWM fan series is available in three performance levels and offers an individual solution for every application. Alternatively, a regular RGB fan version is also available.



Other features
The Kaze Flex 120 RGB PWM comes with a 50 cm / 19.68 inch long sleeved 3-Pin cable as well as a standard 12V 4-Pin cable for RGB control with an additional pass-through plug. This allows easy installation in almost any system configuraton. An adaptor for direct connection to the power supply is also included.





Model Name:
Kaze Flex 120 RGB PWM Fan

Model-Nr.:
SU1225FD12LR-RDP
SU1225FD12MR-RHP
SU1225FD12HR-RNP

Dimensions:
120 x 120 x 27 mm

Fan Speed:
300 - 800 ± 10% rpm
300 - 1200 ± 10% rpm
300 - 1800 ± 10% rpm

Noise Level:
4.0 - 14.5
4.0 - 24.9
4.0 - 35.8 dBA

Airflow:
16.6 - 43.03 CFM = 28.2 - 73.1 m³/h
16.6 - 51.17 CFM = 28.2 - 86.9 m³/h
16.6 - 79.76 CFM = 28.2 - 135.5 m³/h

Static Pressure:
0.0763 - 0.49 mmH²O | 0.75 - 4.8 Pa
0.0763 - 1.05 mmH²O | 0.75 - 10.3 Pa
0.0763 - 2.40 mmH²O | 0.75 - 25.3 Pa

Voltage:
12 V

Amperage:
0,09 A / 0,13 A / 0,40 A

Amperage LED:
0,40 A / 0,40 A / 0,40 A

Power Input:
1,08 W / 1,56 W / 5,52 W

Weight:
140 g

Connector:
4-pin, 4-pin 12V RGB

Accessory:
Molex-Adaptor, 4x screws,

Bearing:
Sealed Precision Fluid Bearing

MTTF:
120.000 Hours (25°C)
