SIDE ARGB Kit for LIAN LI Performance Fan- White

Illuminate Lian Li’s performance LCP fans by adding cool and subtle lighting on the sides without performance compromise. Each side strip features 10 addressable LEDs behind a diffuser for smoothened lighting all around. The side ARGB strips are fully compatible with UNI FAN P28 and the GA II Trinity Performance 360 AIO fans.

Inspired by UNI FAN SLV2’s lighting effects and ALV2’s aluminum strips, the ARGB side strips combine both features and add more ARGB in the center to bring sophisticated RGB looks to the UNI FAN P28 or the GA II Trinity Performance 360 AIO’s fans. This helps maintain the high performance of LCP fans while keeping an impressive amount of ARGB lighting in the build.

Easily daisy-chain 6 ARGB strips with a linker or extension cable to fit seamlessly on LIAN LI performance fans.

Total supported number of strips varies by the number of strips used, the strips’ brightness, and color. The chart below shows the possible scenarios to give you a better understanding (static white is used as the example because it requires the highest amount of power of all colors).

Carefully remove the side aluminum strips from the UNI FAN P28 or the side plastic strips from the GA II Trinity 360 AIO’s fans (this tutorial applies to both fans).

UNI FAN P28

While keeping the fan intake facing yourself, remove the side aluminum / plastic strip from the end with the interlocking key.

Trinity Performance

UNI FAN P28

Slide your finger underneath to fully remove.

Trinity Performance

Note:
The side aluminum / plastic strip can’t be removed from the side with the pogo pin (other 3 corners are not affected).

Install the side ARGB strips on one side of the fan. Check the orientation when installing since the slot with the white interface is the one that inputs power.

After adding the side ARGB strip, the width of a one-side installation is 129mm, and 136mm for a two-side installation. Please make sure that there is enough clearance for the side ARGB strips when configuring your build.

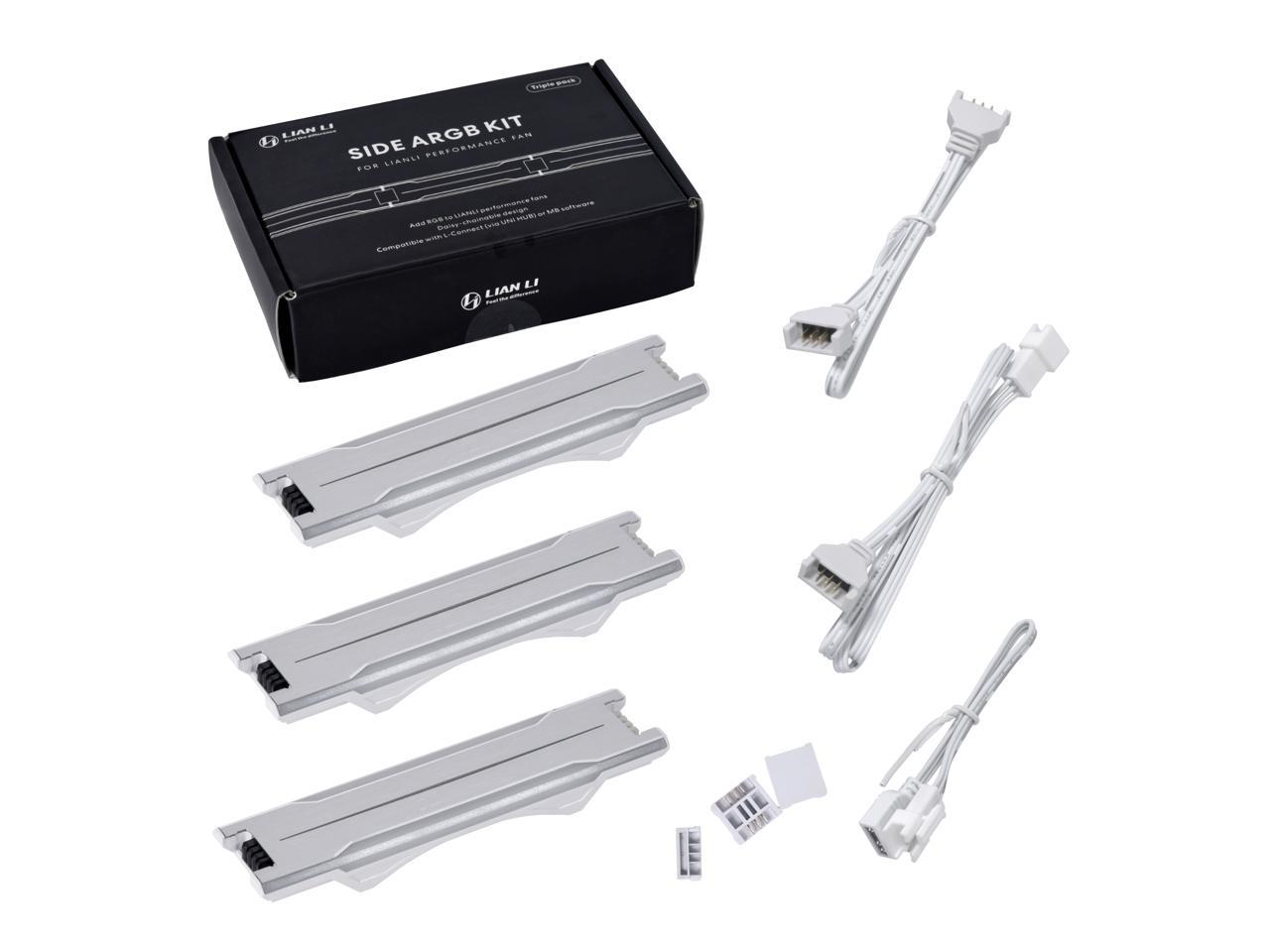

Available in packs of three in black and white to match the color of the fans.

Black

White
