SilverStone Technology SilverStone CP13 Power + SATA Data Connector to Combined SATA 22 Pin Power & Data SATA Connector

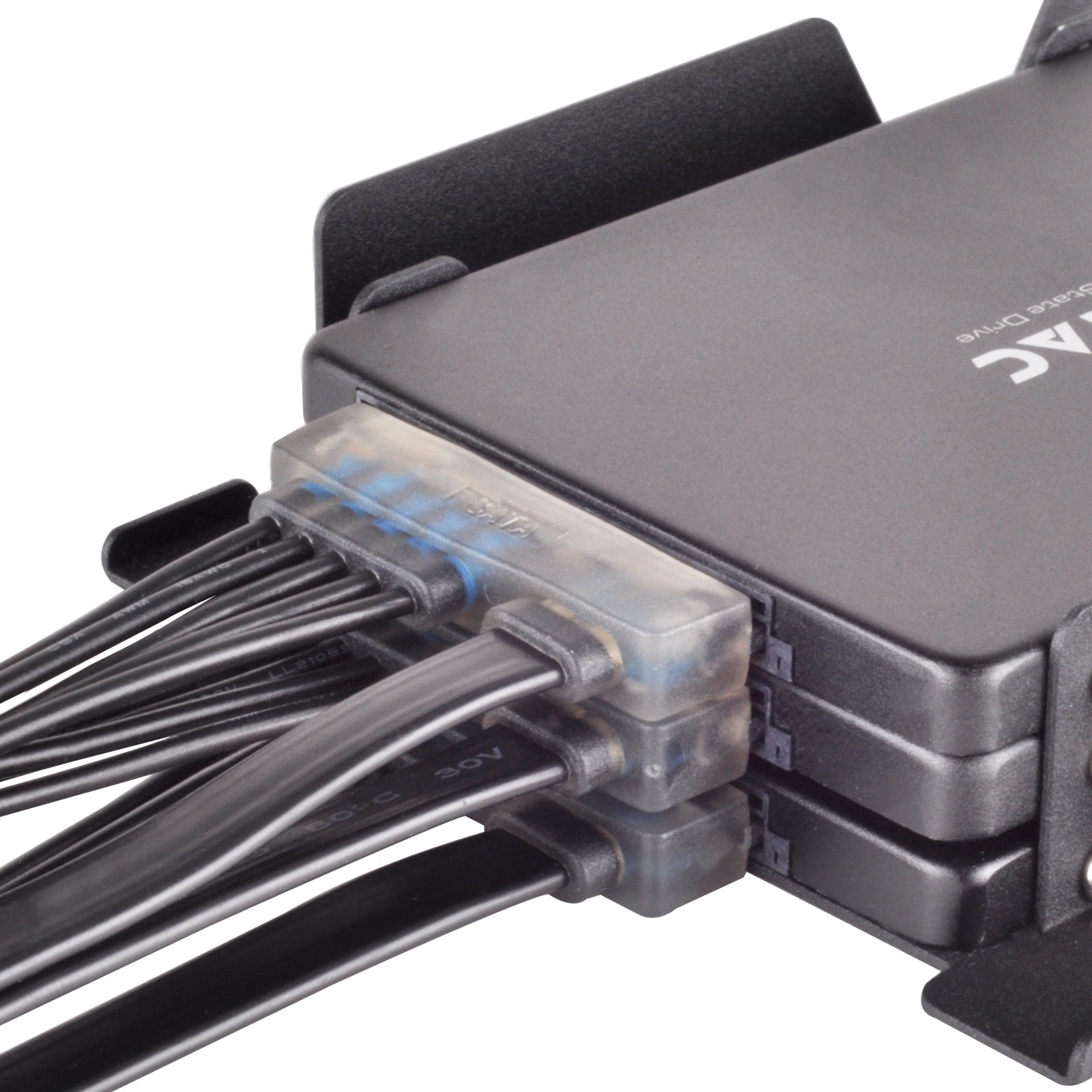

SilverStone?s extensive experience in designing small form factor chassis and power supplies has brought about numerous innovations that extend to cabling accessories. In a quest to maximize usable space within a set limit, the CP13 was created. It is a specially designed SATA drive extension cable that extends 15pin SATA power and 7 pin SATA data into a 22pin combo connector. Its 180 degree thin profile helps it fit in extremely tight spaces so connection is still possible even if drives are stacked directly on top of each other. For extra insulation protection, internal heat shrink molds are used while tantalum capacitors provide stable voltage. There are also built-in LED indicators to show connection/power status for the cable. With high quality material and innovative features, the CP13 is an invaluable accessory for any enthusiasts.

ï¿­ 180 degree combo connector eliminates interference with adjacent drives

ï¿­ Heat shrink molds for insulation protection

ï¿­ Integrated tantalum capacitors provide stable voltage

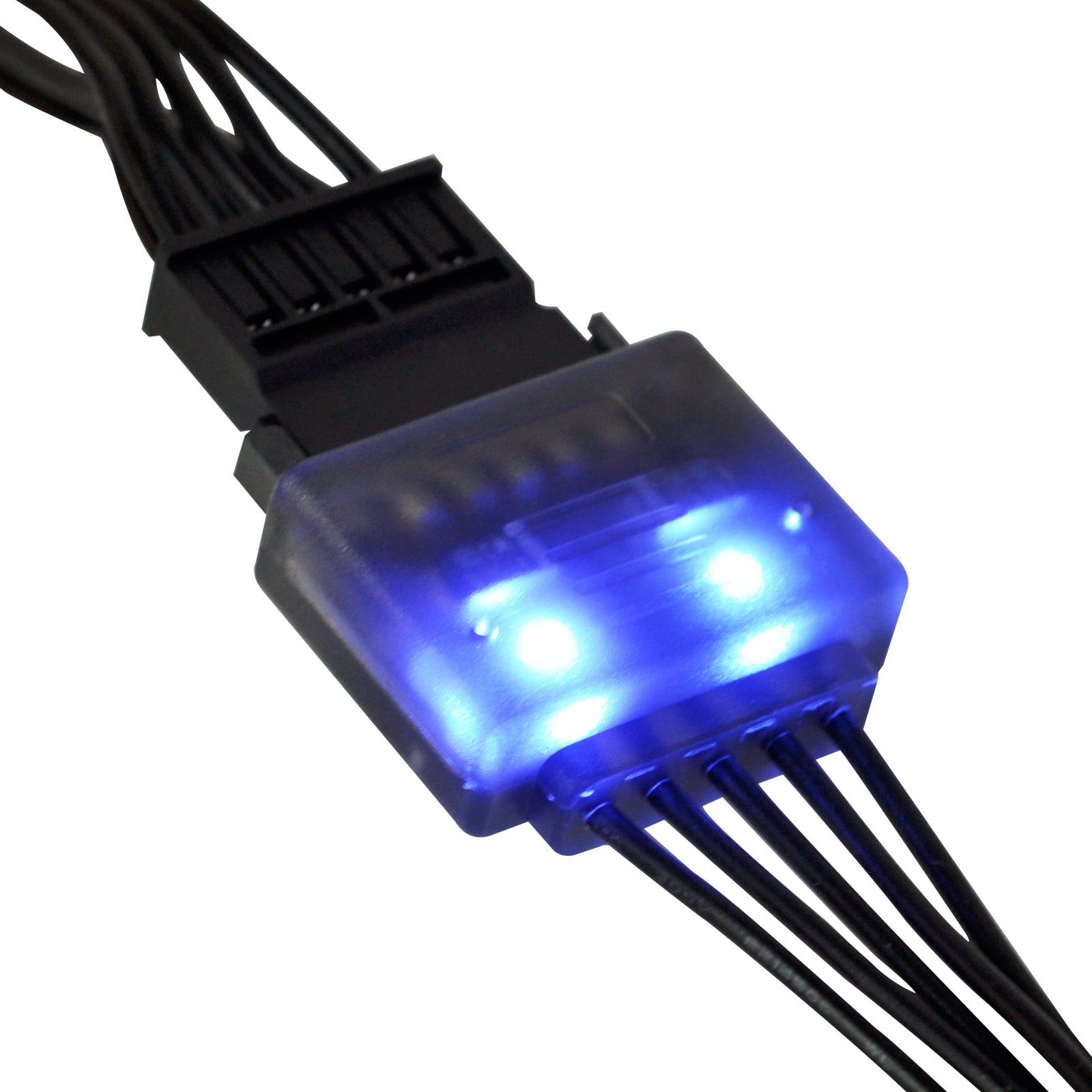

ï¿­ Includes LED indicators

Model No.	SST- CP13
Color	Black
Connectors	Input Connectors: 1 x Standard 15pin SATA power connector 1 x Standard 7pin SATA data connector Output Connector: 1 x 180° combo SATA 15pin power connector & SATA 7pin data connector (22pin)
Capacitor size	470µF
Transmitting Speed	6Gb/s
Cable length	Data cable 500mm, power cable 100mm



Remark

* Both LED indicators should light up when powered with or without drive connected. If not, then please disconnect it immediately and return the cable back to place of purchase within warranty period.
