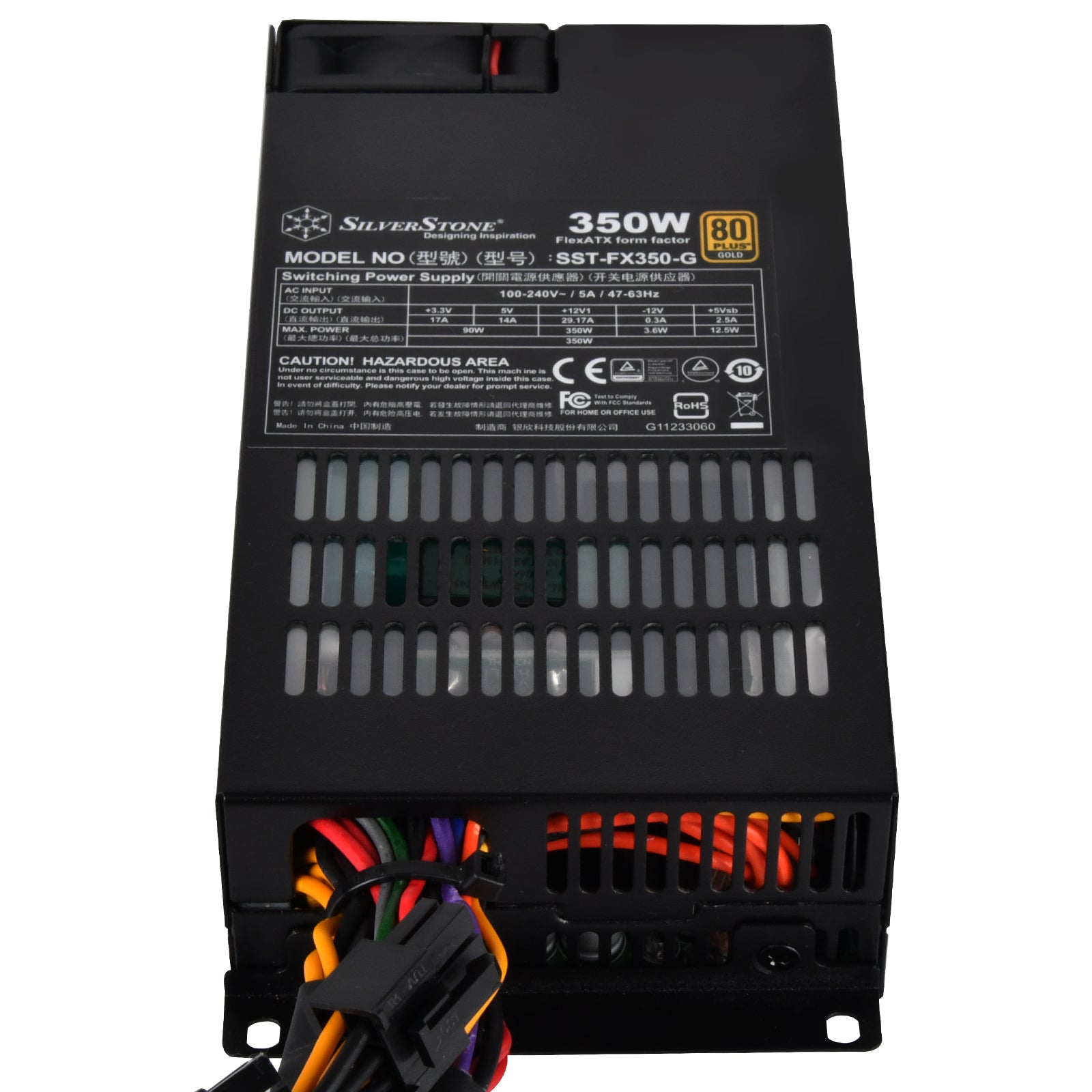

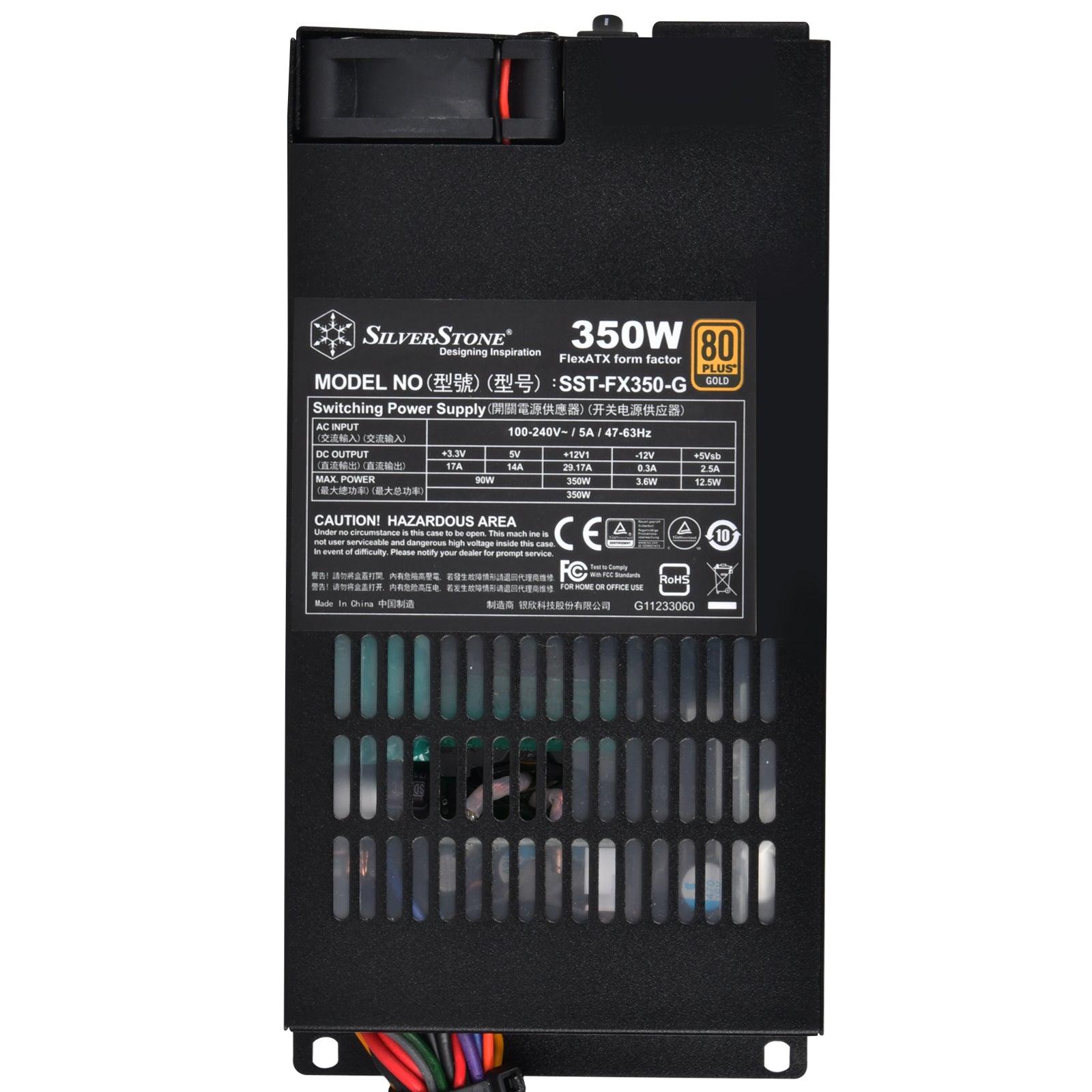

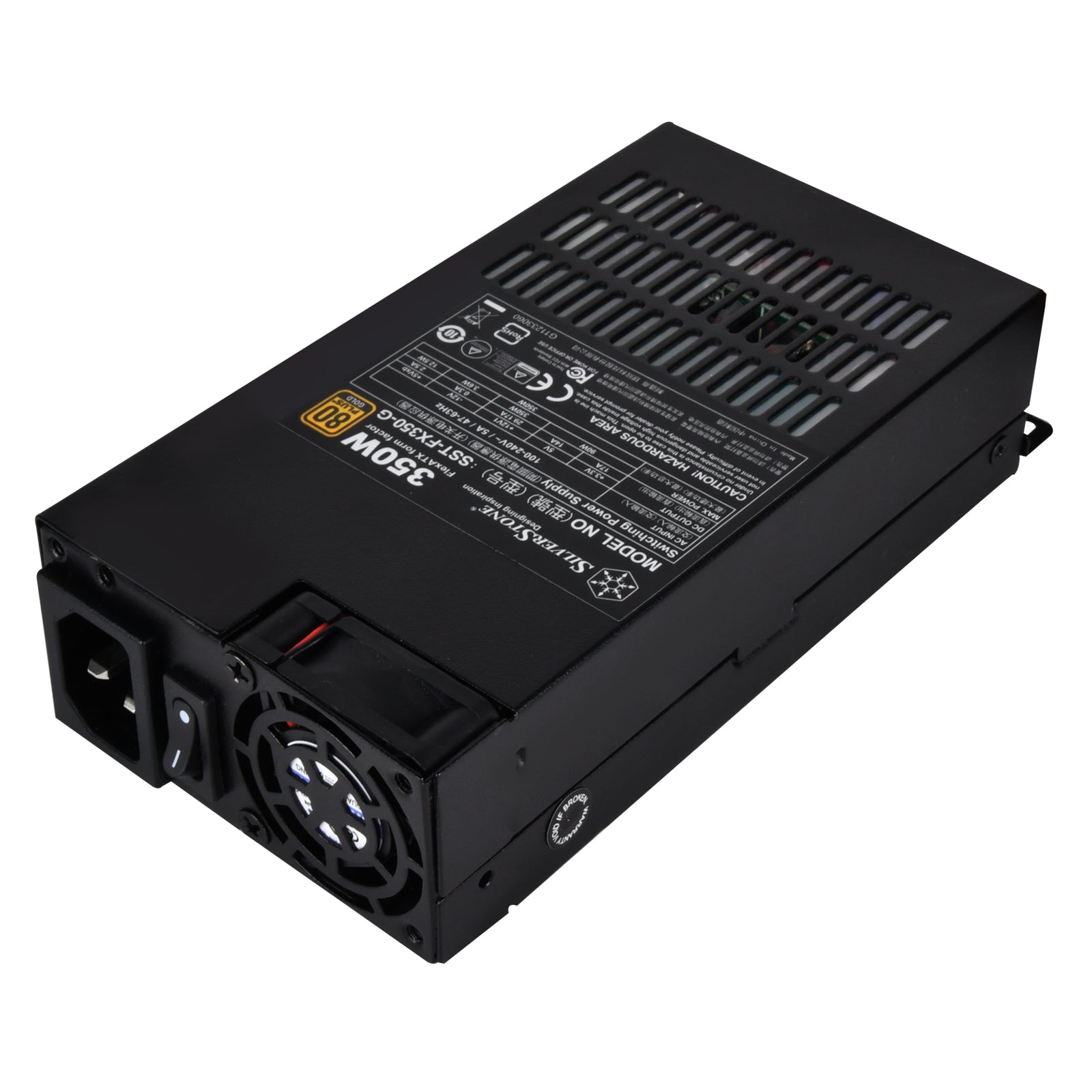

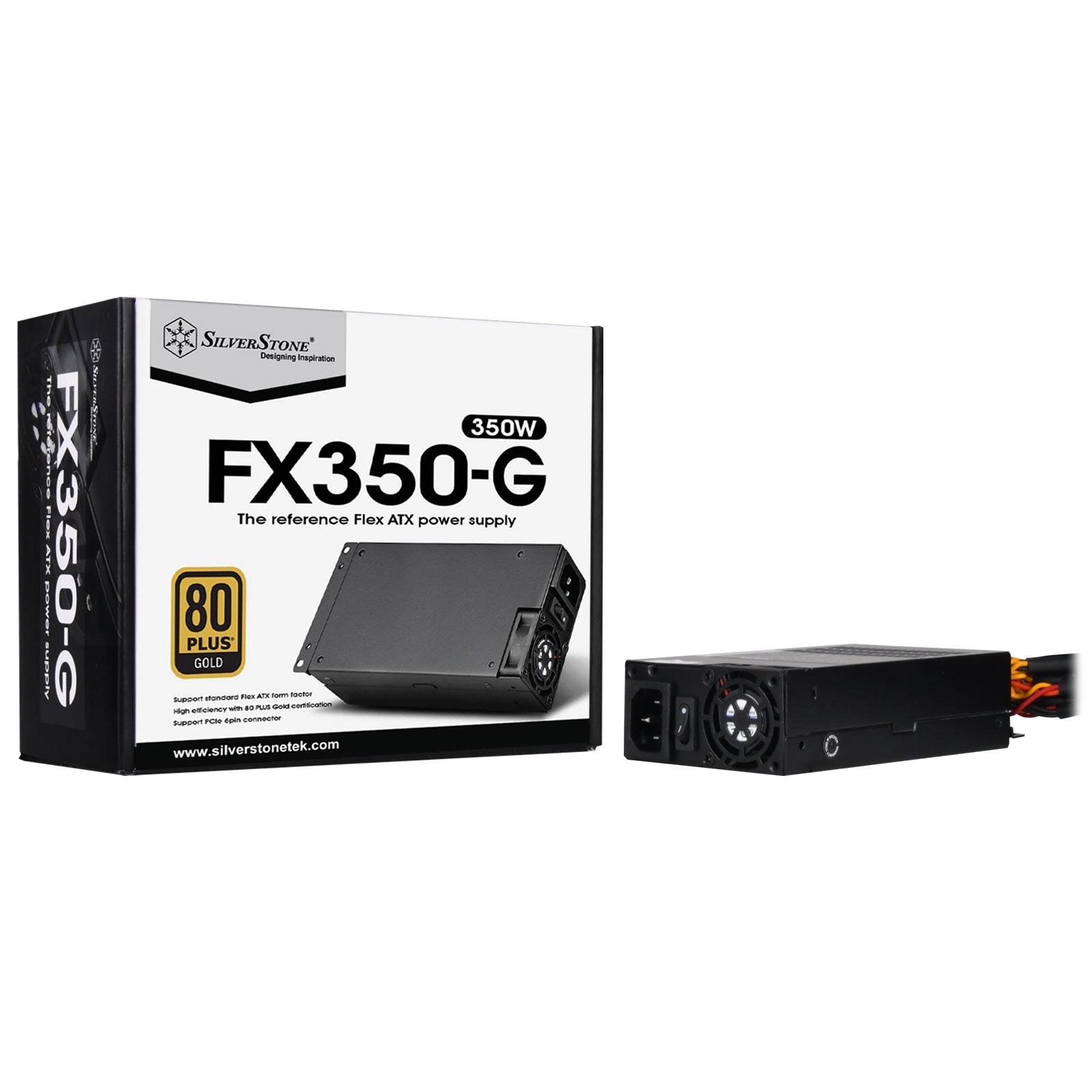

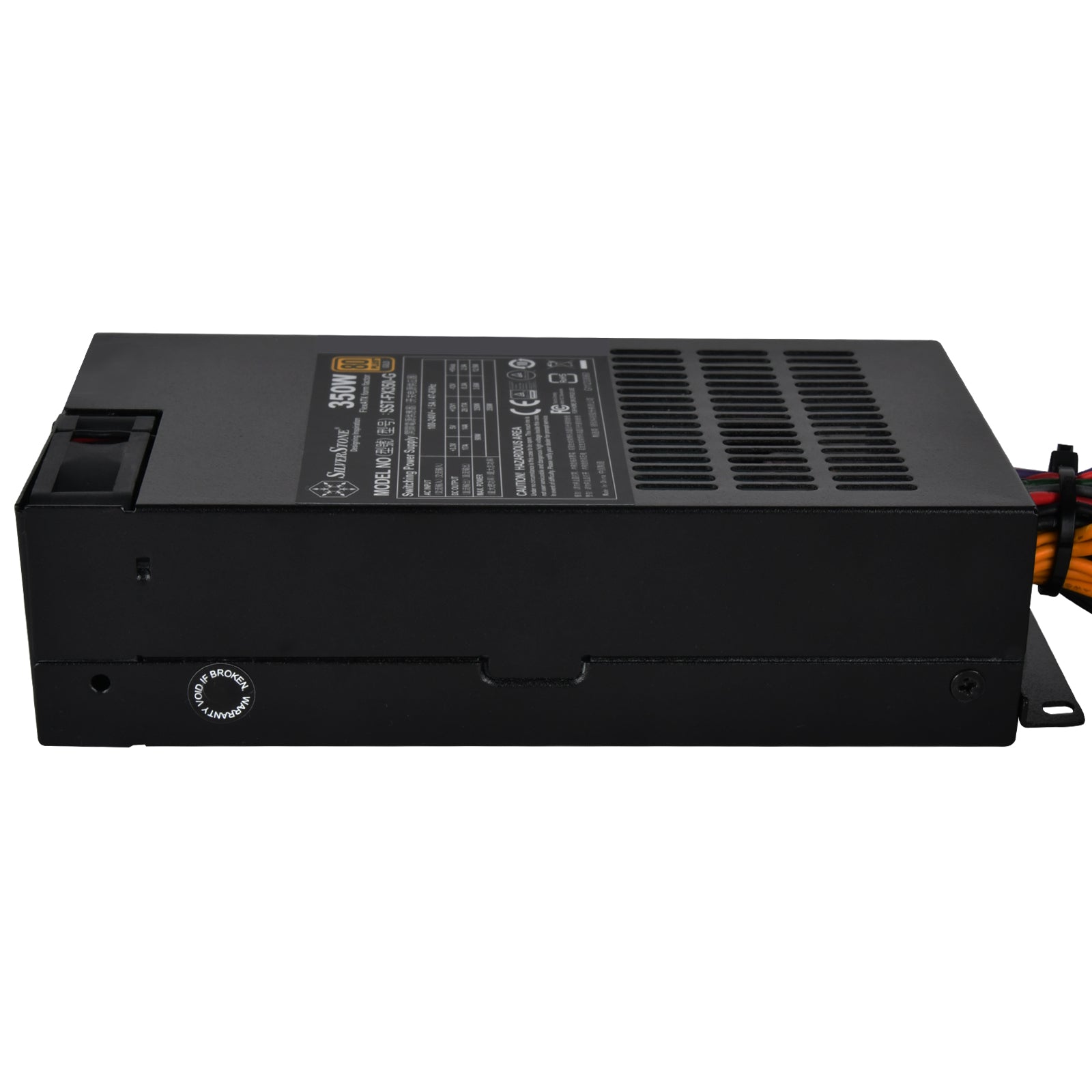

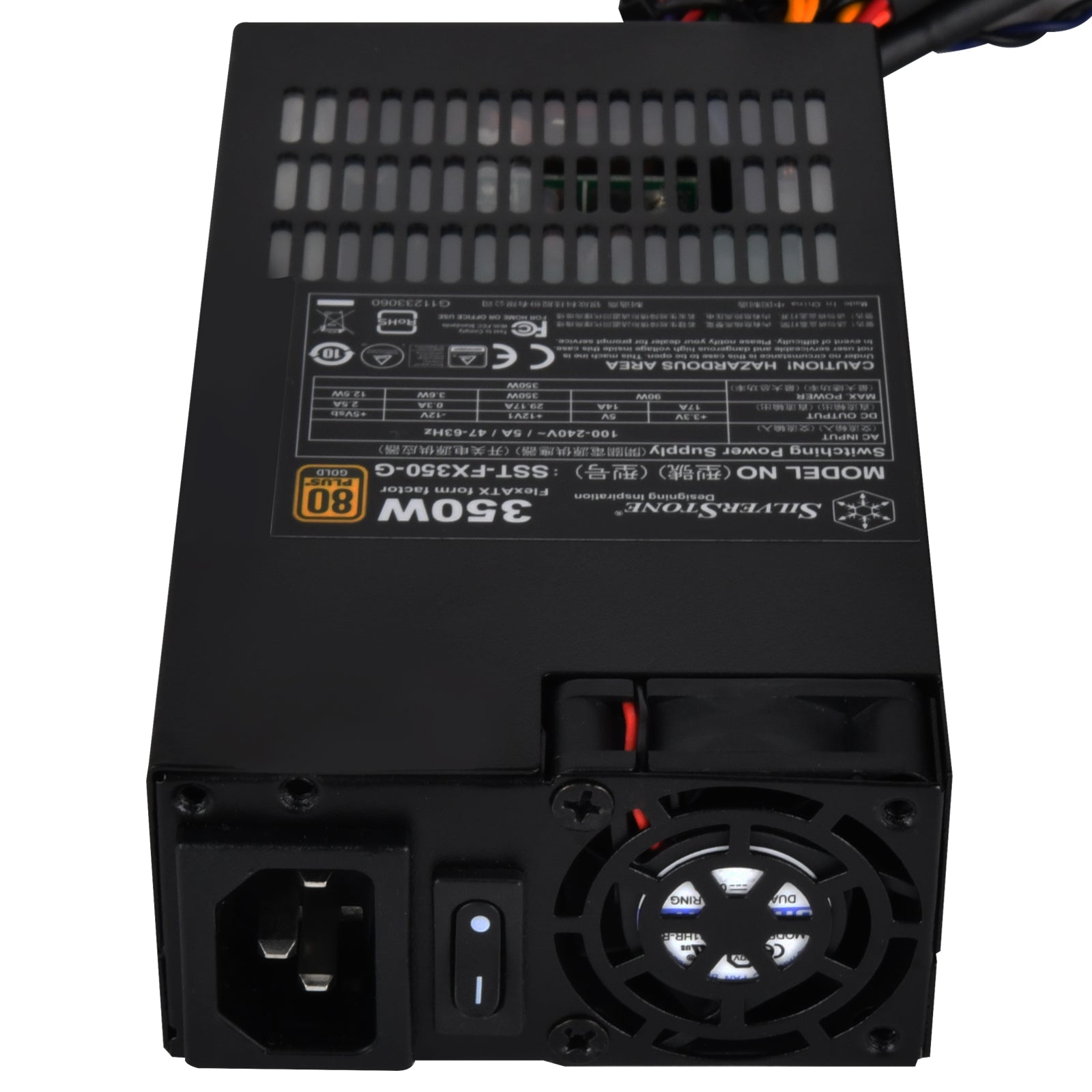

Silverstone 80 PLUS Gold 350W Flex-ATX power supply

SilverStone Technology

SST-FX350-G



  • Flex ATX form factor With High efficiency 80 PLUS Gold certification

  • Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

  • Powerful single +12V rail design, perfect for future high-end component upgrades.


Found a better price? Let us know and we'll try and match it!
Estimate shipping
$106.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Silverstone 80 PLUS Gold 350W Flex-ATX power supply
Features












Connectors:

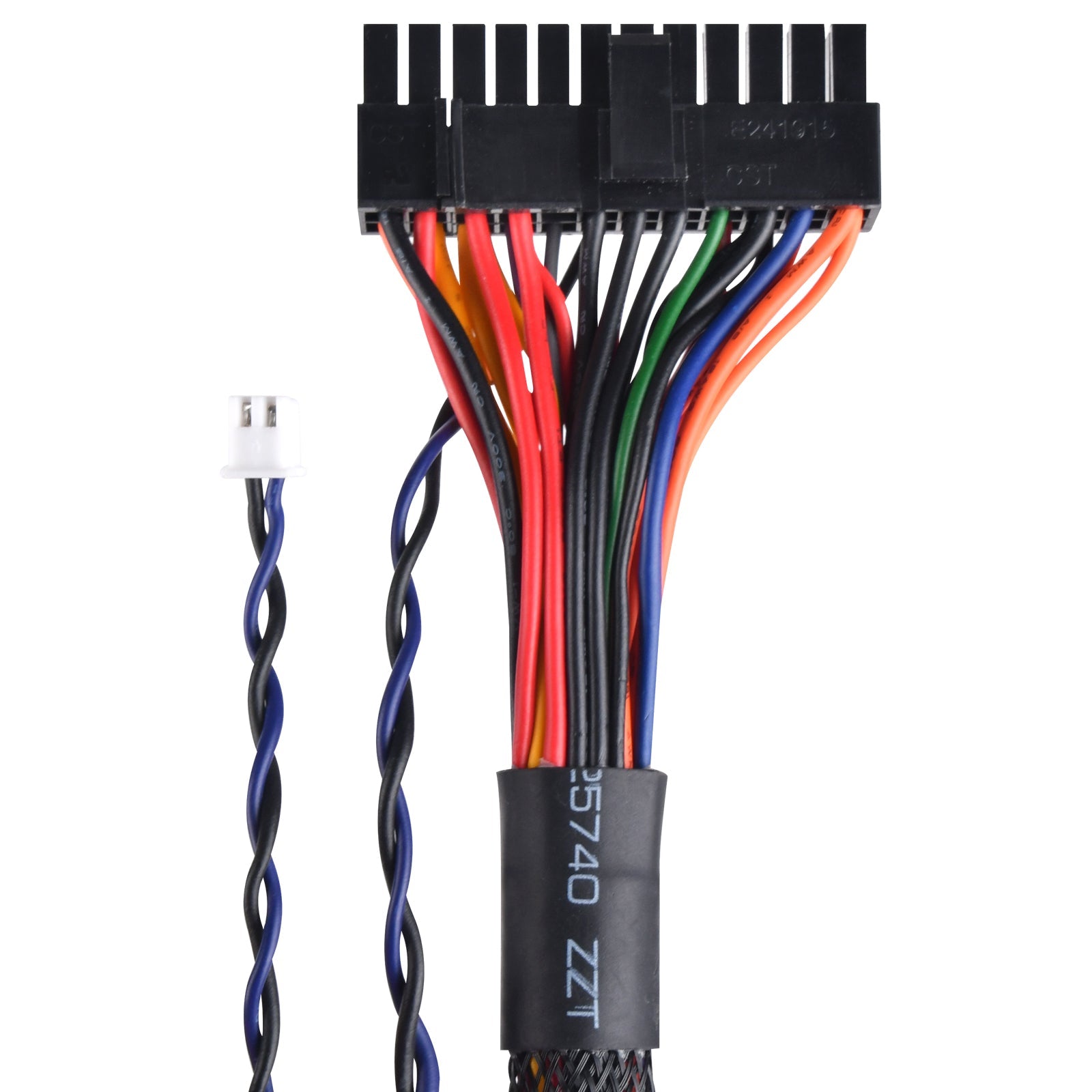

  • 1 x 24 / 20-Pin motherboard connectorï¼?350mm

  • 1 x 2-Pin connector (300mm)*

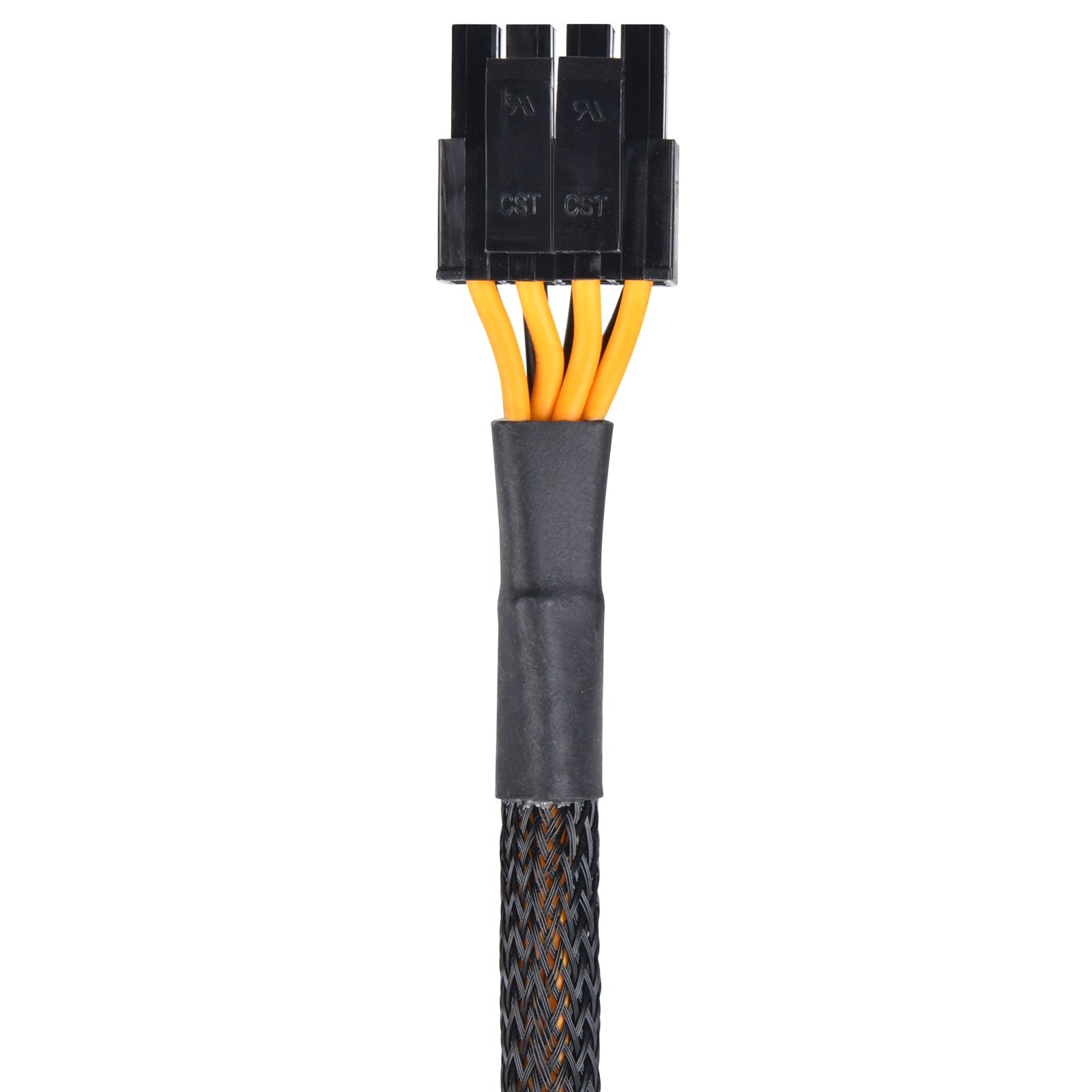

  • 1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?450mmï¼?

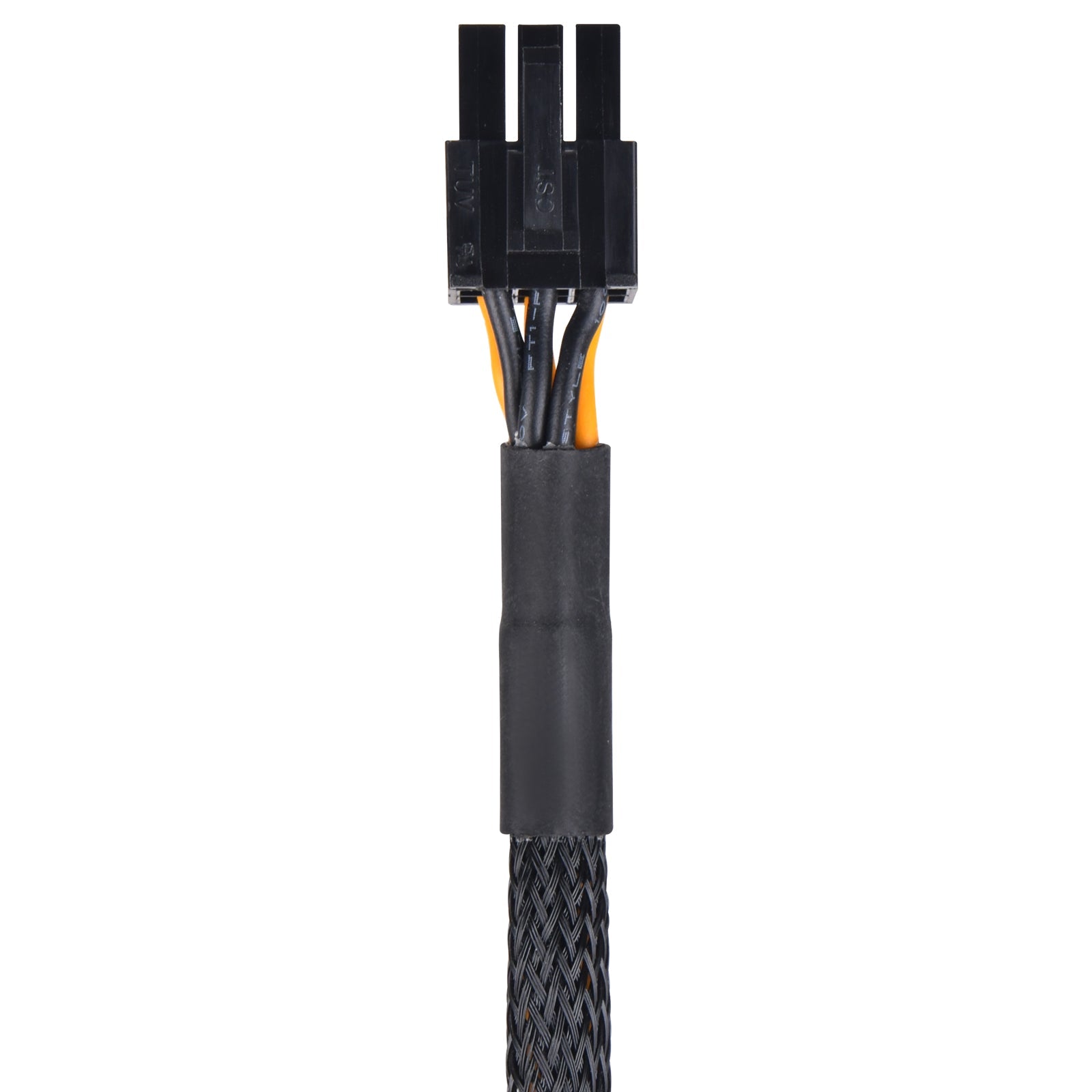

  • 1 x 6-Pin PCIe connectorï¼?350mmï¼?

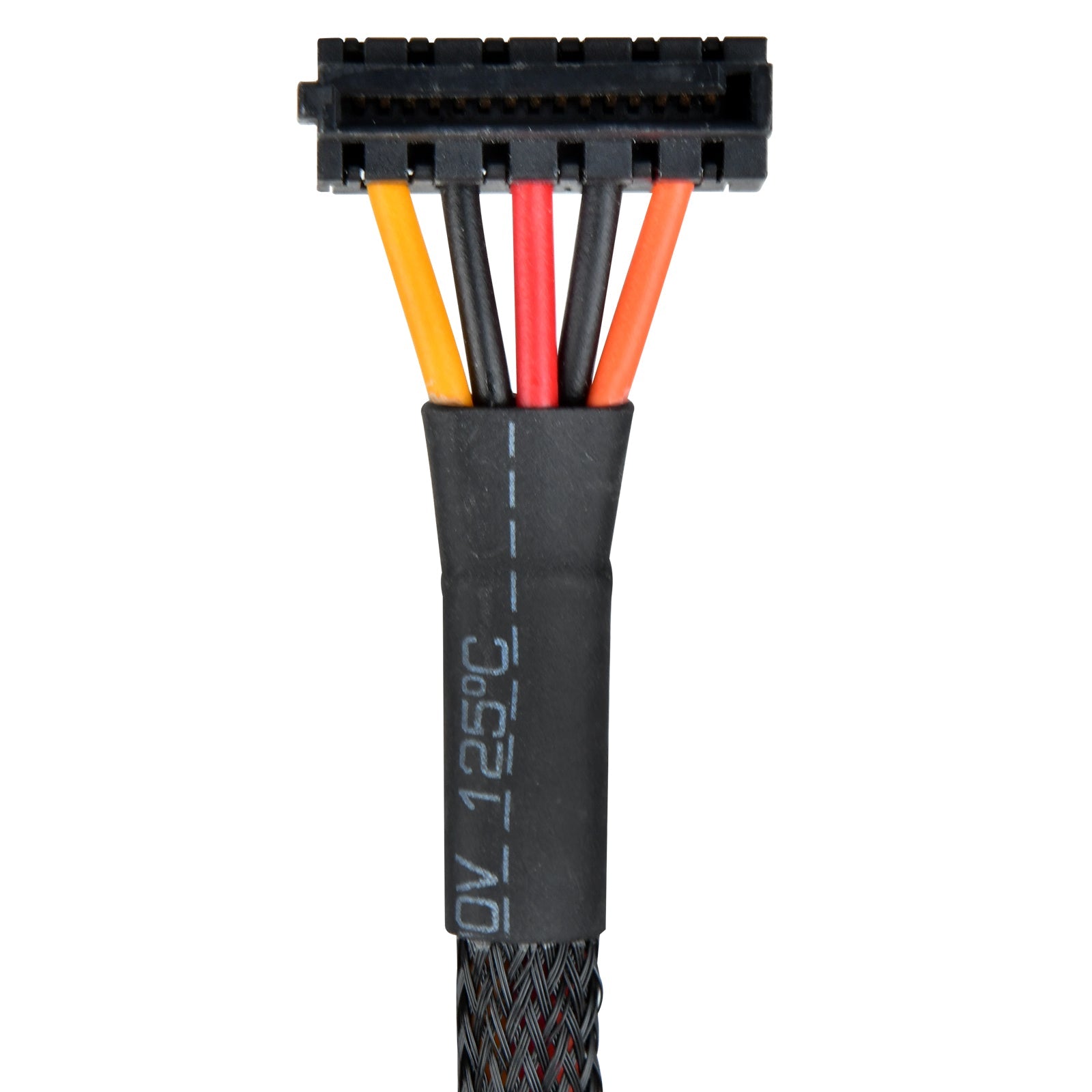

  • 3 x SATA connectorï¼?350mm / 150mm / 150mmï¼?

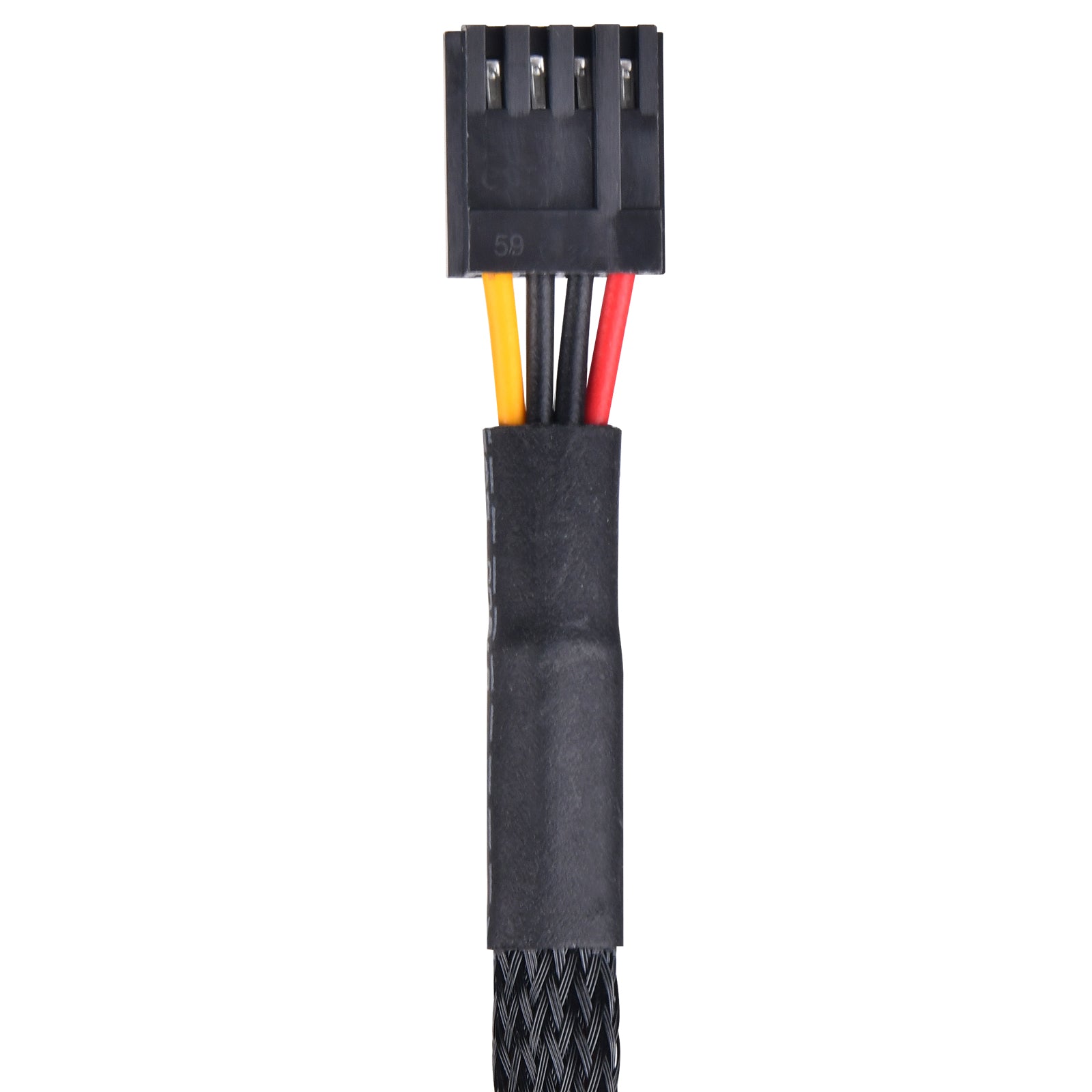

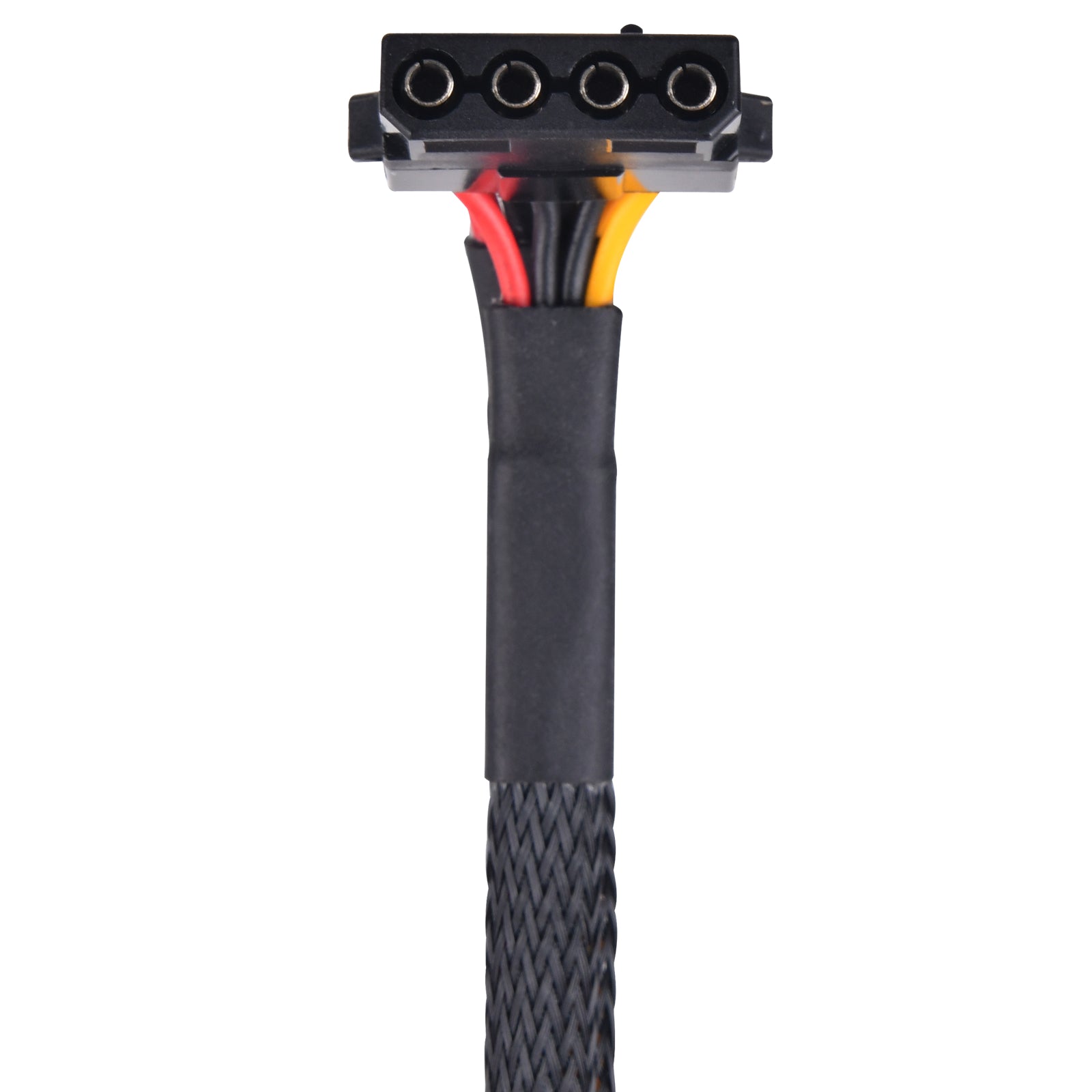

  • 2 x 4-Pin Peripheral connectorï¼?350mm / 150mmï¼?

  • 1 x 4-Pin Floppy adapter connectorï¼?350mm / 150mm / 150mmï¼?





* The 2pin connector provides +5Vsb power to additional devices required by specialized system integrators.











Specifications









  • Product No.: SST-FX350-G

  • Color: Blackï¼?Lead-Free Paintï¼?

  • Max. DC Output: 350W

  • Power density: 707W per liter

  • Combined +3.3V & +5V: 90W

  • Combined +12V: 350W

  • Input Voltage: 90 ~ 264 Vrms

  • Input Frequency Range: 47Hz ~ 63Hz

  • PFC: Active PFC (PF>0.9 at full load)

  • Efficiency: 87% ~ 90% at 20% ~ 100% loading

  • MTBF: 100,000 hours

  • Operating temperature: 0°C ~ 40°C

  • Protection: Over power protection, Over voltage protection & Short circuit protection

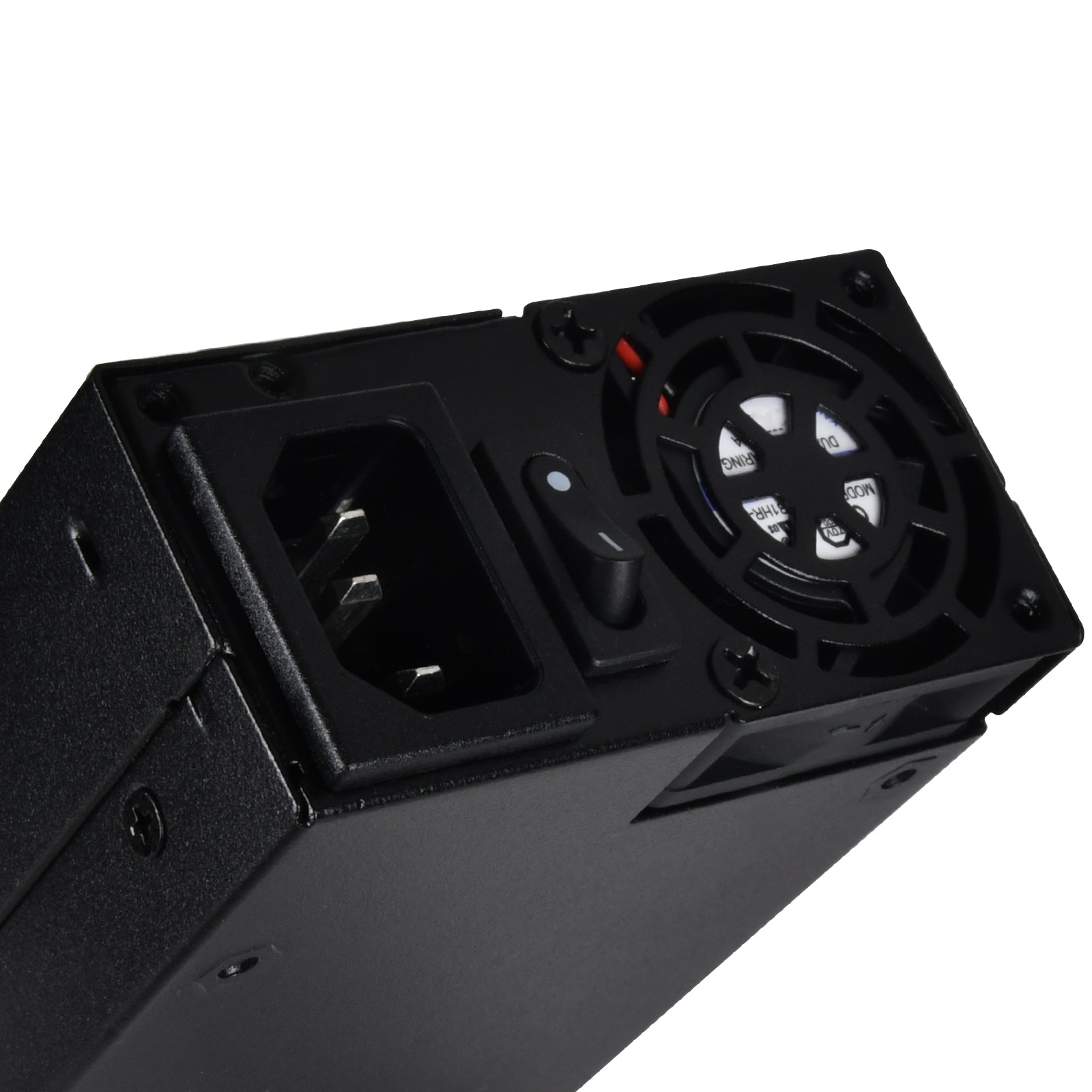

  • Cooling System: Single 40mm silent fan

  • Noise Level: 20 dBA minimum

  • Certification: 80 PLUS Gold

  • Form factor: Flex ATX

  • Dimension: 81.5 mm (W) x 40.5mm (H) x 150 mm (D)

  • Weight: 0.96 kg





*Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals*



Load Range








































































Output +3.3V +5V +12V1 +12V2 +5VSB -12V
Max.(Amps) 17A 14A 29.17A / 2.5A 0.3A
Peak (Amps) / / / / / /
Min.(Amps) 0A 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% / ±10% ±10%
Line Reg.(%) ±1% ±1% ±1% / ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV / 50mV 120mV
