SPECIFICATIONS
Model No. |

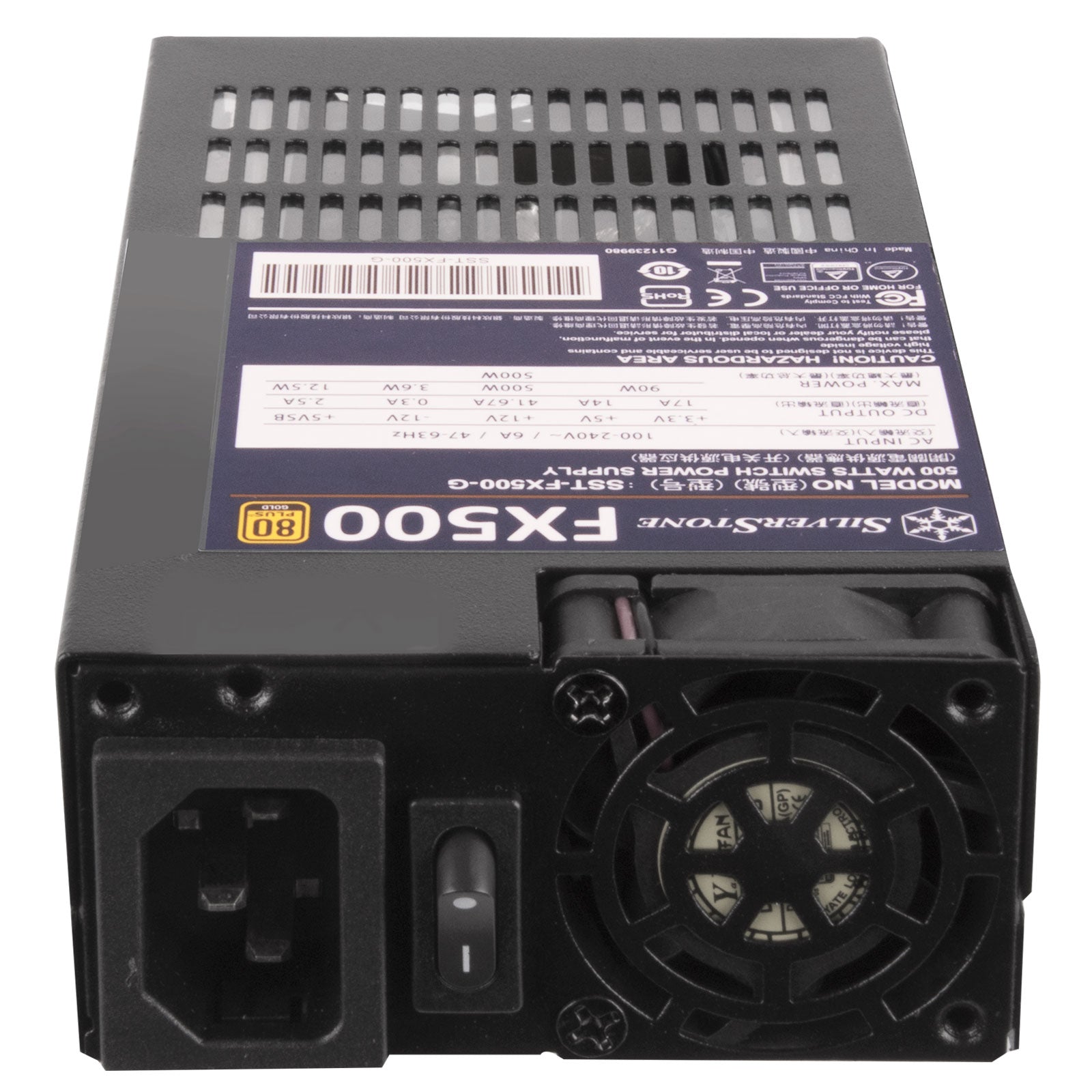

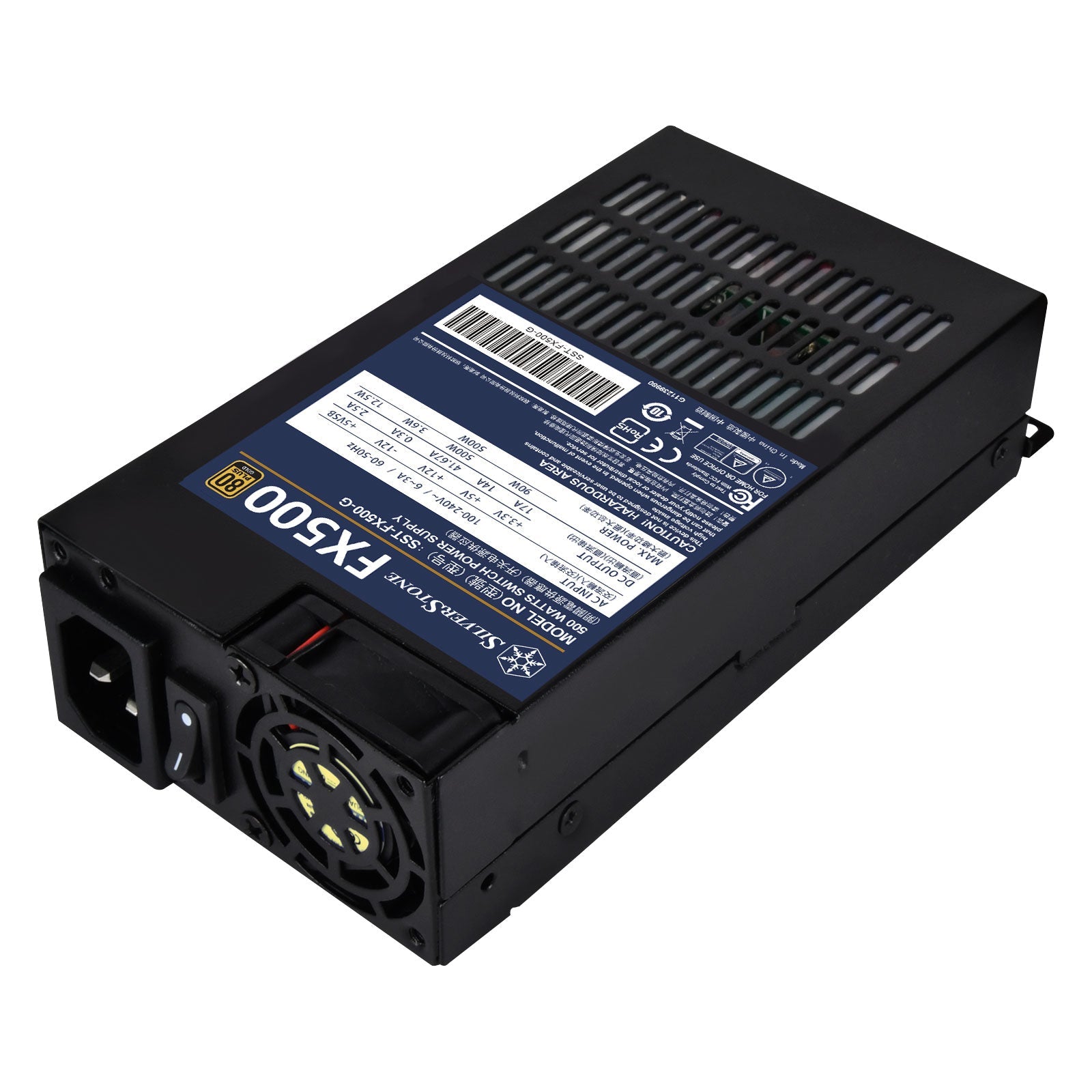

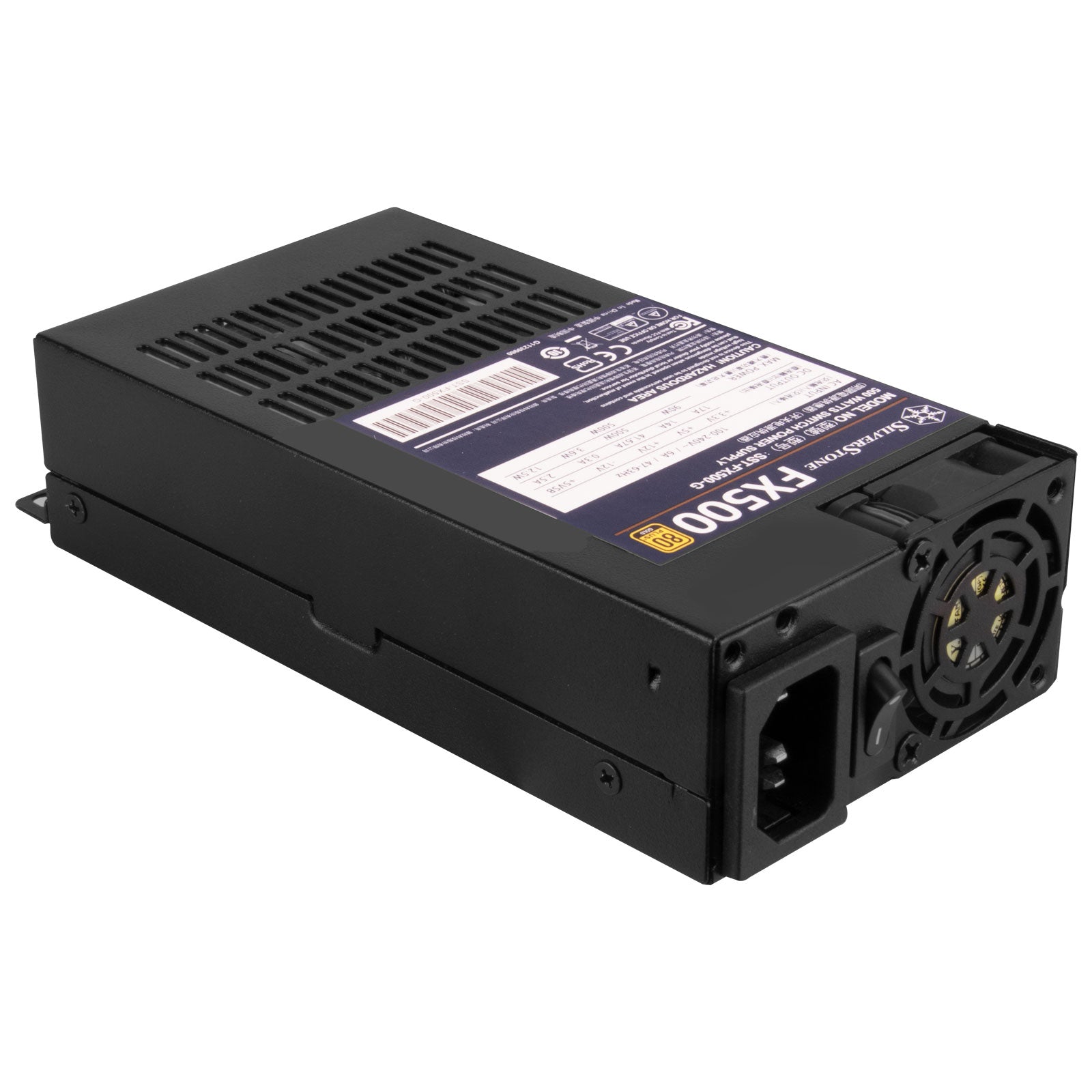

SST-FX500-G
|
Max. DC Output |
500W
|
Power density |
1010W per liter
|
Load Range |
Â
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
Max.(Amps)
|
14A |
17A |
41.67A |
2.5A |
0.3A |
Peak (Amps)
|
/ |
/ |
/ |
/ |
/ |
Min.(Amps)
|
0A |
0A |
0A |
0A |
0A |
Range (%)
|
±3% |
±3% |
±3% |
±5% |
±10% |
Line Reg.(%)
|
±1% |
±1% |
±1% |
±1% |
±1% |
Ripple(mVp-p)
|
50mV |
50mV |
120mV |
50mV |
120mV |
|
Color |
Black (Lead-Free Paint)
|
Combined +3.3V & +5V |
90W
|
Combined +12V |
500W
|
Input Voltage |
90 ~ 264 Vrms
|
Input Frequency Range |
47Hz ~ 63Hz
|
PFC |
Active PFC (PF>0.9 at full load)
|
Efficiency |
87%~90%ï¼?20% to 100% loadingï¼?
|
MTBF |
100,000 hours
|
Operating temperature |
0°C ~ 40°C
|
Protection |
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over-Temperature Protection
|
Connectors |

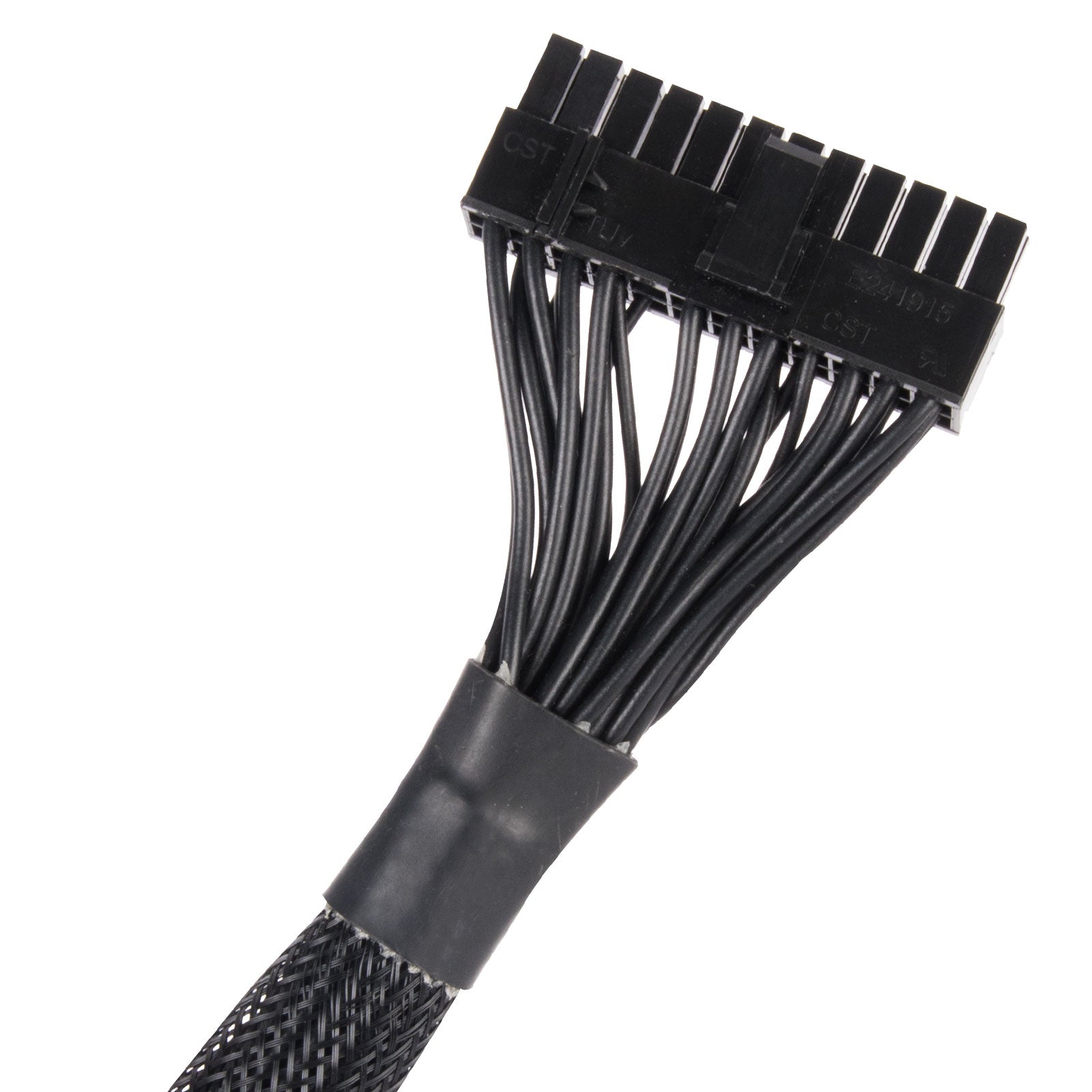

1 x 24 / 20-Pin motherboard connectorï¼?350mmï¼?

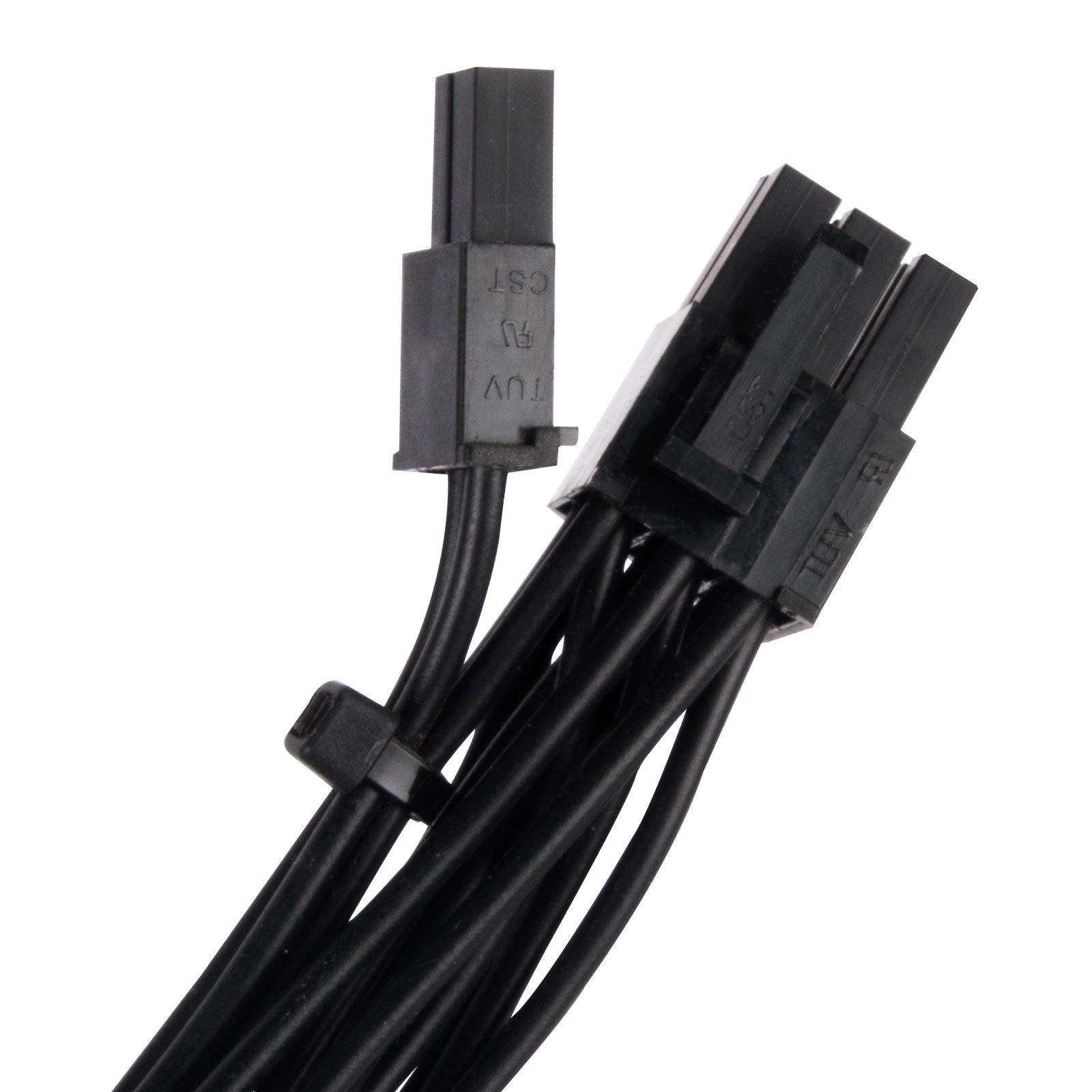

1 x 8 / 4-Pin EPS / ATX 12V connectorï¼?450mmï¼?

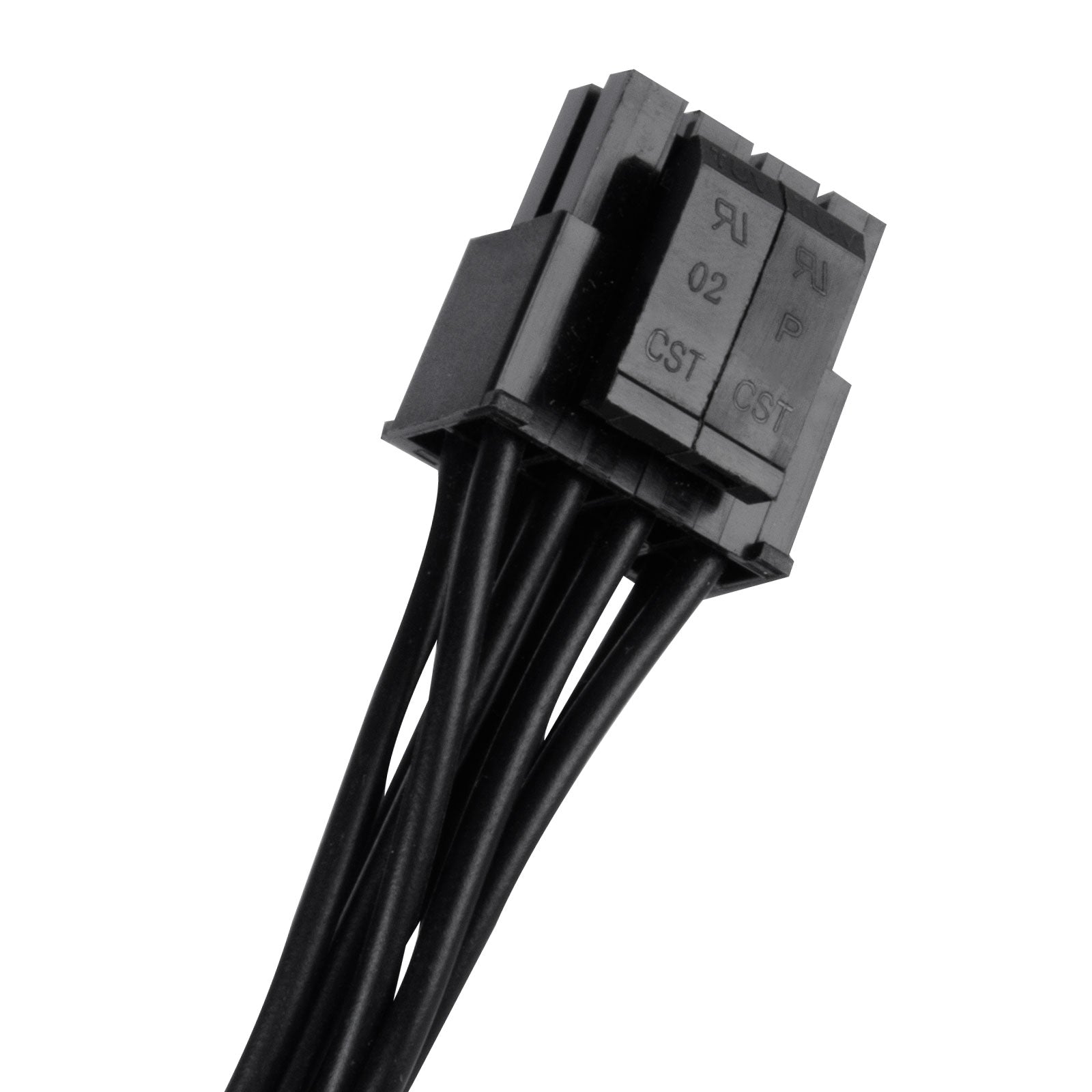

2 x 8 / 6-Pin PCIe connectorï¼?350mm / 150mmï¼?

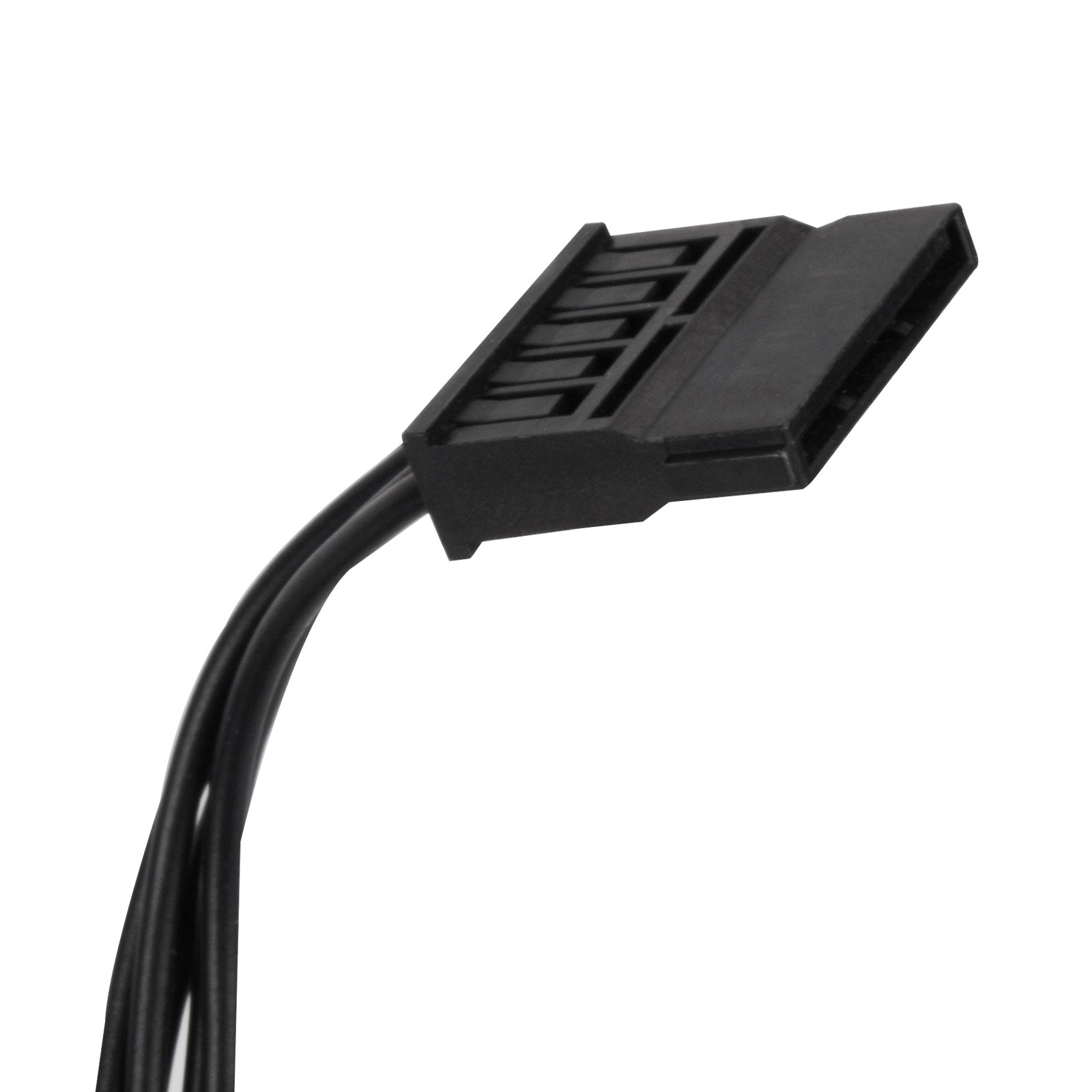

4 x SATA connectorï¼?350mm / 150mm / 150mm / 150mmï¼?

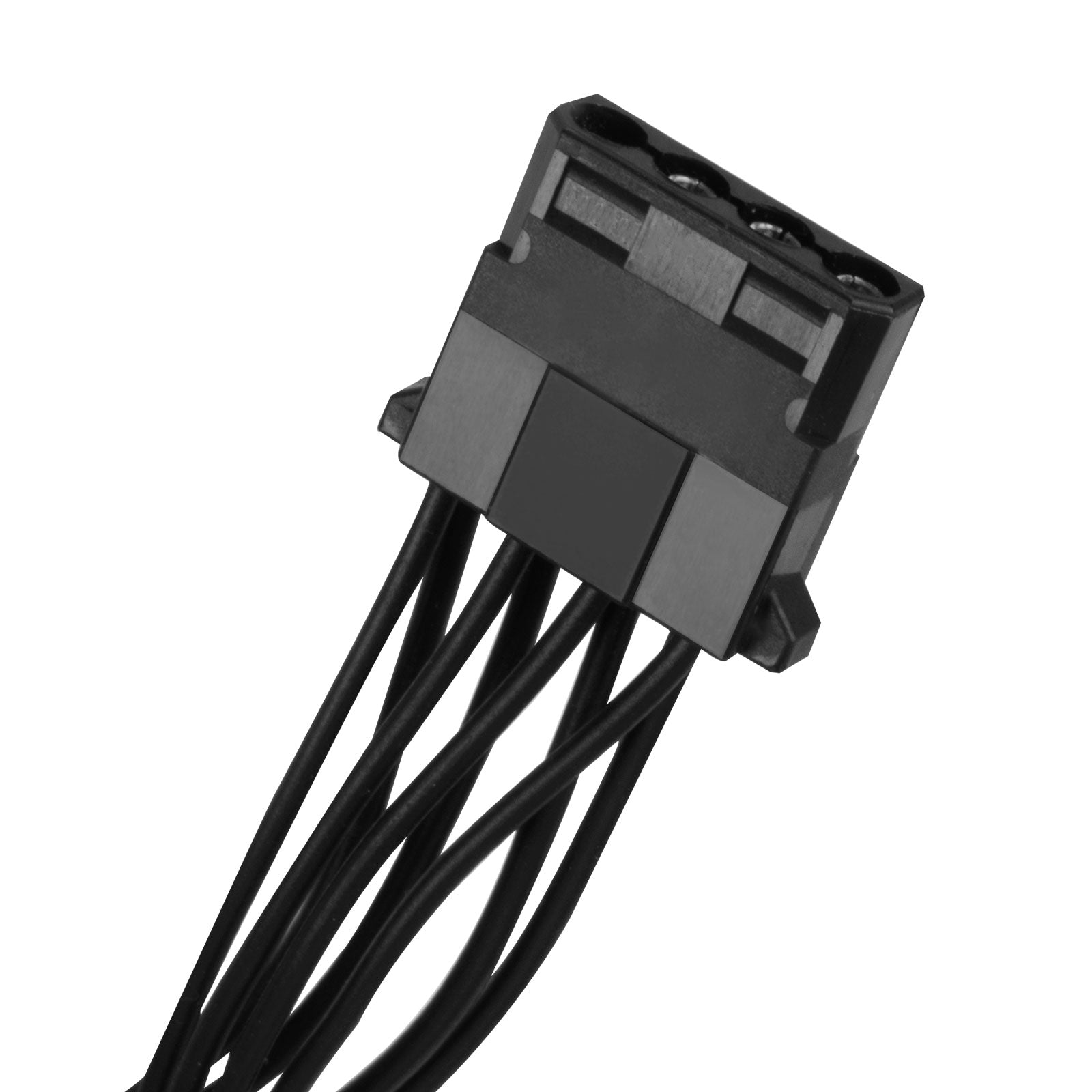

3 x 4-Pin Peripheral connectorï¼?350mm / 150mm / 150mmï¼?

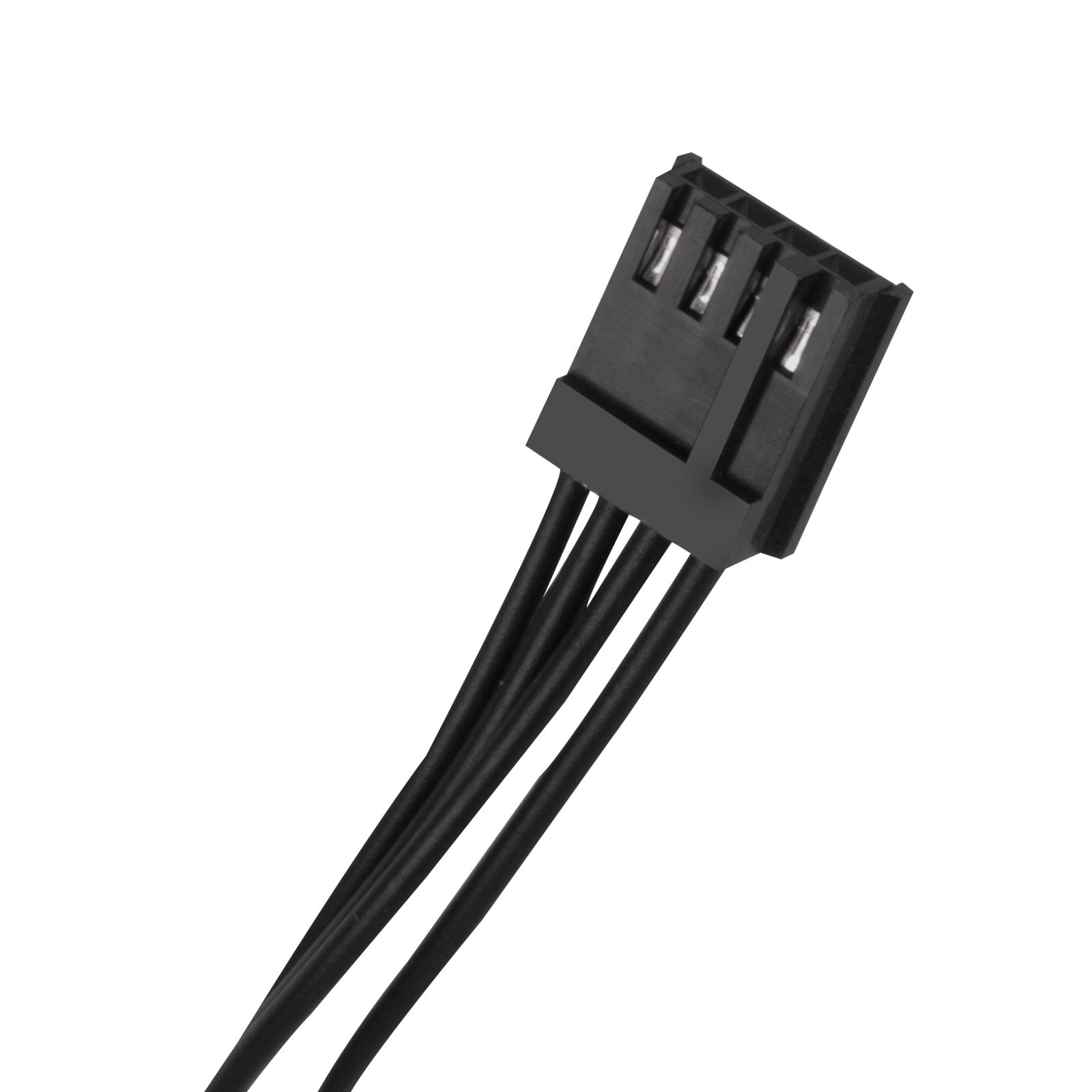

1 x 4-Pin Floppy adapter connectorï¼?150mmï¼?
|
Cooling System |

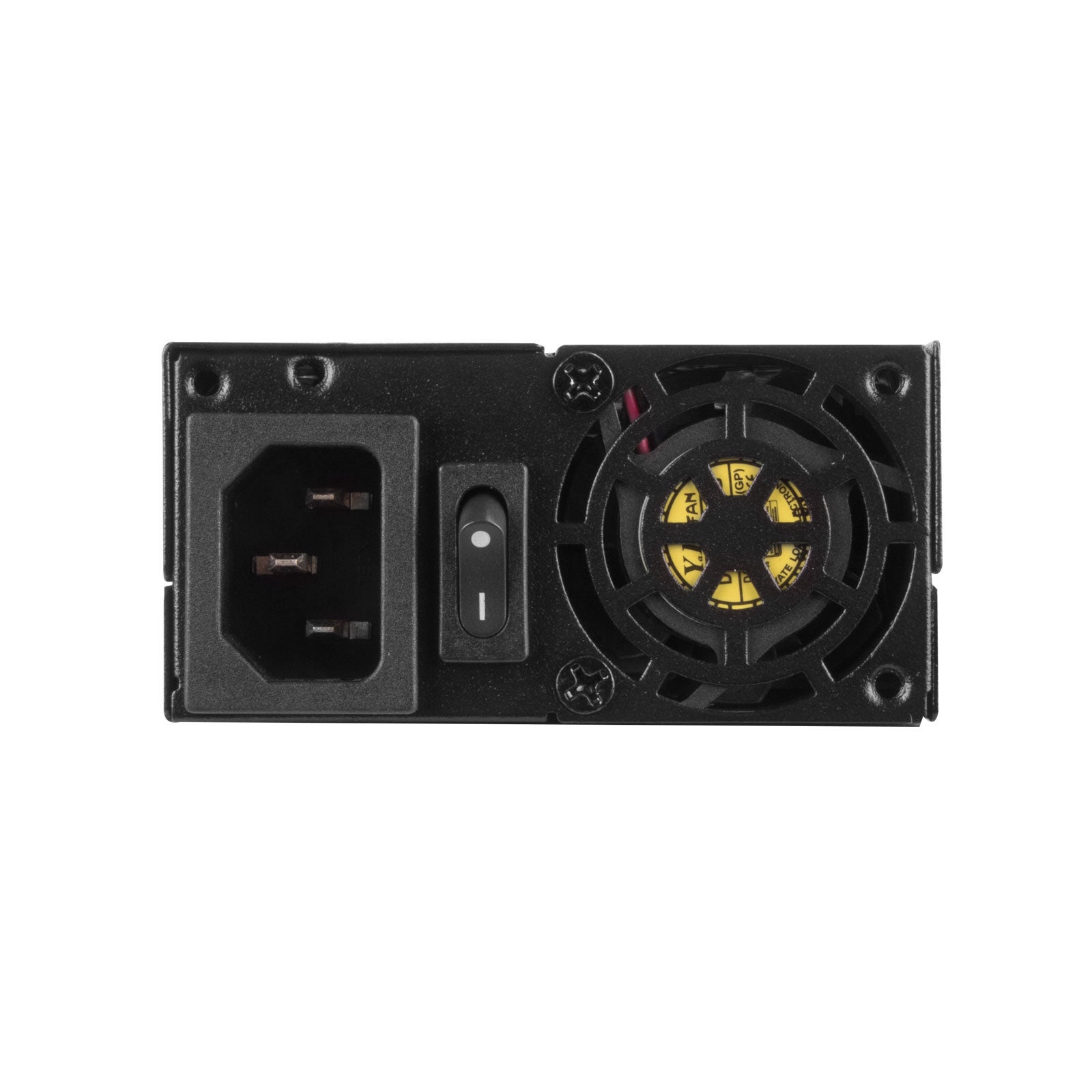

Single 40mm silent fan
|
Form factor |
|
Noise Level |
20 dBA minimum
|
Dimension |
81.5 mm (W) x 40.5 mm (H) x 150 mm (D)
3.21 (W) x 1.59 (H) x 5.91 (D)
|
Weight |
0.96 kg
|
Certification |
80 PLUS Gold
|
Other |
|
â? Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. |
