SilverStone 9 Blade White 120 X 32mm Fan with Controller - Sleeved SilverStone 9 Blade White 120 X 32mm Fan with Controller - Sleeved
SilverStone 9 Blade White 120 X 32mm Fan with Controller - Sleeved

SilverStone 9 Blade White 120 X 32mm Fan with Controller - Sleeved

SilverStone Technology

RL-FM122-D

Product Details:

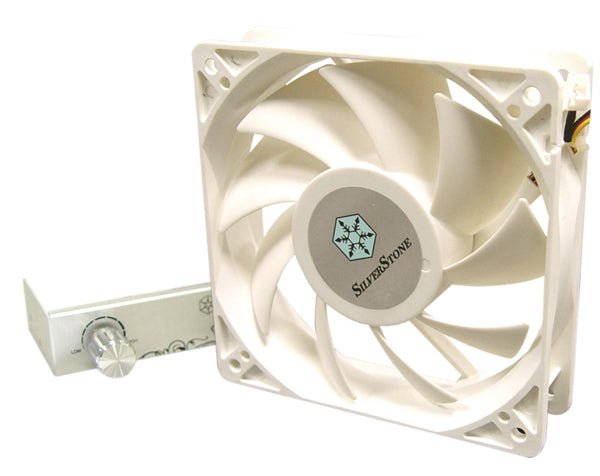

The FM122 is a powerful 120mm fan package with manual adjustable fan controller. Equipped with 9 fan blades and possessing a thick 32mm frame, it offers tremendous amount of highly pressurized airflow at levels beyond what typical 120mm fans can produce at the same speed. With the included aluminum speed controller, finding the preferred amount of airflow and noise ratio is a simple task. Constructed out of high strength white colored plastic and finished with calculated grain surface, the FM122 is the ultimate solution for any PC enthusiasts looking to upgrade their 120mm CPU or chassis intake fan.

Features:

  • High air pressure 120 x 120 x 32mm design
  • All white fan blades and frame
  • 800rpm ~ 2400rpm speed range
  • Long-life dual ball bearing motor
  • Stylish aluminum fan controller

Specifications:

DIMENSION120 x 120 x 32mm
ITEMSSTANDARDREMARKS
MaterialPlastic (PC)
ColorWhite
BEARINGDual ball bearing
RATED VOLTAGE 12V DC
START VOLTAGE 7V DC POWER ON / OF
OPERATING RANGE 7V~13.2V DC
RATED CURRENT 0.65 Amp
(MAX 0.65Amp)
 		IN FREE AIR AT RATED VOLTAGE
RATED POWER
7.80W
(MAX 7.80W)
IN FREE AIR AT RATED VOLTAGE
SPEED

800 ~ 2400rpm

IN FREE AIR AT RATED VOLTAGE
AIRFLOW107.13 CFMAT RATED VOLTAGE
3.03m3 / MINAT ZERO STATIC PRESSURE
STATIC PRESSURE Max 5.89mmH2OAT RATED VOLTAGE AT ZERO AIRFLOW
NOISE LEVEL21dB(A) @ 800rpm
42.2 dB(A) @ 2400rpm
 		IN FREE AIR AT RATED VOLTAGE
LIFE EXPECTANCY
50,000 hours
AT RATED VOLTAGE IN 25°C

Fan cables are fully  covered in nylon Techflex sleeving and premium heatshrink, colors of your choice!

Found a better price? Let us know and we'll try and match it!
Estimate shipping
65 in stock, ready to ship
$19.99 $13.99 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The FM122 is a powerful 120mm fan package with manual adjustable fan controller. Equipped with 9 fan blades and possessing a thick 32mm frame, it offers tremendous amount of highly pressurized airflow at levels beyond what typical 120mm fans can produce at the same speed. With the included aluminum speed controller, finding the preferred amount of airflow and noise ratio is a simple task. Constructed out of high strength white colored plastic and finished with calculated grain surface, the FM122 is the ultimate solution for any PC enthusiasts looking to upgrade their 120mm CPU or chassis intake fan.

Fan cables are fully covered in nylon Techflex sleeving and premium heatshrink, colors of your choice!

Specifications



















































































DIMENSION

120 x 120 x 32mm

ITEMS

STANDARD

REMARKS

Material

Plastic (PC)



Color

White



BEARING

Dual ball bearing



RATED VOLTAGE



12V DC



START VOLTAGE



7V DC

POWER ON / OF

OPERATING RANGE



7V~13.2V DC



RATED CURRENT



0.65 Amp
(MAX 0.65Amp)


IN FREE AIR AT RATED VOLTAGE

RATED POWER

7.80W
(MAX 7.80W)

IN FREE AIR AT RATED VOLTAGE

SPEED



800 ~ 2400rpm

IN FREE AIR AT RATED VOLTAGE

AIRFLOW

107.13 CFM

AT RATED VOLTAGE

3.03m3 / MIN

AT ZERO STATIC PRESSURE

STATIC PRESSURE



Max 5.89mmH2O

AT RATED VOLTAGE AT ZERO AIRFLOW

NOISE LEVEL

21dB(A) @ 800rpm
42.2 dB(A) @ 2400rpm


IN FREE AIR AT RATED VOLTAGE

LIFE EXPECTANCY

50,000 hours

AT RATED VOLTAGE IN 25°C
