SPECIFICATIONS
Model No. |
SST-AP184i-ARGB |
Material |

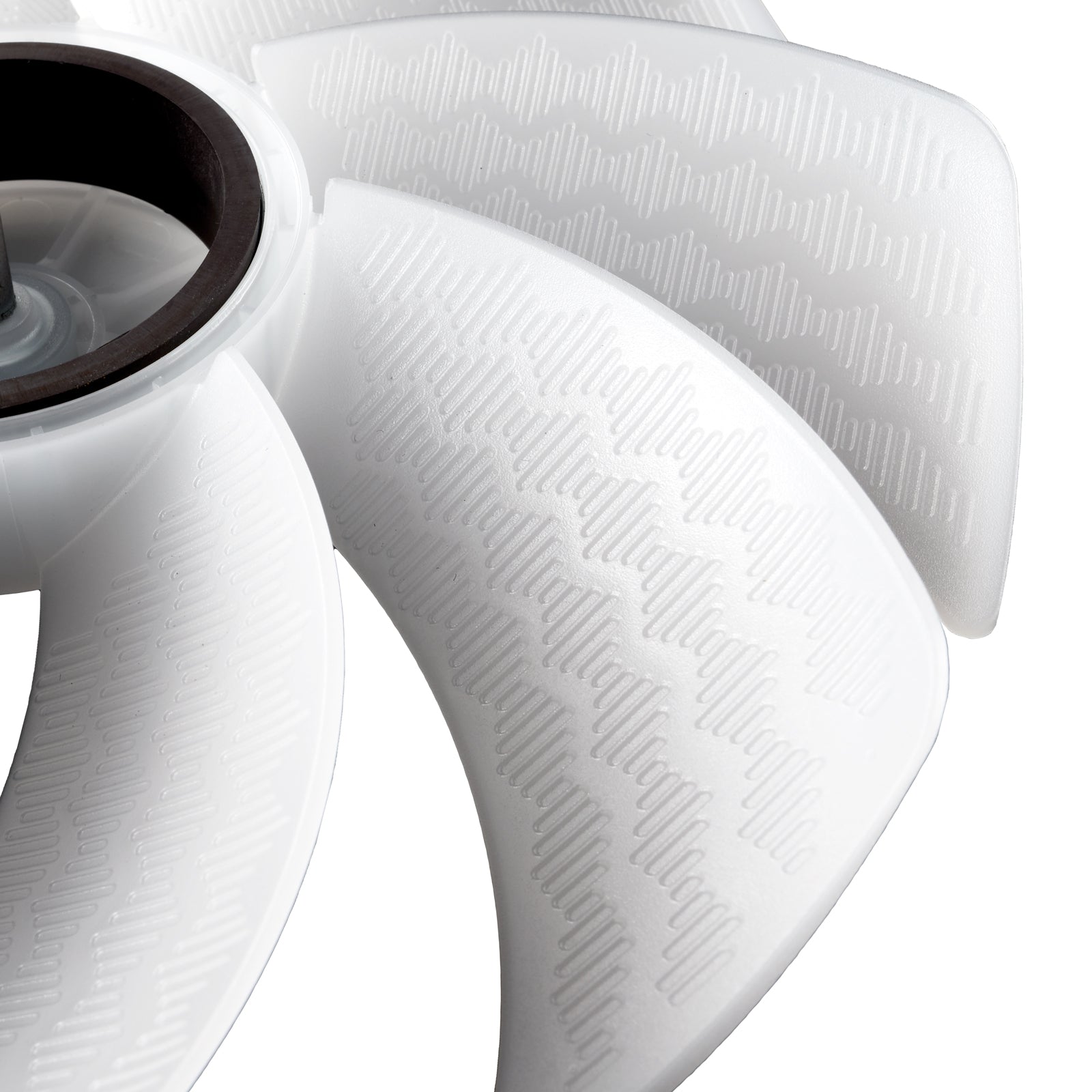

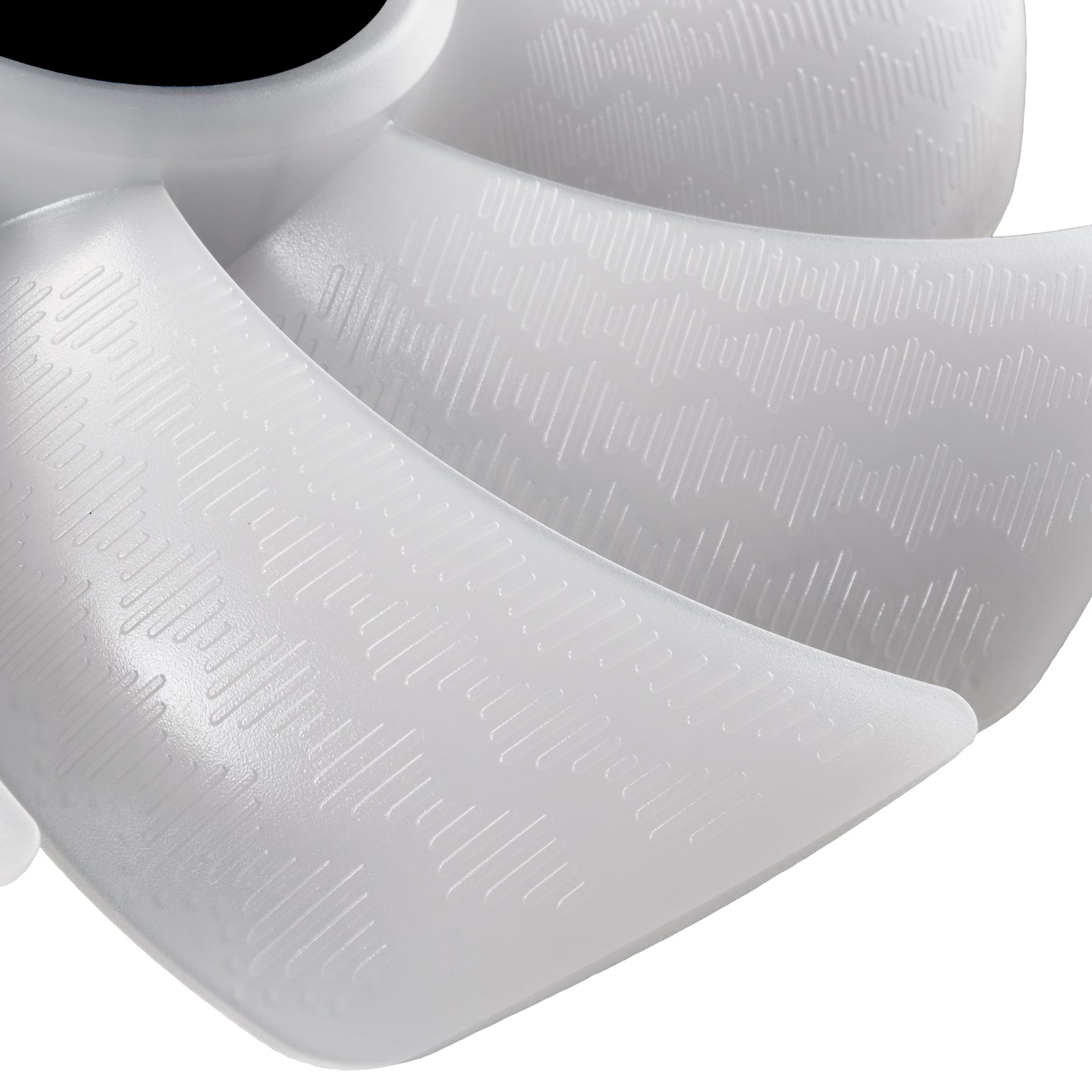

Polycarbonate fan blades, PBT frame |
Application |
180mm, 200mm * |
Color |
Translucent fan blades, black frame |
Bearing |
Dual ball bearing |

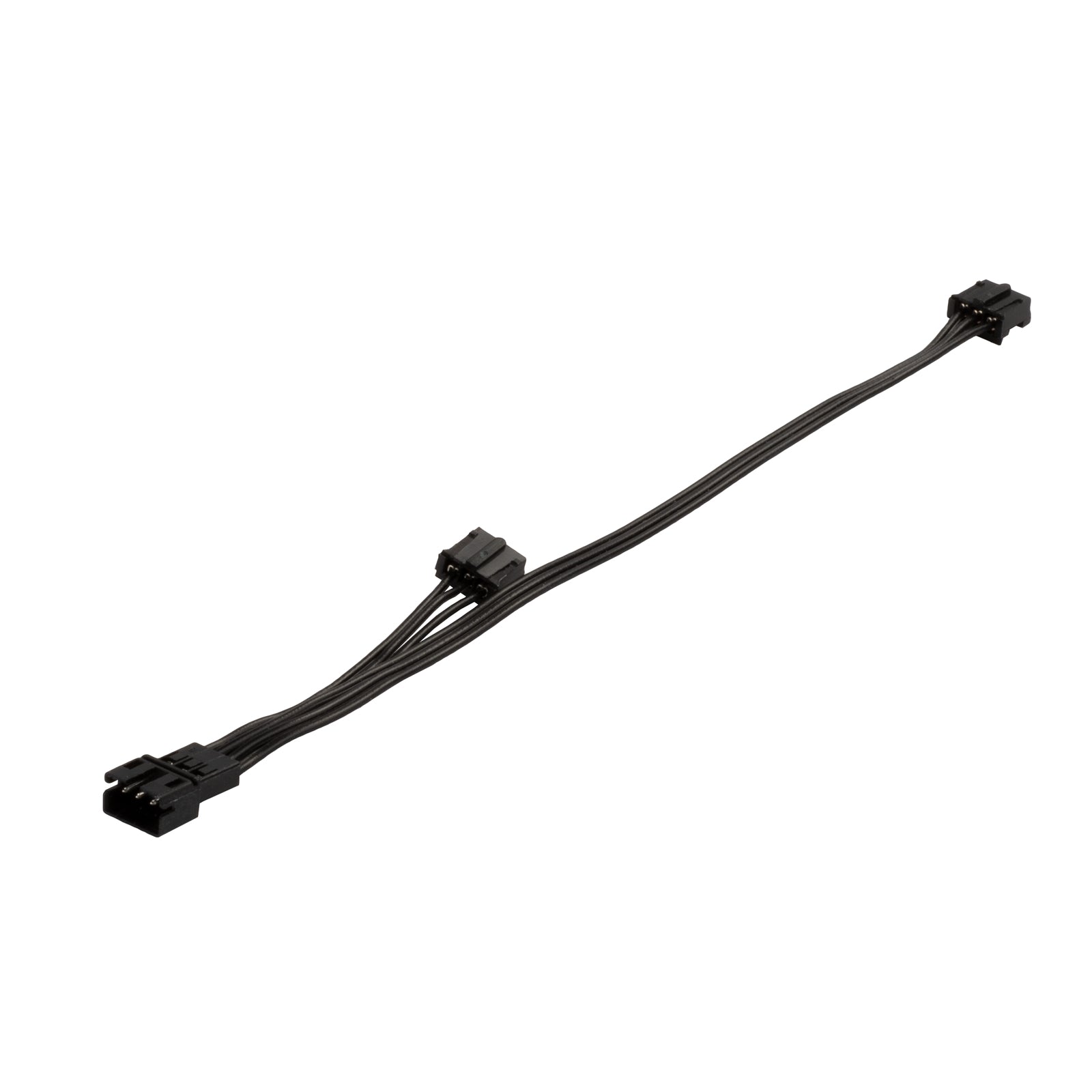

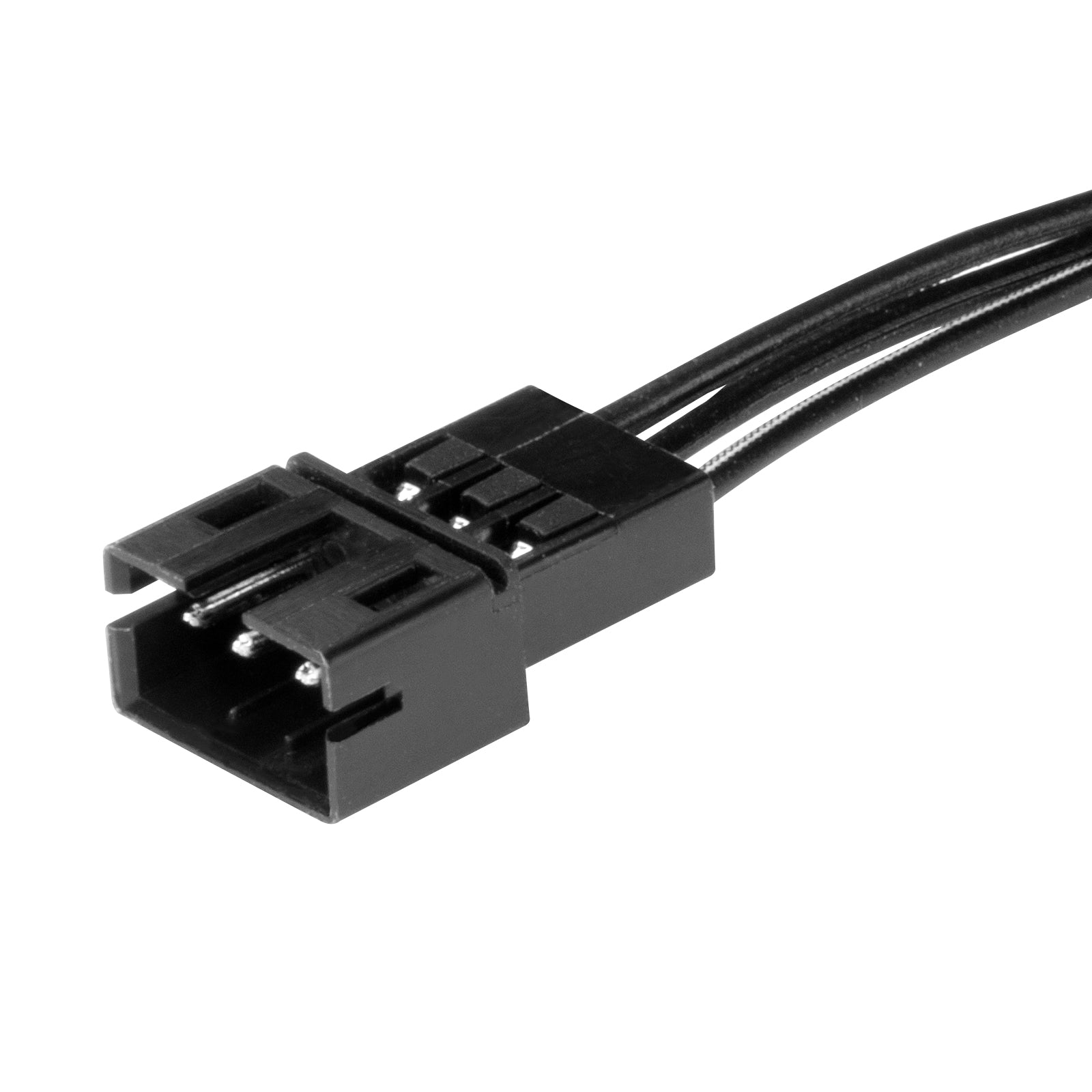

Connectors |

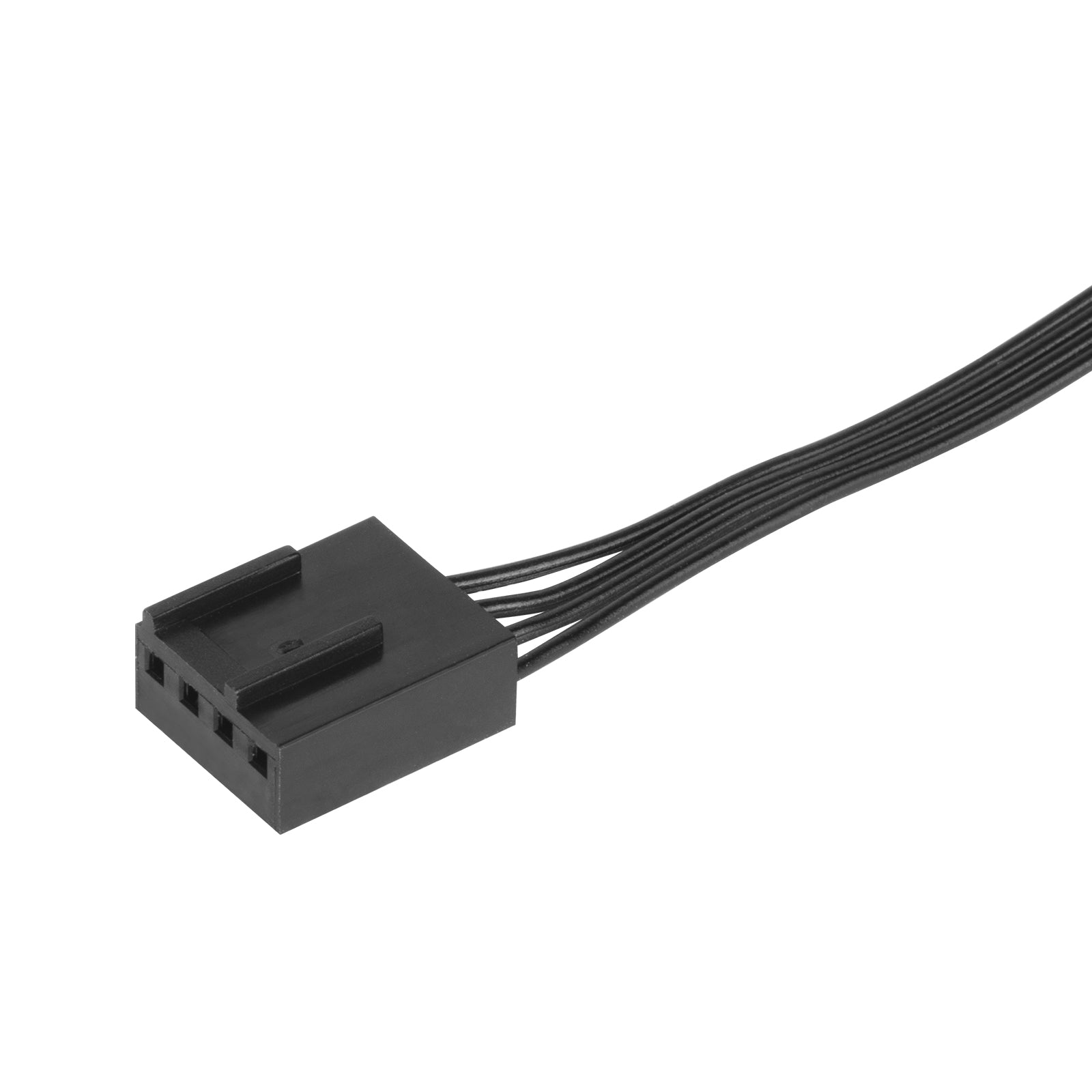

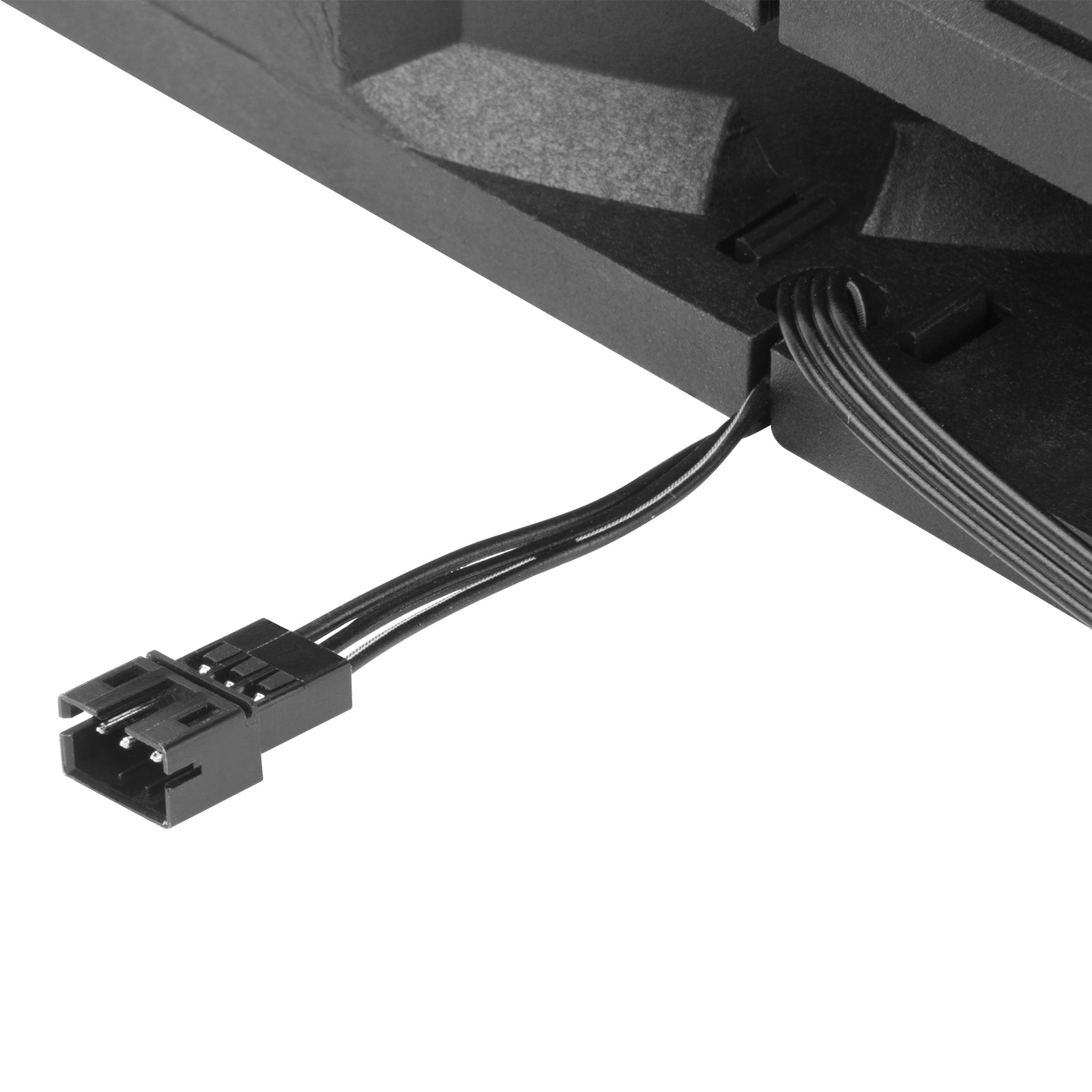

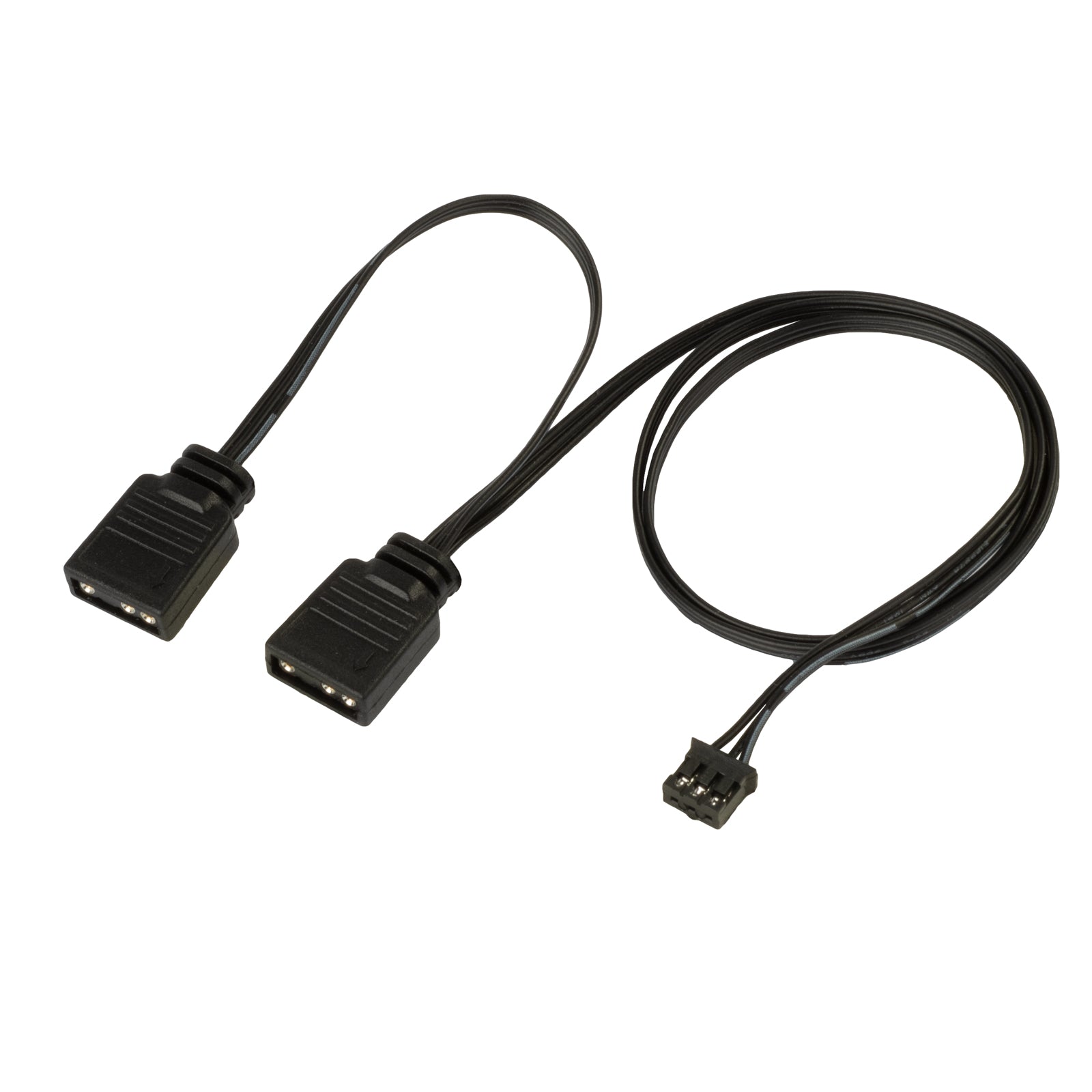

4 pin PWM connector + 4-1 pin ARGB (5V LED) |
Rated Voltage |
12V DC |
Starting Voltage |
5V |
Rated Current |
0.31A ±0.04A |
Rated Power |
3.7W |
Speed |
0 ~ 1200 RPM |
Airflow |
0 ~ 143.21 CFM |
Effective Airflow Range |
3m |
Static Pressure |
0 ~ 2.22 mmH2O |
Air speed at fan edge |
4.7m/s |
Noise Level |
0 ~ 34.5 dBA |
Dimension |
180mm (W) x 32mm (H) x 180mm (D) 7.09 (W) x 1.26 (H) x 7.09 (D) |
Weight |
420g |
Remark: |
*Please ensure fan location has sufficient space of at least 32mm to account for the thickness of the fan. **Some motherboards may not display fan speed properly below certain RPM range (e.g. 300 RPM or below). Please inquire with motherboard manufacturers for more detail. |
