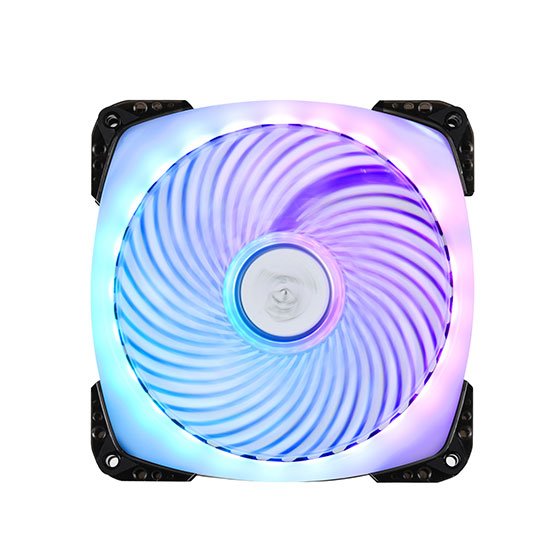

SILVERSTONE AP Series SST-AP142-ARGB 140mm Addressable RGB LED Case Fan

The AP142-ARGB is a SilverStone designed 140mm addressable RGB fan for the DIY enthusiasts. It has addressable RGB LED strip integrated within the frame which allows for control of each individual LED to display colors independently for nearly unlimited combination of colors and gradients. For cooling, the AP142-ARGB utilizes SilverStone?s famed Air Penetrator grille to push airflow in a straight line, thus improving case cooling performance tremendously. Enthusiasts looking to upgrade performance and aesthetics of their PCs will find the AP142-ARGB to be an excellent choice.

ï¿­ Displays any color combination by use of an Addressable RGB LED control box or capable motherboard via 5V, D, NP ,G signal source

ï¿­ Enhanced airflow focus and brilliant visuals with SilverStone?s unique Air Penetrator frame design

ï¿­ Coating with light diffusing material improves light uniformity

ï¿­ Double ball bearings for longer life and durability

ï¿­ Class-leading 24 LEDs for increased brightness

Model No.	SST-AP142-ARGB
Color	Transparent fan blades, black frame
Bearing	Dual Ball Bearing
Connectors	4pin PWM for fan + 3pin WS2812 RGB
Rated Voltage	12V DC
Start Voltage	9.6V
Rated Current	0.11A
Rated Power	3.84W
Speed	500 ~ 1500 rpm
Airflow	13.62 ~ 44.2 CFM
Effective Airflow Range	1 Meter
Static Pressure	0.16 ~ 1.65 mmH2O
Noise Level	18.48 ~ 23.33 dBA
Life Time	70,000 hours
Dimension	140mm (L) x 140mm (W) x 25mm (H) 5.51 (L) x 5.51 (W) x 0.98 (H)
RGB LEDs	24 PCS



Remark

* Please check to make sure the control box and motherboard RGB port that you want to connect are the same as AP142-ARGB?s RGB port definition. Incorrect connection may cause malfunction or damage
