SPECIFICATIONS
Model No. |
SST- AR12-TUF |
Application |
Intel LGA 2066/2011/1200/115x/1366/775 AMD Socket AM4/AM3/AM2/FM2/FM1* |

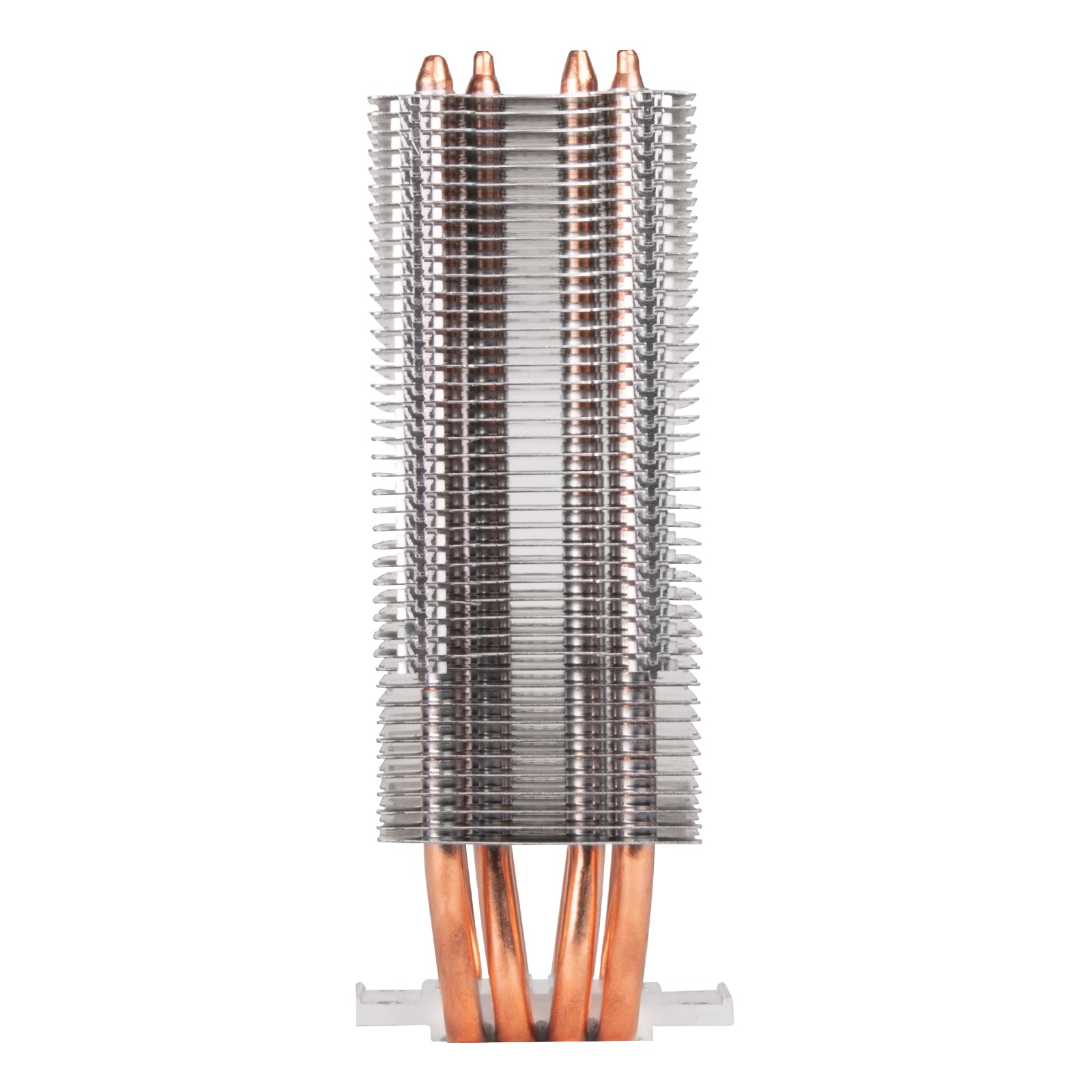

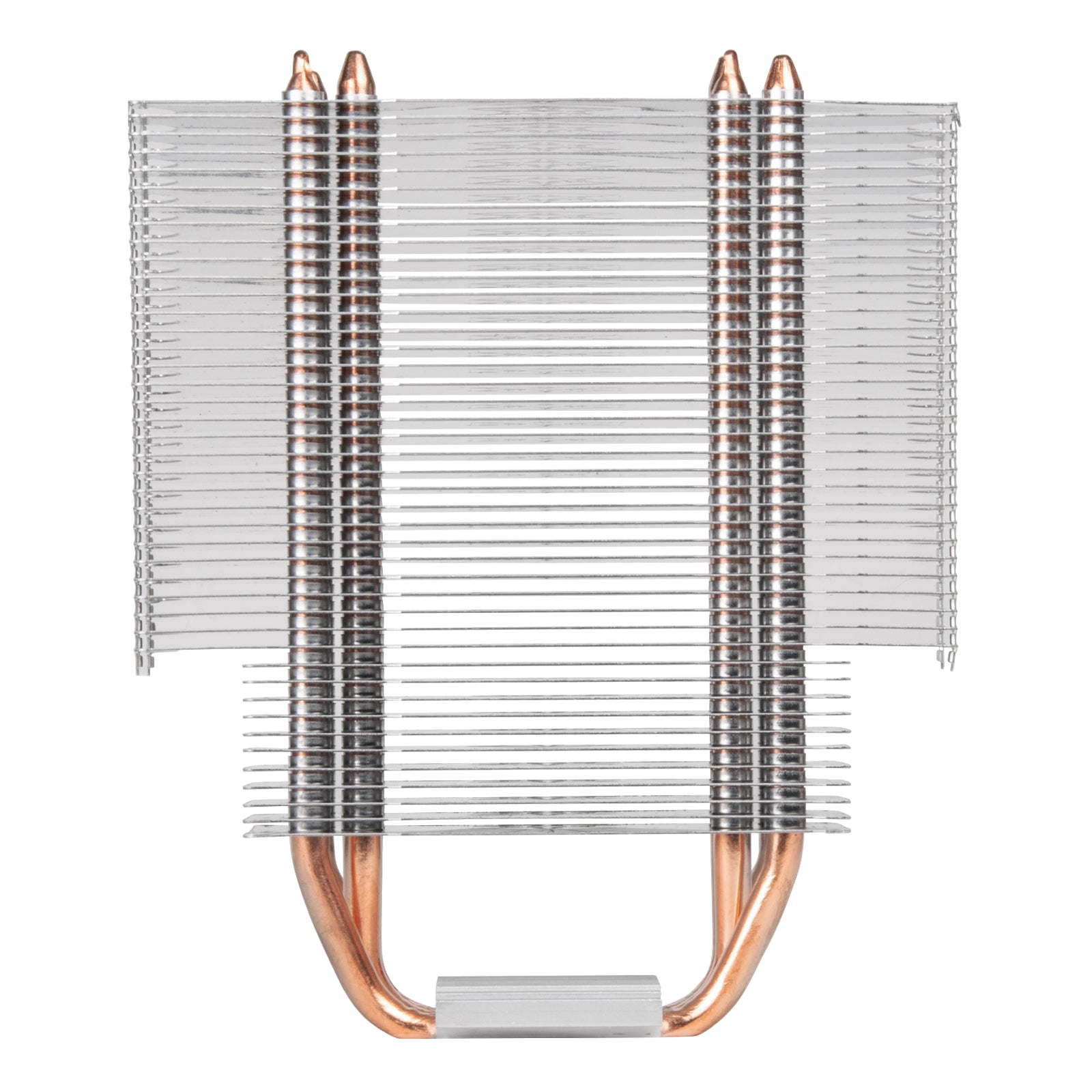

Material |

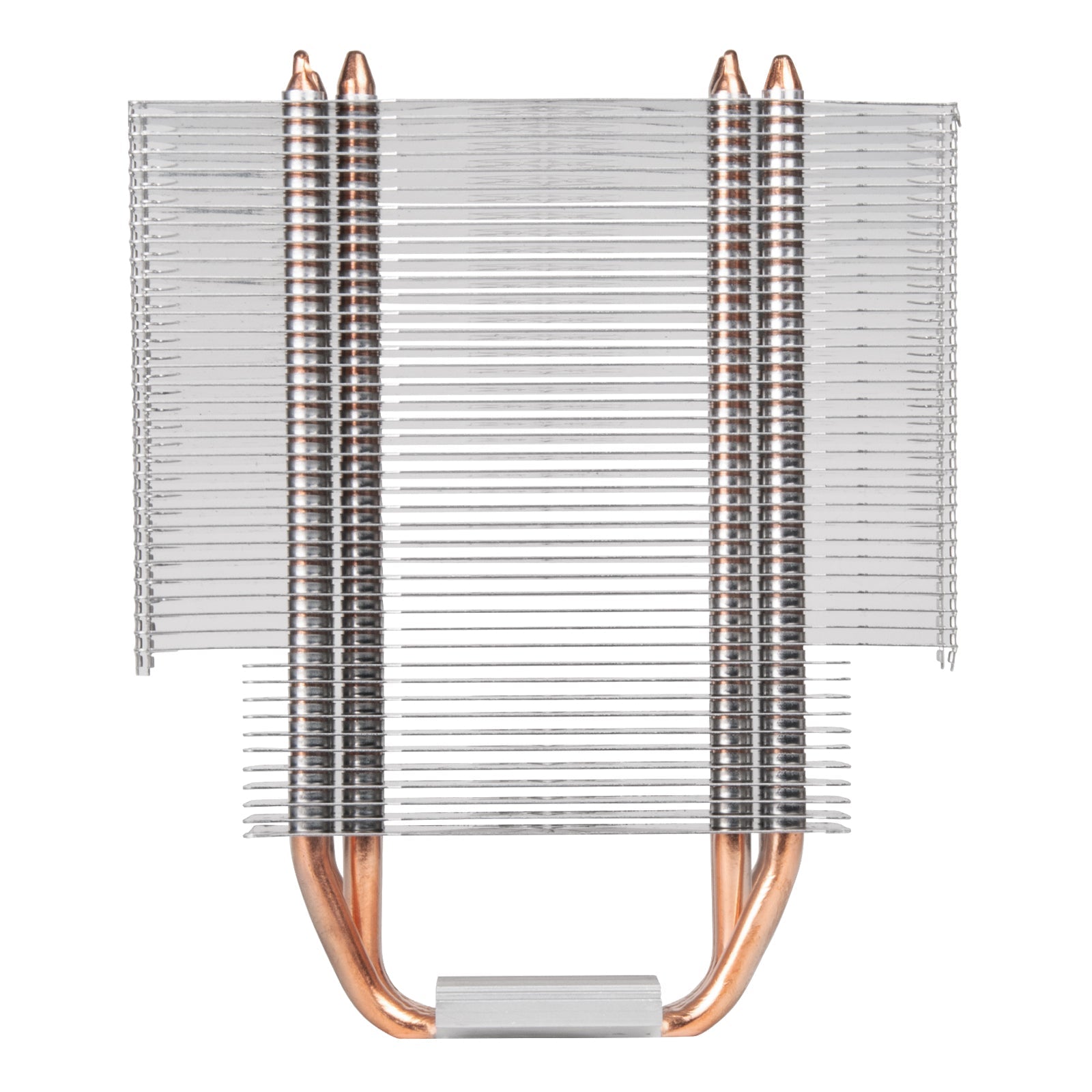

Copper heat pipes with aluminum fins |

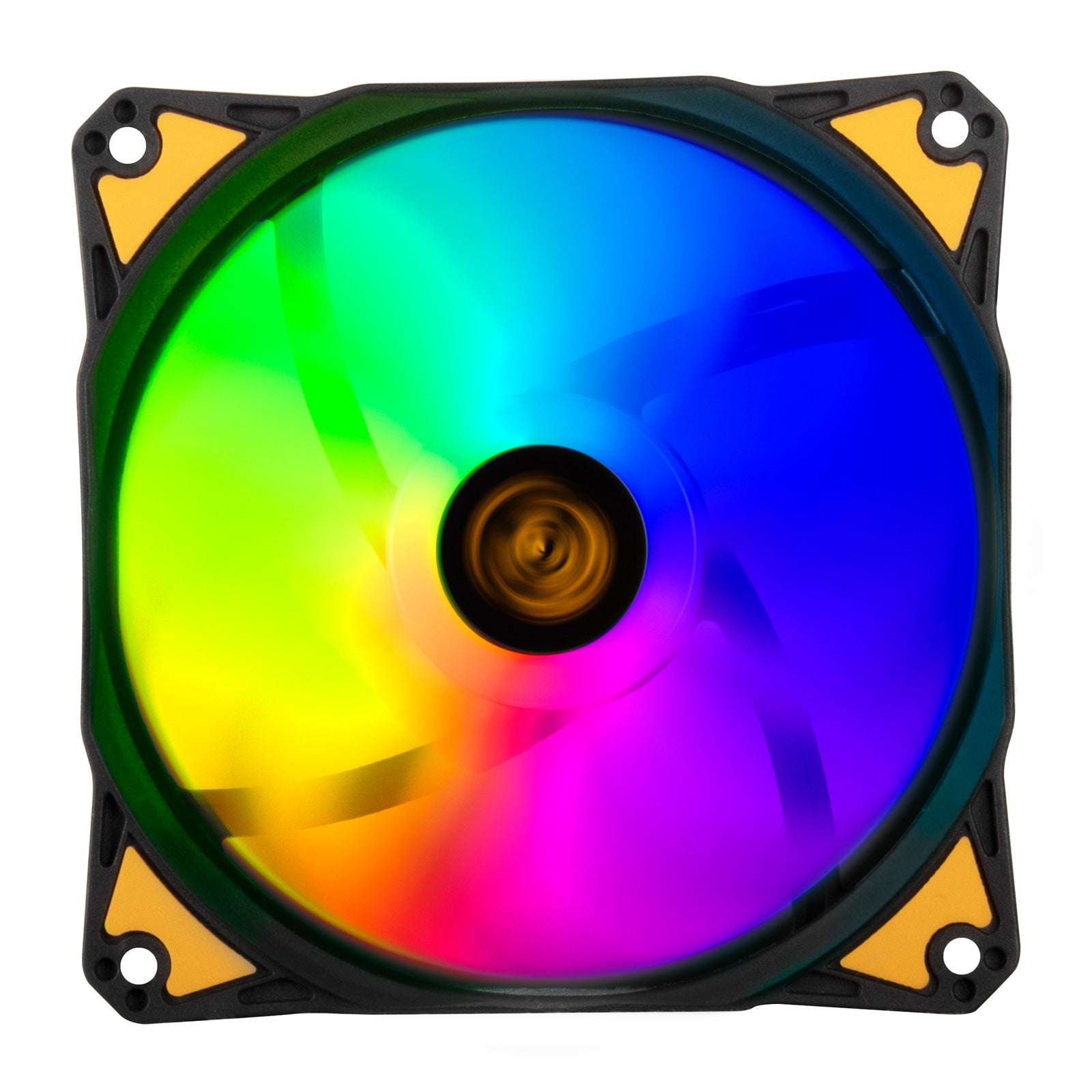

Fan dimension |
120mm (W) x 25mm (H) x 120mm (D) 4.72 (W) x 0.98 (H) x 4.72 (D) |
Speed (R.P.M.) |
300 ~ 2200 RPM |

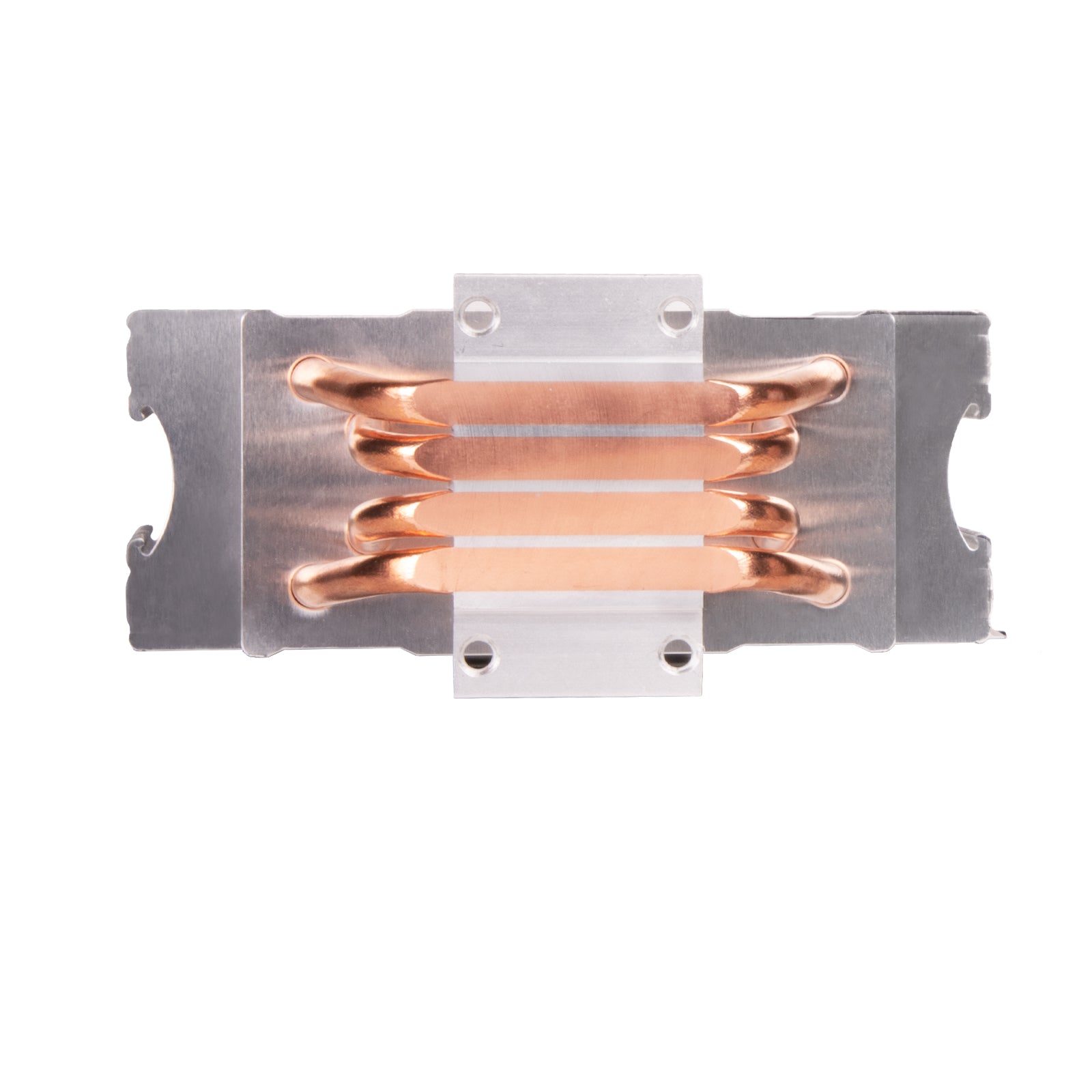

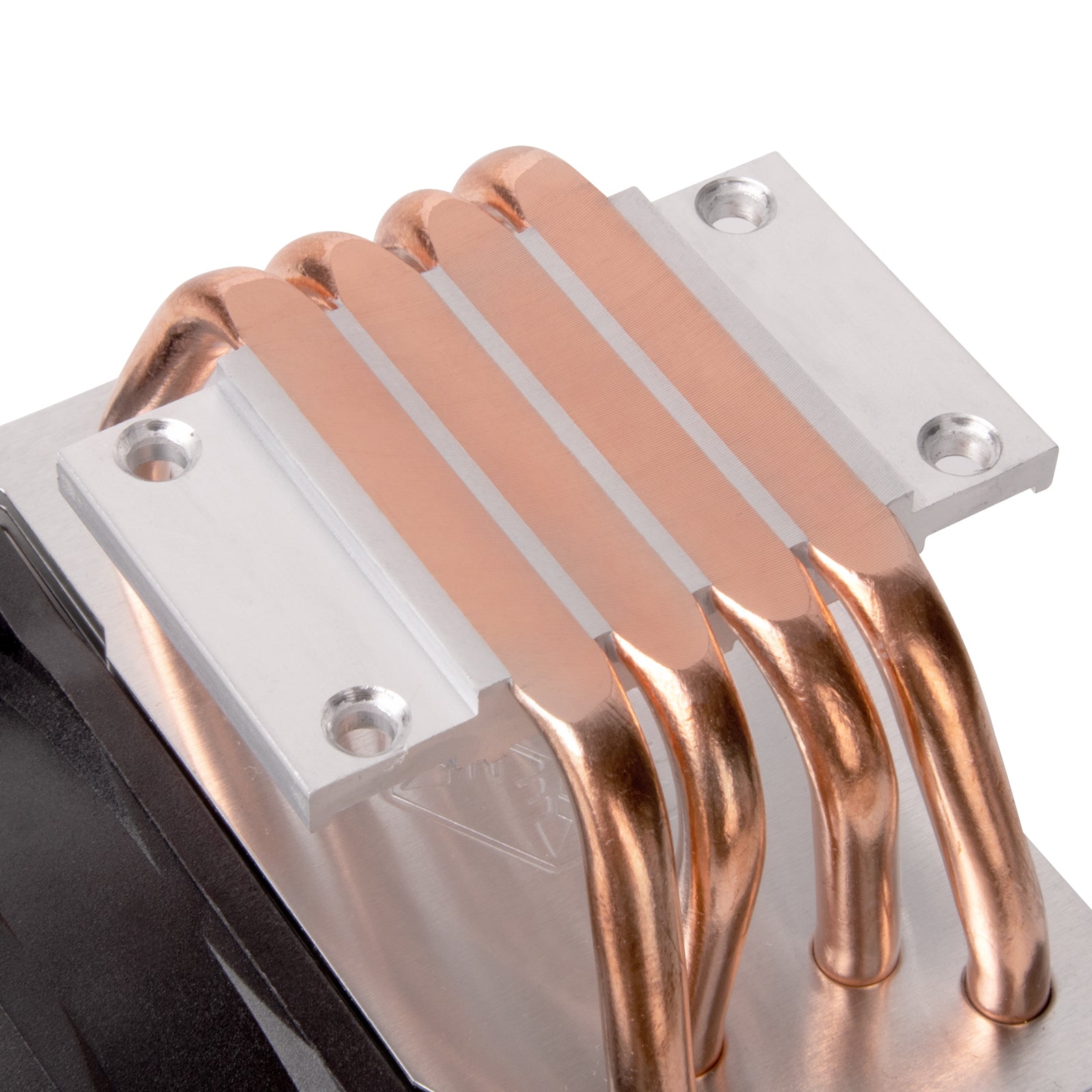

Heat Pipe Type |
Ã?6mm heat-pipe x 4 |
Air Flow (CFM) |
69.26 CFM |
Air pressure |
2.36mmH2O |
Noise |
6.2 ~ 34.4 dBA |
Rated Voltage |
12V |
Rated Current |
0.23A |
Bearing |
Hydraulic bearing |
Fan MTTF |
40,000 hours |

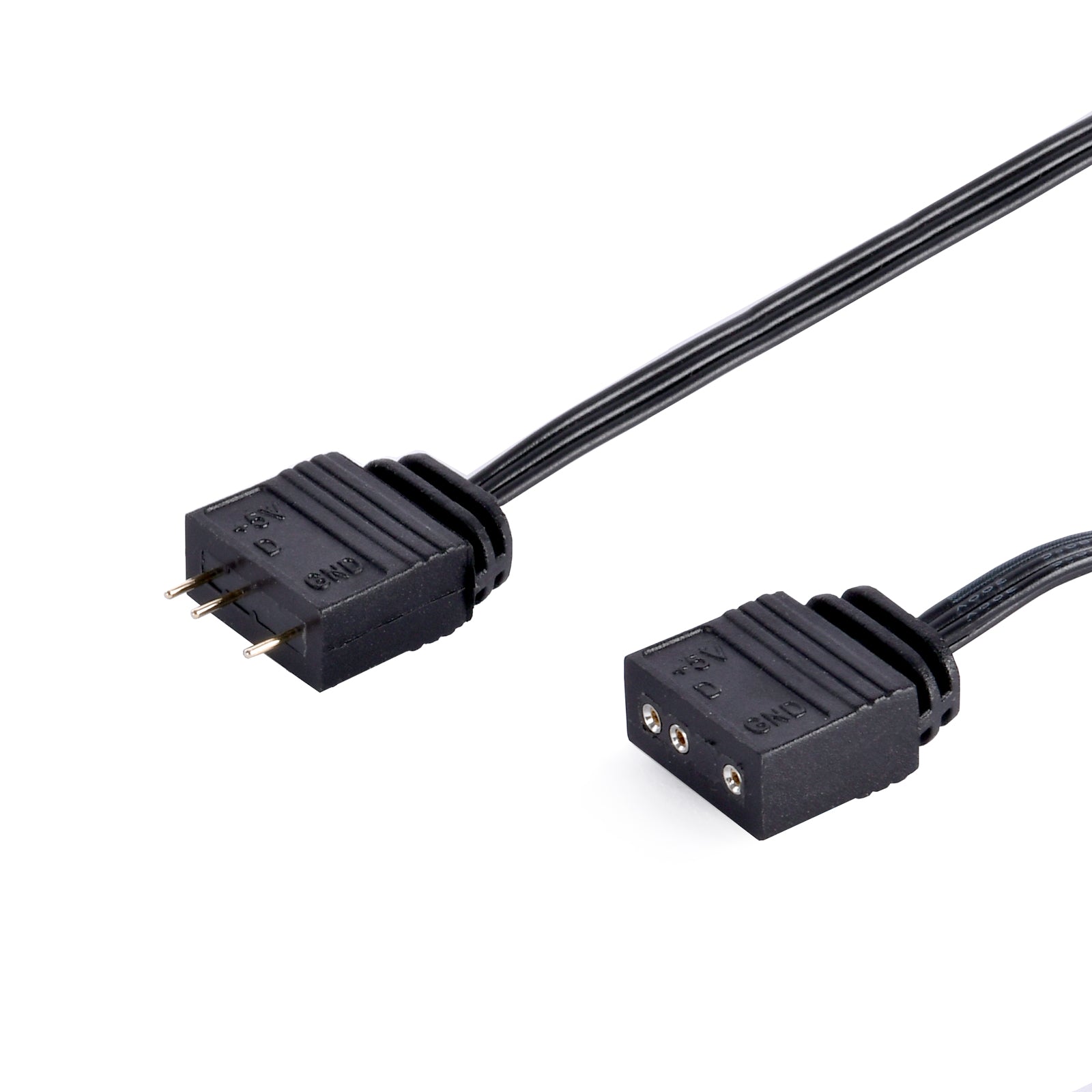

Connectors |
4 pin PWM & 4-1 pin ARGB (5V LED) |
Net weight |
670g |
Dimension |
128mm (W) x 154mm (H) x 75mm (D) 5.04 (W) x 6.06 (H) x 2.95 (D) |
Remark |
* Please use the original backplate on your AMD platform motherboard. ** Please check to make sure the control box and motherboard RGB port that you want to connect are the same as AR12-TUFâ??s RGB port definition. Incorrect connection may cause malfunction or damage. |
