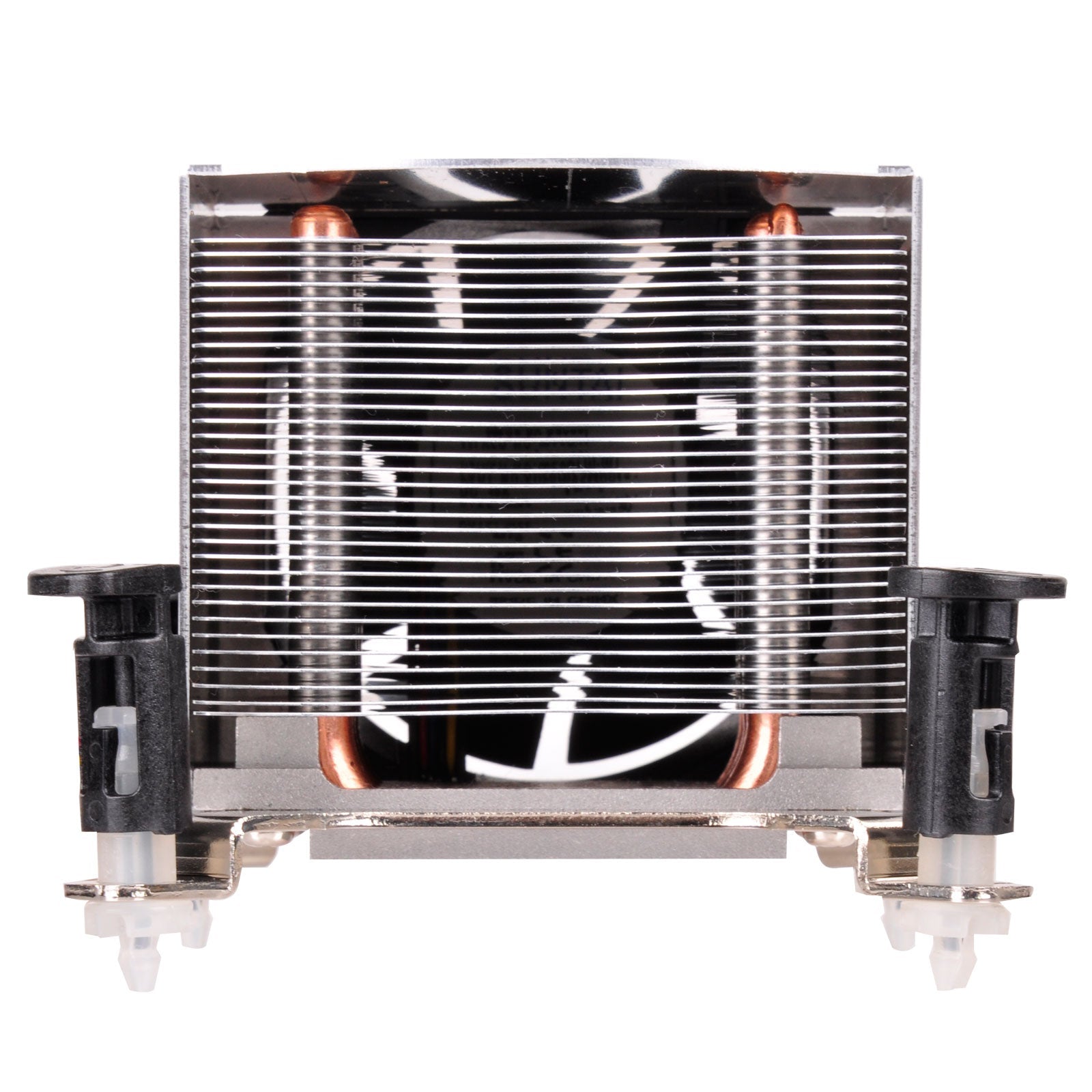

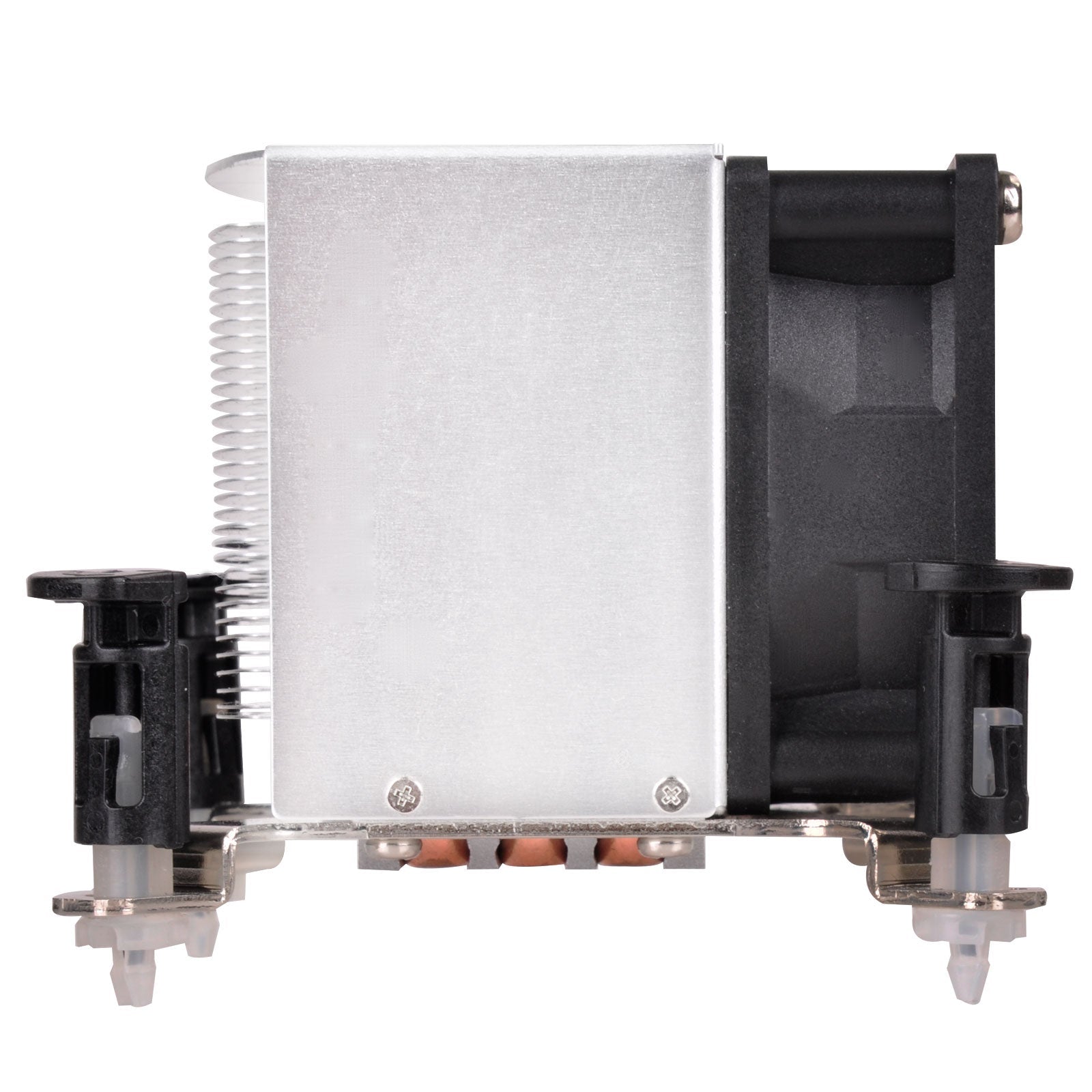

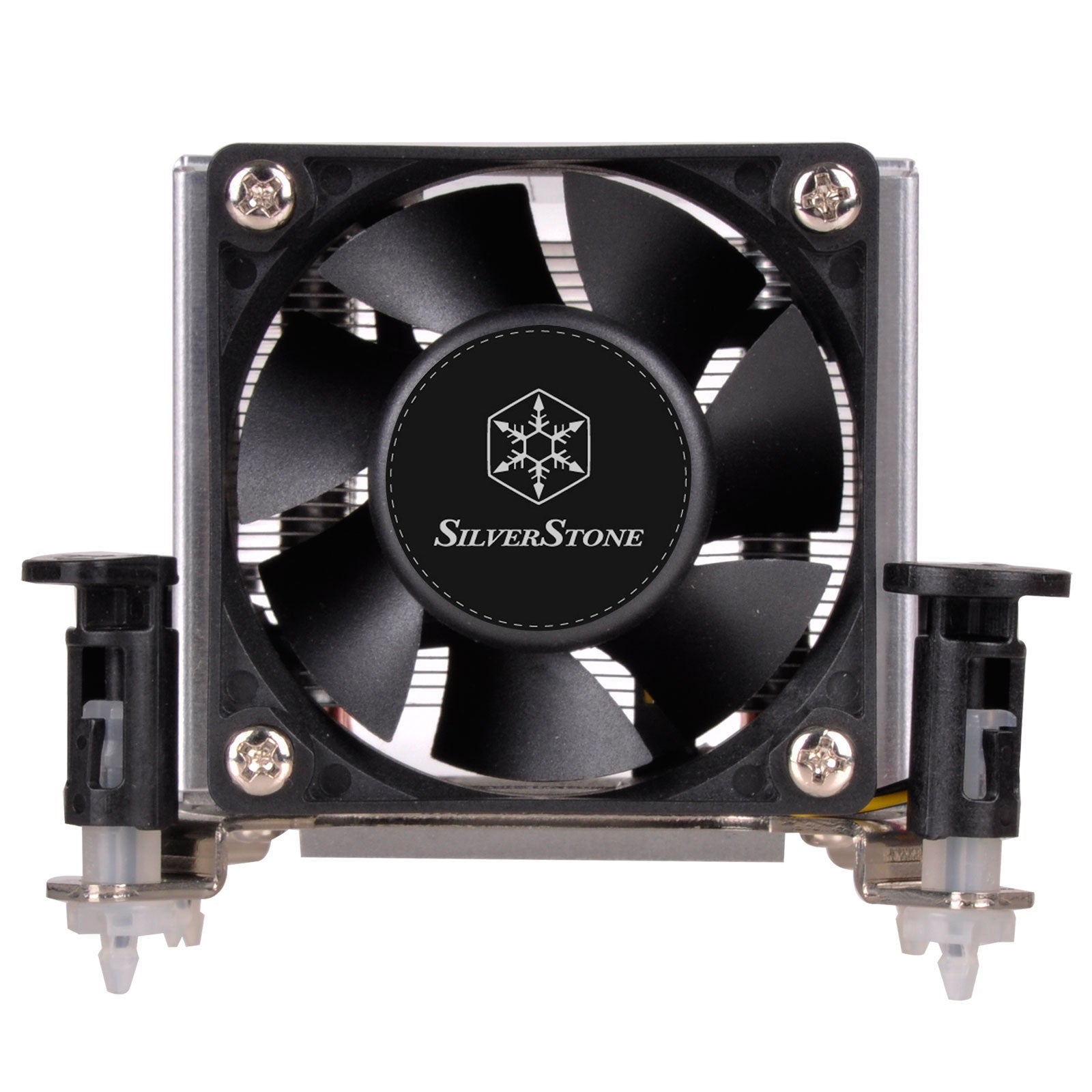

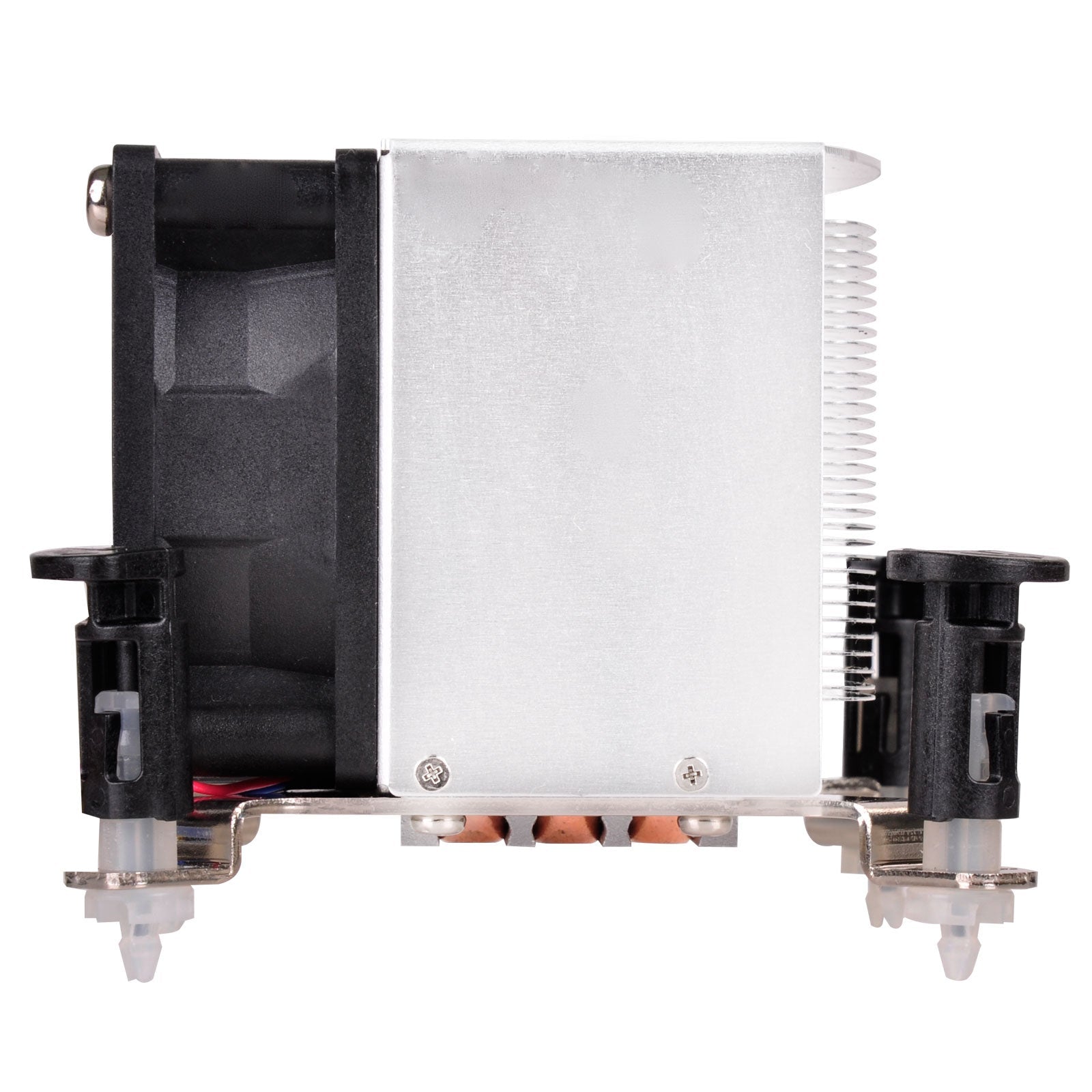

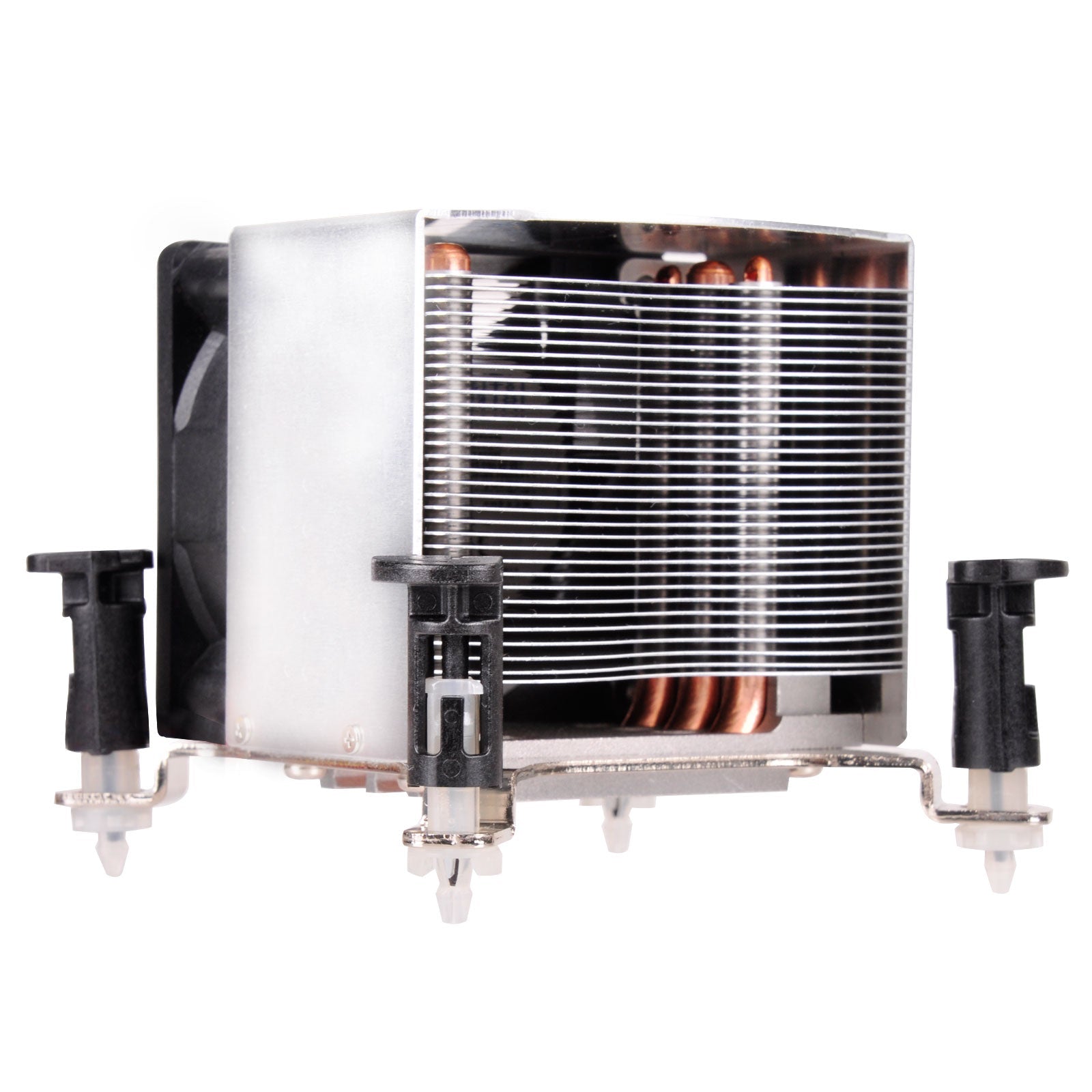

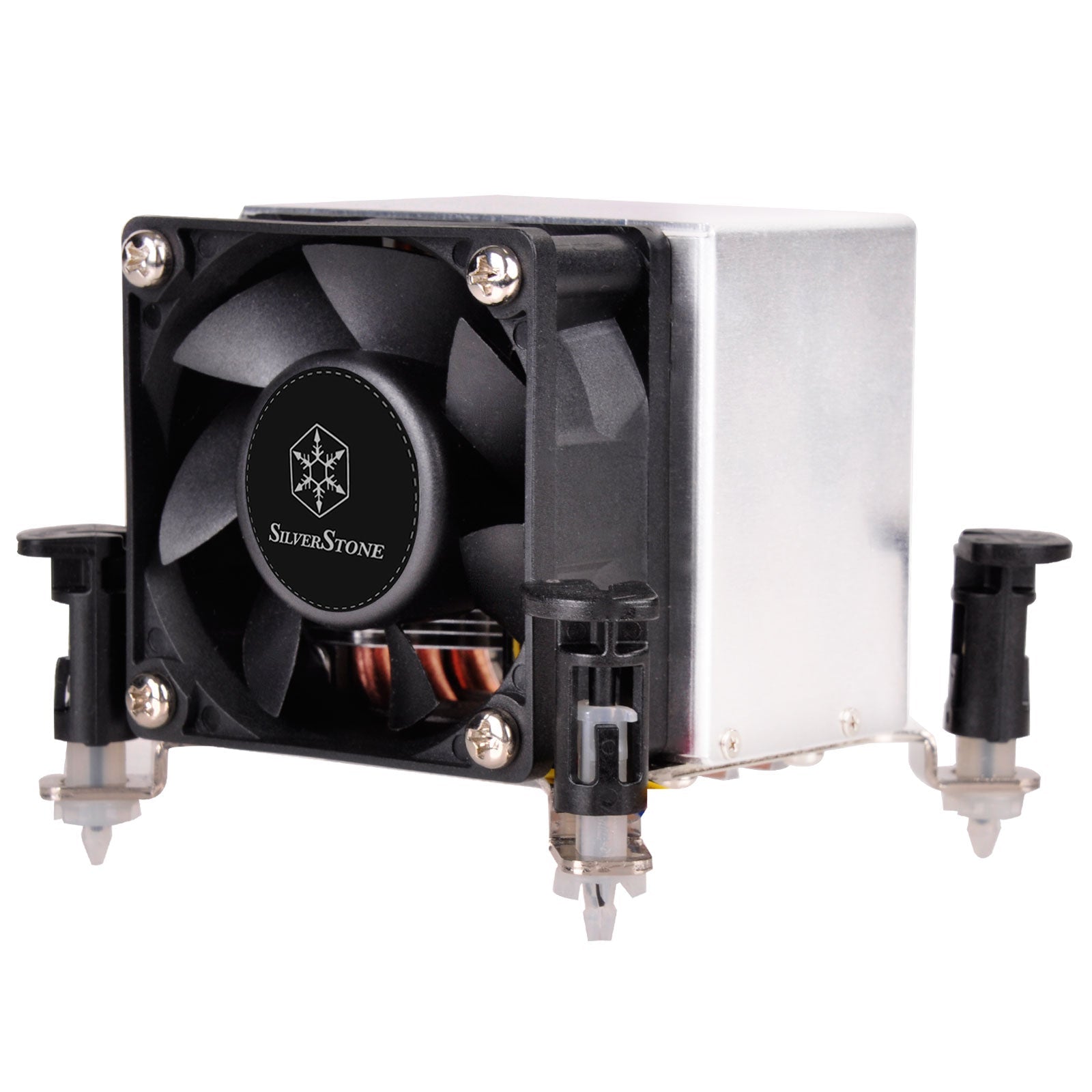

Silverstone Argon Series AR09-115XP CPU Cooler

SilverStone AR09-115XP is a CPU cooler designed for 2U rackmount server or small form factor cases. Its features three 6mm thick copper heat pipes connected to the base using heat-pipe direct contact (HDC) technology and a 60mm dual ball bearing PWM fan. In addition, its heatsink fins have wave-shaped design that works efficiently with the included air duct to help quickly wick away heat for exceptional CPU cooling performance.

ï¿­ Three Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency

ï¿­ Heat-pipe direct contact (HDC) technology

ï¿­ 60mm dual ball bearing PWM fan

ï¿­ Push-Pin design for convenient installation

ï¿­ Intel LGA1150/1151/1155/1156 compatible

Model No.	SST-AR09-115XP
Material	Copper heat pipes with aluminum fins
Application	Intel LGA1150/1151/1155/1156
Heat Pipe Type	Ø6mm heat-pipe x 3
Cooling System	60mm x 60mm x 25mm fan
Dimension w/fan	93mm (W) x 66mm (H) x 93mm (D) (with Fan) 3.66 (W) x 2.6 (H) x 3.66 (D) (with Fan)
Max air pressure	0.33 ~ 4.83mmH2O
Noise	18.02 ~ 42.5dBA
Bearing	Dual ball bearing
Net weight	215g (without fan)
Voltage Rating (V)	12V
Start Voltage (V)	9.6V
Air Flow (CFM)	6.7 ~ 27.9CFM
Speed (R.P.M.)	1200 ~ 5000RPM
Life Expectance (hrs)	70,000 hours
