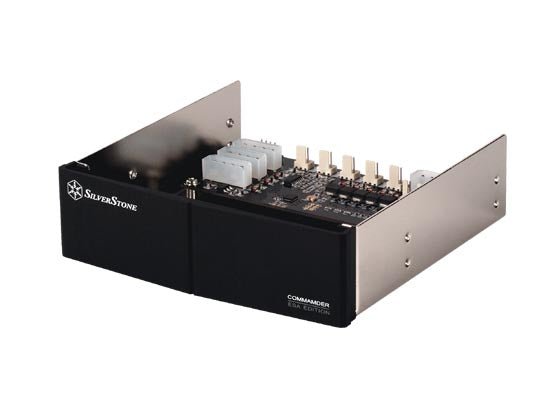

Silverstone Commander 01 ESA Modular System Thermal Controller- Black

To enable more users to enjoy the ability to monitor and control their system ?s thermal performance; SilverStone created a module called Commander 01 ESA. When connected with an ESA certified motherboard, it can provide full system monitoring and thermal control for support up to 5 fans, 3 lamps (optional) and 4 thermal sensors. Operating under NVIDIA ?s control panel software supporting ESA, an user no longer needs to go through complicated BIOS setup to make system performance adjustments. For enthusiasts, it is the best choice to have precision control of their system parameters.

• Enable ESA support for full system thermal management


• Support up to 5 fans, 3 lamps (optional), and 4 thermal sensors


• Classic SilverStone styling and finish


• Requires ESA certified motherboard

Model	SST-CMD01B-ESA (Black) SST-CMD01S-ESA (Silver)
Color	Black, Silver
Material	Aluminum front panel, steel body
Power requirement	+12V
Max fan power	5 channels, 0.5A per channel
Operating system support	Windows XP, XP-64, Vista, Vista-64
Application	5.25Â? drive bay, works with ESA motherboard
Connectors	3 x 4pin peripheral connectors (300mm) 1 x USB connector (600mm) 4 x thermal sensors (600mm)
Interface	USB 2.0
Fan control function	Adjustable speed or thermal control by NVIDIA control panel
Max lamp power	3 channels, 0.8A per channel
Lamp control function	On/off function control by NVIDIA control panel
Thermal sensor & range	4 sensors, 0°C ~ 90°C
Controller Board Dimension	130mm (W) x 35mm (H) x 55mm (D)
Dimension	158mm (W) x 42mm (H) x 145mm (D)
weight	0.8kg
