Silverstone CS01 - HS Mini - ITXSST-CS01S-HS

Silverstone CS01-HS Mini-ITX

Name: Silverstone CS01-HS Mini-ITX
Brand: SilverStone Technology
Price: 199.99 USD
Availability: OutOfStock

SST-CS01S-HS

The SilverStone CS01-HS is a stylish and compact case that makes a statement while providing impressive functionality. Using a mini-ITX motherboard to reduce overall volume

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$199.99 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

SilverStone CS01-HS

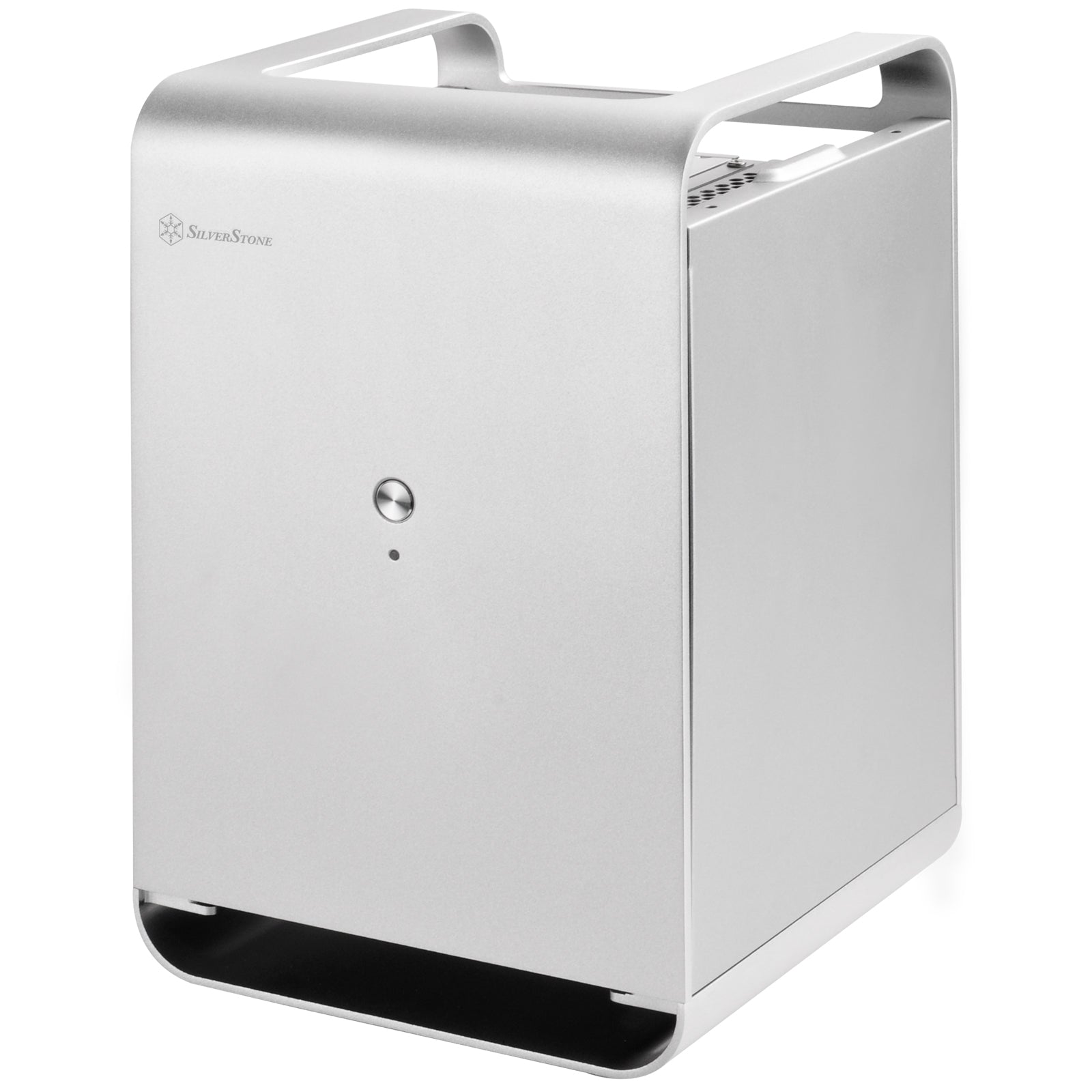

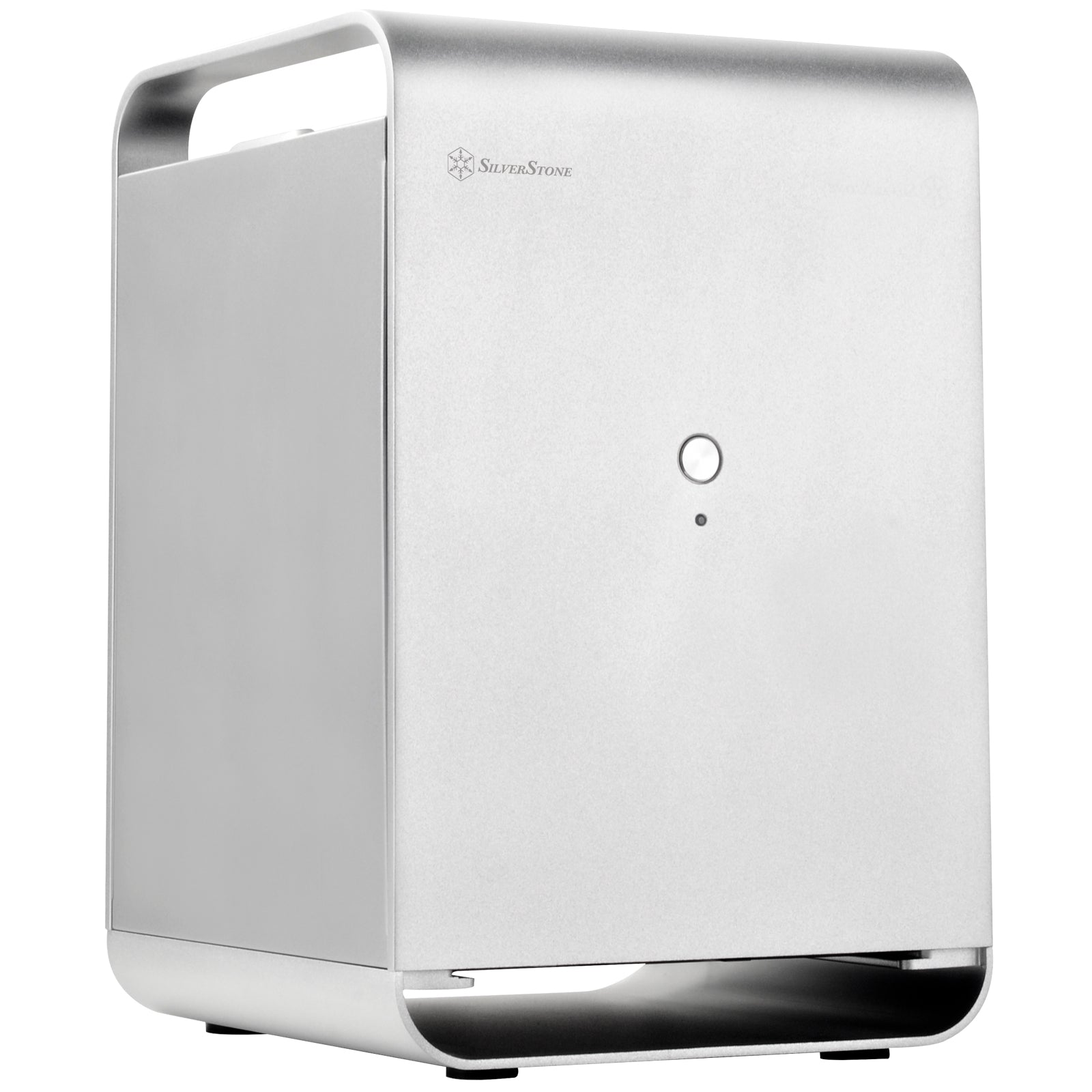

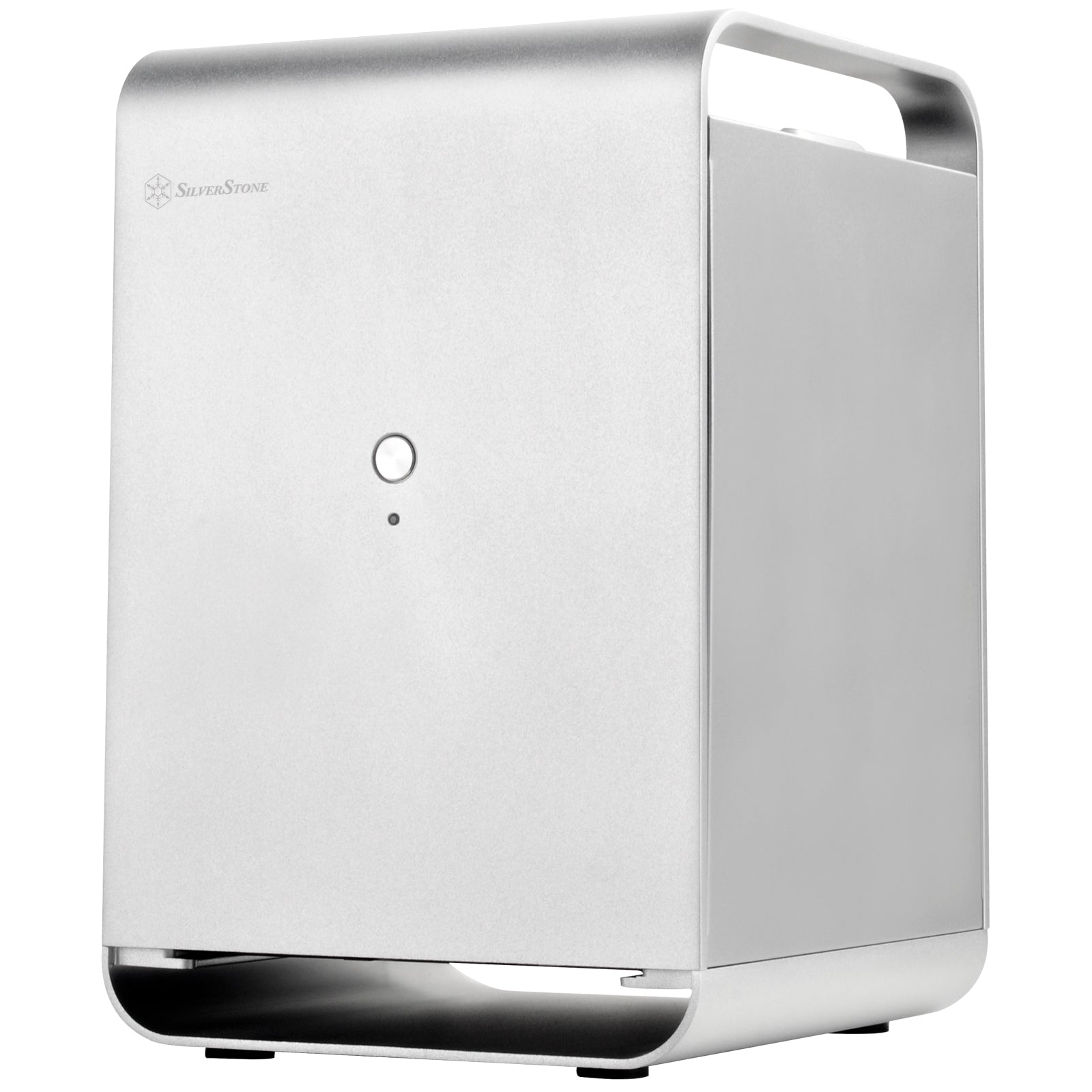

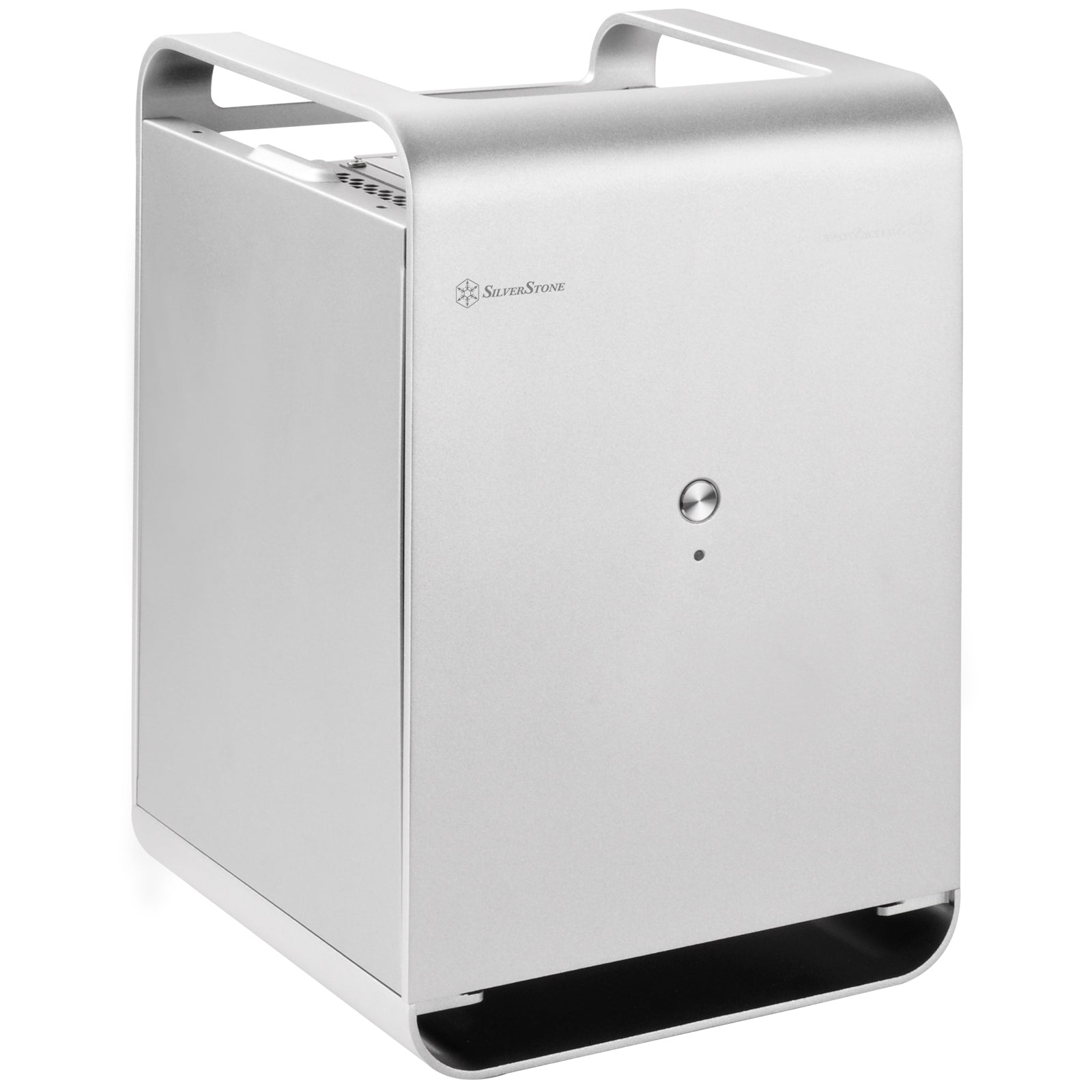

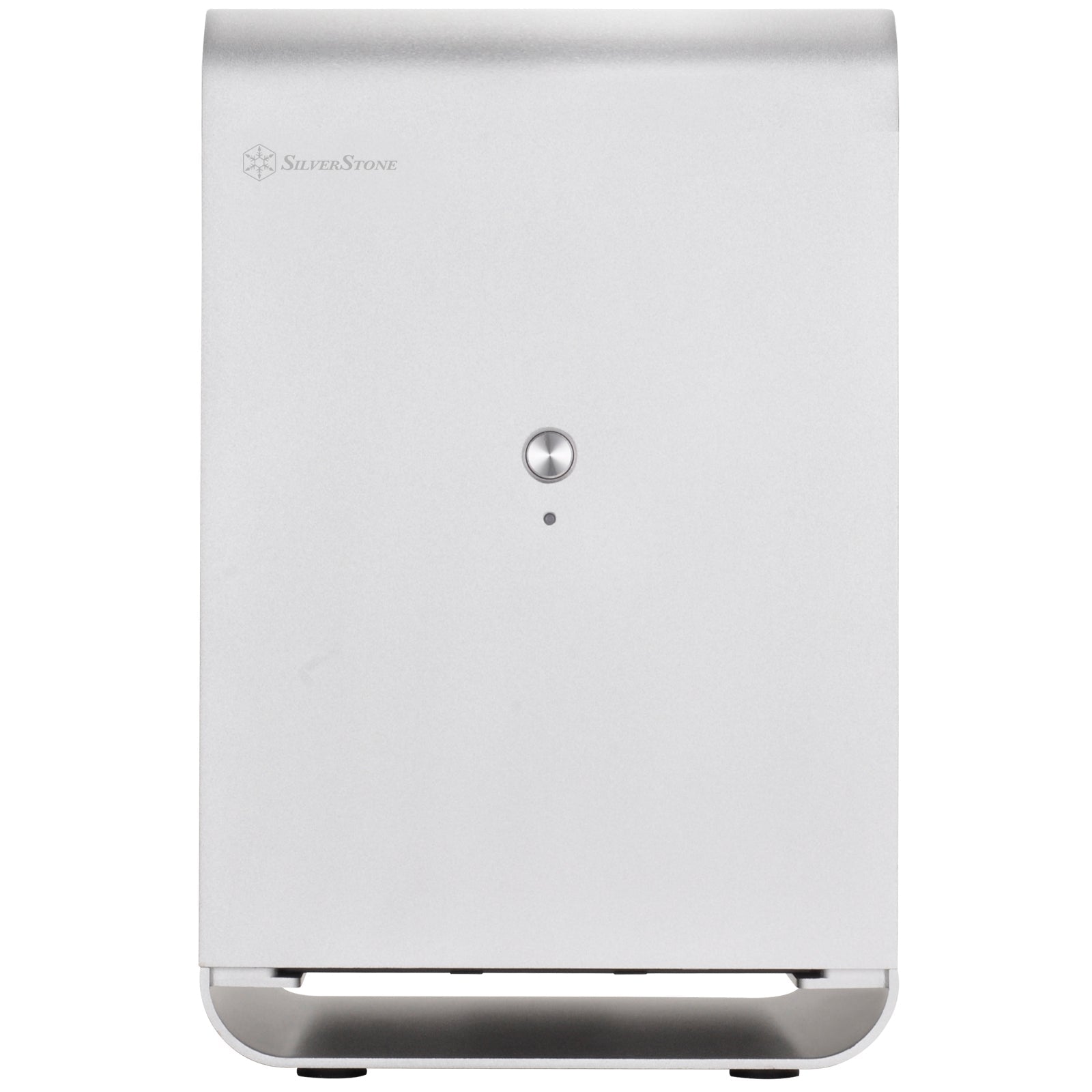

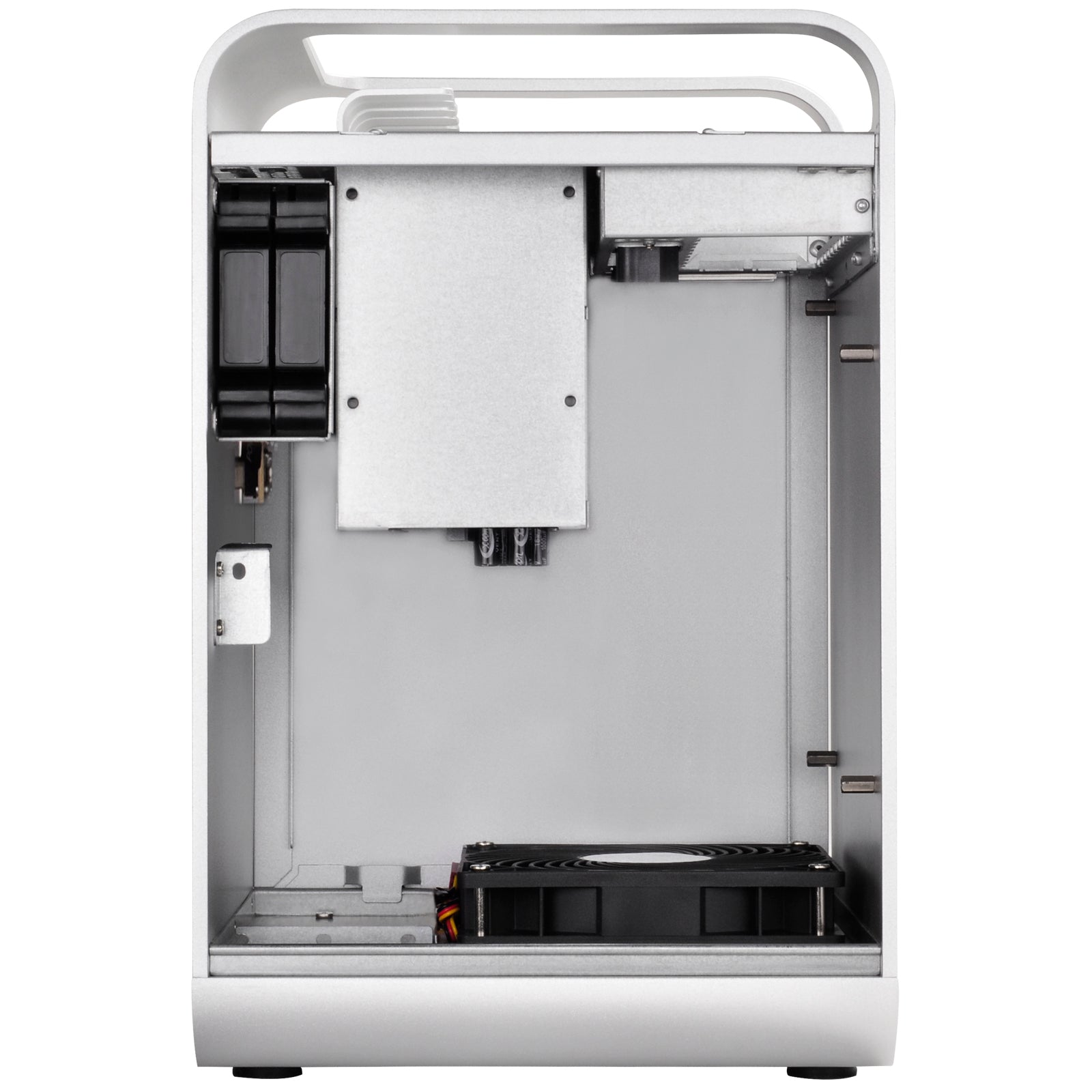

The SilverStone CS01-HS is a stylish and compact case that makes a statement while providing impressive functionality. Using a mini-ITX motherboard to reduce overall volume, it still has space for a total of eight 2.5 hard drives or SSDs, six being hot-swap compatible. It uses a single bottom-mounted 120mm fan that drives cool air up through the system and pushes exhaust out the top of the case.

Features

ï¿ Modern design with premium aluminum exterior

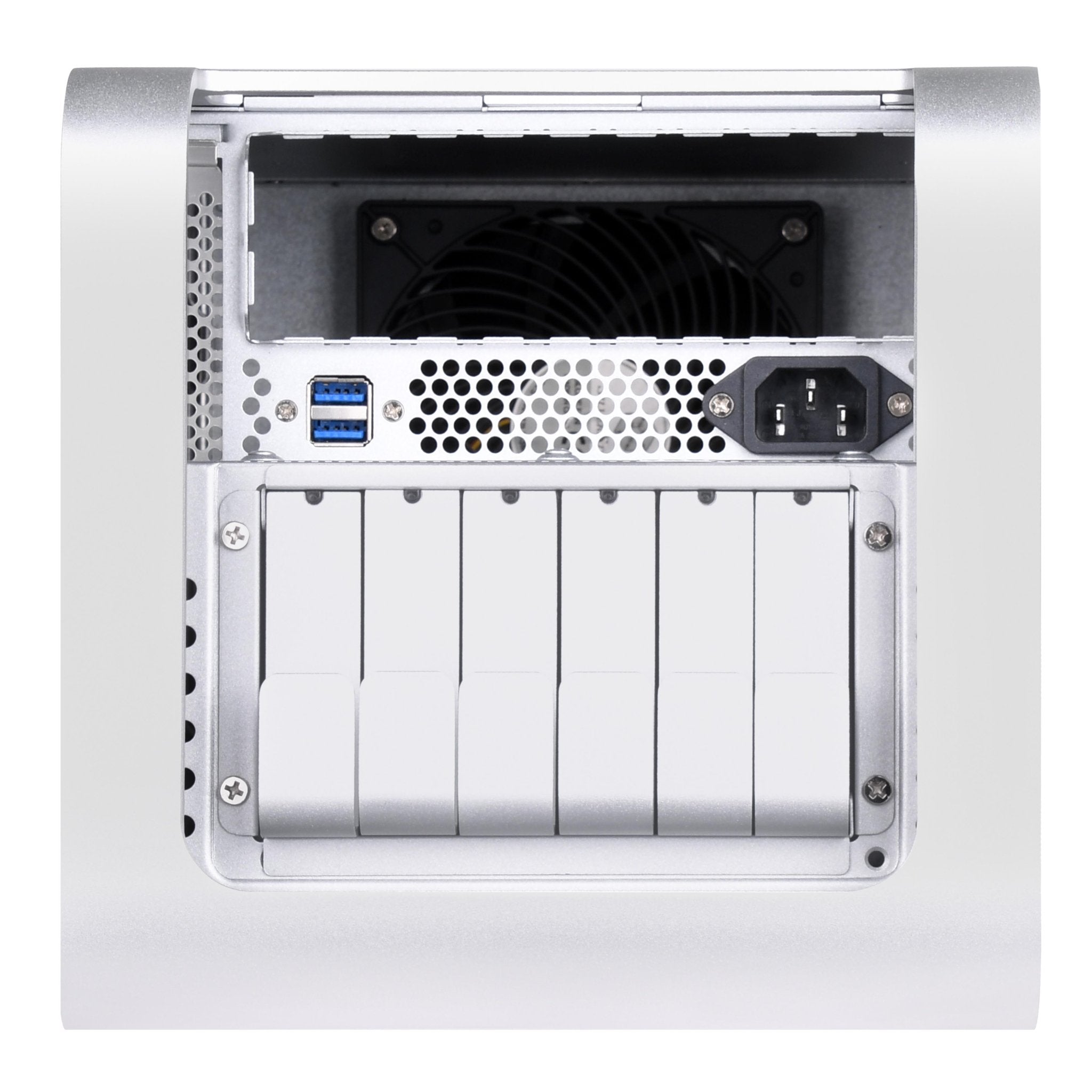

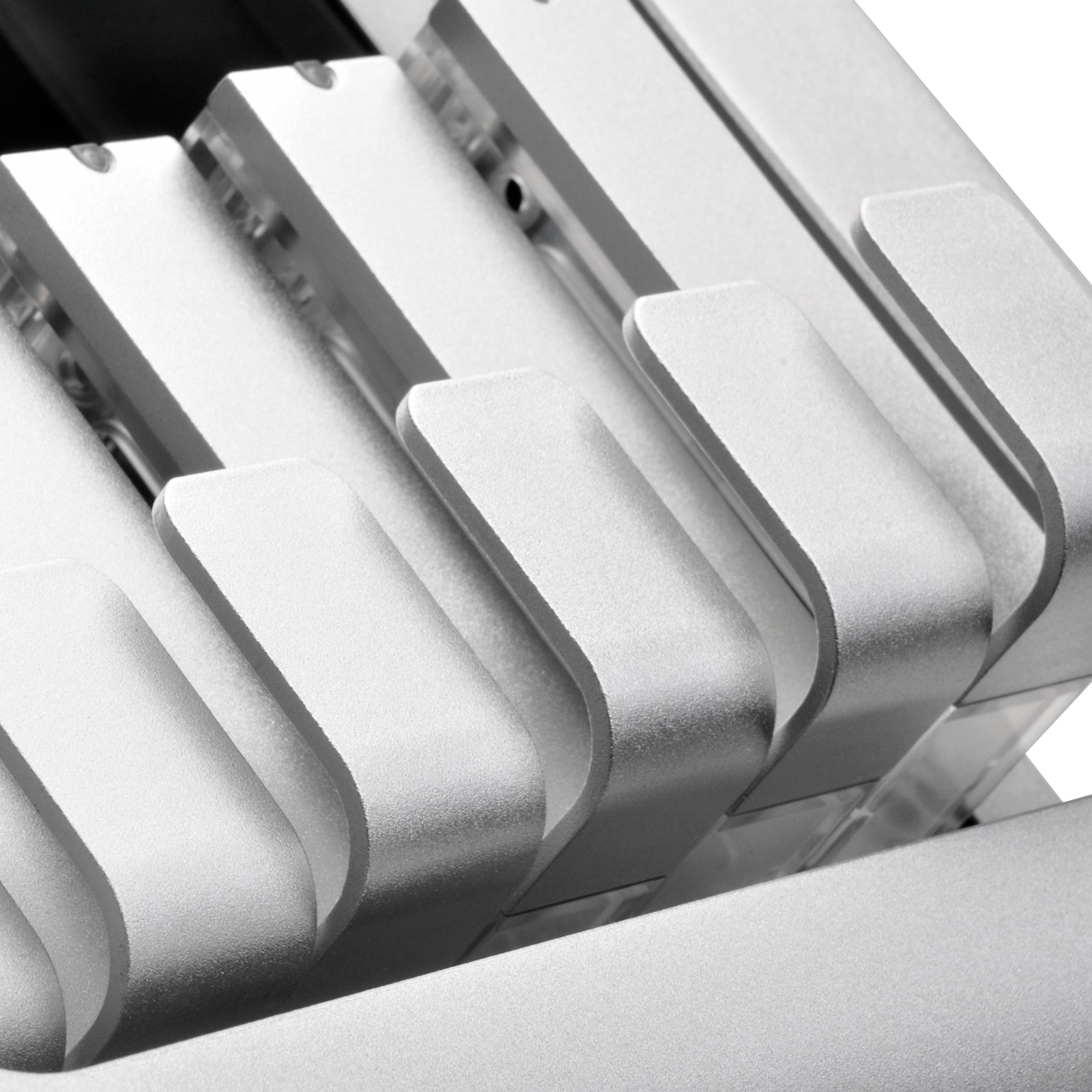

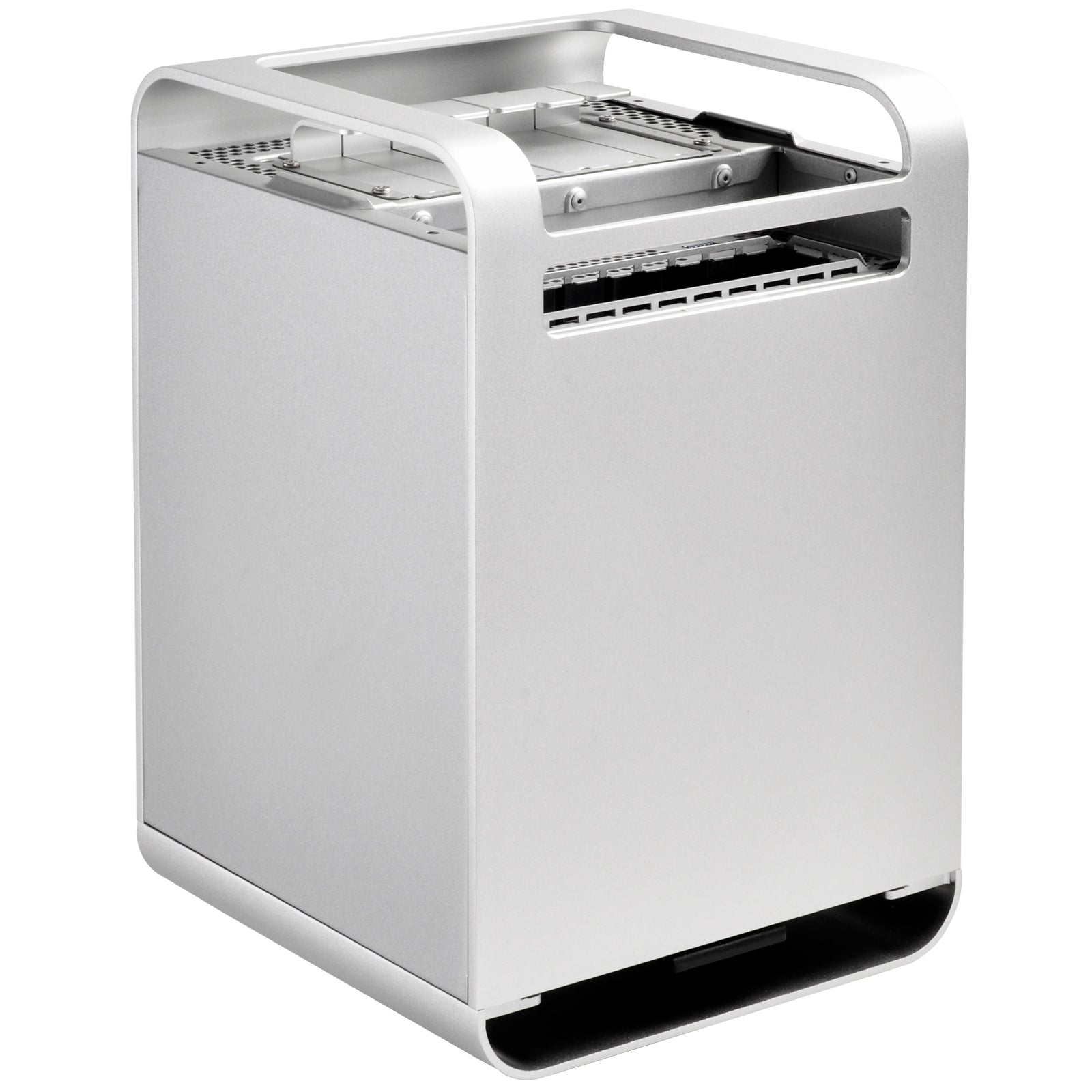

ï¿ Built-in six hot-swappable 2.5 drive bays with SAS 12 Gbit/s / SATA 6 Gbit/s backplane*

ï¿ Vertical layout for stack effect cooling with built-in Air Penetrator fan

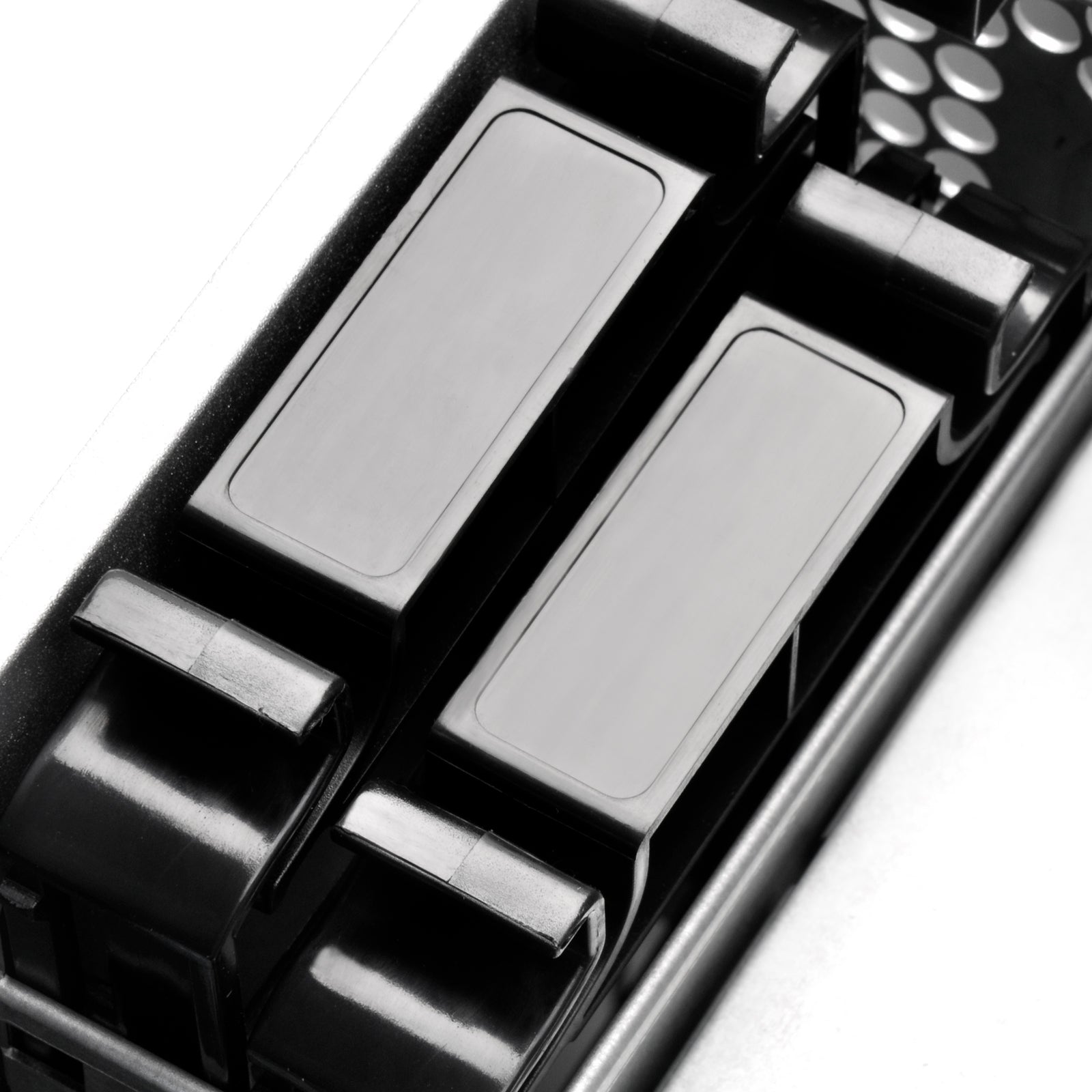

ï¿ Accommodates two more 2.5 drives internally for total eight drive capacity

ï¿ Supports 7.5 (190mm) low profile expansion card

Specifications

SPECIFICATIONS

Model No.	SST-CS01S-HS (Silver) SST-CS01B-HS (Black)
Material	Aluminum outer shell, steel body
Motherboard	Mini-ITX
Drive bay	External	2.5 SAS/ SATA hot-swap x 6 (support up to 15mm) with SAS 12 Gbit/s** / SATA 6 Gbit/s HDD backplane
		--
	Internal	2.5 x 2 (Support up to 12.5mm)
Cooling system	Front	--
	Rear	--
	Side	--
	Top	--

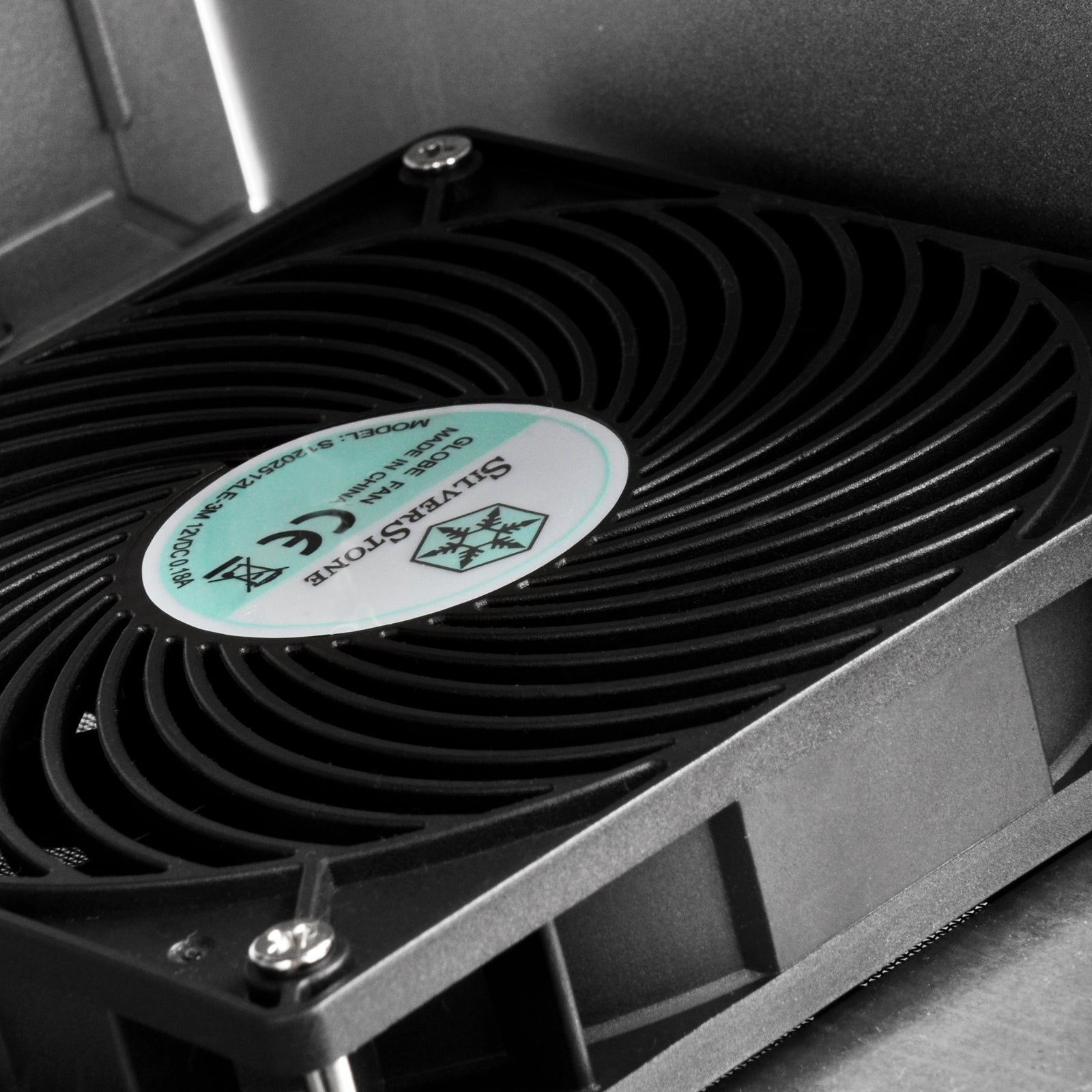

	Bottom	120mm AP fan x 1 , 1200rpm, 19.7dBA
	Internal	--
Expansion slot	1x low profile

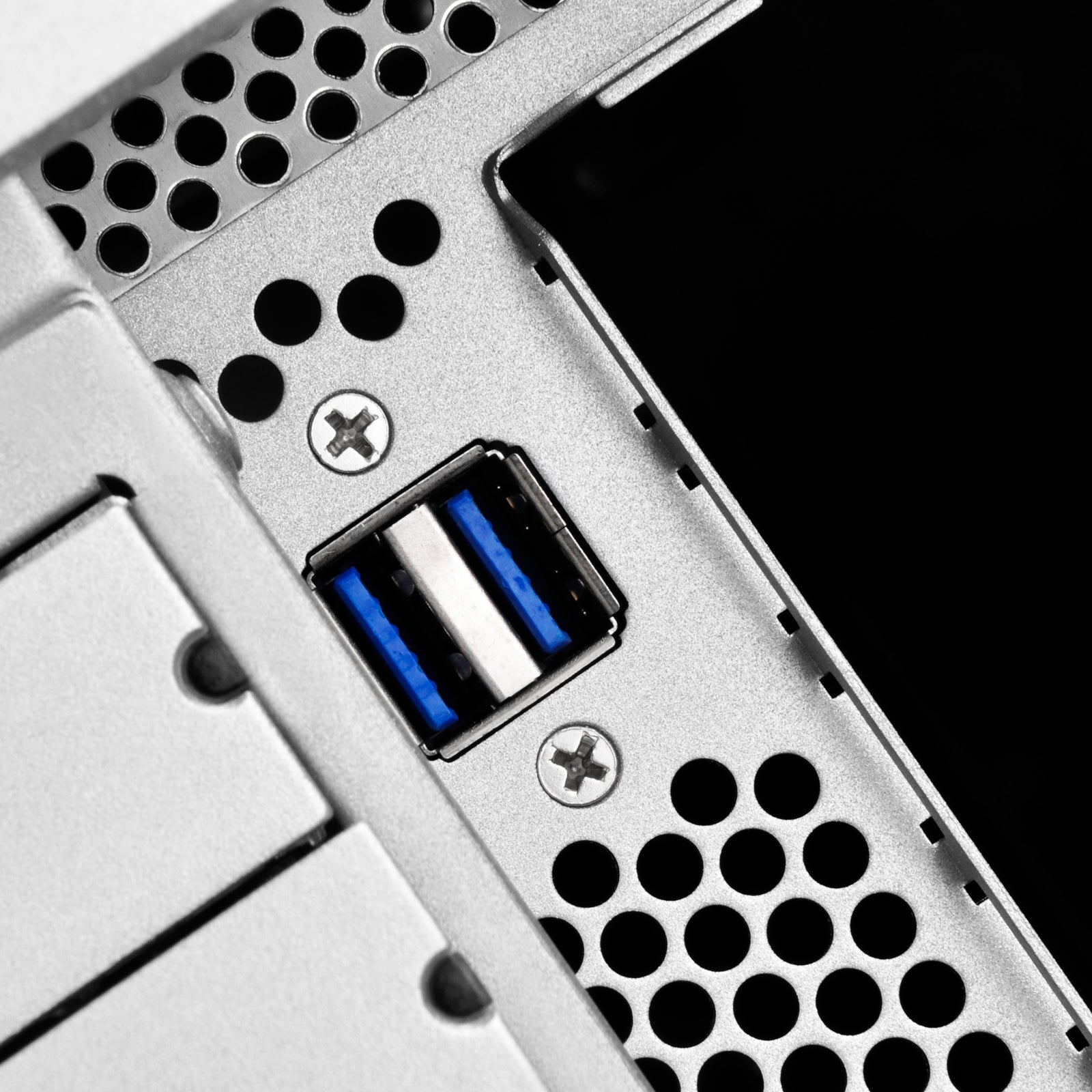

Front I/O port	USB 3.0 x 2
Power supply	SFXÂ / SFX-L
Expansion card	1 x low profile up to 7.5â? (190mm), width restriction â?? 2.95â? (74mm)
Limitation of CPU cooler	68mm
Limitation of PSU	130mm (Up toÂ SFX-L)
Net weight	4.289kg
Dimension	210.5mm (W) x 322 mm (H) x 210 mm (D), 14.2 liters 8.29 (W) x 12.68 (H) x 8.27 (D), 14.2 liters

Remark

* To use SAS drive, you must have motherboard or expansion card with hardware SAS controller.
** Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStoneÂ CPS05Â &Â ECS05)
