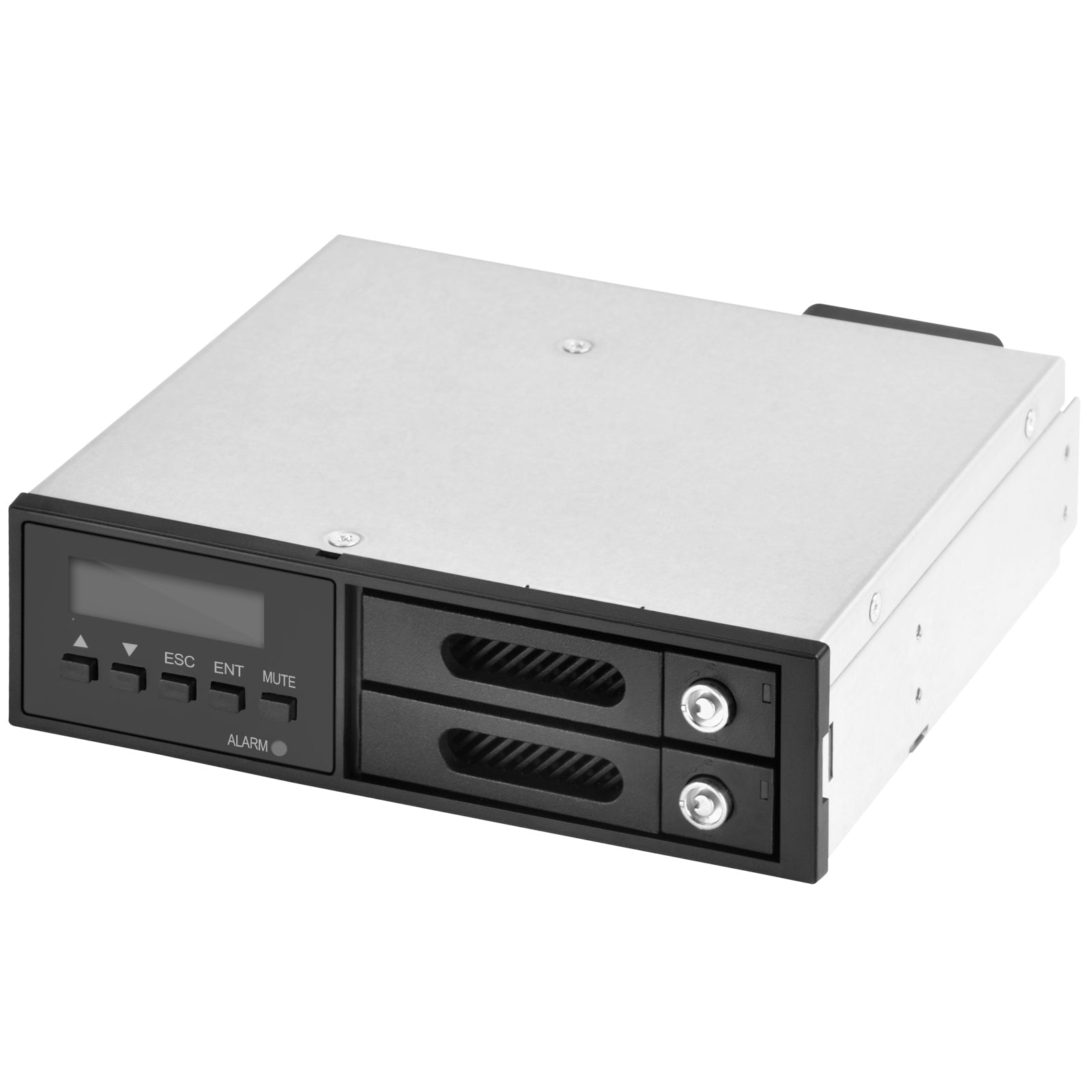

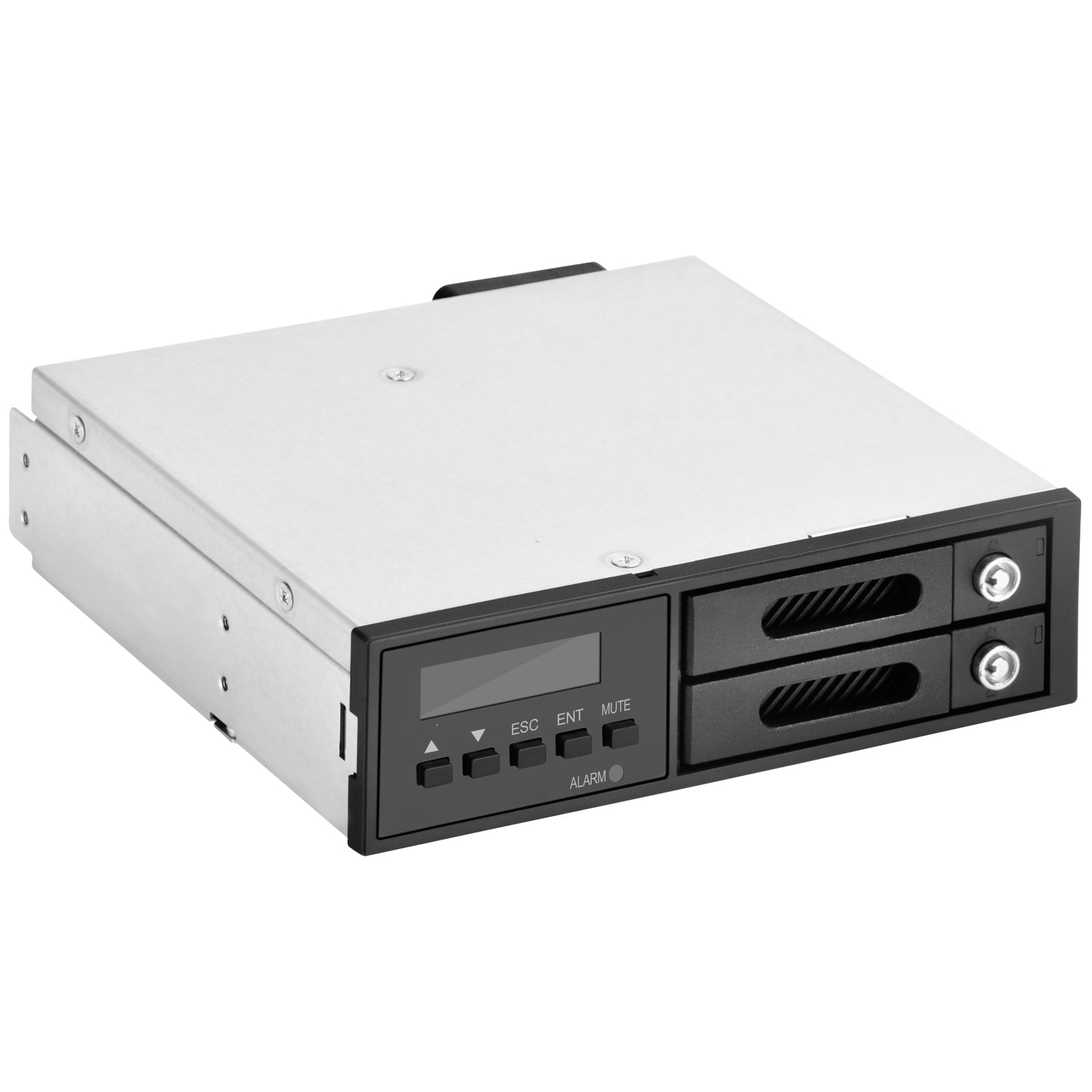

SilverStone Dual 2.5" SATA 6 Gbit/s drives in one 5.25" drive bay

RL-FSR202

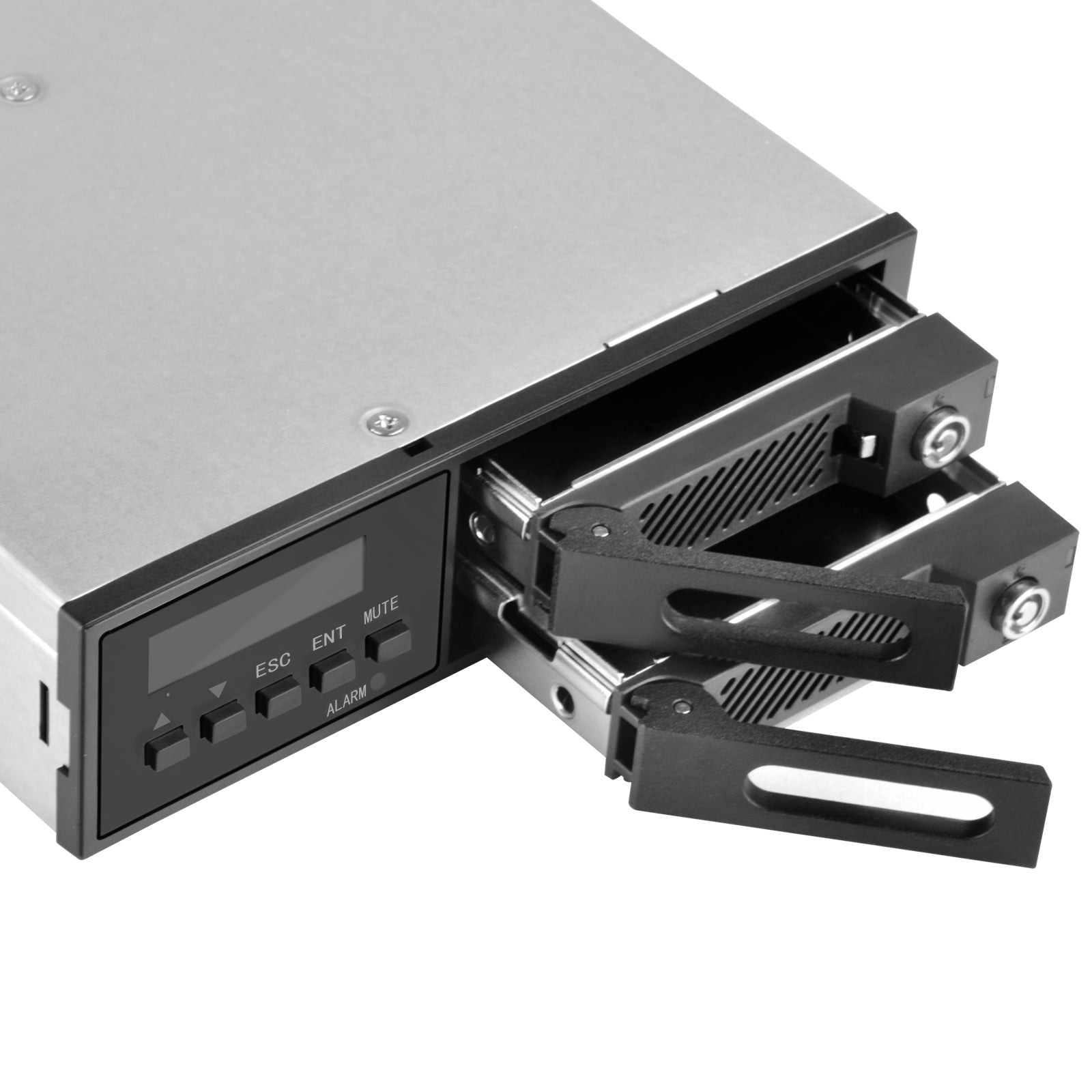

To accommodate PC user?s need for more storage flexibility and convenience, SilverStone created a line of front bay storage products called the FS series. Among the more unique products in the series, the FSR202 can support dual 2.5 SATA drives with release handle made for hot-swapping, thus exchanging drives is extremely quick and easy.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$224.99 USD $179.99 USD Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

To accommodate PC user?s need for more storage flexibility and convenience, SilverStone created a line of front bay storage products called the FS series. Among the more unique products in the series, the FSR202 can support dual 2.5 SATA drives with release handle made for hot-swapping, thus exchanging drives is extremely quick and easy. It also has RAID 0 / 1 function with a user-friendly interface and independent LED indicators to let users quickly discern drive status. Finally for security, each drive tray is equipped with metal key lock. For those that need to upgrade their current PC with more drives with enhanced capability, SilverStone?s FSR202 series is a great choice.

Features

ï¿­ Fits two 2.5 SATA 6 Gbit/s drives in one 5.25 drive bay

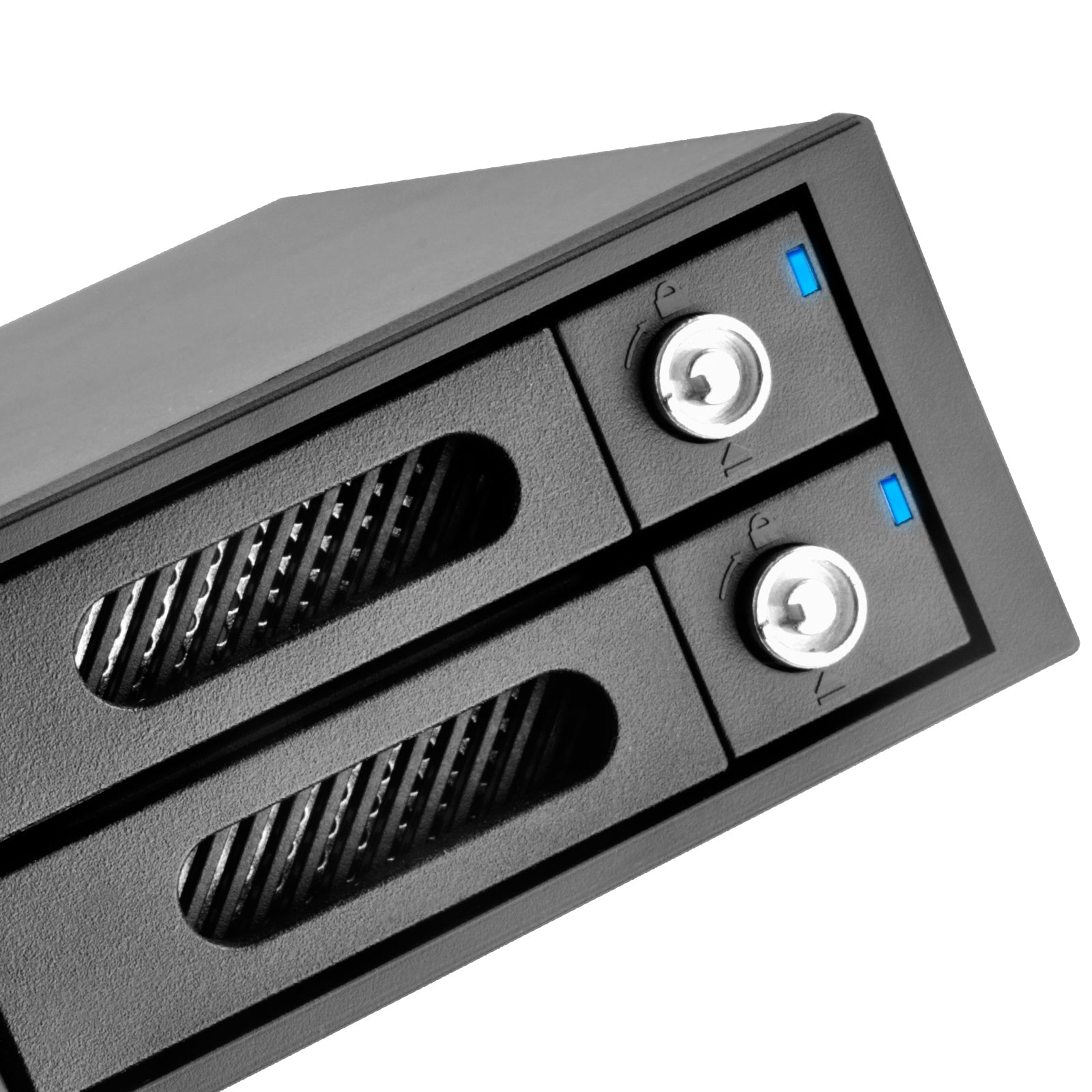

ï¿­ Individual metal key lock for each drive for extra security


ï¿­ Configurable RAID 0 and RAID 1 modes

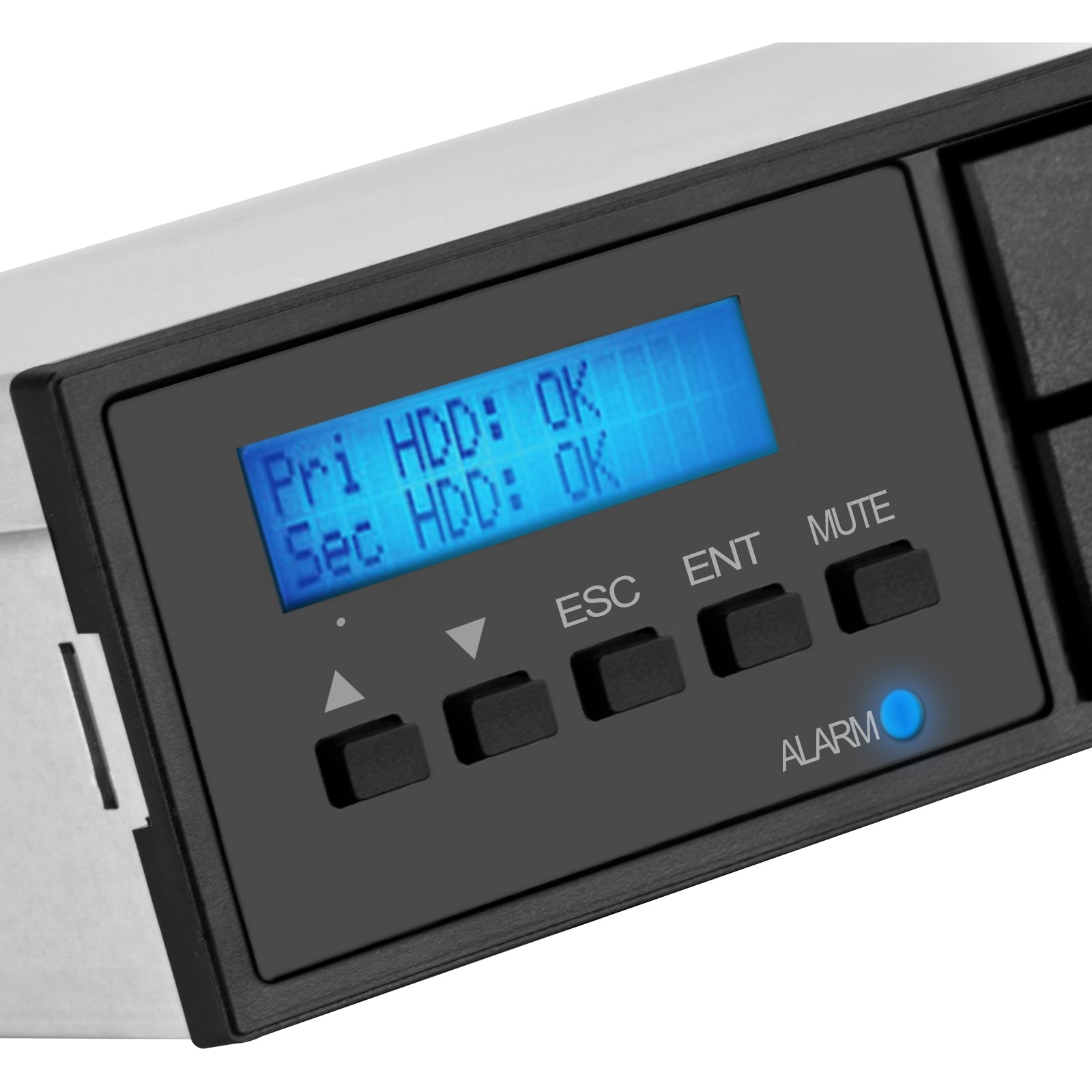

ï¿­ Friendly LCD display with LED indicators for system monitoring during operation at all times


ï¿­ Independent drive status LED

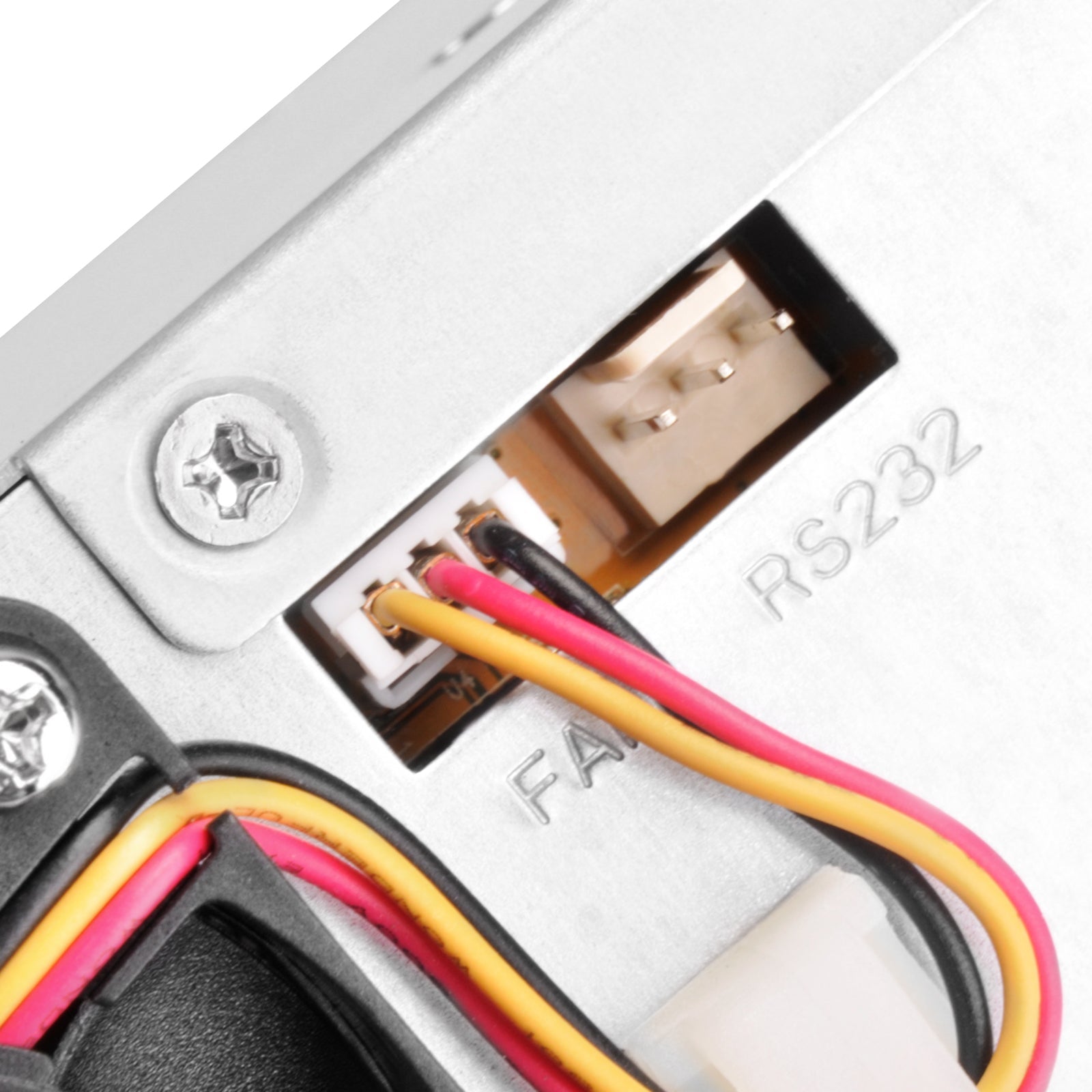

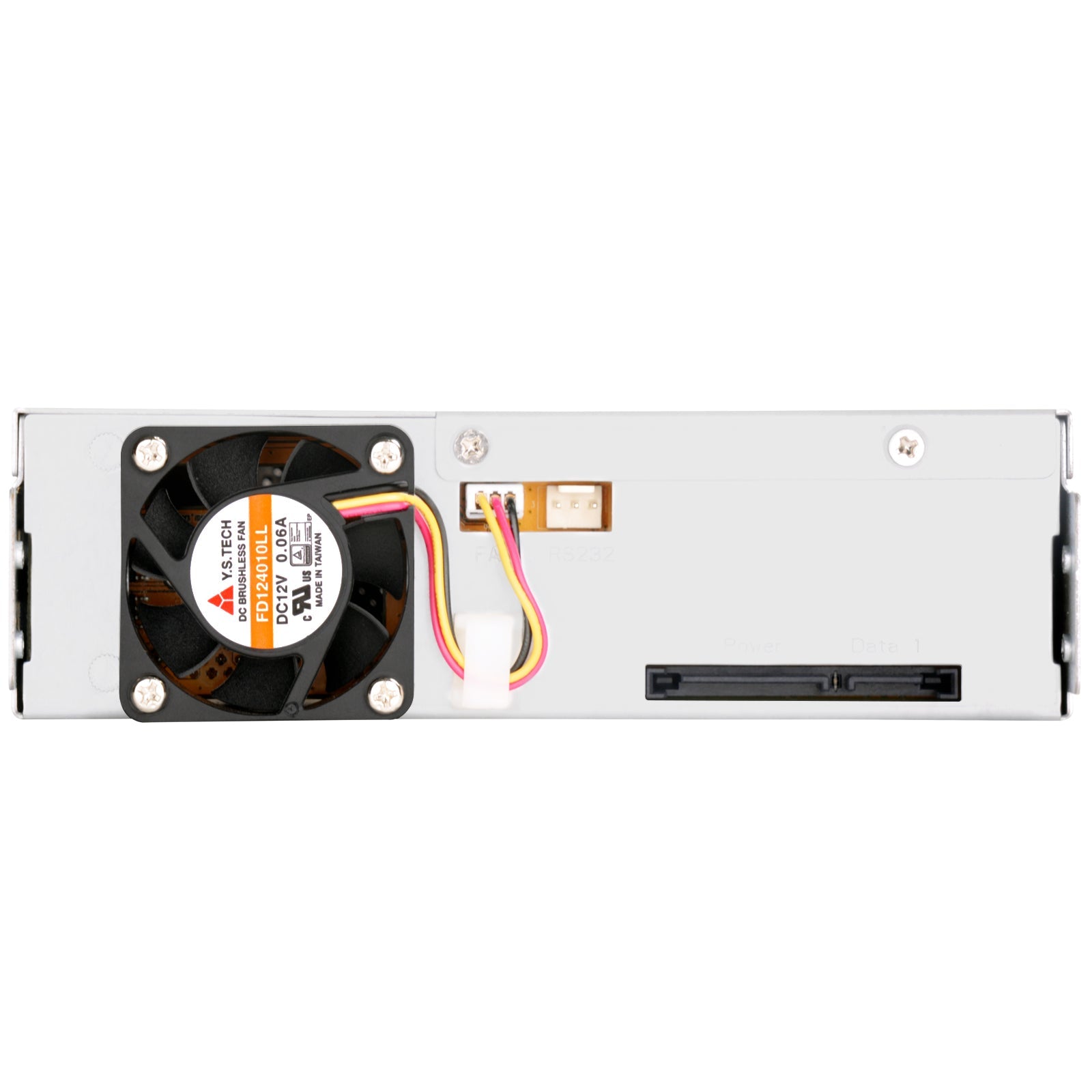

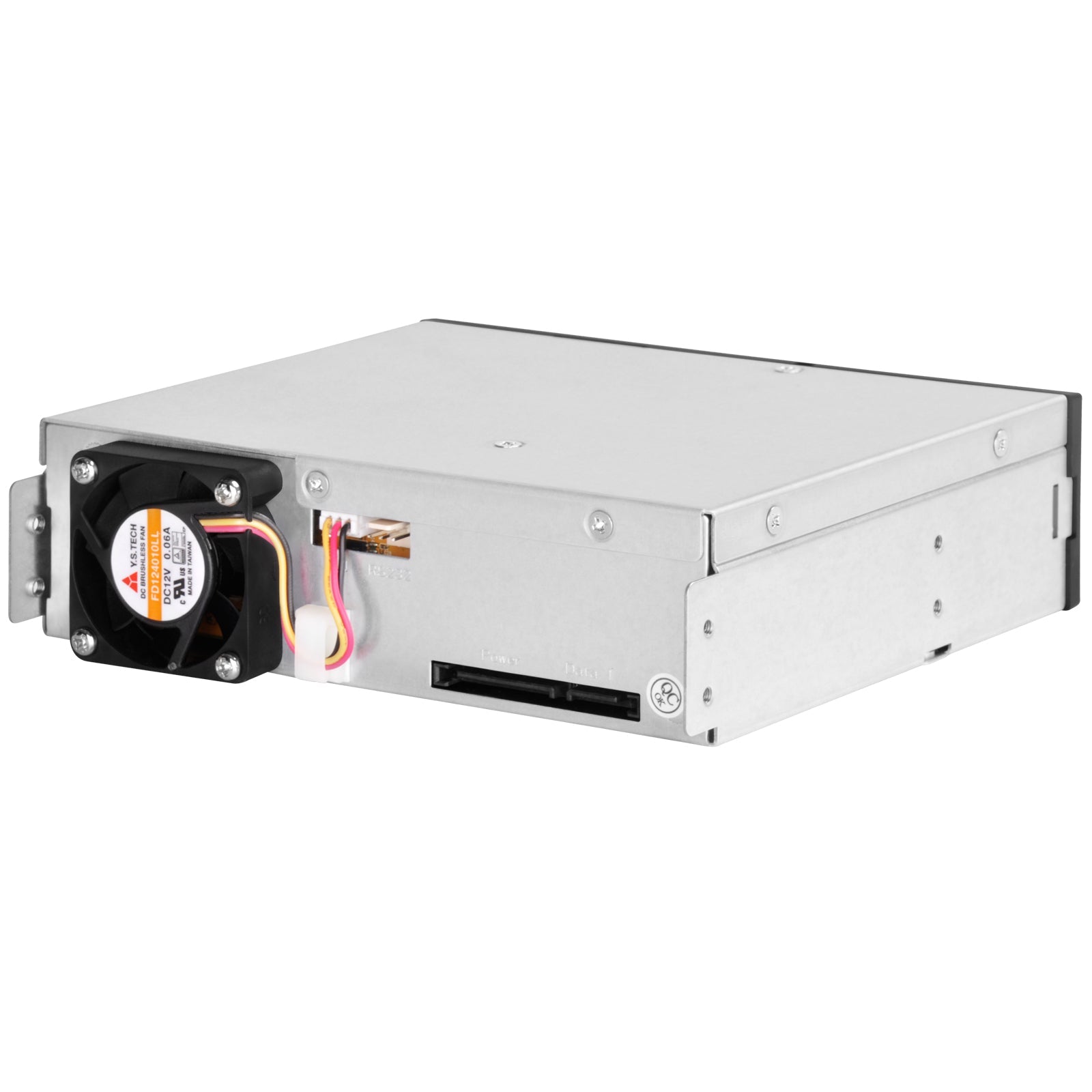

ï¿­ Built-in cooling fan for excellent heat dissipation


ï¿­ Compatible with all 2.5 drives up to 15mm thickness


ï¿­ Fully supports SATA Hot-Swap function

Specifications





































































Model No.



SST-FSR202



Color



Black



Material



SGCC



Cooling system



40mm low noise fan



Form factor



5.25 drive bay x 1



RAID function



RAID 0 / RAID 1



Operating system support



Microsoft Windows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit) or future release version
Mac OS 10.5 or above



Controller



ASMedia 1092R



Electrical and Operating Requirements



Line Voltage: 12V / 5V DC
Maximum Power Consumption: 30W
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Storage Temperature: -20°C ~ 47°C (-4°F ~ 116°F)
Relative Humidity: 5% ~ 95% non-condensing



Drive support



2 x 2.5 SATA HDD or SSD



Transfer rate



Up to 6 Gbit/s (dependent on drive speed)



LED indicator



Solid Purple: Fan Failure, Overheat (=50°C), HDD Failure
Solid Blue: Power, Read / Write, Rebuild
Solid Red: Buzzer On



Driver interface support



SATA I / II / III



System monitoring



Fan Failure, Overheat, HDD / SSD Failure



Net weight



920g



Dimension



148mm (W) x 43mm (H) x 140mm (D)
5.83 (W) x 1.69 (H) x 5.51 (D)
