SilverStone Dual-Bay 2.5" RAID Enclosure with USB 3.1 Type-C gen 2 - Black SilverStone Dual-Bay 2.5" RAID Enclosure with USB 3.1 Type-C gen 2 - Black
SilverStone Dual-Bay 2.5" RAID Enclosure with USB 3.1 Type-C gen 2 - Black

SilverStone Dual-Bay 2.5" RAID Enclosure with USB 3.1 Type-C gen 2 - Black

SilverStone Technology

DS223

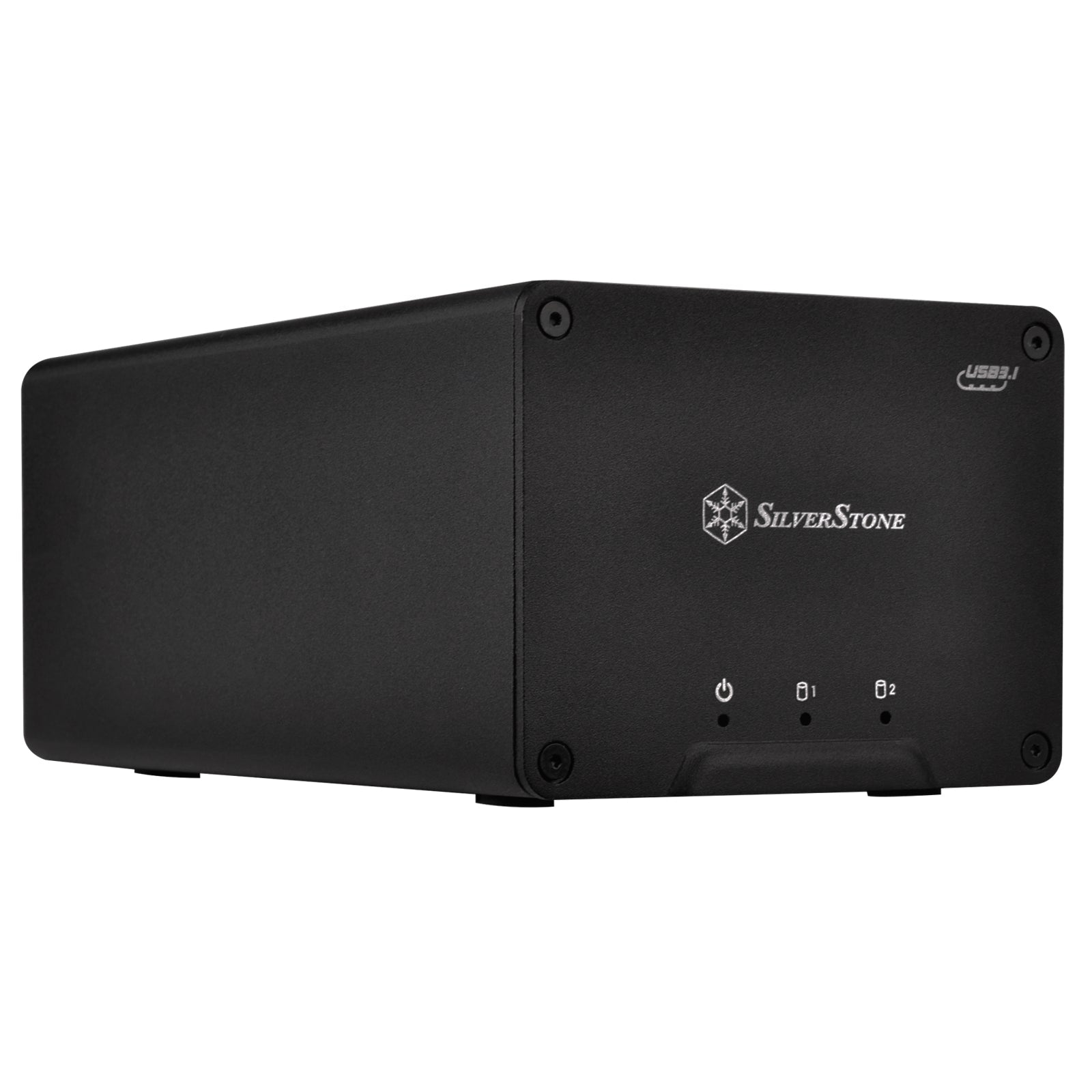

SilverStone DS223 is an external hard drive enclosure made to accommodate 2.5 drive at speeds up to 10Gb/s with its USB 3.1 Gen2 Type-C connector. A wide range of operating modes such as RAID 0, RAID 1, JBOD, and Non-RAID are supported to enable installed drives to be used for data security or extra performance. For enthusiasts or professionals requiring even greater performance, the DS223 is also equipped with UASP (USB Attached SCSI Protocol) so those with computers that support it can take their data transfer rate up another level. For those that need a simple and convenience way to save and manage big data, the DS223 is a great choice.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$108.99 $87.19 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

SilverStone DS223 is an external hard drive enclosure made to accommodate 2.5 drive at speeds up to 10Gb/s with its USB 3.1 Gen2 Type-C connector. A wide range of operating modes such as RAID 0, RAID 1, JBOD, and Non-RAID are supported to enable installed drives to be used for data security or extra performance. For enthusiasts or professionals requiring even greater performance, the DS223 is also equipped with UASP (USB Attached SCSI Protocol) so those with computers that support it can take their data transfer rate up another level. For those that need a simple and convenience way to save and manage big data, the DS223 is a great choice.
Features

ï¿­ USB 3.1 Gen2 Type-C connector with up to 10Gb/s super speed transfer rate


ï¿­ Supports UASP (USB Attached SCSI Protocol) function for even faster performance


ï¿­ Configurable RAID function (RAID 0, 1, JBOD, Non-RAID)


ï¿­ Aluminum body with tool-free hard drive installation design


ï¿­ Supports 2.5-inch SATA drives up to any capacity


ï¿­ USB bus powered included, no adapter required
Specifications





































































Model No.

SST-DS223

Color

Black

Power requirement

USB BUS powered (Support up to 5V/3A)

Material

Aluminum body

Cooling system

30mm x 30mm low noise fan x 1

Operating system support

Microsoft Windows 7 (32bit/64bit)*, 8/8.1/10 (32bit/64bit)** or future release version.
Mac OS 10.5*** or above

HDD size support

2.5 HDD/SSD (Support up to 12.5mm)

Enclosure interface

USB 3.1 Gen2 up to 10Gb/s (Compatible with USB 3.0 / 2.0 / 1.1)

LED indicator

Solid blue: Power on
Blinking blue: Read / Write
Solid red: Rebuilding
Blinking red: HDD cannot be recognized

Chipset

ASM1352R A1, ASM1542

Driver interface support

SATA I / II / III

RAID mode support

RAID 0, RAID 1, JBOD, Non-RAID

Enclosure connector

USB 3.1 Type-C

Environment

Operating Temperature: 5°C ~ 35°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Net weight

500±20g

Dimension

80mm (W) x 60mm (H) x 140mm (D)
3.15 (W) x 2.36 (H) x 5.51 (D)














Remark

* If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the DS223.


** Windows 8, 8.1, or 10 supports DS223 automatically so you do not need to install additional driver for it.


*** User should check for XHCI function in Mac OS, if computer system supports XHCI function then it can support DS223 automatically without additional driver installation.
